Каталог
Ближний ВостокМодель
GRNVA/HIACE/MJSTYДвигатель
2,8 литра, турбо-дизельФрейм
GDH304Трансмиссия
автомат АКПП, 6 скоростейОпции
правый руль STANDARD ROOF 5 дверей боковое стекло H TH 694W

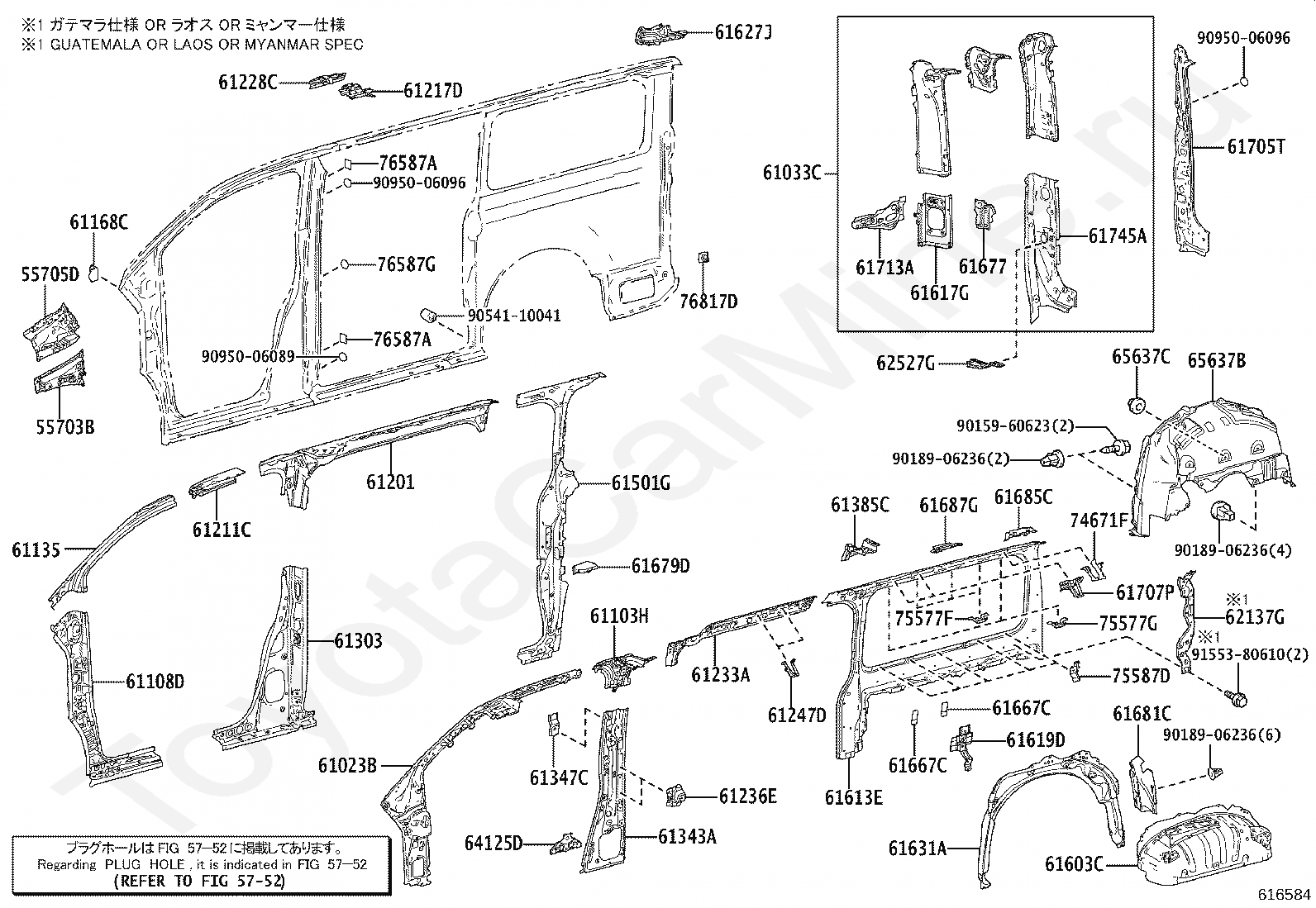

Код
Описание
61111A
PANEL, FRONT SIDE, OUTER RH
61112A
PANEL, FRONT SIDE, OUTER LH
61225A
RAIL, ROOF SIDE OUTER UPPER NO.1, RH
61225B
RAIL, ROOF SIDE OUTER UPPER NO.2, RH
61226A
RAIL, ROOF SIDE OUTER UPPER NO.1, LH
61226B
RAIL, ROOF SIDE OUTER UPPER NO.2, LH
61431
PANEL, ROCKER, OUTER REAR RH
61432
PANEL, ROCKER, OUTER REAR LH
61611
PANEL, QUARTER, RH
61612
PANEL, QUARTER, LH
Код
Описание
55703B
PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH
55705D
PANEL SUB-ASSY, COWL TOP SIDE, RH,
5752
переход к группе запчастей
61023B
PILLAR SUB-ASSY, FRONT BODY, INNER RH
61033C
REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH
61103H
PANEL SUB-ASSY, SIDE, NO.2 RH
61108D
REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61135
REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61168C
BRACKET, NO.6 PILLAR OUTER
61201
RAIL SUB-ASSY, ROOF SIDE, RH
61211C
RAIL, ROOF SIDE, RH
61217D
RAIL, ROOF SIDE, OUTER NO.4 RH
61228C
RAIL, ROOF SIDE OUTER UPPER NO.3, RH
61233A
RAIL, ROOF SIDE, INNER NO.2 RH
61236E
BRACKET, PILLAR ASSIST GRIP, LOWER
61247D
BRACKET, ASSIST GRIP, RH
61303
REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61343A
PILLAR, CENTER BODY, INNER RH
61347C
REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH
61385C
EXTENSION, CENTER BODY PILLAR, UPPER RH
61501G
PILLAR SUB-ASSY, QUARTER LOCK, RH
61603C
PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61613E
PANEL, QUARTER, INNER RH
61617G
PANEL, QUARTER, INNER REAR RH
61619D
REINFORCEMENT, QUARTER PANEL, RH
61627J
PANEL, QUARTER INNER, UPPER REAR RH
61631A
PANEL, QUARTER WHEEL HOUSE, OUTER RH
61667C
SEAL, QAURTER PANEL, NO.1
61677
REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61679D
SEAL, QUARTER WHEEL HOUSE
61681C
EXTENSION, REAR WHEEL OPENING, RH
61685C
BRACKET, REAR SEAT BACK STOPPER, RH
61687G
BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61705T
FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61707P
BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61713A
EXTENSION, ROOF SIDE, OUTER RH
61745A
REINFORCEMENT, BACK DOOR OPENING, LOWER RH
62137G
REINFORCE, SIDE WINDOW PANEL
62527G
PAD, QUARTER TRIM, LOWER RH
64125D
ANCHOR, PILLAR SEAT BELT, RH
65637B
LINER, REAR WHEEL HOUSE, RH
65637C
CLIP, REAR WHEEL HOUSE LINER
74671F
SUPPORT,ASSIST GRIP, NO.1
75577F
BRACKET, ROOF SIDE GARNISH
75577G
BRACKET, ROOF SIDE GARNISH
75587D
BRACKET, ROOF SIDE GARNISH, NO.2 RH
76587A
PROTECTOR, CENTER PILLAR OUTER
76587G
PROTECTOR, CENTER PILLAR OUTER
76817D
CLIP, BACK DOOR OUTSIDE GARNISH
9015960623
Крепеж
9018906236
Крепеж
9054110041
Крепеж
9095006089
Крепеж
9095006096
Крепеж
9155380610
Крепеж

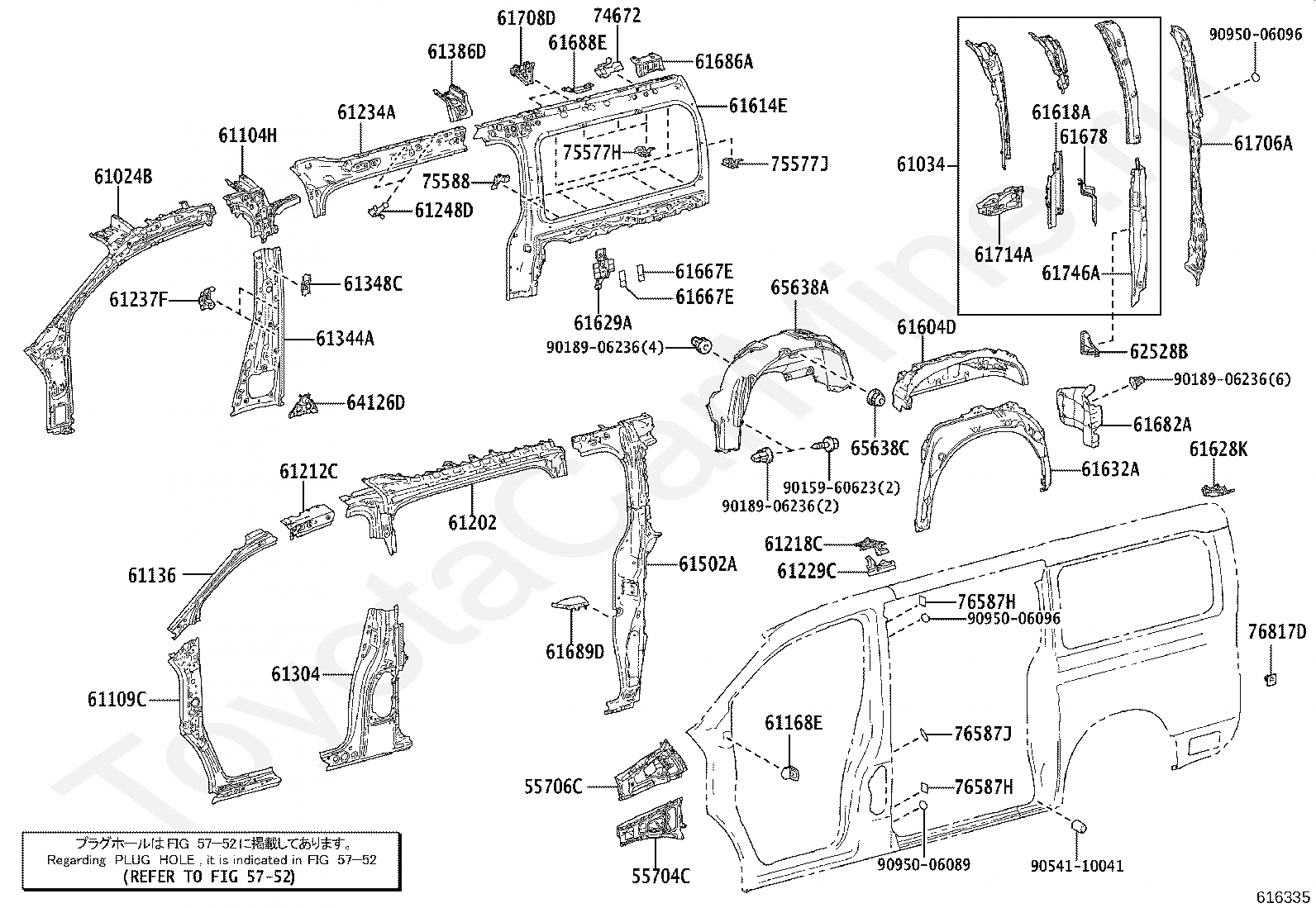

Код
Описание
55704C
PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH
55706C
PANEL SUB-ASSY, COWL TOP SIDE, LH
5752
переход к группе запчастей
61024B
PILLAR SUB-ASSY, FRONT BODY, INNER LH
61034
REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61104H
PANEL SUB-ASSY, SIDE, NO.2 LH
61109C
REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61136
REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61168E
BRACKET, NO.6 PILLAR OUTER
61202
RAIL SUB-ASSY, ROOF SIDE, LH
61212C
RAIL, ROOF SIDE, LH
61218C
RAIL, ROOF SIDE, OUTER NO.4 LH
61229C
RAIL, ROOF SIDE OUTER UPPER NO.3. LH
61234A
RAIL, ROOF SIDE, INNER NO.2 LH
61237F
BRACKET, PILLAR ASSIST GRIP, LOWER
61248D
BRACKET, ASSIST GRIP, LH
61304
REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61344A
PILLAR, CENTER BODY, INNER LH
61348C
REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH
61386D
EXTENSION, CENTER BODY PILLAR, UPPER LH
61502A
PILLAR SUB-ASSY, QUARTER LOCK, LH
61604D
PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61614E
PANEL, QUARTER, INNER LH
61618A
PANEL, QUARTER, INNER REAR LH
61628K
PANEL, QUARTER INNER, UPPER REAR LH
61629A
REINFORCEMENT, QUARTER PANEL, LH
61632A
PANEL, QUARTER WHEEL HOUSE, OUTER LH
61667E
SEAL, QUARTER PANEL, NO.1
61678
REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61682A
EXTENSION, REAR WHEEL OPENING, LH
61686A
BRACKET, REAR SEAT BACK STOPPER, LH
61688E
BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61689D
SEAL, QUARTER WHEEL HOUSE, LH
61706A
FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61708D
BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61714A
EXTENSION, ROOF SIDE, OUTER LH
61746A
REINFORCEMENT, BACK DOOR OPENING, LOWER LH
62528B
PAD, QUARTER TRIM, LOWER LH
64126D
ANCHOR, PILLAR SEAT BELT, LH
65638A
LINER, REAR WHEEL HOUSE, LH
65638C
CLIP, REAR WHEEL HOUSE LINER
74672
SUPPORT,ASSIST GRIP, NO.2
75577H
BRACKET, ROOF SIDE GARNISH
75577J
BRACKET, ROOF SIDE GARNISH
75588
BRACKET, ROOF SIDE GARNISH, NO.2 LH
76587H
PROTECTOR, CENTER PILLAR OUTER
76587J
PROTECTOR, CENTER PILLAR OUTER
76817D
CLIP, BACK DOOR OUTSIDE GARNISH
9015960623
Крепеж
9018906236
Крепеж
9054110041
Крепеж
9095006089
Крепеж
9095006096
Крепеж

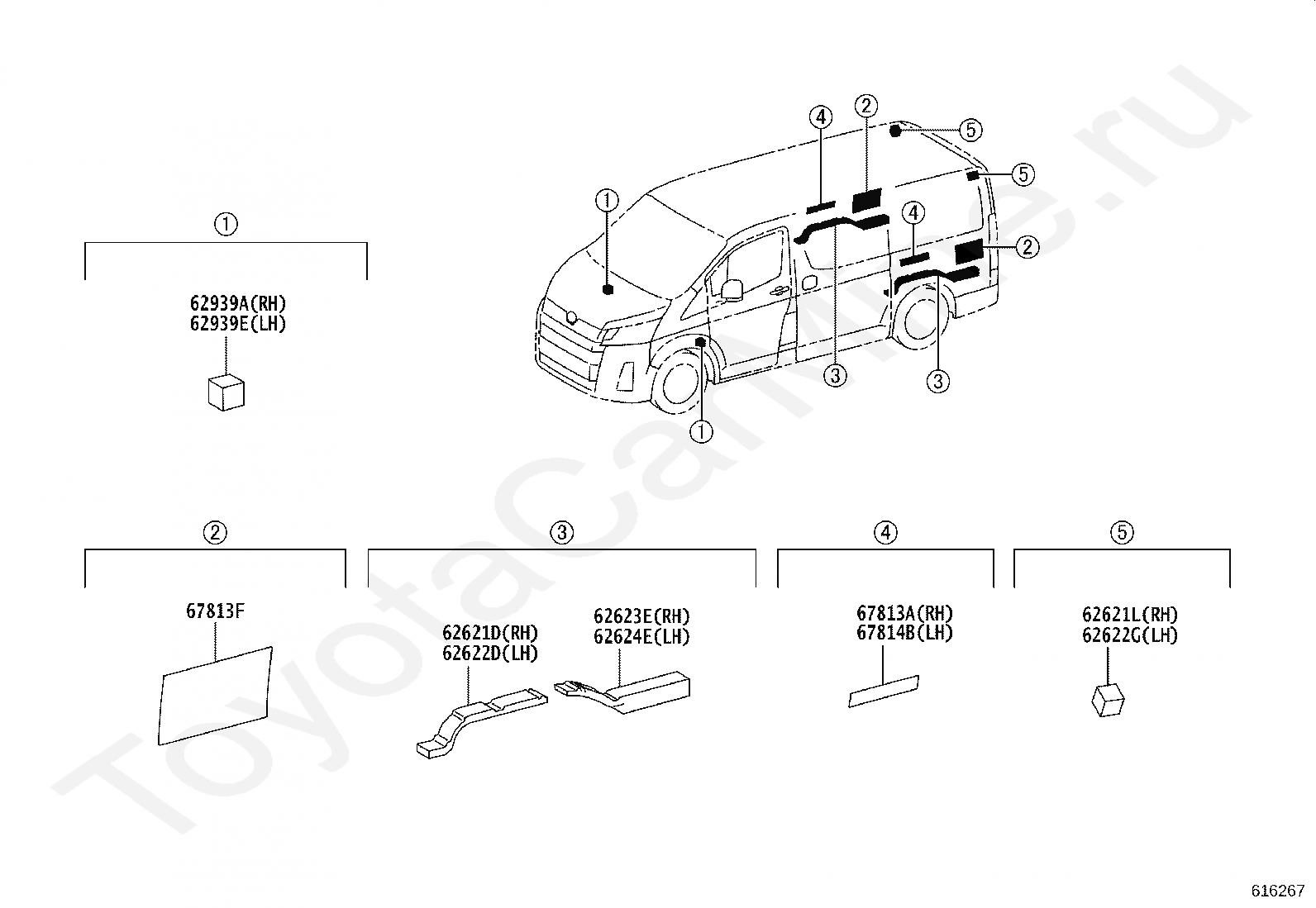

Код
Описание
62621D
PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62621L
PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62622D
PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62622G
PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62623E
PAD, QUARTER WHEEL HOUSE, INNER REAR RH
62624E
PAD, QUARTER WHEEL HOUSE, INNER REAR LH
62939A
SILENCER, QUARTER VENT
62939E
SILENCER, QUARTER VENT
67813A
SHEET, QUARTER PANEL SILENCER, RH
67813F
SHEET, QUARTER PANEL SILENCER
67814B
SHEET, QUARTER PANEL SILENCER, LH
