Каталог
ЯпонияМодель
GRANVIA/GRAND HIACEДвигатель
3,4 литра, EFIКузов
фургонКласс
GRAMSФрейм
VCH10Трансмиссия
автоматОпции
8-местный 4 двери электронная система впрыска топлива

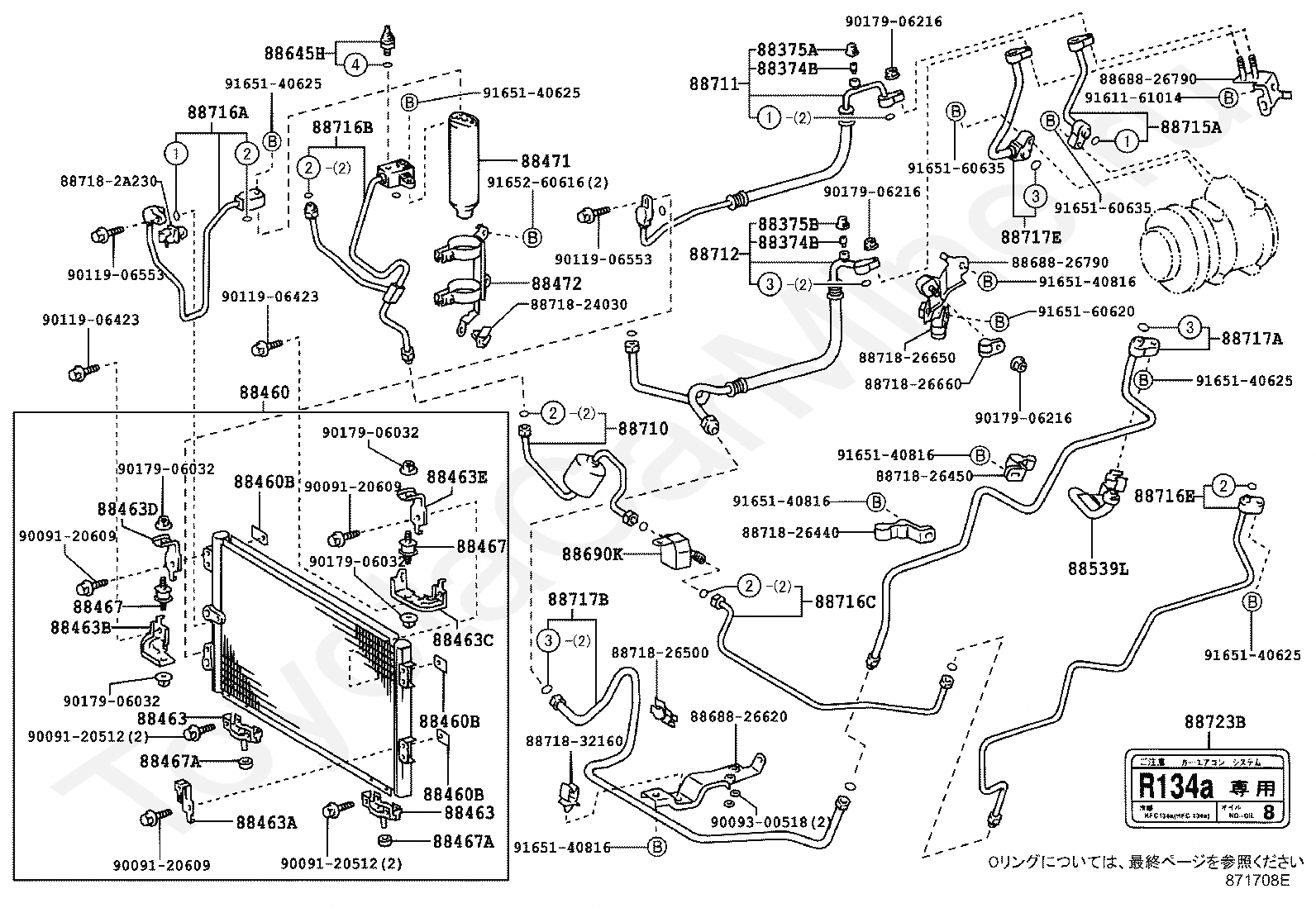

Код
Описание
88374B
VALVE, SERVICE, NO.1
88375A
CAP, SERVICE VALVE (FOR COOLER PIPE)
88375B
CAP, SERVICE VALVE, NO.1
88460
CONDENSER ASSY, COOLER
88460B
BRACKET, COOLER CONDENSER, NO.1
88463
BRACKET, COOLER CONDENSER, NO.1
88463A
BRACKET, COOLER CONDENSER, NO.2
88463B
BRACKET, COOLER CONDENSER, NO.3
88463C
BRACKET, COOLER CONDENSER, NO.4
88463D
BRACKET, COOLER CONDENSER, NO.5
88463E
BRACKET, COOLER CONDENSER, NO.6
88467
CUSHION, COOLER CONDENSER, NO.1
8846730270
Крепеж
88467A
CUSHION, COOLER CONDENSER, NO.2
88471
TANK, RECEIVER AIR CONDITIONER
88472
BRACKET, RECEIVER TANK, NO.1
88539L
HOSE, DRAIN COOLER
88645H
SWITCH, PRESSURE NO.1
8868826780
Крепеж
8868826790
Крепеж
8868826840
Крепеж
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717E
PIPE, COOLER REFRIGERANT SUCTION, E
8871824030
Крепеж
8871826440
Крепеж
8871826450
Крепеж
8871826520
Крепеж
8871826650
Крепеж
8871826660
Крепеж
887182A230
Крепеж
88723B
LABEL, COOLER SERVICE CAUTION
9009120512
Крепеж
9009120609
Крепеж
9011906423
Крепеж
9011906553
Крепеж
9017906032
Крепеж
9017906216
Крепеж
9161161014
Крепеж
9165140625
Крепеж
9165140816
Крепеж
9165160620
Крепеж
9165160635
Крепеж
9165260616
Крепеж

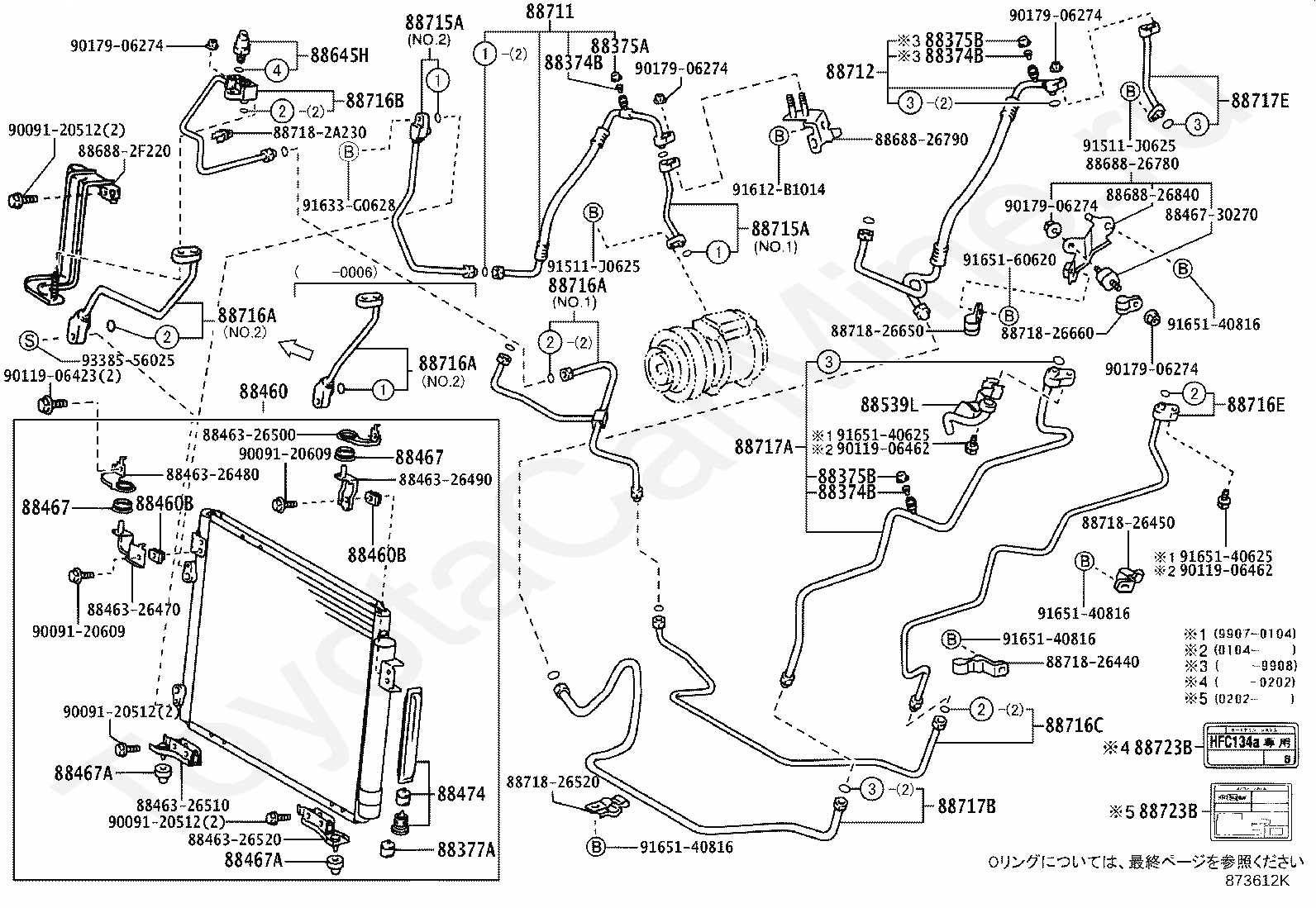

Код
Описание
88374B
VALVE, SERVICE, NO.1
88375A
CAP, SERVICE VALVE (FOR COOLER PIPE)
88375B
CAP, SERVICE VALVE, NO.1
88377A
FILTER, REFRIGERANT
88460
CONDENSER ASSY, COOLER
88460B
BRACKET, COOLER CONDENSER, NO.1
8846326470
Крепеж
8846326480
Крепеж
8846326490
Крепеж
8846326500
Крепеж
8846326510
Крепеж
8846326520
Крепеж
88467
CUSHION, COOLER CONDENSER, NO.1
8846730270
Крепеж
88467A
CUSHION, COOLER CONDENSER, NO.2
88474
DRYER, COOLER
88539L
HOSE, DRAIN COOLER
88645H
SWITCH, PRESSURE NO.1
8868826780
Крепеж
8868826790
Крепеж
8868826840
Крепеж
886882F220
Крепеж
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717E
PIPE, COOLER REFRIGERANT SUCTION, E
8871826440
Крепеж
8871826450
Крепеж
8871826520
Крепеж
8871826650
Крепеж
8871826660
Крепеж
887182A230
Крепеж
88723B
LABEL, COOLER SERVICE CAUTION
9009120512
Крепеж
9009120609
Крепеж
9011906423
Крепеж
9011906462
Крепеж
9017906274
Крепеж
91511J0625
Крепеж
91612B1014
Крепеж
91633G0628
Крепеж
9165140625
Крепеж
9165140816
Крепеж
9165160620
Крепеж
9338556025
Крепеж

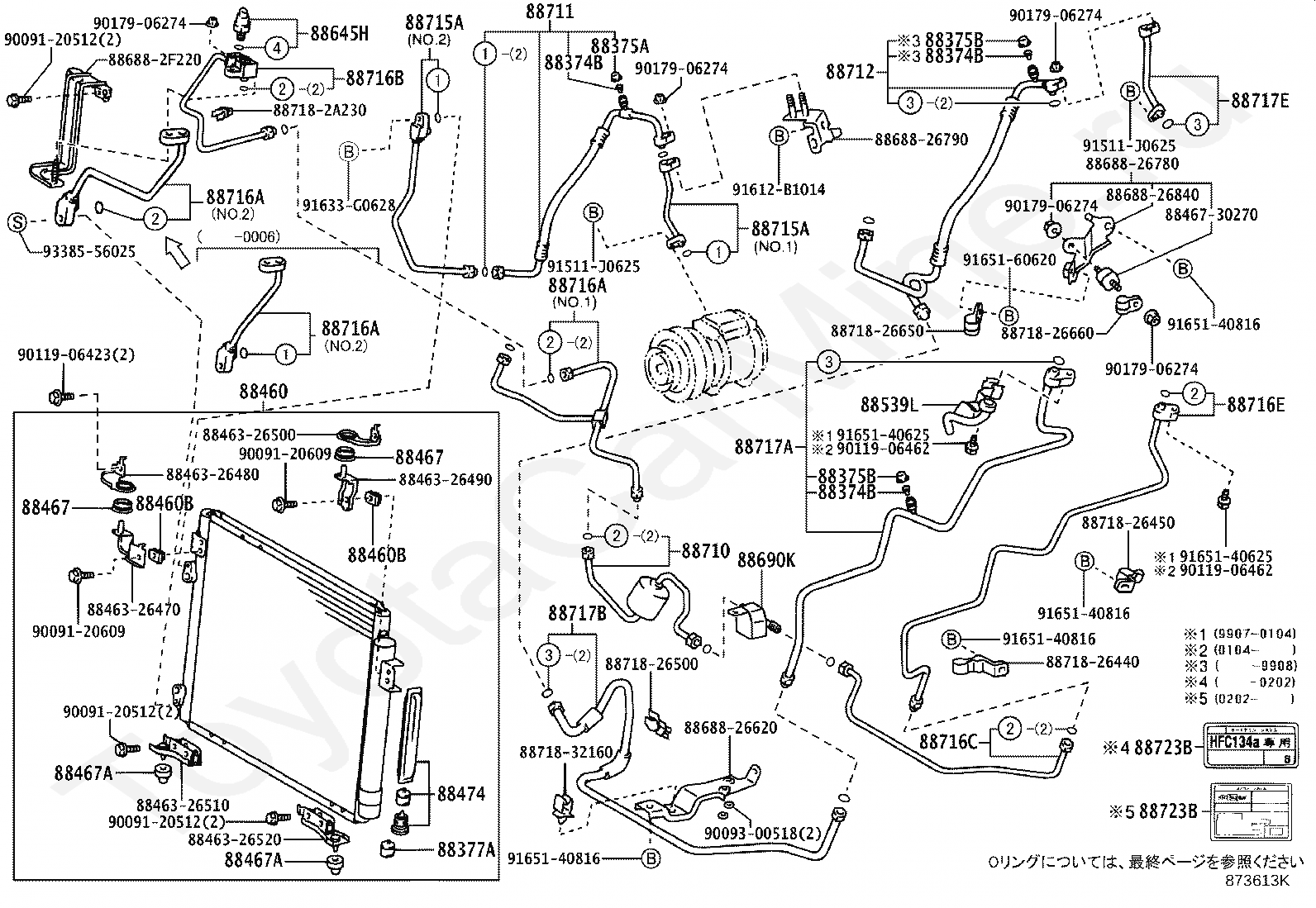

Код
Описание
88374B
VALVE, SERVICE, NO.1
88375A
CAP, SERVICE VALVE (FOR COOLER PIPE)
88375B
CAP, SERVICE VALVE, NO.1
88460
CONDENSER ASSY, COOLER
88460B
BRACKET, COOLER CONDENSER, NO.1
88463
BRACKET, COOLER CONDENSER, NO.1
88463A
BRACKET, COOLER CONDENSER, NO.2
88463B
BRACKET, COOLER CONDENSER, NO.3
88463C
BRACKET, COOLER CONDENSER, NO.4
88463D
BRACKET, COOLER CONDENSER, NO.5
88463E
BRACKET, COOLER CONDENSER, NO.6
88467
CUSHION, COOLER CONDENSER, NO.1
88467A
CUSHION, COOLER CONDENSER, NO.2
88471
TANK, RECEIVER AIR CONDITIONER
88472
BRACKET, RECEIVER TANK, NO.1
88539L
HOSE, DRAIN COOLER
88645H
SWITCH, PRESSURE NO.1
8868826620
Крепеж
8868826790
Крепеж
88690K
VALVE ASSY, MAGNET
88710
TUBE ASSY, AIR CONDITIONER
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717E
PIPE, COOLER REFRIGERANT SUCTION, E
8871824030
Крепеж
8871826440
Крепеж
8871826450
Крепеж
8871826500
Крепеж
8871826650
Крепеж
8871826660
Крепеж
887182A230
Крепеж
8871832160
Крепеж
88723B
LABEL, COOLER SERVICE CAUTION
9009120512
Крепеж
9009120609
Крепеж
9009300518
Крепеж
9011906423
Крепеж
9011906553
Крепеж
9017906032
Крепеж
9017906216
Крепеж
9161161014
Крепеж
9165140625
Крепеж
9165140816
Крепеж
9165160620
Крепеж
9165160635
Крепеж
9165260616
Крепеж

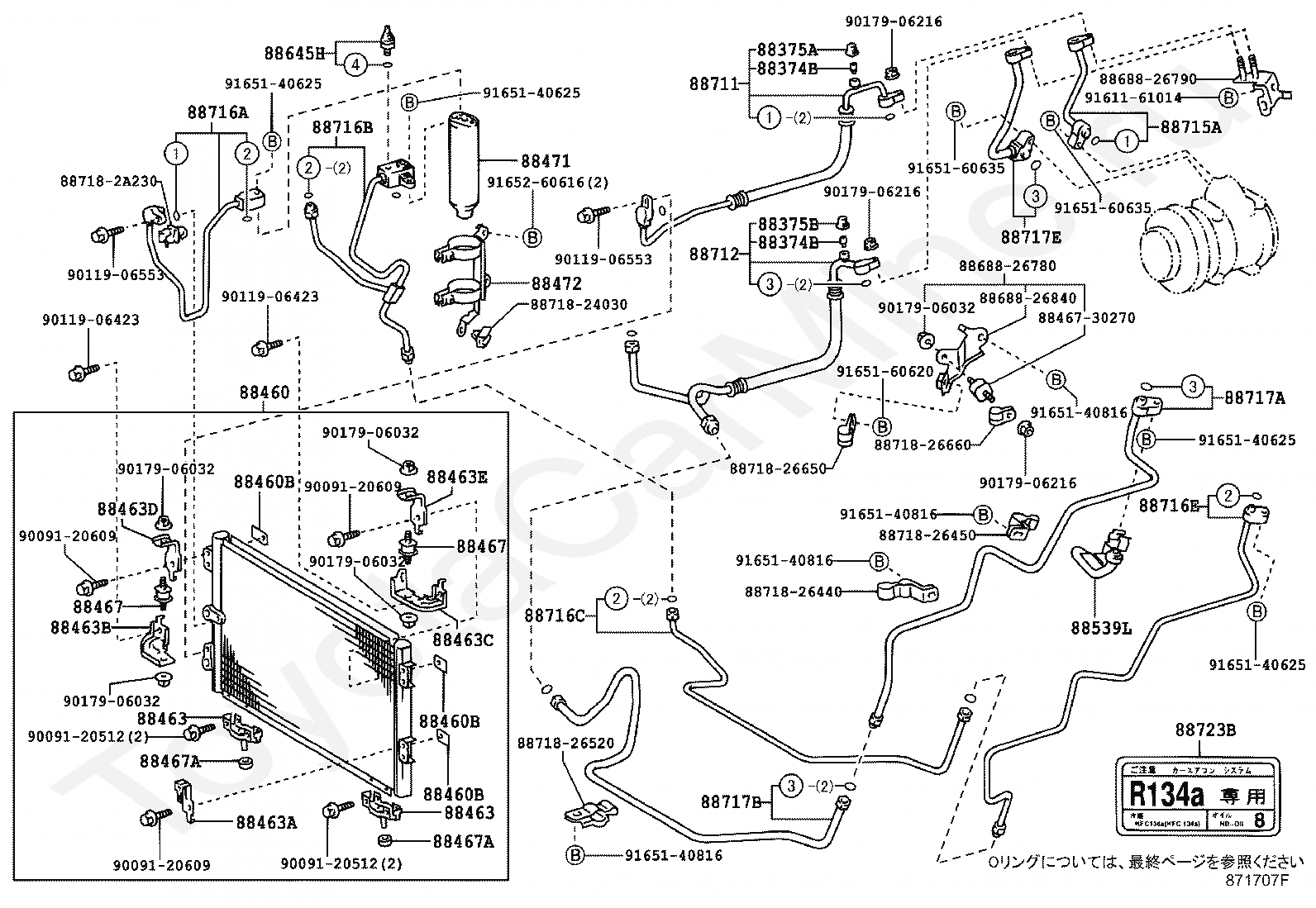

Код
Описание
88374B
VALVE, SERVICE, NO.1
88375A
CAP, SERVICE VALVE (FOR COOLER PIPE)
88375B
CAP, SERVICE VALVE, NO.1
88377A
FILTER, REFRIGERANT
88460
CONDENSER ASSY, COOLER
88460B
BRACKET, COOLER CONDENSER, NO.1
8846326470
Крепеж
8846326480
Крепеж
8846326490
Крепеж
8846326500
Крепеж
8846326510
Крепеж
8846326520
Крепеж
88467
CUSHION, COOLER CONDENSER, NO.1
8846730270
Крепеж
88467A
CUSHION, COOLER CONDENSER, NO.2
88474
DRYER, COOLER
88539L
HOSE, DRAIN COOLER
88645H
SWITCH, PRESSURE NO.1
8868826620
Крепеж
8868826780
Крепеж
8868826790
Крепеж
8868826840
Крепеж
886882F220
Крепеж
88690K
VALVE ASSY, MAGNET
88710
TUBE ASSY, AIR CONDITIONER
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717E
PIPE, COOLER REFRIGERANT SUCTION, E
8871826440
Крепеж
8871826450
Крепеж
8871826500
Крепеж
8871826650
Крепеж
8871826660
Крепеж
887182A230
Крепеж
8871832160
Крепеж
88723B
LABEL, COOLER SERVICE CAUTION
9009120512
Крепеж
9009120609
Крепеж
9009300518
Крепеж
9011906423
Крепеж
9011906462
Крепеж
9017906274
Крепеж
91511J0625
Крепеж
91612B1014
Крепеж
91633G0628
Крепеж
9165140625
Крепеж
9165140816
Крепеж
9165160620
Крепеж
9338556025
Крепеж
Код
Описание
62429C
COVER, CENTER PILLAR SERVICE HOLE
62491A
PACKING, CENTER PILLAR SERVISE HOLE COVER, UPPER
8846795704
Крепеж
88515A
VALVE, COOLER EXPANSION
8856916050
Крепеж
8856926060
Крепеж
8857826070
Крепеж
8868826600
Крепеж
8868826610
Крепеж
88691K
VALVE ASSY, MAGNET
88710D
TUBE ASSY, AIR CONDITIONER
88710E
TUBE & ACCESSORY ASSY, AIR CONDITIONER
8871826320
Крепеж
8871826330
Крепеж
8871826340
Крепеж
8871826350
Крепеж
8871826361
Крепеж
8871826371
Крепеж
8871826380
Крепеж
8871826500
Крепеж
8871826700
Крепеж
8871826800
Крепеж
88726B
PIPE, COOLER REFRIGERANT LIQUID, B
88727B
PIPE, COOLER REFRIGERANT SUCTION, B
88727C
PIPE, COOLER REFRIGERANT SUCTION, C
8889126190
Крепеж
8889726080
Крепеж
88897T
GROMMET, COOLER
9004464009
Крепеж
9009904381
Крепеж
9009904469
Крепеж
9009932138
Крепеж
9011906182
Крепеж
9015950123
Крепеж
9015960025
Крепеж
9017906274
Крепеж
9018905019
Крепеж
9165140820
Крепеж
9338518016
Крепеж
Код
Описание
62429C
COVER, CENTER PILLAR SERVICE HOLE
62491A
PACKING, CENTER PILLAR SERVISE HOLE COVER, UPPER
8846795704
Крепеж
88515A
VALVE, COOLER EXPANSION
8856916050
Крепеж
8856926060
Крепеж
8857826070
Крепеж
8868826600
Крепеж
8868826610
Крепеж
88691K
VALVE ASSY, MAGNET
88710D
TUBE ASSY, AIR CONDITIONER
88710E
TUBE & ACCESSORY ASSY, AIR CONDITIONER
8871826320
Крепеж
8871826330
Крепеж
8871826340
Крепеж
8871826350
Крепеж
8871826361
Крепеж
8871826371
Крепеж
8871826380
Крепеж
8871826500
Крепеж
8871826700
Крепеж
8871826800
Крепеж
88726B
PIPE, COOLER REFRIGERANT LIQUID, B
88727B
PIPE, COOLER REFRIGERANT SUCTION, B
88727C
PIPE, COOLER REFRIGERANT SUCTION, C
8889126190
Крепеж
8889726080
Крепеж
88897T
GROMMET, COOLER
9004464009
Крепеж
9009904381
Крепеж
9009904469
Крепеж
9009932138
Крепеж
9011906182
Крепеж
9015950123
Крепеж
9015960025
Крепеж
9017906274
Крепеж
9018905019
Крепеж
9165140820
Крепеж
9338518016
Крепеж
Код
Описание
8846916040
Крепеж
88539L
HOSE, DRAIN COOLER
88691Z
VALVE, MAGNET (COOL BOX)
8871428010
Крепеж
887181A540
Крепеж
8871826400
Крепеж
8871826410
Крепеж
8871826510
Крепеж
8871828500
Крепеж
8871832070
Крепеж
8871895708
Крепеж
88736A
TUBE, LIQUID, A(FOR COOL BOX)
88736B
TUBE, LIQUID, B(FOR COOL BOX)
88736E
TUBE, LIQUID, E(FOR COOL BOX)
88737A
TUBE, SUCTION, A(FOR COOL BOX)
88737B
TUBE, SUCTION, B(FOR COOL BOX)
8889726010
Крепеж
8889726020
Крепеж
8889926070
Крепеж
9009932136
Крепеж
9011908370
Крепеж
9017906274
Крепеж
9165140816
Крепеж
9165140835
Крепеж
9331514012
Крепеж
9356054012
Крепеж
9356855012
Крепеж
Код
Описание
9009914119
Крепеж
9009914120
Крепеж
9009914121
Крепеж
9009914122
Крепеж
