Каталог
ЯпонияМодель
GRANVIA/GRAND HIACEДвигатель
3 литра, турбо-дизельКузов
фургонКласс
GRAMSФрейм
KCH16Трансмиссия
автоматОпции
8-местный 5 дверей TURBO DIESEL WITH ECD

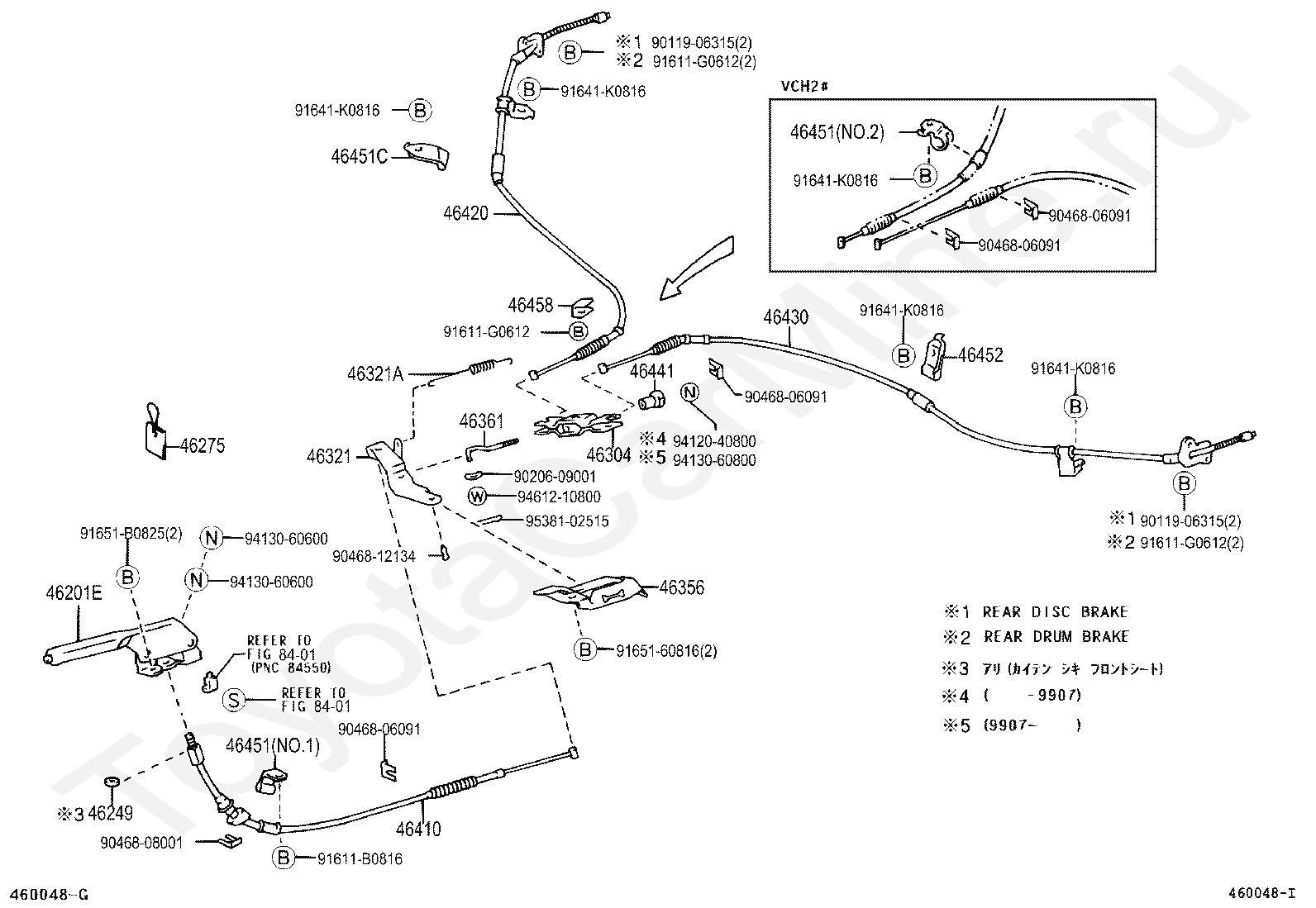

Код
Описание
46201E
LEVER SUB-ASSY, PARKING BRAKE
46249
SHIELD, PARKING BRAKE HOLE
46275
PLATE, PARKING BRAKE RELEASE CAUTION
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46321
LEVER, PARKING BRAKE INTERMEDIATE
46321A
SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46356
BRACKET, EQUALIZER SUPPORT
46361
ROD, PARKING BRAKE PULL
46410
CABLE ASSY, PARKING BRAKE, NO.1
46420
CABLE ASSY, PARKING BRAKE, NO.2
46430
CABLE ASSY, PARKING BRAKE, NO.3
46441
NUT, WIRE ADJUSTING, NO.1
46451
BRACKET, CABLE SUPPORT
46451C
BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46452
BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46458
RETAINER, CABLE
8401
переход к группе запчастей
9011906315
Крепеж
9020609001
Крепеж
9046806091
Крепеж
9046808001
Крепеж
9046812134
Крепеж
91611B0816
Крепеж
91611G0612
Крепеж
91641K0816
Крепеж
9165160816
Крепеж
91651B0825
Крепеж
9412040800
Крепеж
9413060600
Крепеж
9413060800
Крепеж
9461210800
Крепеж
9538102515
Крепеж

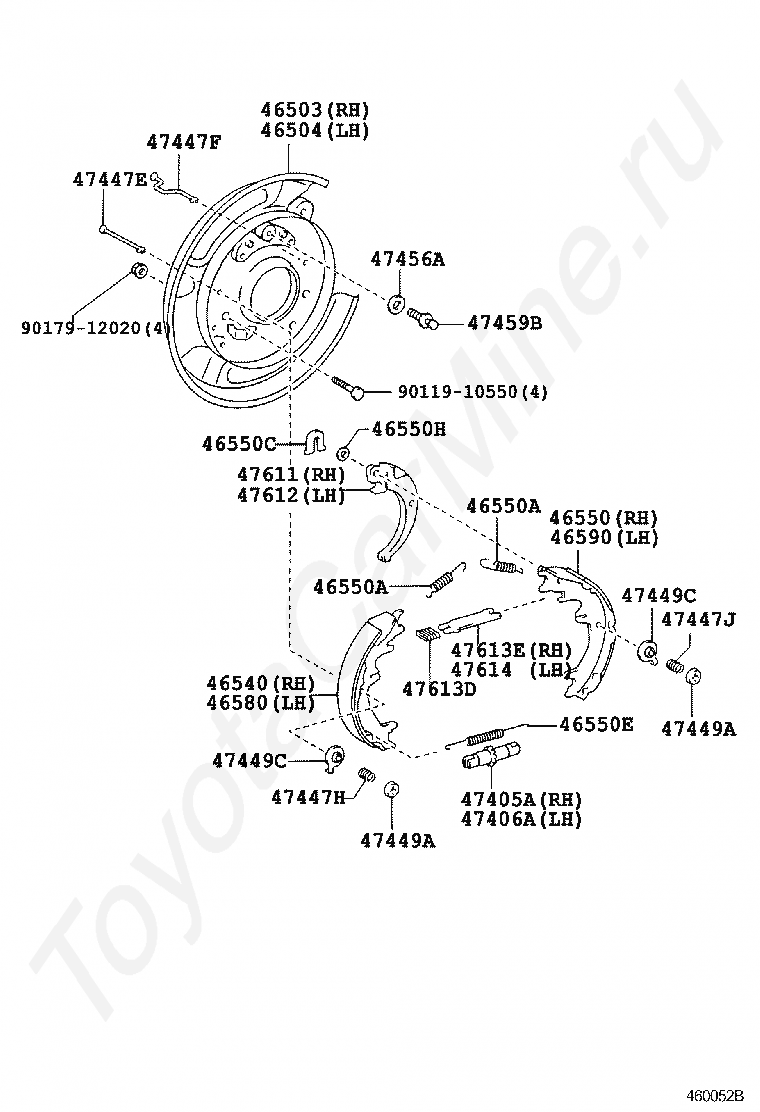

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550H
SHIM(FOR PARKING BRAKE SHOE)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447E
PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447F
PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47447H
SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
47447J
SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449C
CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
9011910550
Крепеж
9017912020
Крепеж
