Каталог
ЯпонияМодель
GRANVIA/GRAND HIACEДвигатель
3 литра, турбо-дизельКузов
фургонКласс
GRAMSФрейм
KCH16Трансмиссия
автоматОпции
8-местный 4 двери TURBO DIESEL WITH ECD

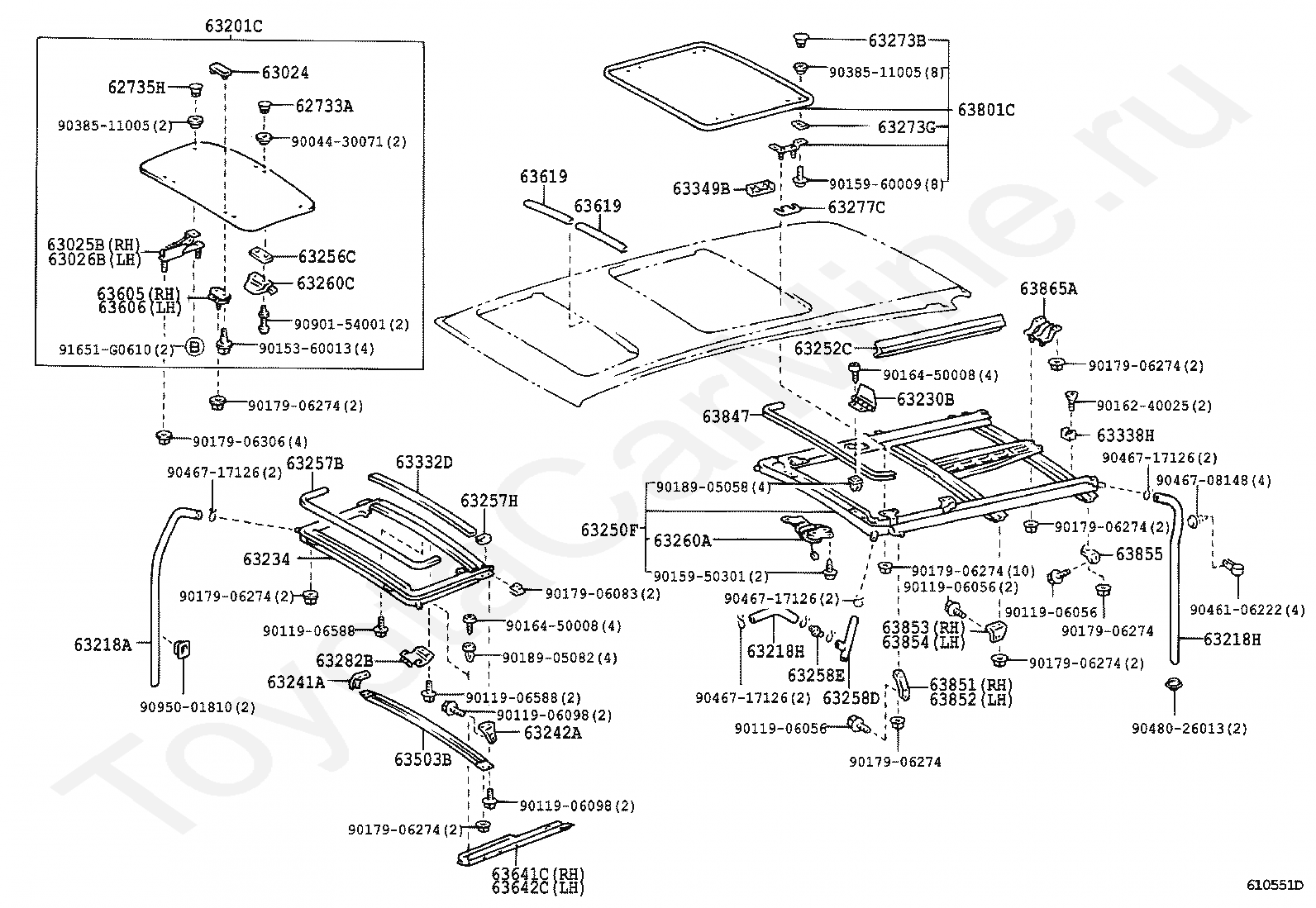

Код
Описание
63071
FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63102
REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103A
REINFORCEMENT SUB-ASSY, ROOF PANEL
63111
PANEL, ROOF
63141G
REINFORCEMENT, ROOF PANEL, NO.1
63141H
REINFORCEMENT, ROOF PANEL, CENTER
63142
REINFORCEMENT, ROOF PANEL, NO.2
63142A
REINFORCEMENT, ROOF PANEL, NO.2
63143A
REINFORCEMENT, ROOF PANEL
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63187A
BRACKET, ROOF RACK, REAR
63347C
PAD, ROOF SILENCER, NO.7
9017906164
Крепеж
Код
Описание
62733A
RETAINER, QUARTER WINDOW HINGE
62735H
RETAINER, QUARTER WINDOW HINGE
63024
SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63025B
LINK SUB-ASSY, TILT ROOF, RH
63026B
LINK SUB-ASSY, TILT ROOF, LH
63201C
GLASS SUB-ASSY, TILT ROOF
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218H
HOSE, SLIDING ROOF DRAIN
63230B
PANEL ASSY, ROOF WIND DEFLECTOR
63234
PROTECTOR, SLIDE ROOF HOUSING
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63250F
HOUSING ASSY, SLIDING ROOF
63252C
WEATHERSTRIP, SLIDING ROOF, REAR
63256C
SEAL, TILT ROOF GLASS
63257B
SEAL, SLIDING ROOF
63257H
SEAL, REMOVABLE ROOF
63258D
JOINT, SLIDE ROOF DRAIN HOSE
63258E
JOINT, SLIDE ROOF DRAIN HOSE, RH
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260C
HANDLE ASSY, TILT ROOF LOCK
63273B
RETAINER, ROOF WINDOW HINGE
63273G
PACKING, SLIDE ROOF
63277C
SHIM, SLIDING ROOF PANEL
63282B
STRIKER, TILT ROOF LOCK
63332D
PAD, SUN ROOF HEADLINING
63338H
STOPPER, SUNSHADE LOCK, NO.2
63349B
GARNISH, ROOF HEADLINING, REAR
63503B
SUPPORT SUB-ASSY, AIR CONDITIONER MOUNTING
63605
HINGE SUB-ASSY, TILT ROOF, RH
63606
HINGE SUB-ASSY, TILT ROOF, LH
63619
COVER, TILT ROOF PANEL
63641C
RAIL, SUNSHADE, NO.1 FRONT RH
63642C
RAIL, SUNSHADE, NO.1 FRONT LH
63801C
GLASS SUB-ASSY, REAR SLIDE ROOF
63847
SEAL, REAR SLIDE ROOF HOUSING
63851
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH
63852
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH
63853
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH
63854
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH
63855
BRACKET, REAR SLIDE ROOF HOUSING, NO.3
63865A
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 REAR RH
9004430071
Крепеж
9011906056
Крепеж
9011906098
Крепеж
9011906588
Крепеж
9015360013
Крепеж
9015950301
Крепеж
9015960009
Крепеж
9016240025
Крепеж
9016450008
Крепеж
9017906083
Крепеж
9017906274
Крепеж
9017906306
Крепеж
9018905058
Крепеж
9018905082
Крепеж
9038511005
Крепеж
9046106222
Крепеж
9046708148
Крепеж
9046717126
Крепеж
9048026013
Крепеж
9090154001
Крепеж
9095001810
Крепеж
91651G0610
Крепеж

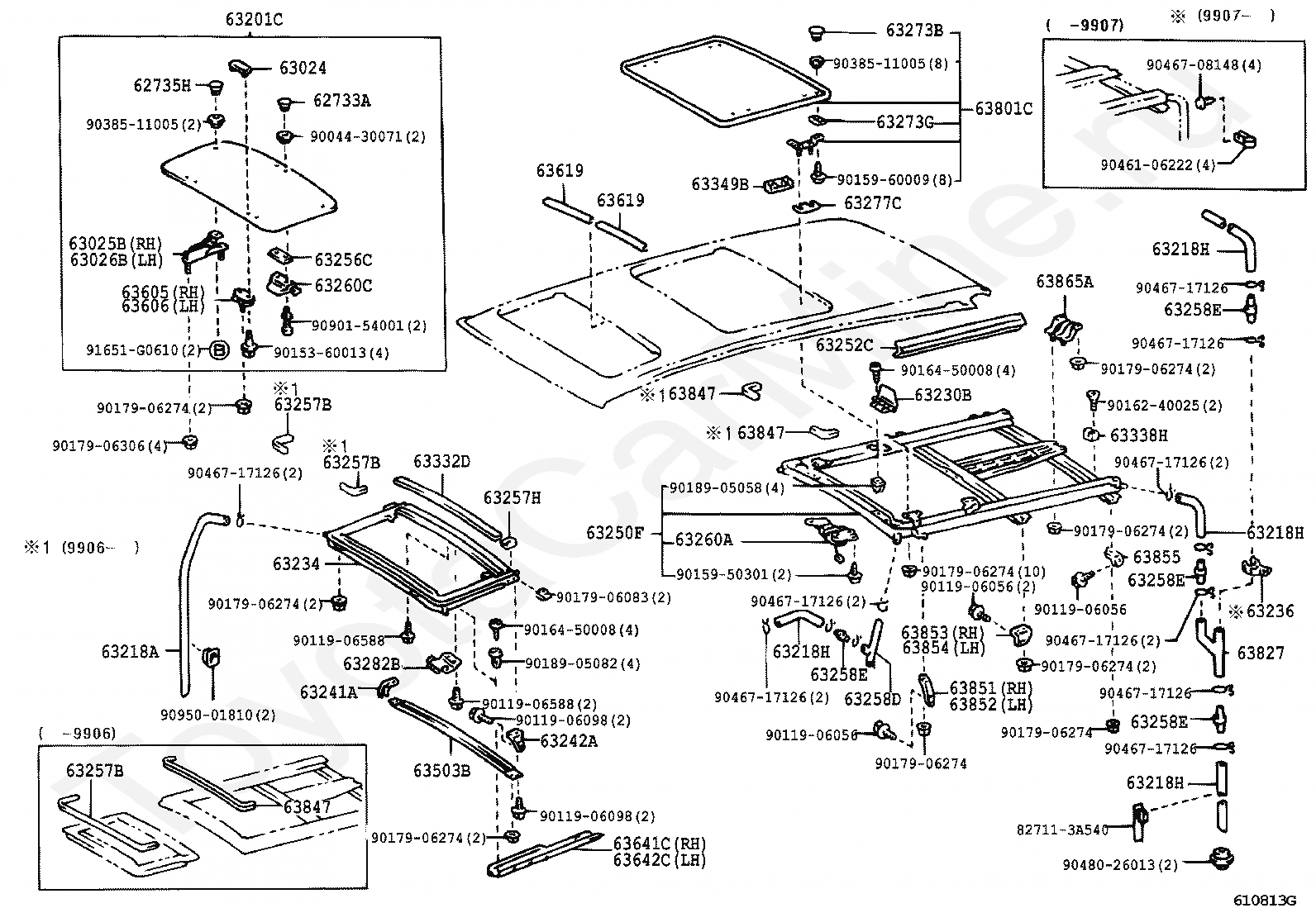

Код
Описание
62733A
RETAINER, QUARTER WINDOW HINGE
62735H
RETAINER, QUARTER WINDOW HINGE
63024
SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63025B
LINK SUB-ASSY, TILT ROOF, RH
63026B
LINK SUB-ASSY, TILT ROOF, LH
63201C
GLASS SUB-ASSY, TILT ROOF
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218H
HOSE, SLIDING ROOF DRAIN
63230B
PANEL ASSY, ROOF WIND DEFLECTOR
63234
PROTECTOR, SLIDE ROOF HOUSING
63236
CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63250F
HOUSING ASSY, SLIDING ROOF
63252C
WEATHERSTRIP, SLIDING ROOF, REAR
63256C
SEAL, TILT ROOF GLASS
63257B
SEAL, SLIDING ROOF
63257H
SEAL, REMOVABLE ROOF
63258D
JOINT, SLIDE ROOF DRAIN HOSE
63258E
JOINT, SLIDE ROOF DRAIN HOSE, RH
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260C
HANDLE ASSY, TILT ROOF LOCK
63273B
RETAINER, ROOF WINDOW HINGE
63273G
PACKING, SLIDE ROOF
63277C
SHIM, SLIDING ROOF PANEL
63282B
STRIKER, TILT ROOF LOCK
63332D
PAD, SUN ROOF HEADLINING
63338H
STOPPER, SUNSHADE LOCK, NO.2
63349B
GARNISH, ROOF HEADLINING, REAR
63503B
SUPPORT SUB-ASSY, AIR CONDITIONER MOUNTING
63605
HINGE SUB-ASSY, TILT ROOF, RH
63606
HINGE SUB-ASSY, TILT ROOF, LH
63619
COVER, TILT ROOF PANEL
63641C
RAIL, SUNSHADE, NO.1 FRONT RH
63642C
RAIL, SUNSHADE, NO.1 FRONT LH
63801C
GLASS SUB-ASSY, REAR SLIDE ROOF
63827
JOINT, REAR SLIDE ROOF DRAIN HOSE
63847
SEAL, REAR SLIDE ROOF HOUSING
63851
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH
63852
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH
63853
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH
63854
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH
63855
BRACKET, REAR SLIDE ROOF HOUSING, NO.3
63865A
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 REAR RH
827113A540
Крепеж
9004430071
Крепеж
9011906056
Крепеж
9011906098
Крепеж
9011906588
Крепеж
9015360013
Крепеж
9015950301
Крепеж
9015960009
Крепеж
9016240025
Крепеж
9016450008
Крепеж
9017906083
Крепеж
9017906274
Крепеж
9017906306
Крепеж
9018905058
Крепеж
9018905082
Крепеж
9038511005
Крепеж
9046106222
Крепеж
9046708148
Крепеж
9046717126
Крепеж
9048026013
Крепеж
9090154001
Крепеж
9095001810
Крепеж
91651G0610
Крепеж
