Тормозная магистраль TOYOTA GRANVIA/GRAND HIACE, 1995/10 - 2002/05, 3 литра, турбо-дизель, фургон, GRAMS, KCH16, автомат

Каталог

Япония

Модель

GRANVIA/GRAND HIACE

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

GRAMS

Фрейм

KCH16

Трансмиссия

автомат

Опции

8-местный 4 двери TURBO DIESEL WITH ECD

Код

Описание

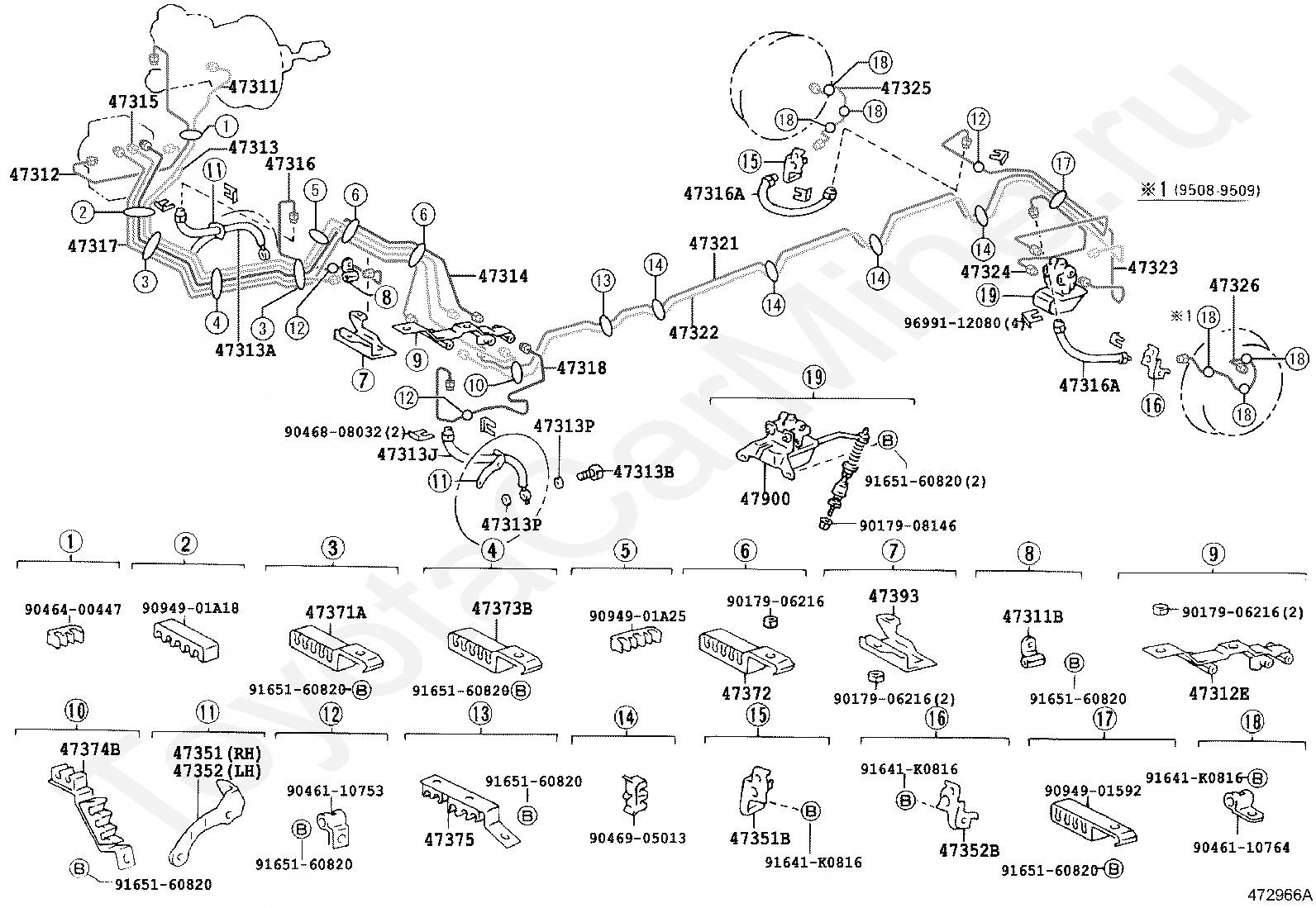

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47393

INSULATOR, BRAKE TUBE HEAT

47900

VALVE ASSY, LOAD SENSING W/SPRING

9017906216

Крепеж

9017908146

Крепеж

9046110753

Крепеж

9046110764

Крепеж

9046400447

Крепеж

9046808032

Крепеж

9046905013

Крепеж

9094901592

Крепеж

9094901A18

Крепеж

9094901A25

Крепеж

91641K0816

Крепеж

9165160820

Крепеж

9699112080

Крепеж

Код

Описание

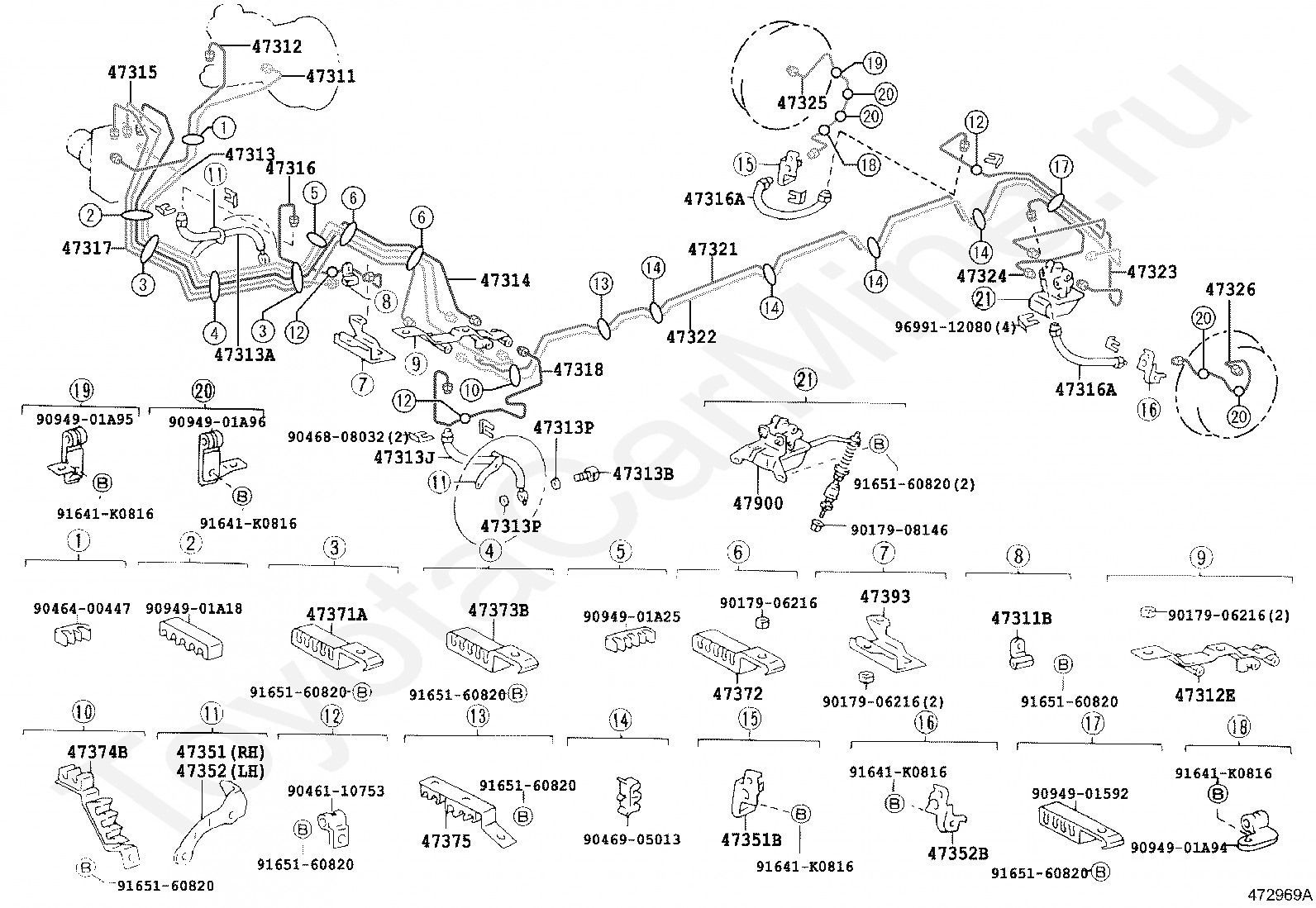

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47393

INSULATOR, BRAKE TUBE HEAT

47900

VALVE ASSY, LOAD SENSING W/SPRING

9017906216

Крепеж

9017908146

Крепеж

9046110753

Крепеж

9046400447

Крепеж

9046808032

Крепеж

9046905013

Крепеж

9094901592

Крепеж

9094901A18

Крепеж

9094901A25

Крепеж

9094901A94

Крепеж

9094901A95

Крепеж

9094901A96

Крепеж

91641K0816

Крепеж

9165160820

Крепеж

9699112080

Крепеж

Код

Описание

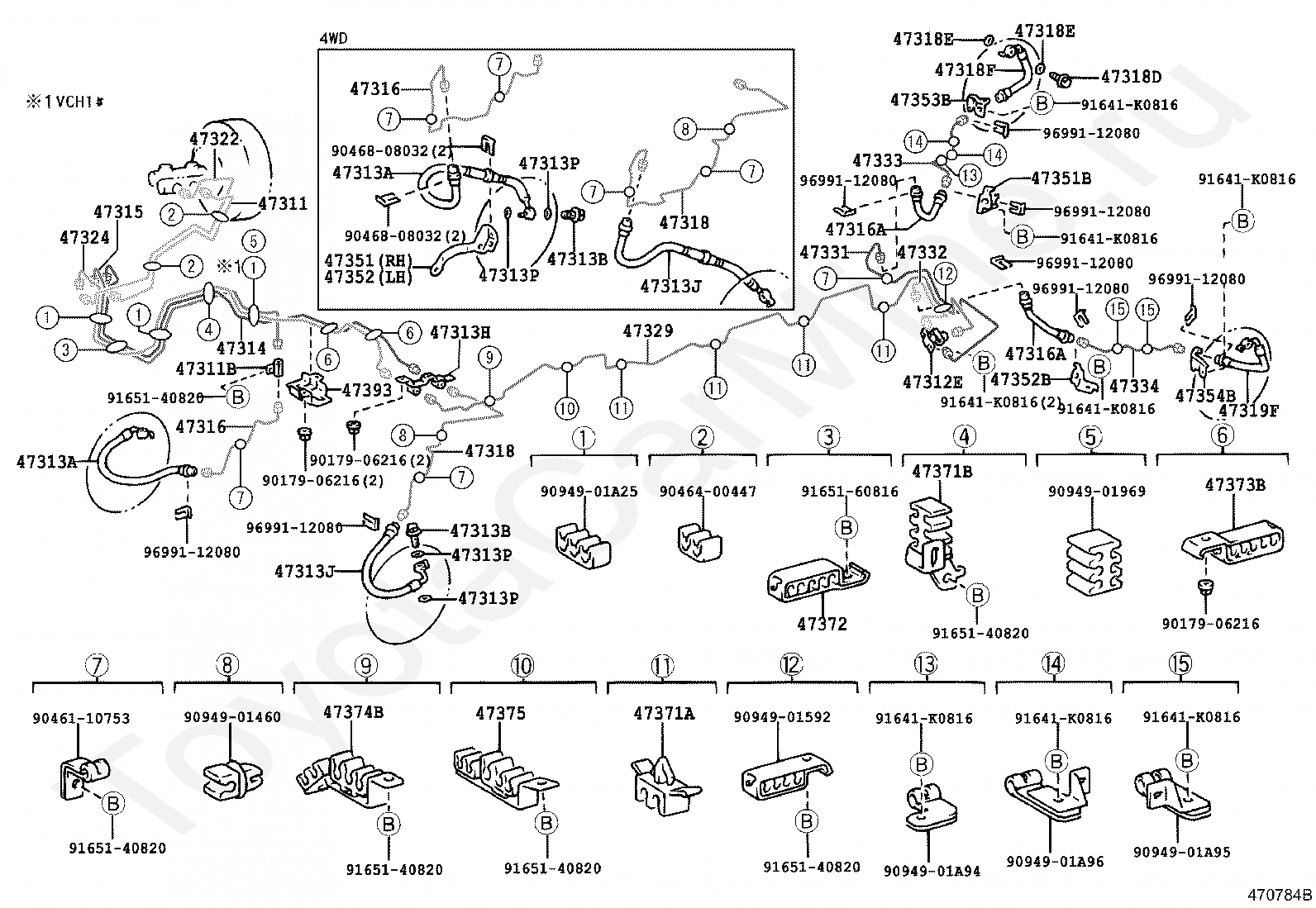

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47329

TUBE, REAR BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47393

INSULATOR, BRAKE TUBE HEAT

9017906216

Крепеж

9046110753

Крепеж

9046400447

Крепеж

9046808032

Крепеж

9094901460

Крепеж

9094901592

Крепеж

9094901969

Крепеж

9094901A25

Крепеж

9094901A94

Крепеж

9094901A95

Крепеж

9094901A96

Крепеж

91641K0816

Крепеж

9165140820

Крепеж

9165160816

Крепеж

9699112080

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47329

TUBE, REAR BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47393

INSULATOR, BRAKE TUBE HEAT

9017906216

Крепеж

9046110753

Крепеж

9046400447

Крепеж

9046808032

Крепеж

9094901460

Крепеж

9094901592

Крепеж

9094901969

Крепеж

9094901A25

Крепеж

9094901A94

Крепеж

9094901A95

Крепеж

9094901A96

Крепеж

91641K0816

Крепеж

9165140820

Крепеж

9165160816

Крепеж

9699112080

Крепеж

Код

Описание

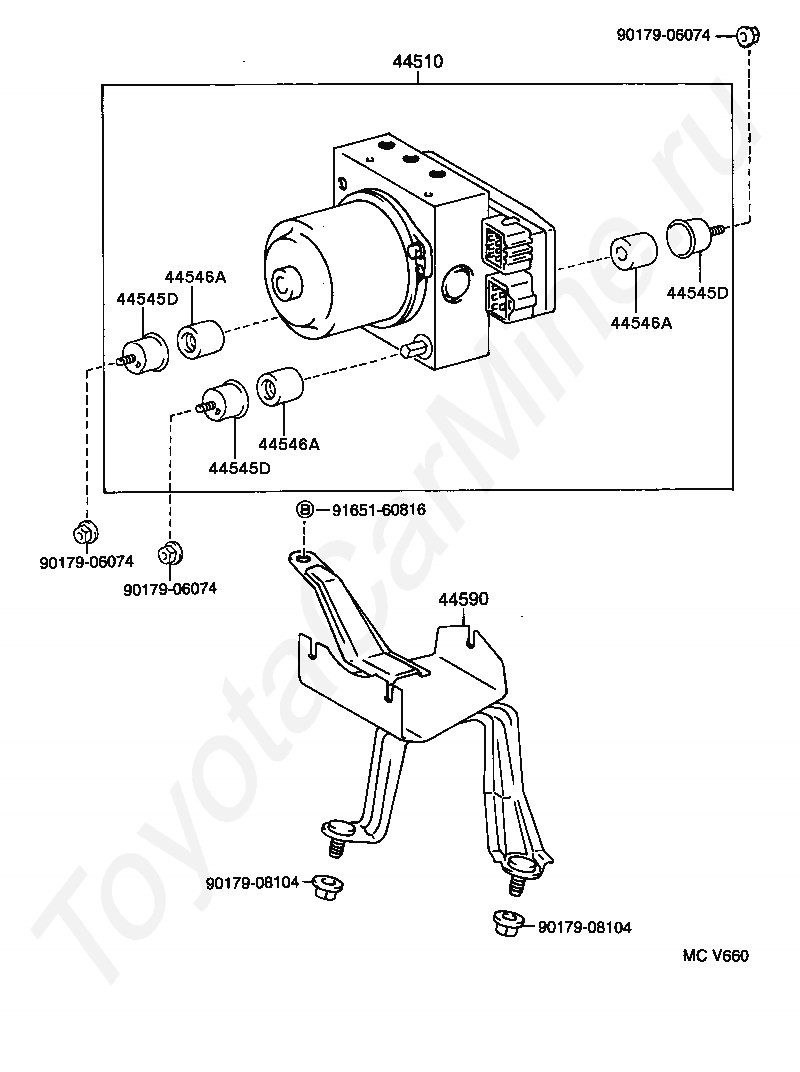

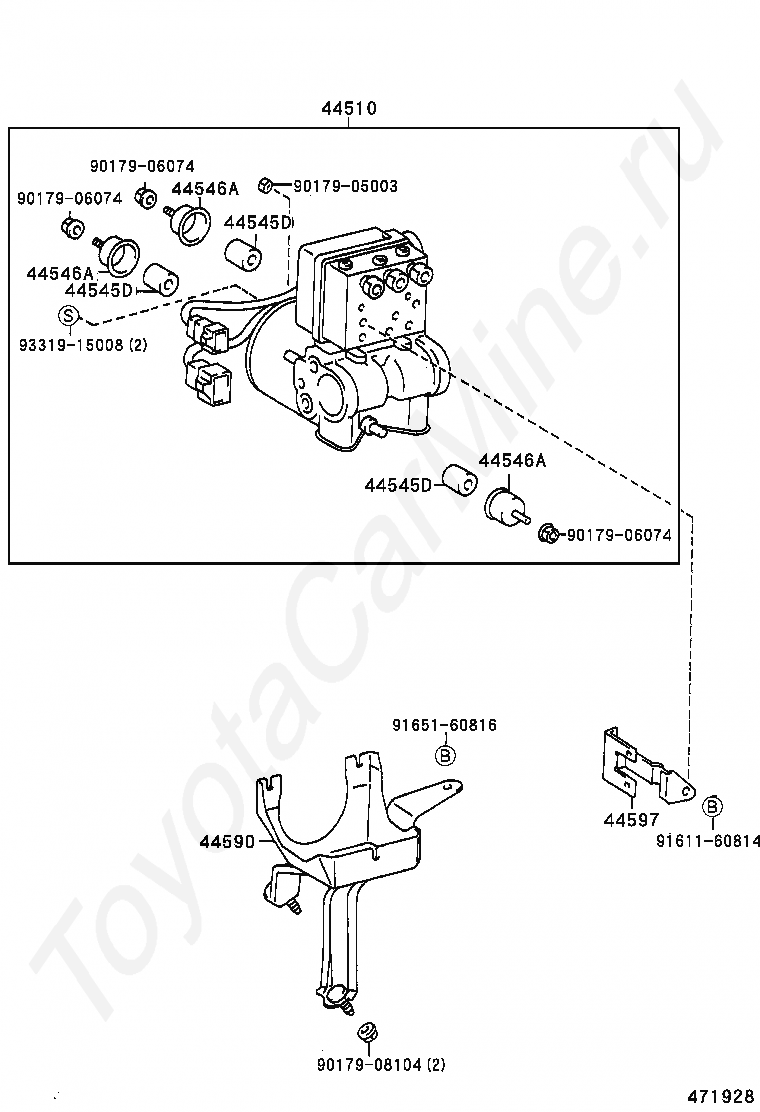

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

9017905003

Крепеж

9017906074

Крепеж

9017908104

Крепеж

9161160814

Крепеж

9165160816

Крепеж

9331915008

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9017906074

Крепеж

9017908104

Крепеж

9165160816

Крепеж

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9017906074

Крепеж

9017908249

Крепеж

9165160816

Крепеж

Тормозная магистраль TOYOTA GRANVIA/GRAND HIACE, 1995/10 - 2002/05, 3 литра, турбо-дизель, фургон, GRAMS, KCH16, автомат
