Задние кресла TOYOTA GAIA, 1998/05 - 2002/08, 2 литра, 16 клапанов, DOHC, EFI, SXM15

Каталог

Япония

Модель

GAIA

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Фрейм

SXM15

Опции

6-местный

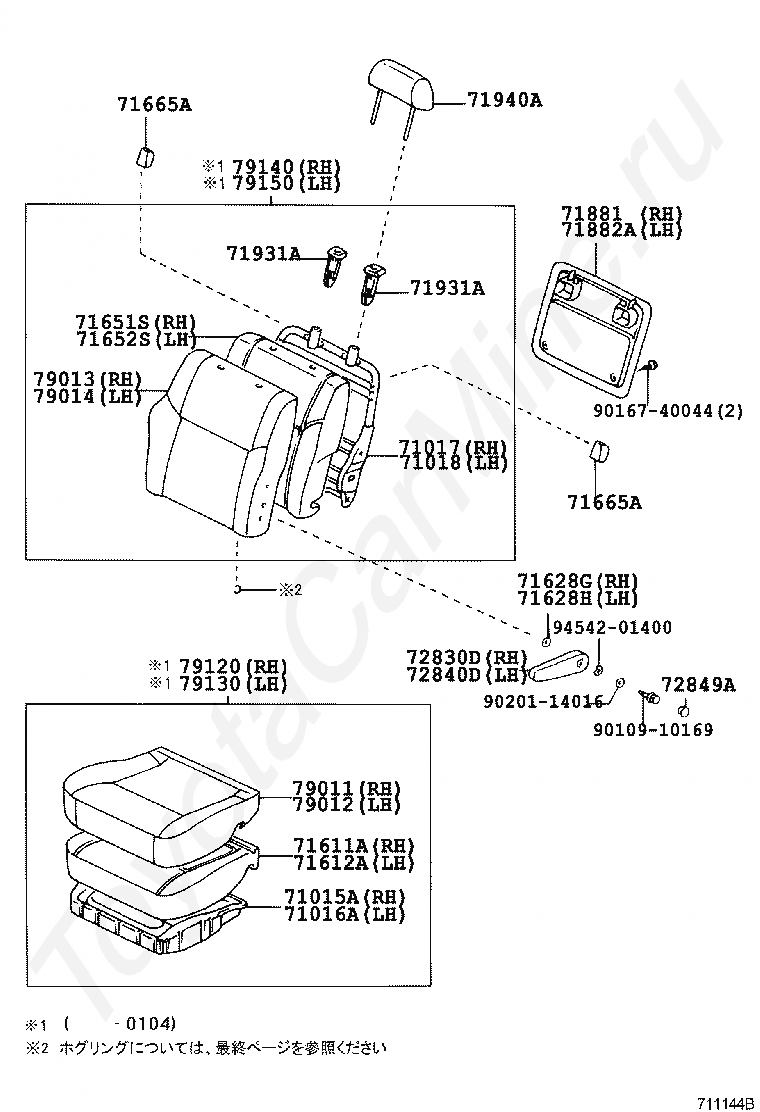

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71628G

SPACER, REAR SEAT CUSHION, RH

71628H

SPACER, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71665A

PAD, REAR SEAT BACK, SIDE A

71881

BOARD, REAR SEAT BACK, RH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72830D

ARMREST ASSY, REAR SEAT, RH

72840D

ARMREST ASSY, REAR SEAT, LH

72849A

CAP, SEAT ARMREST, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

9010910169

Крепеж

9016740044

Крепеж

9020114016

Крепеж

9454201400

Крепеж

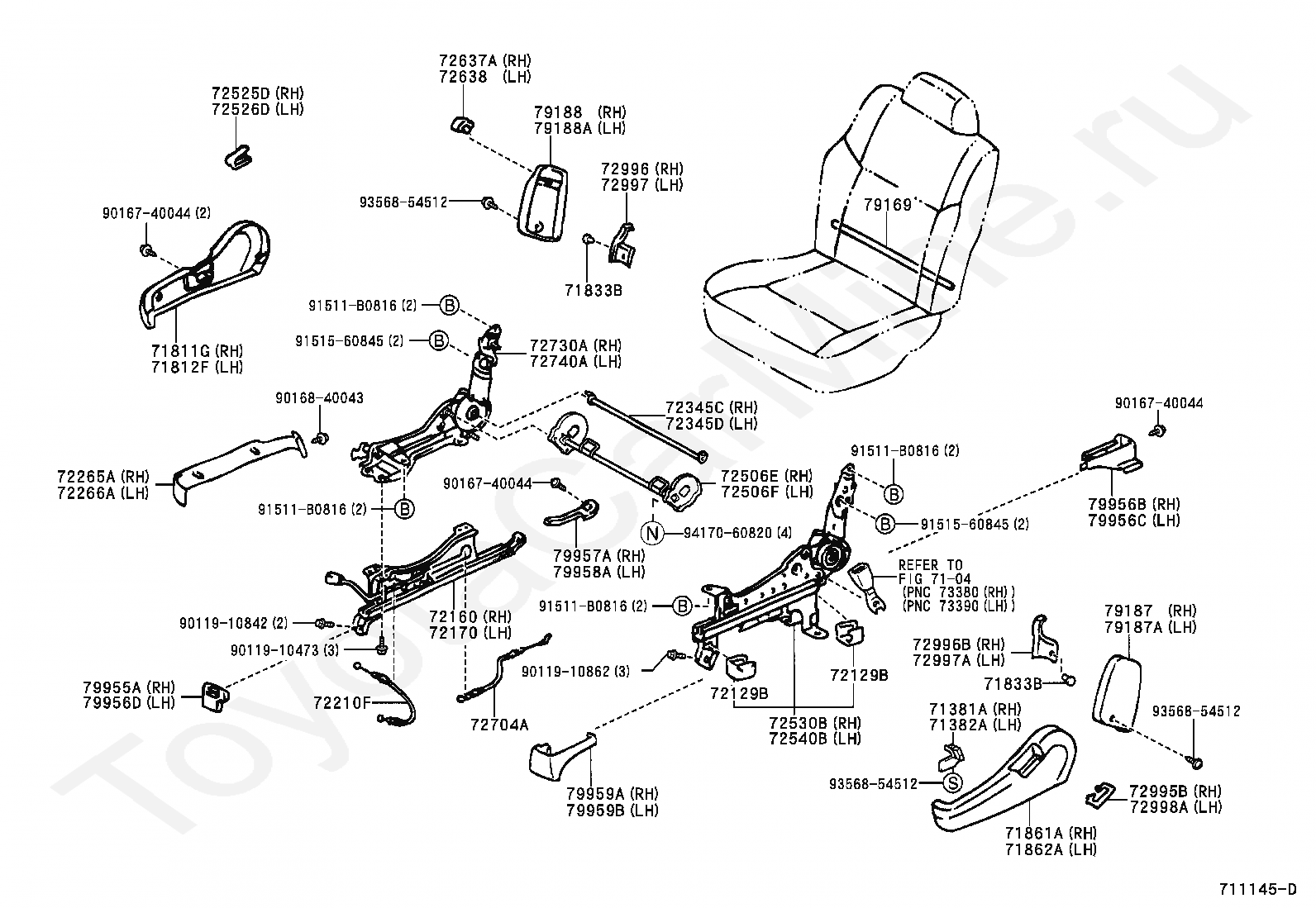

Код

Описание

7104

переход к группе запчастей

71381A

BRACKET, REAR SEAT CUSHION SET, RH

71382A

BRACKET, REAR SEAT CUSHION SET, LH

71811G

SHIELD, REAR SEAT CUSHION, RH

71812F

SHIELD, REAR SEAT CUSHION, LH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71861A

SHIELD, REAR SEAT CUSHION, INNER RH

71862A

SHIELD, REAR SEAT CUSHION, INNER LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72506E

ROD SUB-ASSY, RECLINING CONNECTING, RH

72506F

ROD SUB-ASSY, RECLINING CONNECTING, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72530B

ADJUSTER ASSY, RECLINING SEAT, INNER RH

72540B

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72704A

CABLE, REAR SEAT RECLINING CONTROL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72995B

COVER, NO.1 SEAT CUSHION, RH

72996

COVER, REAR SEAT BACK, RH

72996B

COVER, REAR SEAT BACK, INNER RH

72997

COVER, REAR SEAT BACK, LH

72997A

COVER, REAR SEAT BACK, INNER LH

72998A

COVER, NO.1 SEAT CUSHION, LH

79169

ROD, REAR SEAT HINGE CONNECTOR

79187

COVER, NO.1 SEAT INNER BRACKET

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79188

COVER, NO.1 SEAT OUTER BRACKET

79188A

COVER, NO.1 SEAT OUTER BRACKET, LH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

79959A

COVER, REAR SEAT LEG, RH

79959B

COVER, REAR SEAT LEG, LH

9011910473

Крепеж

9011910842

Крепеж

9011910862

Крепеж

9016740044

Крепеж

9016840043

Крепеж

91511B0816

Крепеж

9151560845

Крепеж

9356854512

Крепеж

9417060820

Крепеж

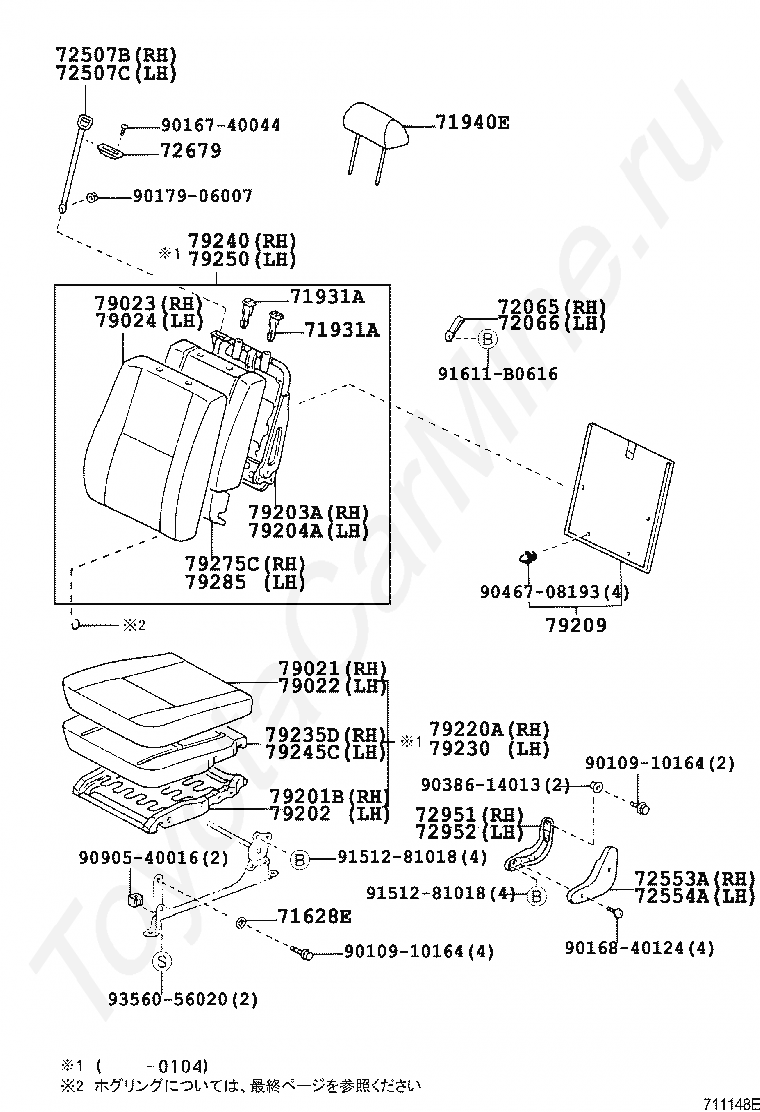

Код

Описание

71628E

SPACER, REAR SEAT CUSHION

71931A

SUPPORT, REAR SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553A

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72951

LINK, NO.2 SEAT, UPR RH

72952

LINK, NO.2 SEAT UPR LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79230

CUSHION ASSY, NO.2 SEAT, LH

79235D

PAD, NO.2 SEAT CUSHION, RH

79240

BACK ASSY, NO.2 SEAT, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79250

BACK ASSY, NO.2 SEAT, LH

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

9010910164

Крепеж

9016740044

Крепеж

9016840124

Крепеж

9017906007

Крепеж

9038614013

Крепеж

9046708193

Крепеж

9090540016

Крепеж

9151281018

Крепеж

91611B0616

Крепеж

9356056020

Крепеж

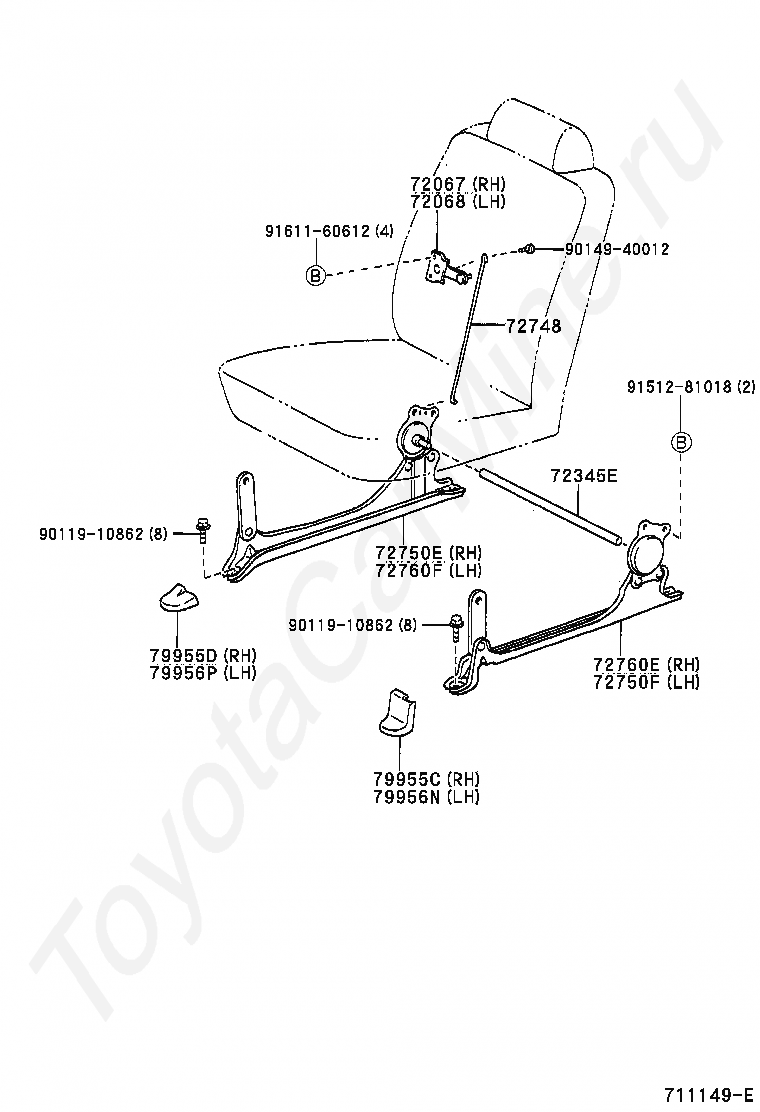

Код

Описание

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72345E

PIPE, RECLINING CONNECTING

72748

WIRE, REAR SEAT RECLINING CONTROL

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

79955C

COVER, REAR SEAT FRONT BRACKET, RH

79955D

COVER, REAR SEAT FRONT BRACKET, RH

79956N

COVER, REAR SEAT FRONT BRACKET, LH

79956P

COVER, REAR SEAT FRONT BRACKET, LH

9011910862

Крепеж

9014940012

Крепеж

9151281018

Крепеж

9161160612

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA GAIA, 1998/05 - 2002/08, 2 литра, 16 клапанов, DOHC, EFI, SXM15
