Каталог
Ближний ВостокМодель
FORTUNERДвигатель
2,7 литра, 16 клапанов, DOHC, EFIКузов
SUV WAGONКласс
SR SPECIFICATIONФрейм
TGN51Трансмиссия
МКПП, 5 скоростейОпции
левый руль 5 дверей HIGH EFFICIENCY TWIN CAM Южная Африка COMPLETED VEHICLE 272W

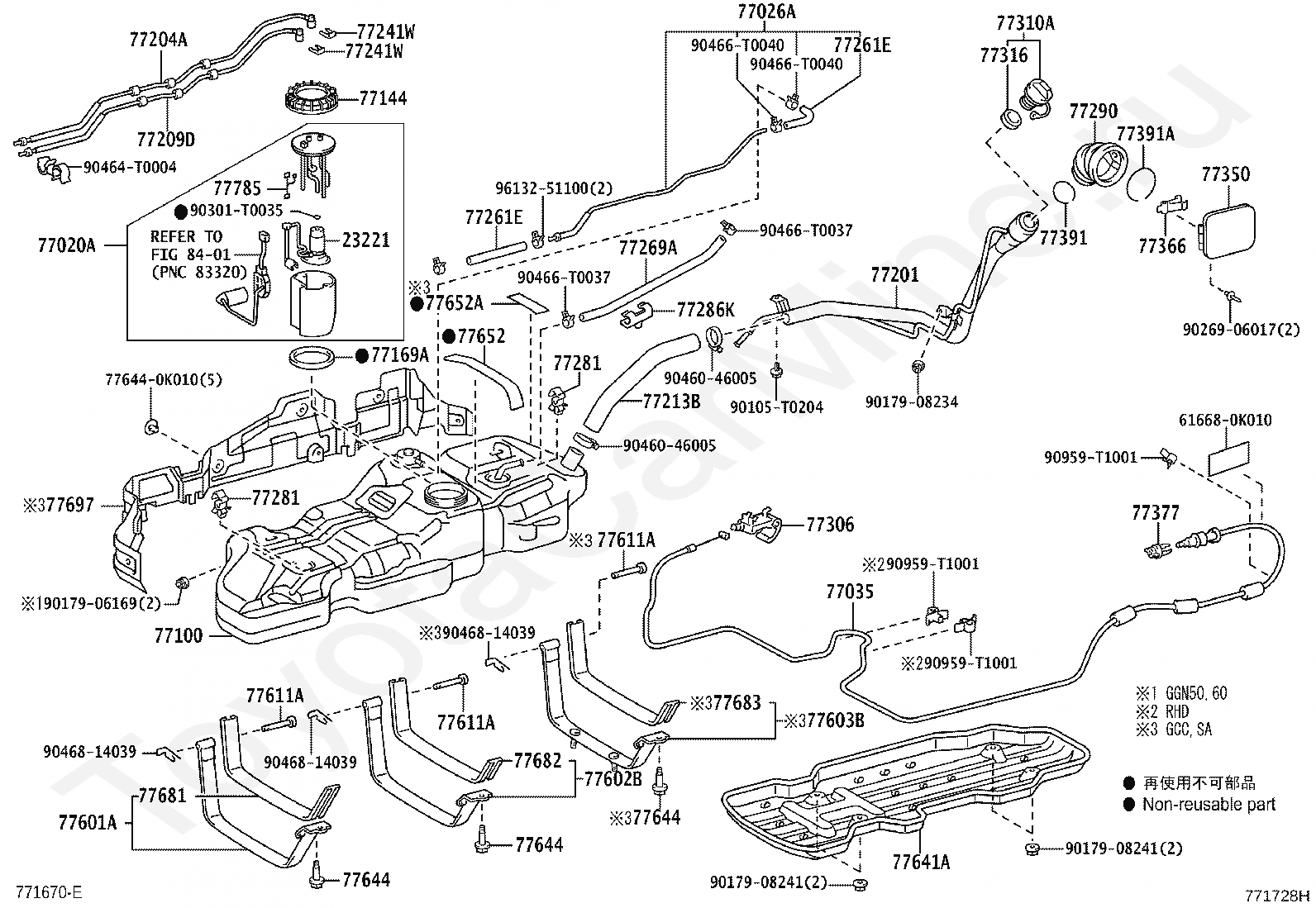

Код
Описание
23221
PUMP, FUEL
616680K010
Крепеж
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77269A
HOSE, FUEL TANK BREATHER
77281
BRACKET, FUEL MAIN TUBE, NO.1
77286K
CLAMP, FUEL TUBE, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77611A
PIN (FOR FUEL TANK BAND)
77641A
PROTECTOR, FUEL TANK, NO.1
77644
BOLT, FUEL TANK
776440K010
Крепеж
77652
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77683
SEAT, FUEL TANK BAND, NO.3
77697
INSULATOR, FUEL TANK HEAT, NO.1
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
90105T0204
Крепеж
9017906169
Крепеж
9017908234
Крепеж
9017908241
Крепеж
9026906017
Крепеж
90301T0035
Крепеж
9046046005
Крепеж
90464T0004
Крепеж
90466T0037
Крепеж
90466T0040
Крепеж
9046814039
Крепеж
90959T1001
Крепеж
9613251100
Крепеж

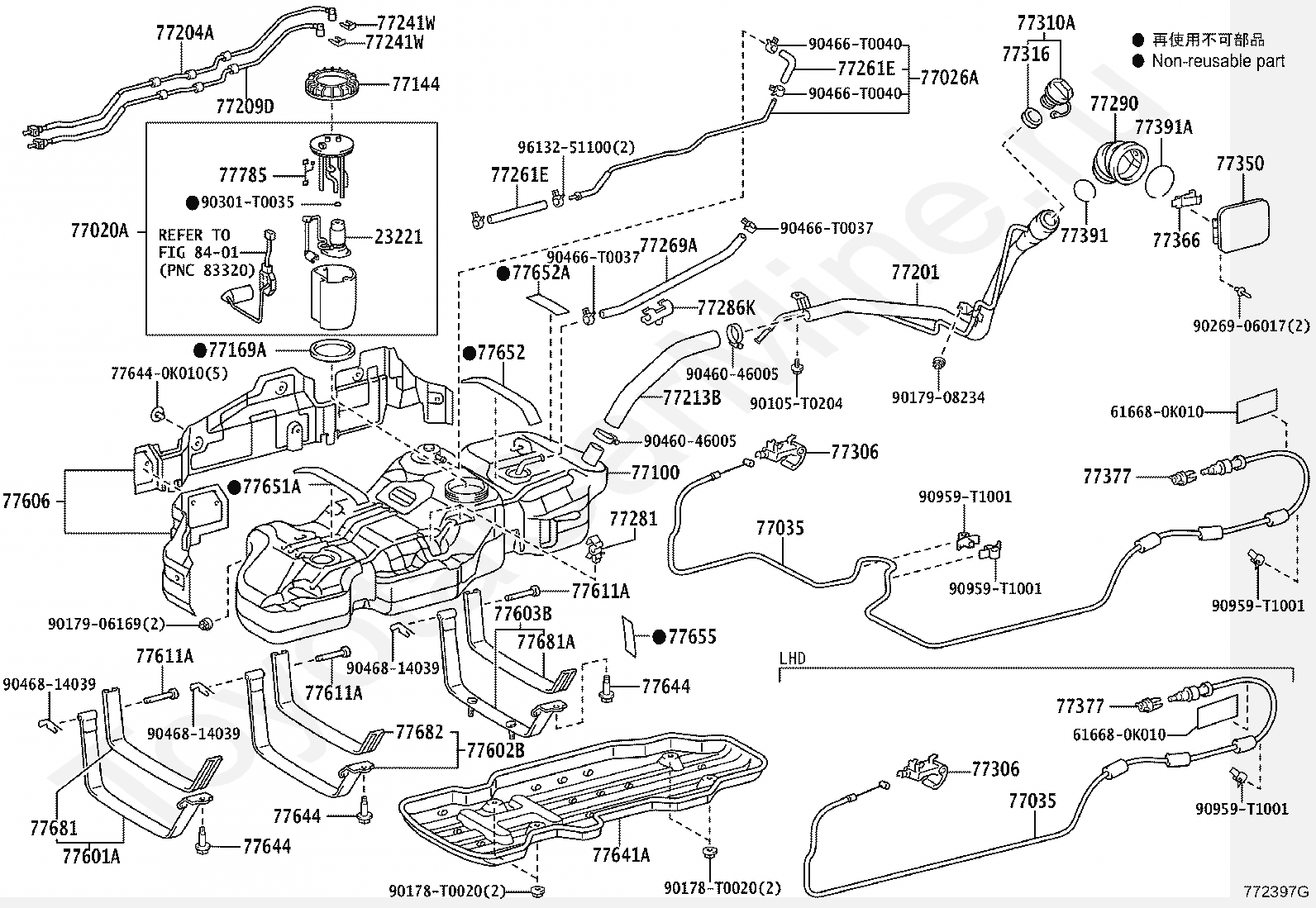

Код
Описание
23221
PUMP, FUEL
616680K010
Крепеж
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
77269A
HOSE, FUEL TANK BREATHER
77277T
BRACKET, CHECK VALVE
77281
BRACKET, FUEL MAIN TUBE, NO.1
77286K
CLAMP, FUEL TUBE, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611A
PIN (FOR FUEL TANK BAND)
77641A
PROTECTOR, FUEL TANK, NO.1
77644
BOLT, FUEL TANK
776440K010
Крепеж
77651A
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77655
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77683
SEAT, FUEL TANK BAND, NO.3
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
90105T0204
Крепеж
9017908234
Крепеж
9017908241
Крепеж
9026906017
Крепеж
90301T0035
Крепеж
9046046005
Крепеж
90464T0004
Крепеж
90466T0037
Крепеж
90466T0040
Крепеж
9046814039
Крепеж
90959T1001
Крепеж

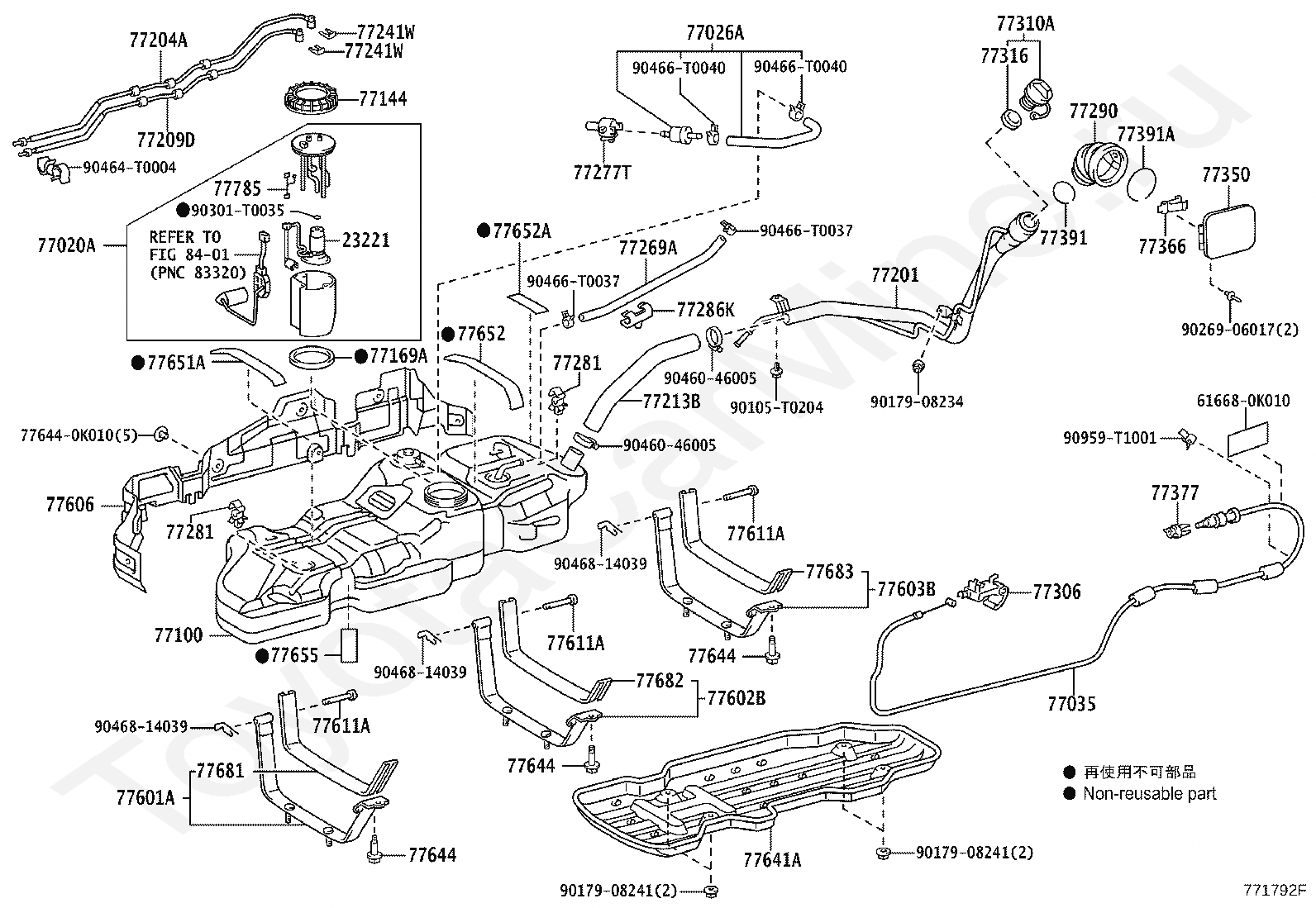

Код
Описание
23221
PUMP, FUEL
616680K010
Крепеж
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77241W
CLIP, TUBE JOINT
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77269A
HOSE, FUEL TANK BREATHER
77281
BRACKET, FUEL MAIN TUBE, NO.1
77286K
CLAMP, FUEL TUBE, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611A
PIN (FOR FUEL TANK BAND)
77641A
PROTECTOR, FUEL TANK, NO.1
77644
BOLT, FUEL TANK
776440K010
Крепеж
77651A
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77655
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77681A
SEAT, FUEL TANK BAND
77682
SEAT, FUEL TANK BAND, LH
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
90105T0204
Крепеж
90178T0020
Крепеж
9017906169
Крепеж
9017908234
Крепеж
9026906017
Крепеж
90301T0035
Крепеж
9046046005
Крепеж
90466T0037
Крепеж
90466T0040
Крепеж
9046814039
Крепеж
90959T1001
Крепеж
9613251100
Крепеж

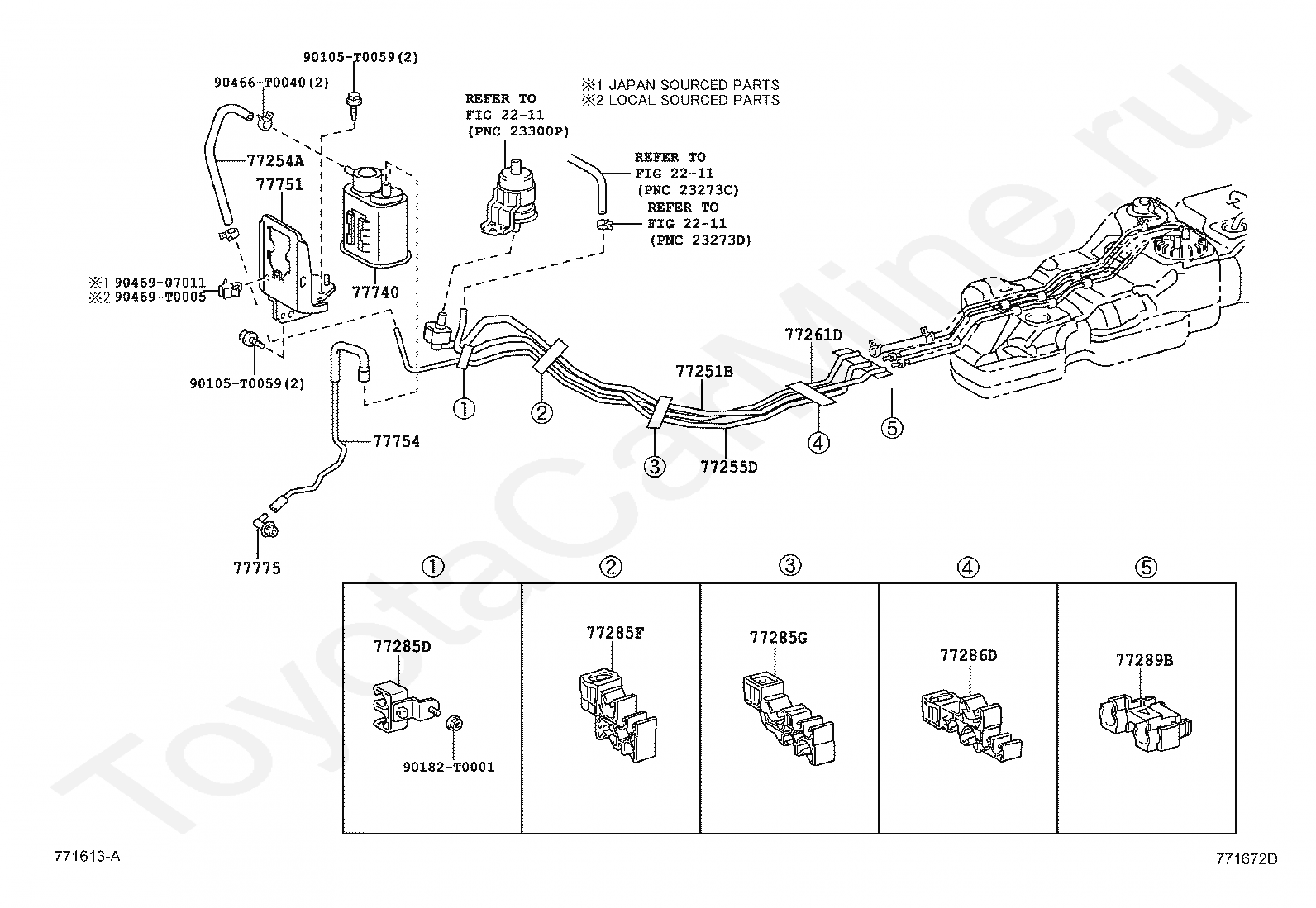

Код
Описание
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77254A
HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77255D
TUBE, FUEL RETURN
77261D
TUBE, FUEL TANK TO CANISTER
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77285G
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77775
GUIDE, CHARCOAL CANISTER OUTLET
90105T0059
Крепеж
90182T0001
Крепеж
90466T0040
Крепеж
9046907011
Крепеж
90469T0005
Крепеж

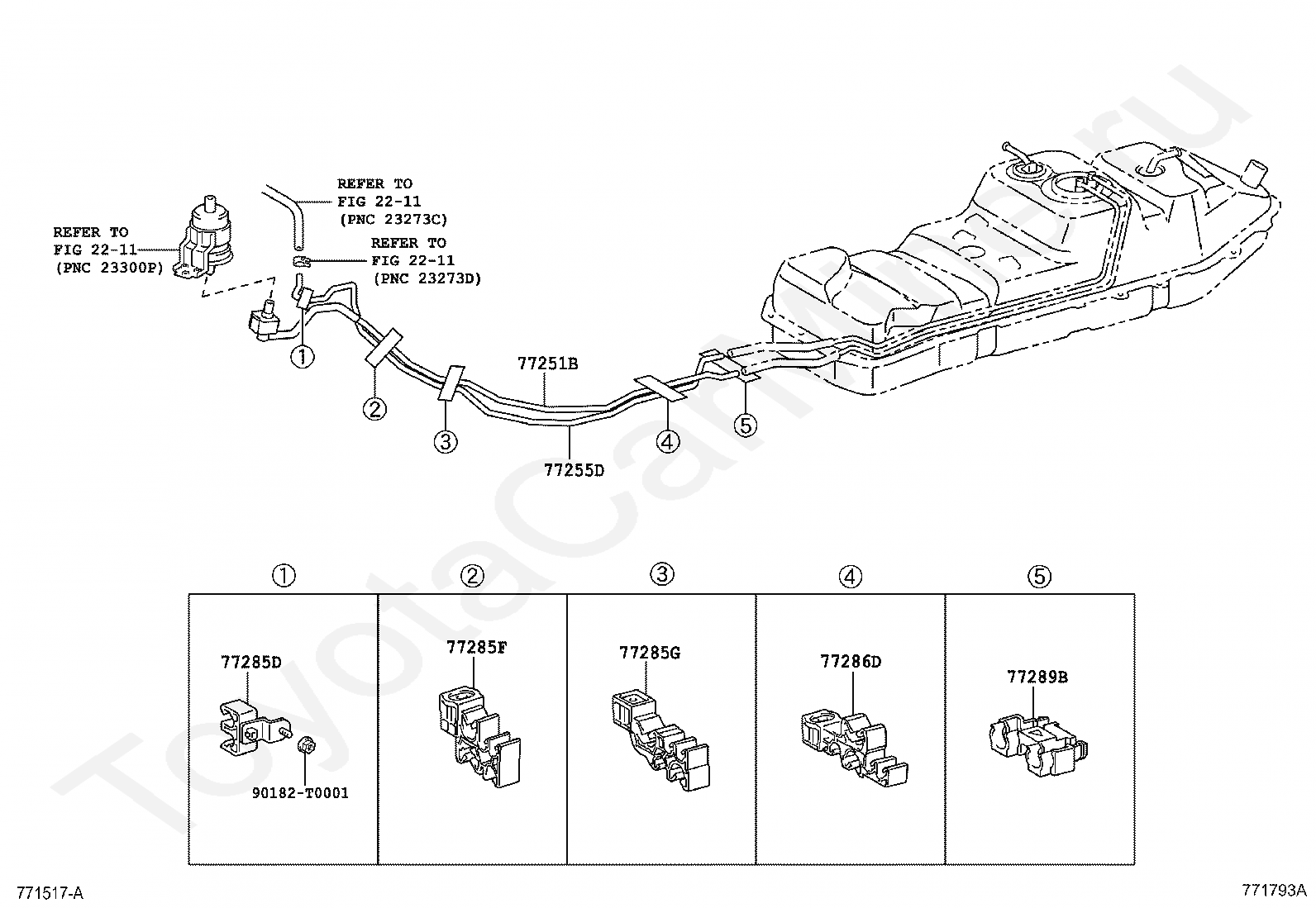

Код
Описание
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77285G
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
90182T0001
Крепеж
