Боковая панель кузова TOYOTA FORTUNER, 2011/08 - 2025, 3 литра, дизель, SUV WAGON, SR SPECIFICATION, LAN50, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

FORTUNER

Двигатель

3 литра, дизель

Кузов

SUV WAGON

Класс

SR SPECIFICATION

Фрейм

LAN50

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль 5 дверей DIESEL EFI Южная Африка COMPLETED VEHICLE 520W

Код

Описание

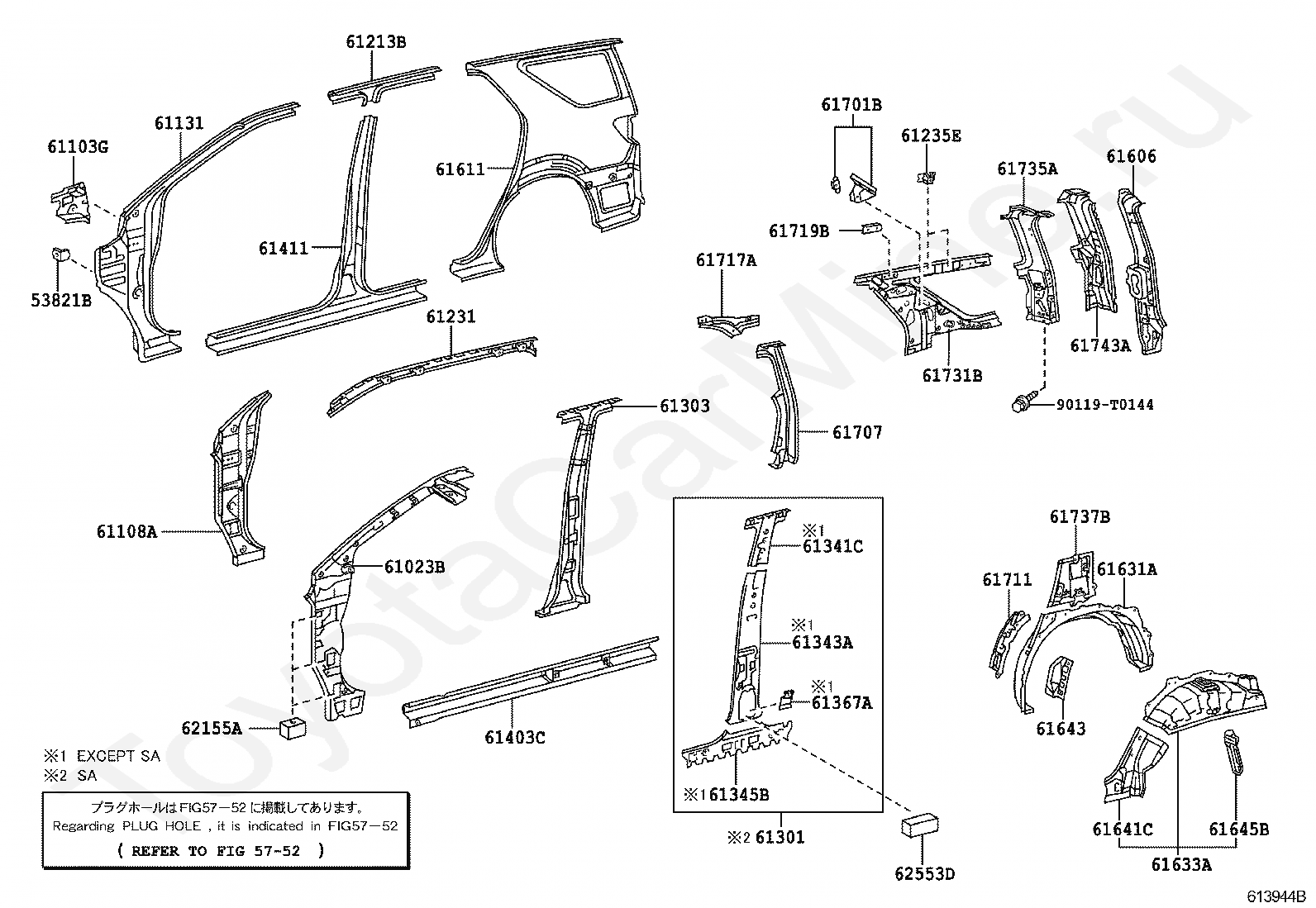

53821B

BRACKET, FRONT FENDER, REAR RH

5752

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61103G

GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61231

RAIL, ROOF SIDE, INNER RH

61235E

BRACKET, ASSIST GRIP, NO.1

61301

PILLAR SUB-ASSY, CENTER BODY, RH

61303

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

61341C

PILLAR, CENTER BODY, INNER UPPER RH

61343A

PILLAR, CENTER BODY, INNER RH

61345B

PILLAR, CENTER BODY, INNER LOWER RH

61367A

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

61606

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61611

PANEL, QUARTER, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61643

GUSSET, QUARTER WHEEL HOUSE CENTER, RH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61701B

PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

61707

PANEL SUB-ASSY, QUARTER, INNER RH

61711

PANEL, ROOF SIDE, OUTER RH

61717A

REINFORCEMENT, QUARTER PANEL EXTENSION, RH

61719B

BRACKET, ROOF SIDE, INNER

61731B

PANEL, ROOF SIDE, INNER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61737B

PANEL, ROOF SIDE, INNER LOWER RH

61743A

REINFORCEMENT, BACK DOOR OPENING SIDE, RH

62155A

PAD, COWL SIDE LOWER SILENCER

62553D

PAD, PILLAR, NO.3

90119T0144

Крепеж

Код

Описание

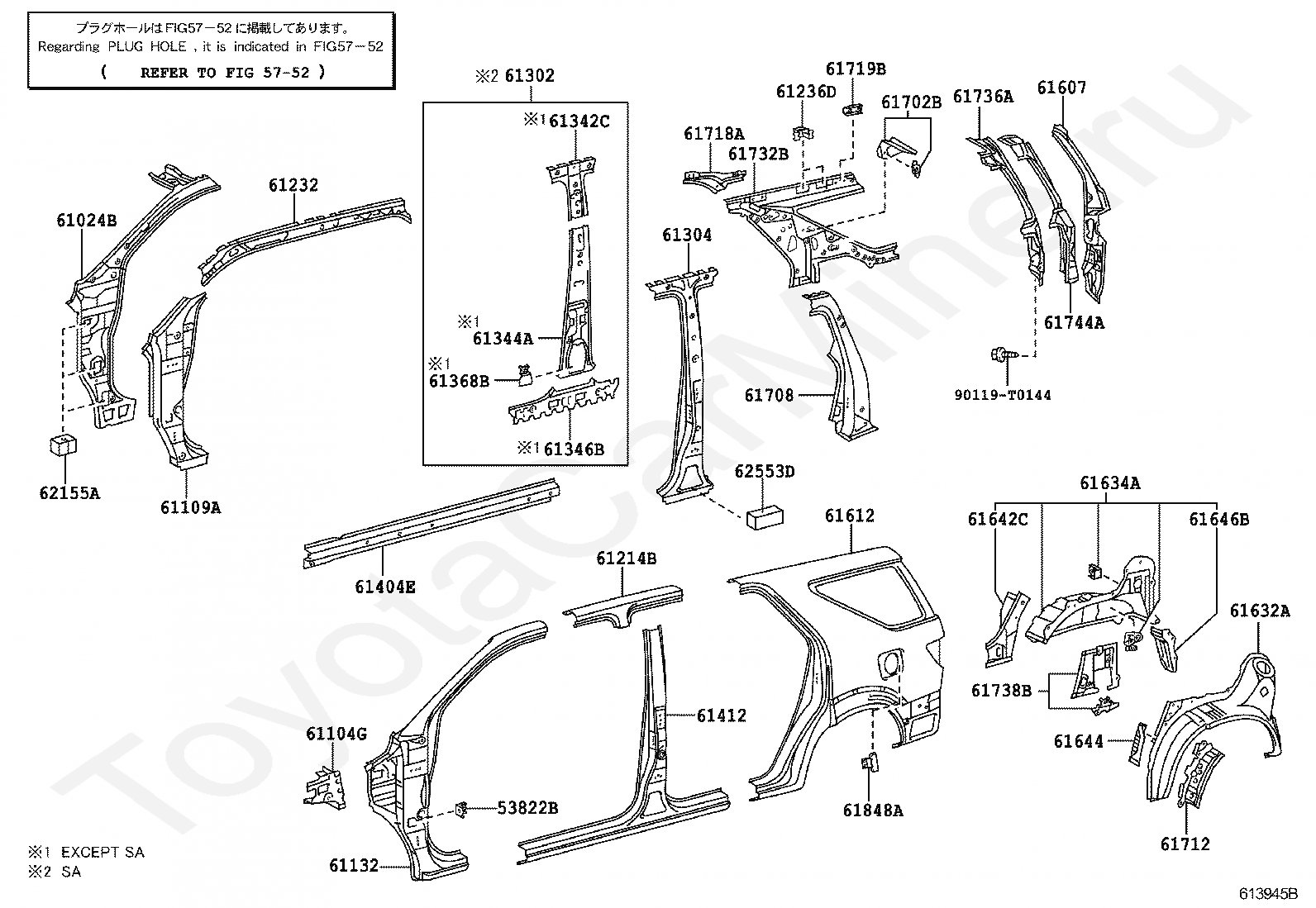

53822B

BRACKET, FRONT FENDER, REAR LH

5752

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61104G

GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61214B

RAIL, ROOF SIDE, OUTER NO.2 LH

61232

RAIL, ROOF SIDE, INNER LH

61236D

BRACKET, ASSIST GRIP, NO.2

61302

PILLAR SUB-ASSY, CENTER BODY, LH

61304

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

61342C

PILLAR, CENTER BODY, INNER UPPER LH

61344A

PILLAR, CENTER BODY, INNER LH

61346B

PILLAR, CENTER BODY, INNER LOWER LH

61368B

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

61607

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61612

PANEL, QUARTER, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61644

GUSSET, QUARTER WHEEL HOUSE, CENTER LH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61702B

PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH

61708

PANEL SUB-ASSY, QUARTER, INNER LH

61712

PANEL, ROOF SIDE, OUTER LH

61718A

REINFORCEMENT, QUARTER PANEL EXTENSION, LH

61719B

BRACKET, ROOF SIDE, INNER

61732B

PANEL, ROOF SIDE, INNER LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61738B

PANEL, ROOF SIDE, INNER LOWER LH

61744A

REINFORCEMENT, BACK DOOR OPENING SIDE, LH

61848A

RETAINER, QUARTER PANEL, LH
