Передние кресла TOYOTA ETIOS/LIVA/CROSS, 2013/03 - 2017/12, 1,2 литра, 16 клапанов, DOHC, EFI, V(MODEL MARK), NGK10, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

ETIOS/LIVA/CROSS

Двигатель

1,2 литра, 16 клапанов, DOHC, EFI

Класс

V(MODEL MARK)

Фрейм

NGK10

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль 5 дверей Индонезия 480W

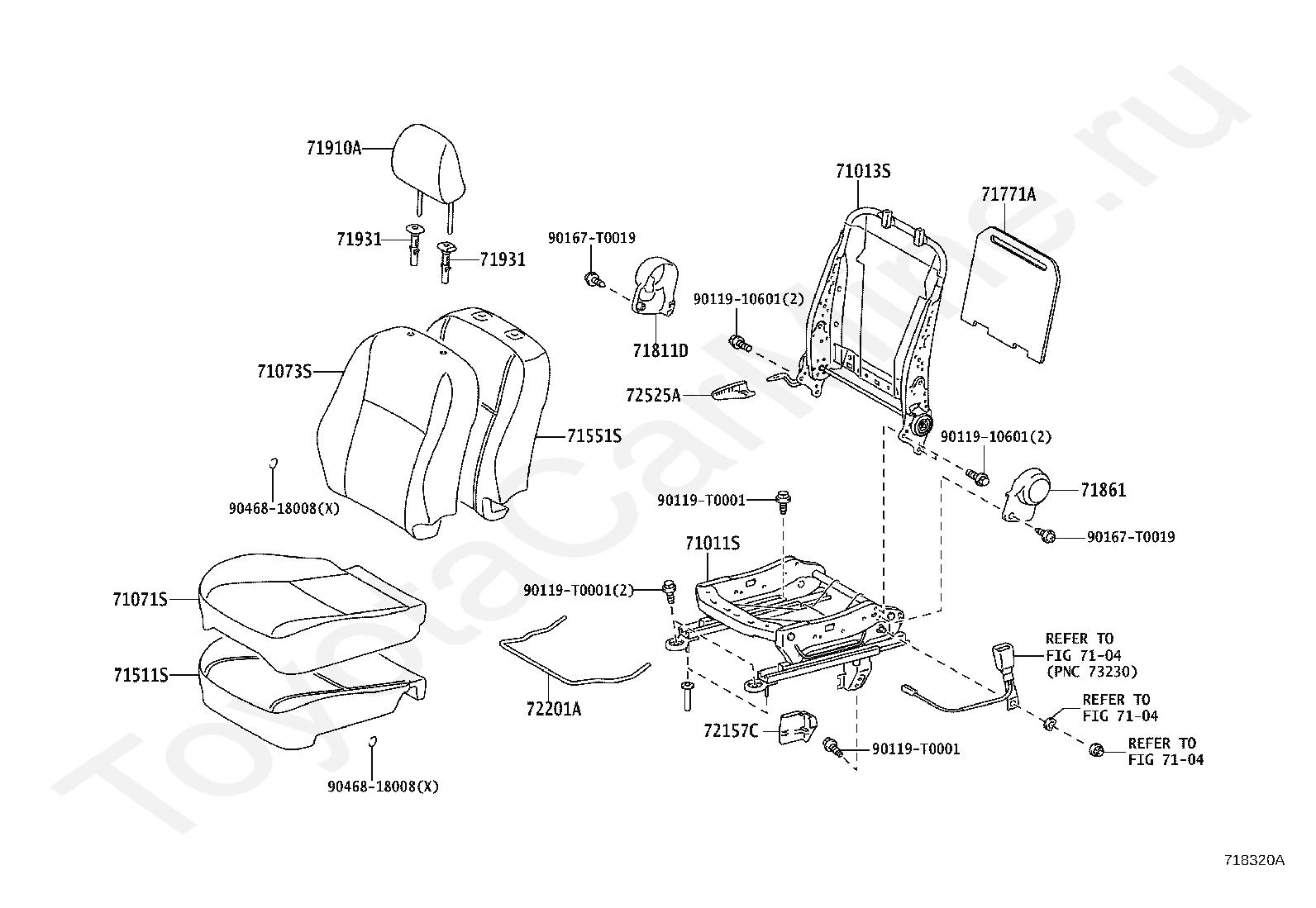

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71771A

BOARD, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72157C

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910601

Крепеж

90119T0001

Крепеж

90167T0019

Крепеж

9046818008

Крепеж

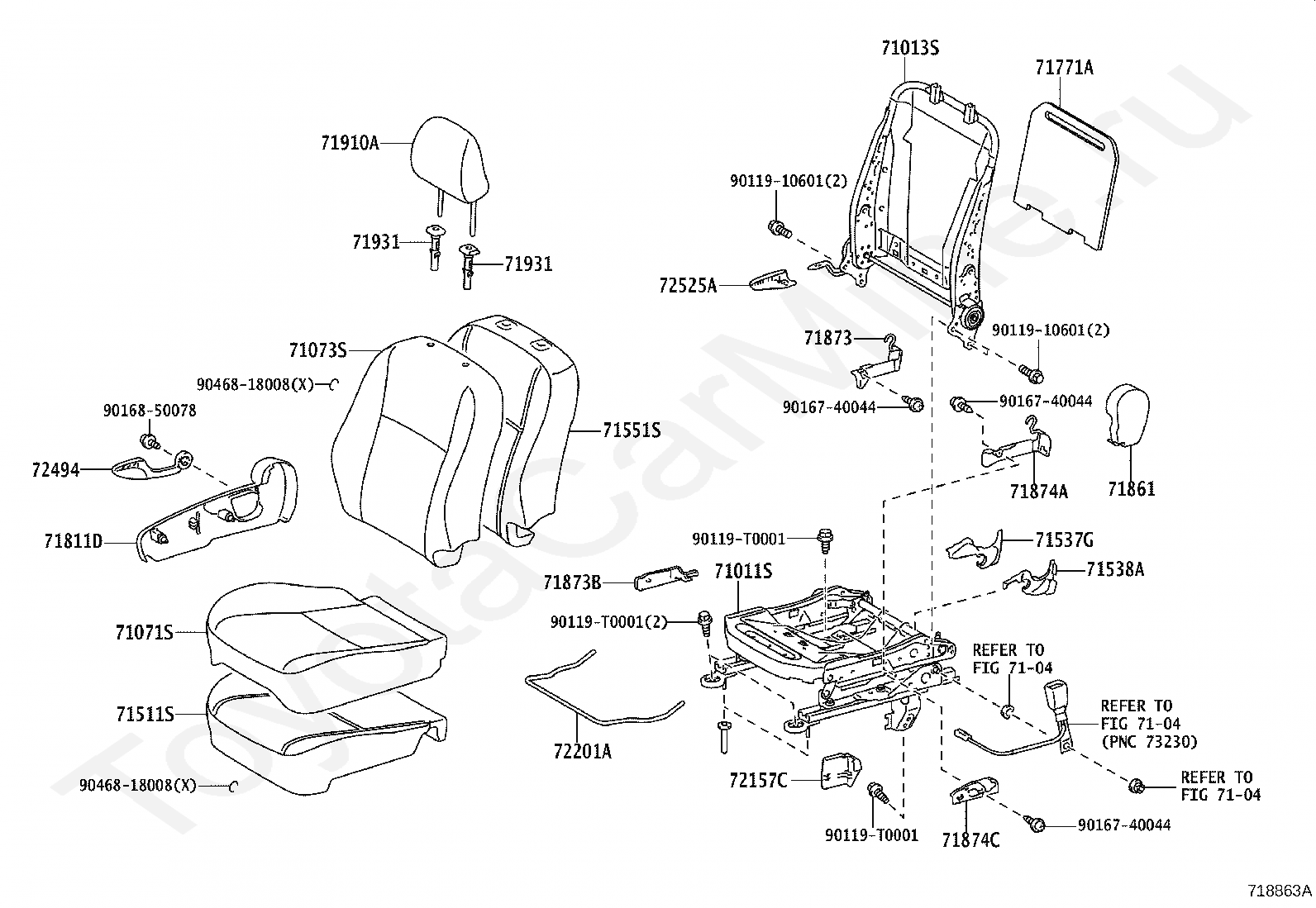

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71771A

BOARD, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72157C

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910601

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9046818008

Крепеж

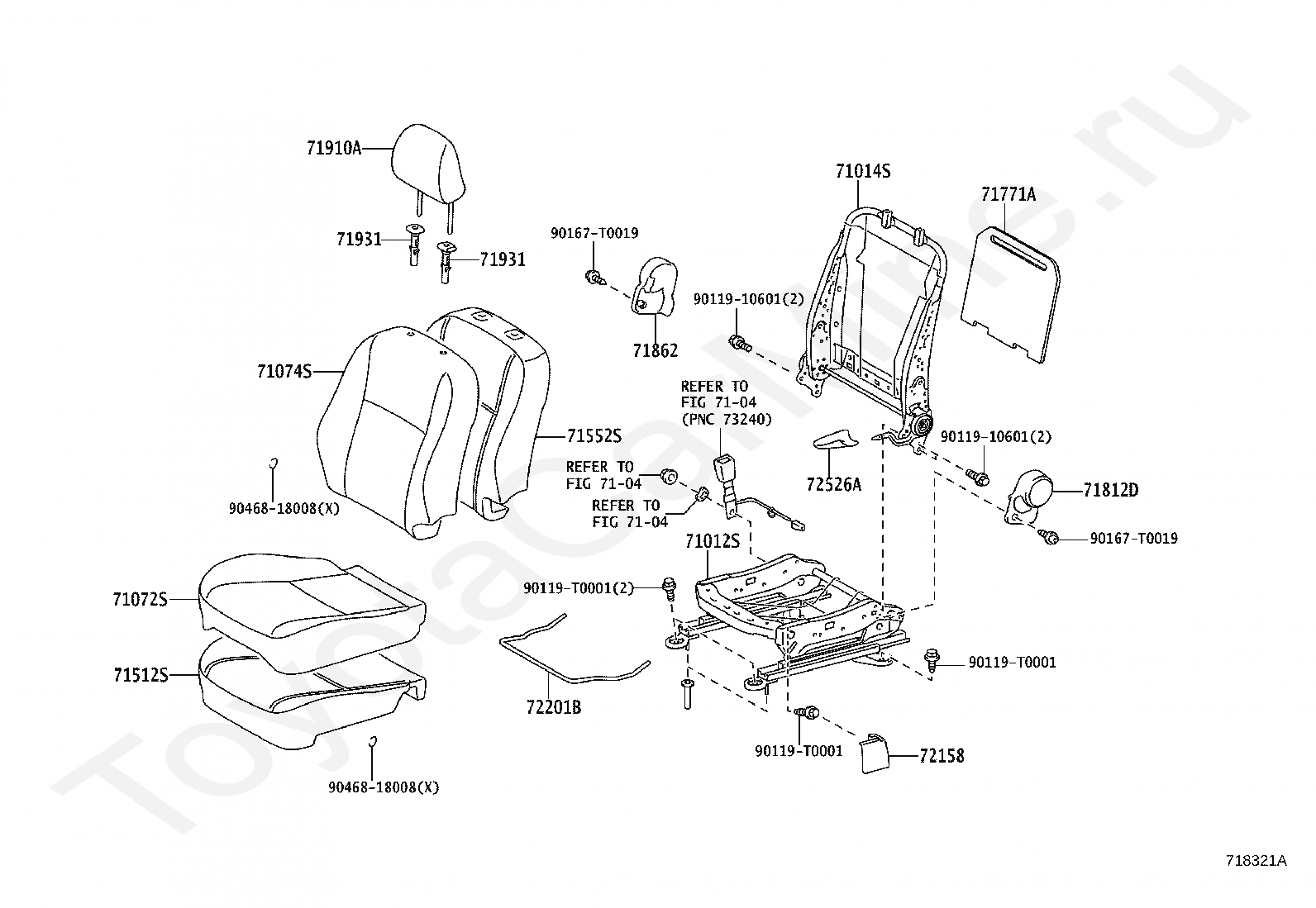

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71771A

BOARD, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910601

Крепеж

90119T0001

Крепеж

90167T0019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA ETIOS/LIVA/CROSS, 2013/03 - 2017/12, 1,2 литра, 16 клапанов, DOHC, EFI, V(MODEL MARK), NGK10, механика, МКПП, 5 скоростей
