Кресла TOYOTA ESTIMA T/L, 2001/04 - 2006/01, 2,4 литра, 16 клапанов DOHC, EFI, AERAS TYPE, ACR30

Каталог

Япония

Модель

ESTIMA T/L

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

AERAS TYPE

Фрейм

ACR30

Опции

7-местный

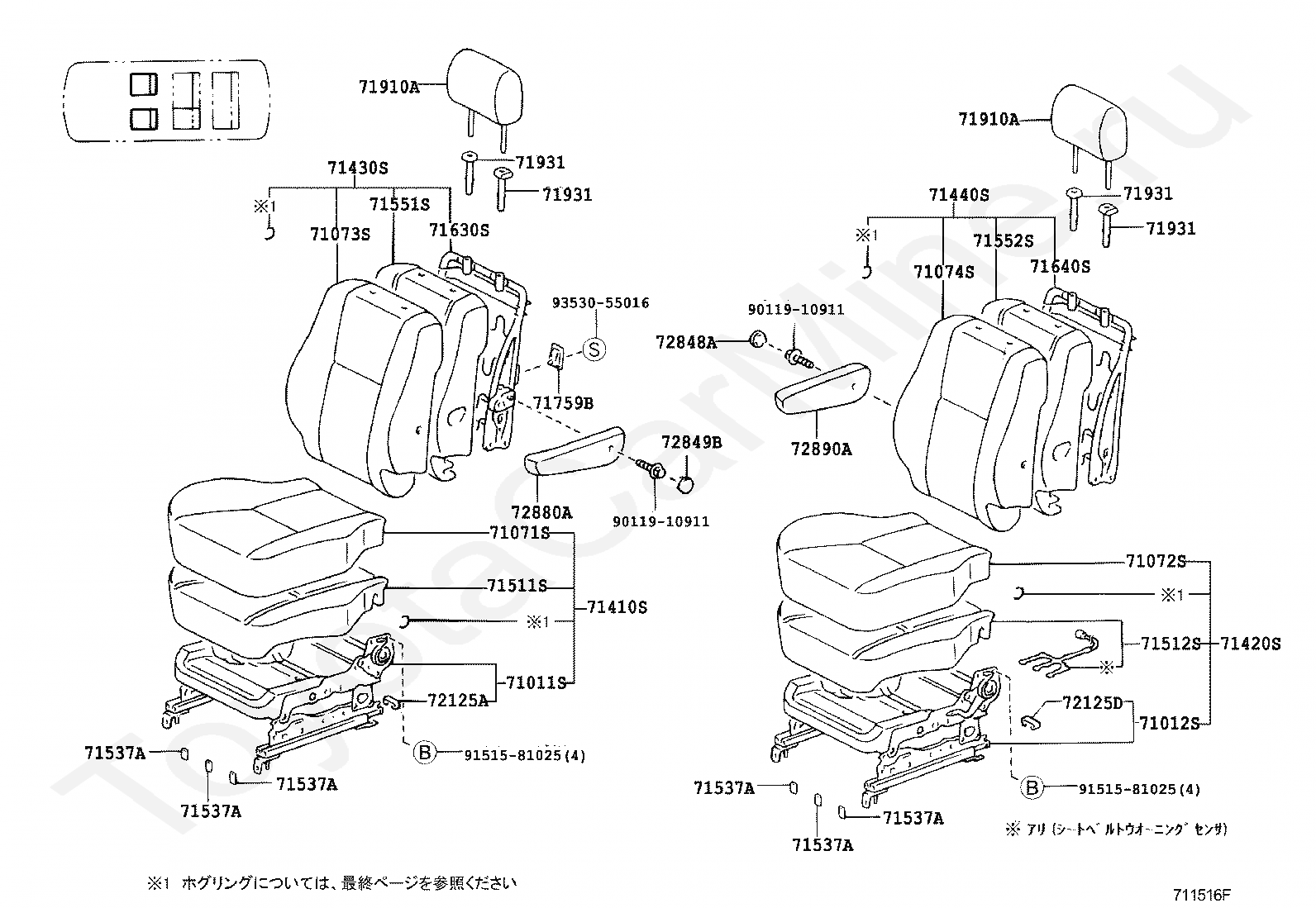

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72848A

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

9011910911

Крепеж

9151581025

Крепеж

9353055016

Крепеж

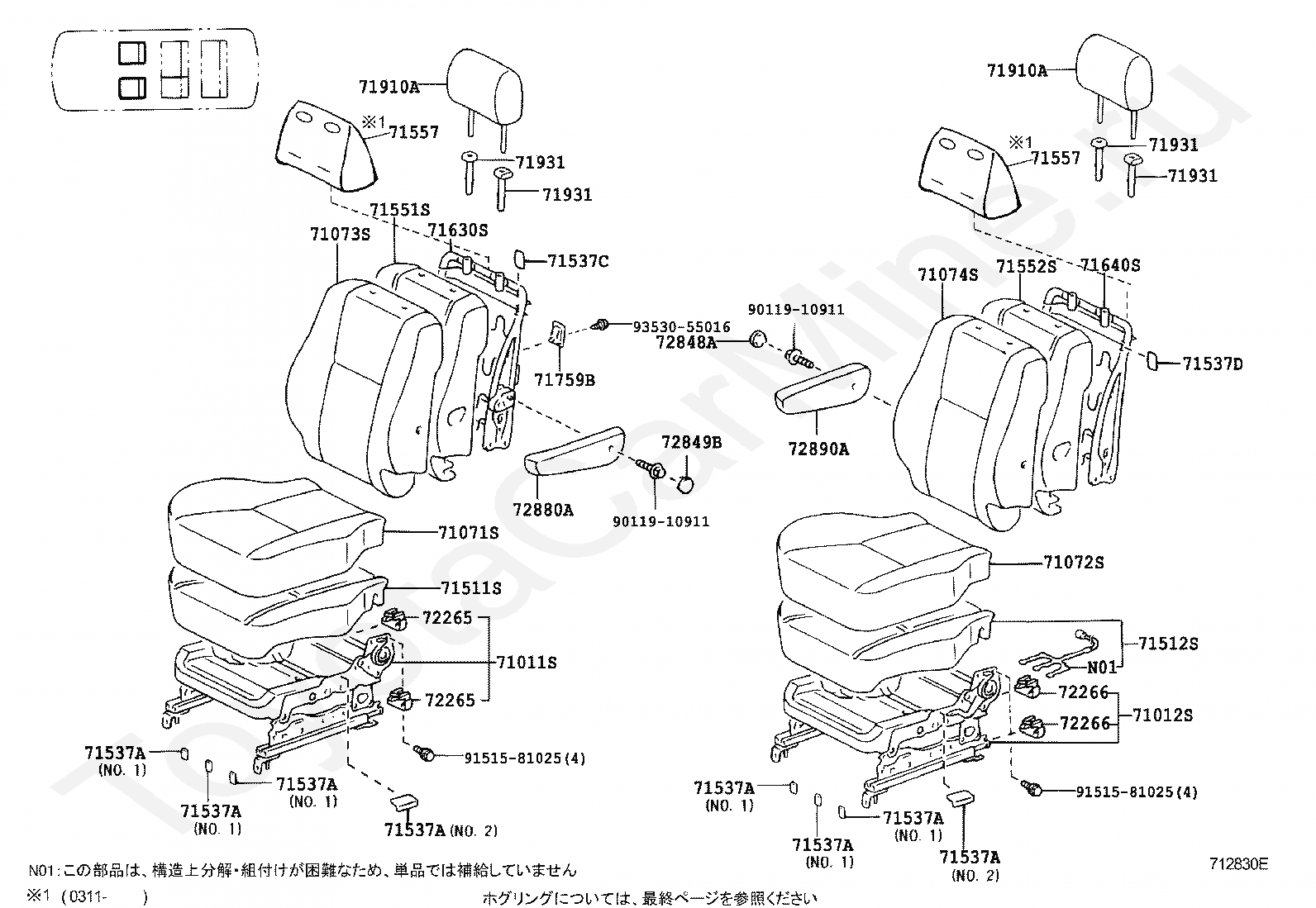

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71557

CLOTH, FRONT SEAT BACK UNDER

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72848A

CAP, SEAT ARMREST, NO.1

72849B

CAP, SEAT ARMREST, NO.1

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

9011910911

Крепеж

9151581025

Крепеж

9353055016

Крепеж

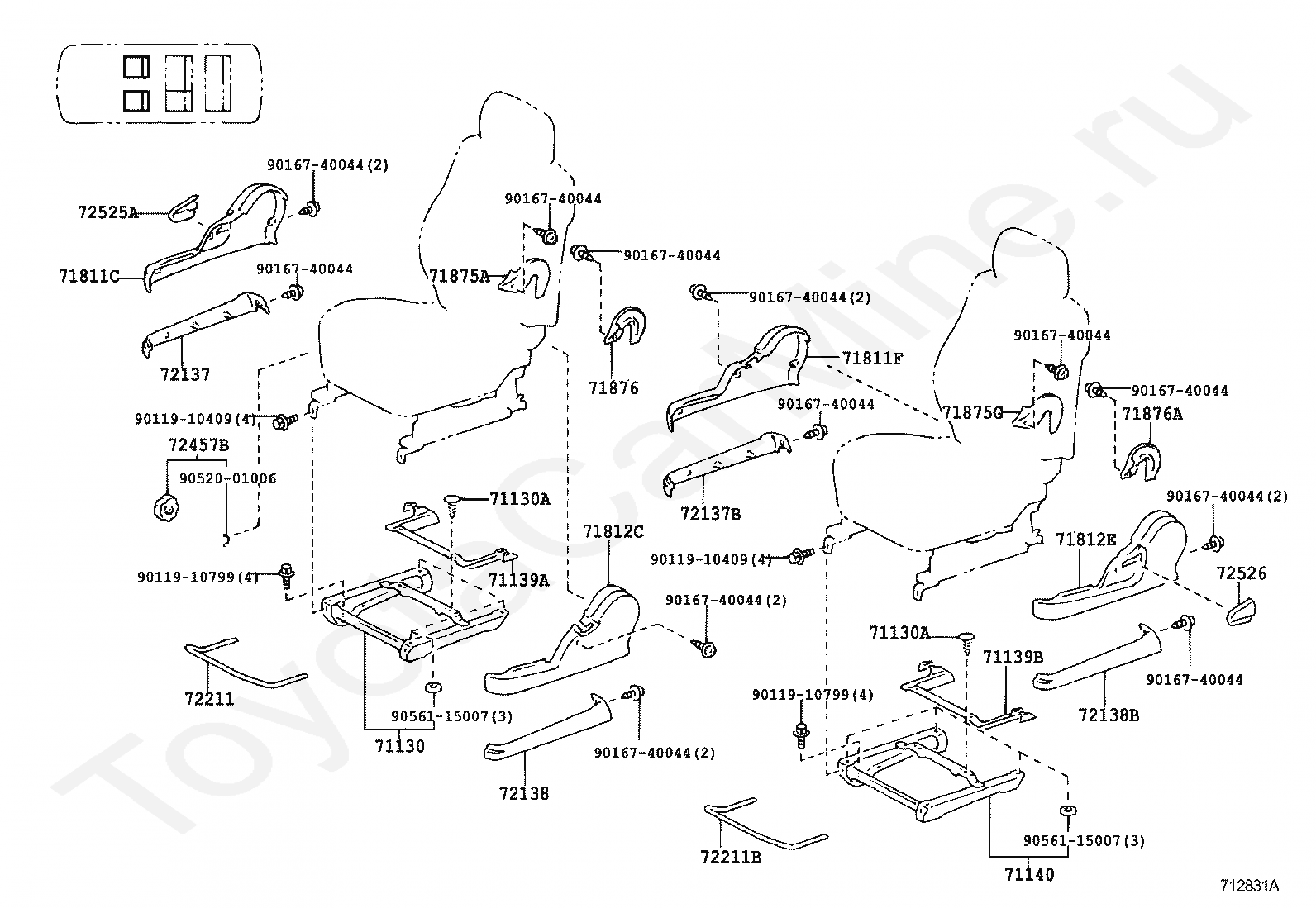

Код

Описание

71130

LEG ASSY, FRONT SEAT, RH

71130A

CLIP, FRONT SEAT LEG

71139A

COVER, FRONT SEAT LEG, NO.1

71139B

COVER, FRONT SEAT LEG, NO.2

71140

LEG ASSY, FRONT SEAT, LH

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72137

COVER, SEAT TRACK, OUTER RH

72137B

COVER, SEAT TRACK, RH

72138

COVER, SEAT TRACK, OUTER LH

72138B

COVER, SEAT TRACK, LH

72211

HANDLE, SEAT TRACK ADJUSTING

72211B

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910409

Крепеж

9011910799

Крепеж

9016740044

Крепеж

9052001006

Крепеж

9056115007

Крепеж

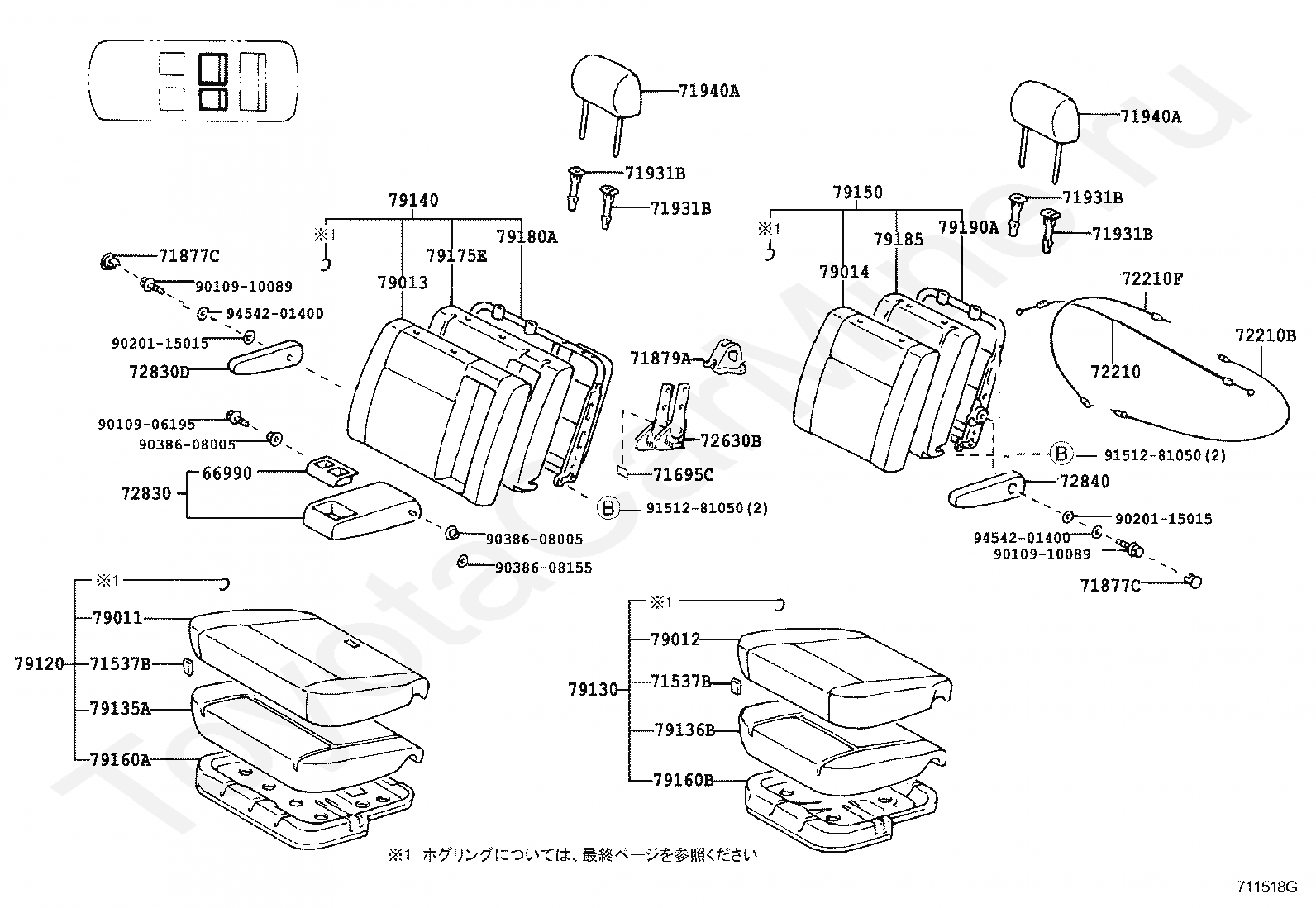

Код

Описание

66990

HOLDER ASSY, CUP

71537B

PROTECTOR, REAR SEAT CUSHION

71695C

PROTECTOR, REAR SEAT, NO.1

71877C

COVER, REAR SEAT ARMREST HOLE LH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72210

CABLE ASSY, SEAT TRACK CONTROL

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72630B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH

72830

ARMREST ASSY, REAR SEAT, CENTER

72830D

ARMREST ASSY, REAR SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79160B

SPRING ASSY, NO.1 SEAT CUSHION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010906195

Крепеж

9010910089

Крепеж

9020115015

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9151281050

Крепеж

9454201400

Крепеж

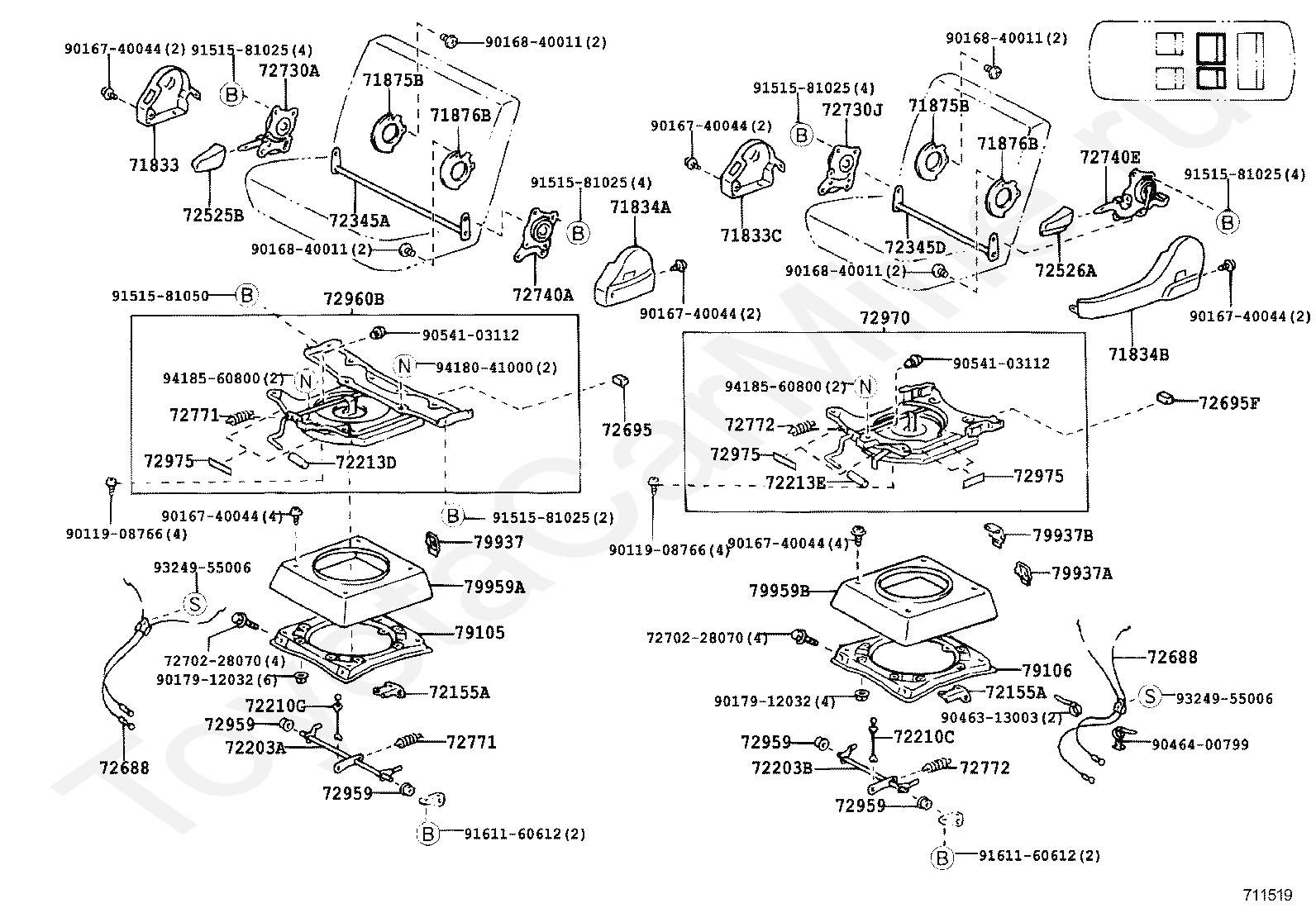

Код

Описание

71833

MAT, REAR SEAT FLOOR, FRONT

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

72155A

BRACKET, SEAT TRACK HANDLE SUPPORT

72203A

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72203B

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72210G

CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH

72213D

KNOB, SEAT TRACK ADJUSTING HANDLE

72213E

KNOB, SEAT TRACK ADJUSTING HANDLE

72345A

PIPE, RECLINING CONNECTING

72345D

PIPE, RECLINING CONNECTING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72688

CABLE, REAR SEAT TRACK & TURN CONTROL

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695F

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

7270228070

Крепеж

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72730J

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72740E

ADJUSTER ASSY, REAR SEAT BACK, OUTER LH

72771

SPRING, REAR SEAT TURN NO.1

72772

SPRING, REAR SEAT TURN NO.2

72959

SPACER, REAR SEAT TURN SIDE

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

72975

PROTECTOR, REAR SEAT TURN PLATE

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79937

COVER, REAR SEAT LEG, NO.2

79937A

COVER, REAR SEAT LEG, NO.2

79937B

COVER, REAR SEAT LEG, NO.2

79959A

COVER, REAR SEAT LEG, RH

79959B

COVER, REAR SEAT LEG, LH

9011908766

Крепеж

9016740044

Крепеж

9016840011

Крепеж

9017912032

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9054103112

Крепеж

9151581025

Крепеж

9151581050

Крепеж

9161160612

Крепеж

9324955006

Крепеж

9418041000

Крепеж

9418560800

Крепеж

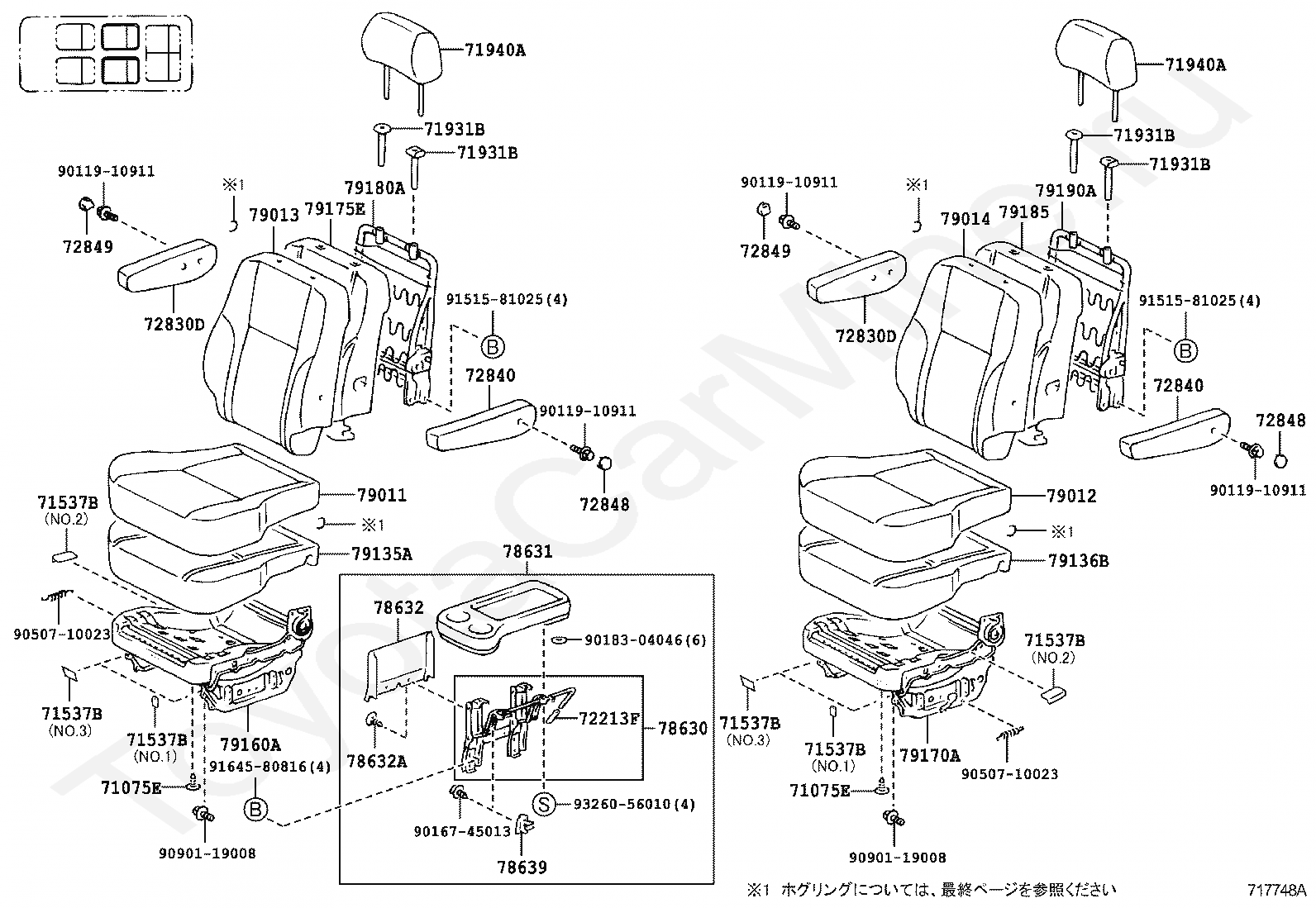

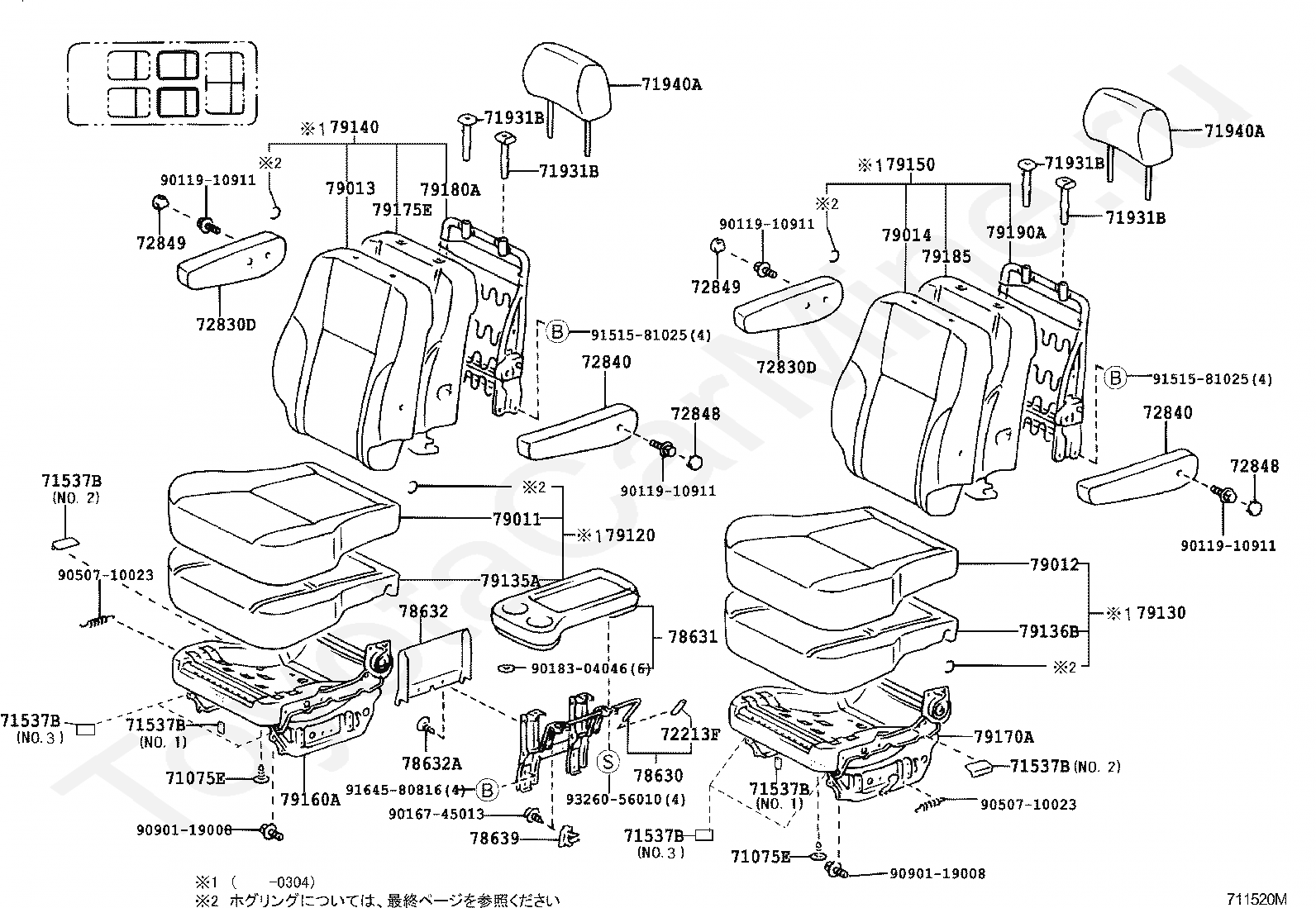

Код

Описание

71075E

CLIP(FOR REAR SEAT)

71537B

PROTECTOR, REAR SEAT CUSHION

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72213F

KNOB, SEAT TRACK ADJUSTING HANDLE

72830D

ARMREST ASSY, REAR SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72848

CAP, NO.3 SEAT ARMREST

72849

CAP, SEAT ARMREST, NO.2

78630

ADJUSTER ASSY, FR0NT SEAT SIDE TABLE

78631

TABLE, FRONT SEAT SIDE

78632

COVER, FRONT SEAT SIDE TABLE

78632A

CLIP, FRONT SEAT SIDE TABLE COVER

78639

CLIP, FRONT SEAT SIDE TABLE

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910911

Крепеж

9016745013

Крепеж

9018304046

Крепеж

9050710023

Крепеж

9090119008

Крепеж

9151581025

Крепеж

9164580816

Крепеж

9326056010

Крепеж

Код

Описание

71075E

CLIP(FOR REAR SEAT)

71537B

PROTECTOR, REAR SEAT CUSHION

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72213F

KNOB, SEAT TRACK ADJUSTING HANDLE

72830D

ARMREST ASSY, REAR SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72848

CAP, NO.3 SEAT ARMREST

72849

CAP, SEAT ARMREST, NO.2

78630

ADJUSTER ASSY, FR0NT SEAT SIDE TABLE

78631

TABLE, FRONT SEAT SIDE

78632

COVER, FRONT SEAT SIDE TABLE

78632A

CLIP, FRONT SEAT SIDE TABLE COVER

78639

CLIP, FRONT SEAT SIDE TABLE

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910911

Крепеж

9016745013

Крепеж

9018304046

Крепеж

9050710023

Крепеж

9090119008

Крепеж

9151581025

Крепеж

9164580816

Крепеж

9326056010

Крепеж

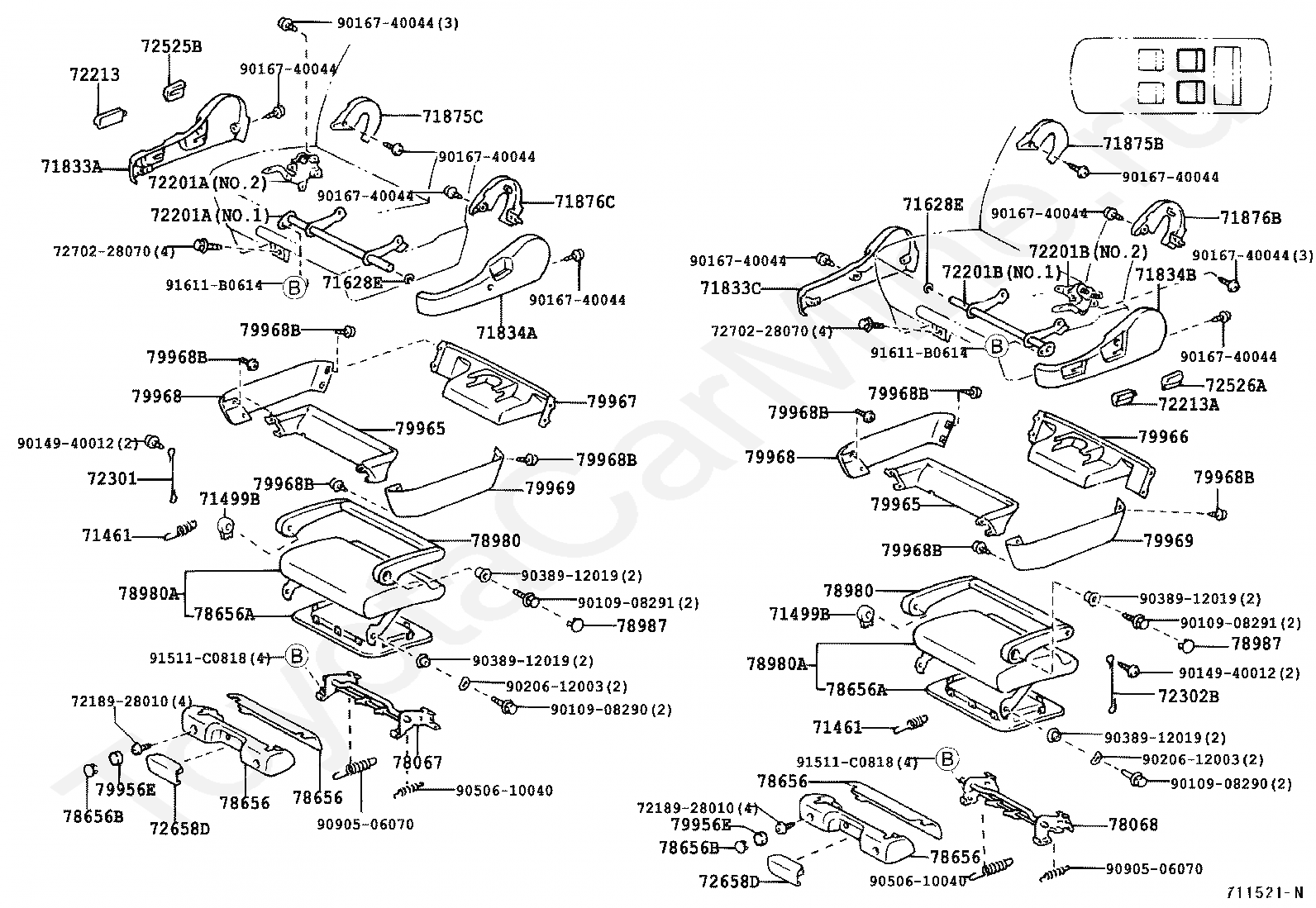

Код

Описание

71461

SPRING, REAR SEAT CUSHION

71499B

DAMPER, SEAT CUSHION SPRING

71628E

SPACER, REAR SEAT CUSHION

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

7218928010

Крепеж

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658D

KNOB, REAR SEAT LOCK HANDLE

7270228070

Крепеж

78067

BRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER

78068

BRACKET SUB-ASSY, REAR SEAT LEGREST, INNER

78656

COVER, REAR SEAT LEGREST

78656A

COVER, REAR SEAT LEGREST

78656B

CAP

78980

FOOTREST ASSY, REAR SEAT

78980A

FOOTREST ASSY, REAR SEAT

78987

COVER, REAR SEAT FOOTREST, NO.1

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79965

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

79967

COVER, REAR SEAT LEG SIDE, NO.4

79968

COVER, REAR SEAT LEG SIDE, NO.5

79968B

CLIP

79969

COVER, REAR SEAT LEG SIDE, NO.6

9010908290

Крепеж

9010908291

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9020612003

Крепеж

9038912019

Крепеж

9050610040

Крепеж

9090506070

Крепеж

91511C0818

Крепеж

91611B0614

Крепеж

Код

Описание

71324J

CUSHION, REAR SEAT

71499C

DAMPER, REAR SEAT CUSHION SPRING

71812J

CLIP, REAR SEAT COVER

71833D

COVER REAR SEAT RECLINING, RH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71865

BEZEL, REAR SEAT COVER, NO.1

71931A

SUPPORT, REAR SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

72058B

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72210J

CABLE ASSY, SEAT TRACK CONTROL

72210K

CABLE ASSY, SEAT TRACK CONTROL

72210L

CABLE ASSY, SEAT TRACK CONTROL

72213B

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72345E

PIPE, RECLINING CONNECTING

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72658B

KNOB, REAR SEAT LOCK HANDLE

72690B

LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH

72690C

LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

7270228070

Крепеж

72748

WIRE, REAR SEAT RECLINING CONTROL

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72830M

ARMREST ASSY, SEAT CENTER, RH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79203

FRAME SUB-ASSY, NO.2 SEAT BACK

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79349

PLATE, NO.3 SEAT CUSHION

79366

COVER, NO.3 SEAT LEG, NO.1

79367

COVER, NO.3 SEAT LEG, NO.2

79374

COVER, NO.3 SEAT LEG, REAR RH

79384

COVER, NO.3 SEAT LEG, REAR LH

79389

BRACKET, NO.3 SEAT CUSHION, FRONT LH

9010906195

Крепеж

9011908511

Крепеж

9014940012

Крепеж

9016450051

Крепеж

9016740044

Крепеж

9016840011

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9046313003

Крепеж

9054103112

Крепеж

91511B0814

Крепеж

9151581025

Крепеж

91611B0614

Крепеж

9418560600

Крепеж

Код

Описание

5854

переход к группе запчастей

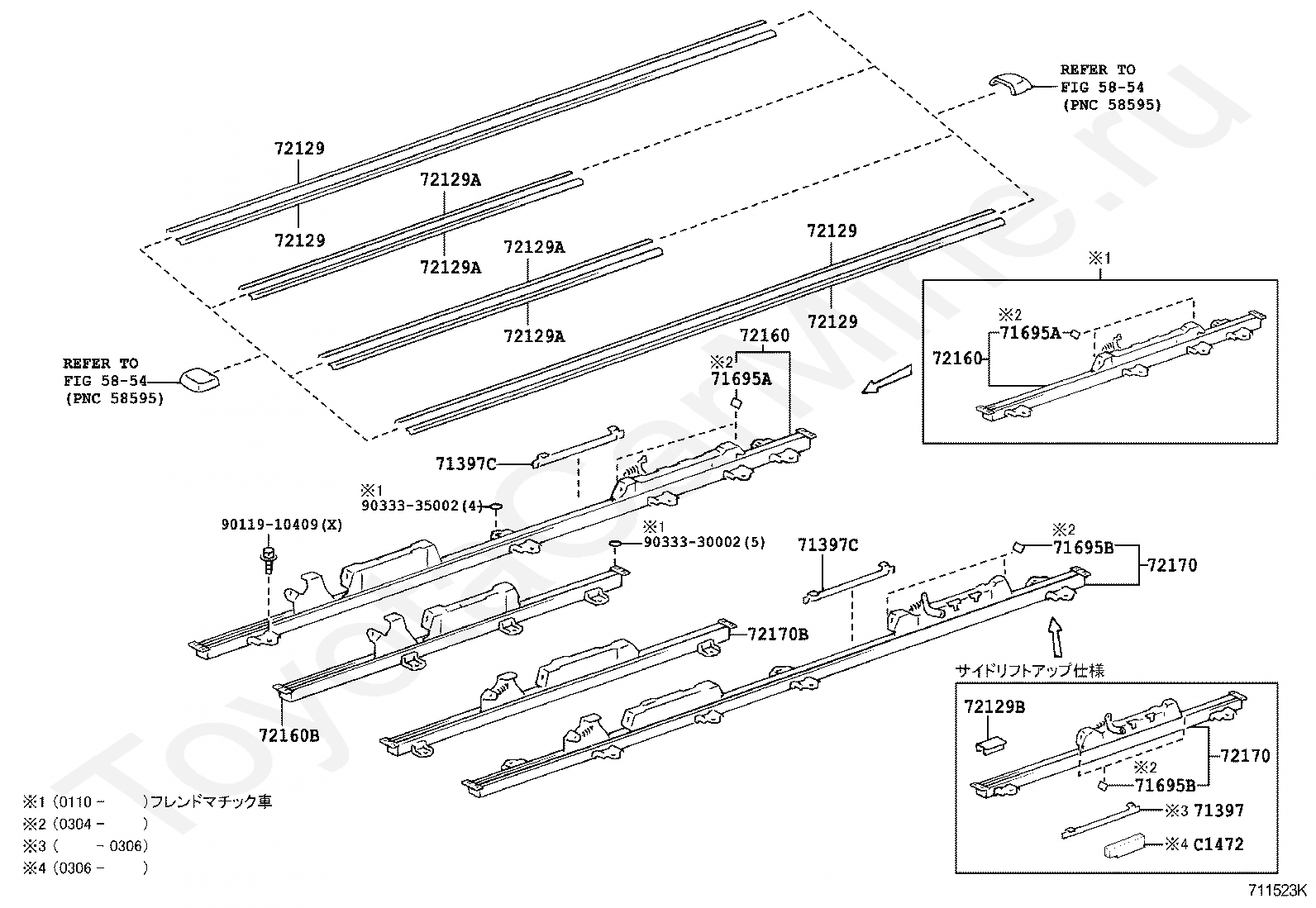

71397

STOPPER, REAR SEAT

71397C

STOPPER, REAR SEAT

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72160

TRACK ASSY, REAR SEAT, OUTER RH

72160B

TRACK ASSY, REAR NO.1 SEAT, RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72170B

TRACK ASSY, REAR NO.1 SEAT, LH

9011910409

Крепеж

9033330002

Крепеж

9033335002

Крепеж

C1472

STOPPER, SLIDE RAIL

Код

Описание

5301928020

Крепеж

71120C

FRAME ASSY, REAR SEAT W/ADJUSTER, LH

7152

переход к группе запчастей

71811G

SHIELD, REAR SEAT CUSHION, RH

71812F

SHIELD, REAR SEAT CUSHION, LH

71931A

SUPPORT, REAR SEAT HEADREST

72137A

CLIP (FOR SEAT TRACK COVER)

72907C

COVER SUB-ASSY, REAR SEAT TURN

72927D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

72928D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

79236A

COVER, NO.2 SEAT LEG

79236B

COVER, NO.2 SEAT LEG, LH

79959

COVER, RR SEAT LEG

8401

переход к группе запчастей

9010910164

Крепеж

9011908C39

Крепеж

9011910409

Крепеж

9011910843

Крепеж

9011910909

Крепеж

9011910918

Крепеж

9016850023

Крепеж

9018304057

Крепеж

9020115023

Крепеж

9046705063C0

Крепеж

91642H1022

Крепеж

9331354008

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9461210800

Крепеж

C3381

COVER, SLIDE STEP, NO.1

C3382

COVER, SLIDE STEP, NO.2

C7003A

LIFT UNIT, REAR SEAT

C7120

LEG, WELCAB SEAT, NO.1

C7120A

LEG, WELCAB SEAT, NO.2

C7196

COVER, TURN TABLE, NO.1

C7227

CARPET, WELCAB SEAT FOOTREST STEP

C991010012

Крепеж

C991640001

Крепеж

Код

Описание

5852

переход к группе запчастей

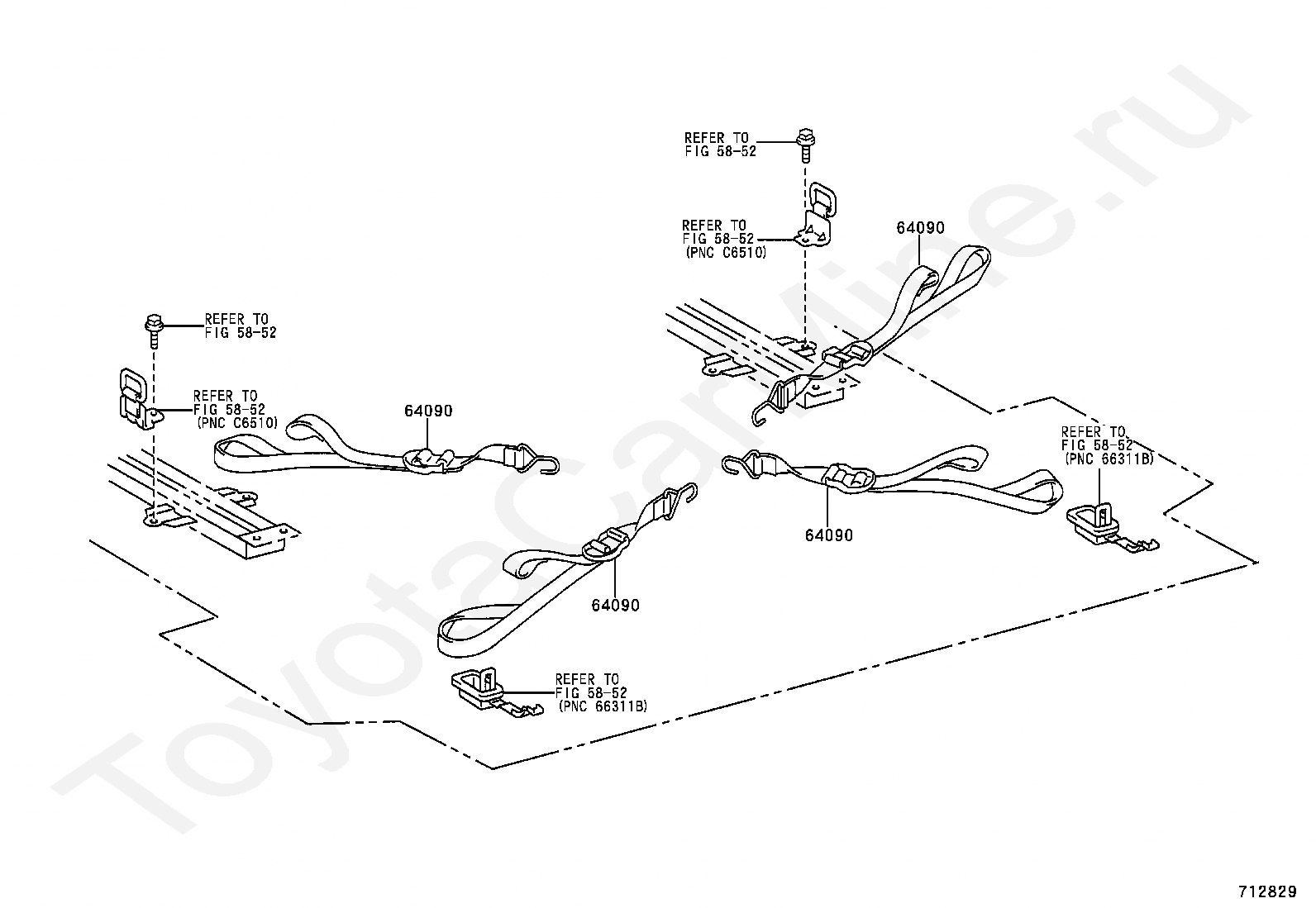

64090

BELT ASSY, WHEEL CHAIR

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA ESTIMA T/L, 2001/04 - 2006/01, 2,4 литра, 16 клапанов DOHC, EFI, AERAS TYPE, ACR30

Товар добавлен в корзину!

Заполните форму
