Каталог
ЯпонияМодель
ESTIMA T/LДвигатель
2,4 литра, 16 клапанов DOHC, EFIКласс
GRAMSФрейм
ACR30Опции
7-местный

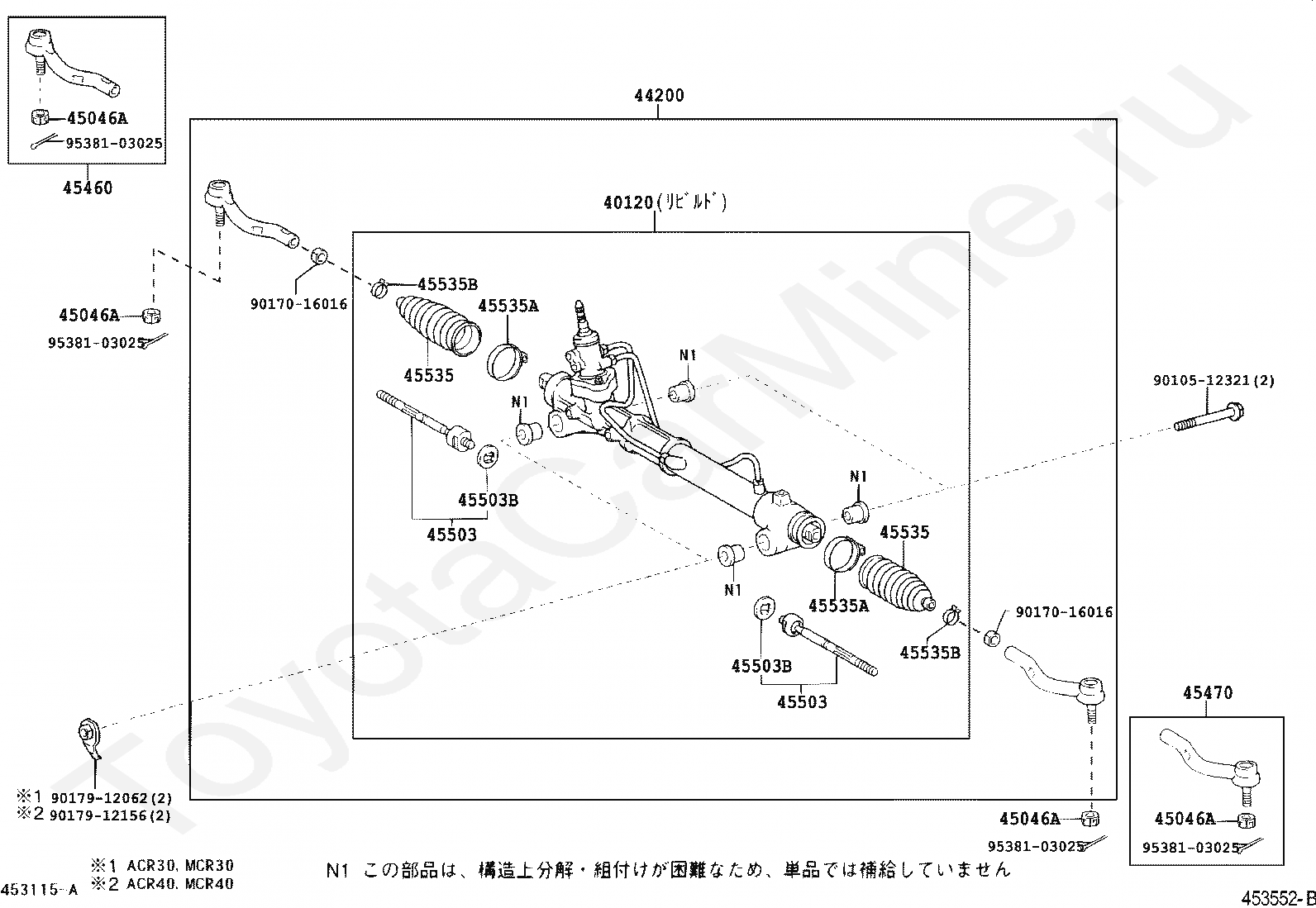

Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
40120
GEAR ASSY,POWER STEERING,REBUILT
44200
LINK ASSY, POWER STEERING
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046A
NUT, CASTLE(FOR TIE ROD END)
45460
ROD ASSY, TIE, RH
45470
ROD ASSY, TIE, LH
9010512321
Крепеж
9017015001
Крепеж
9017912062
Крепеж
9017912156
Крепеж
9538103020
Крепеж

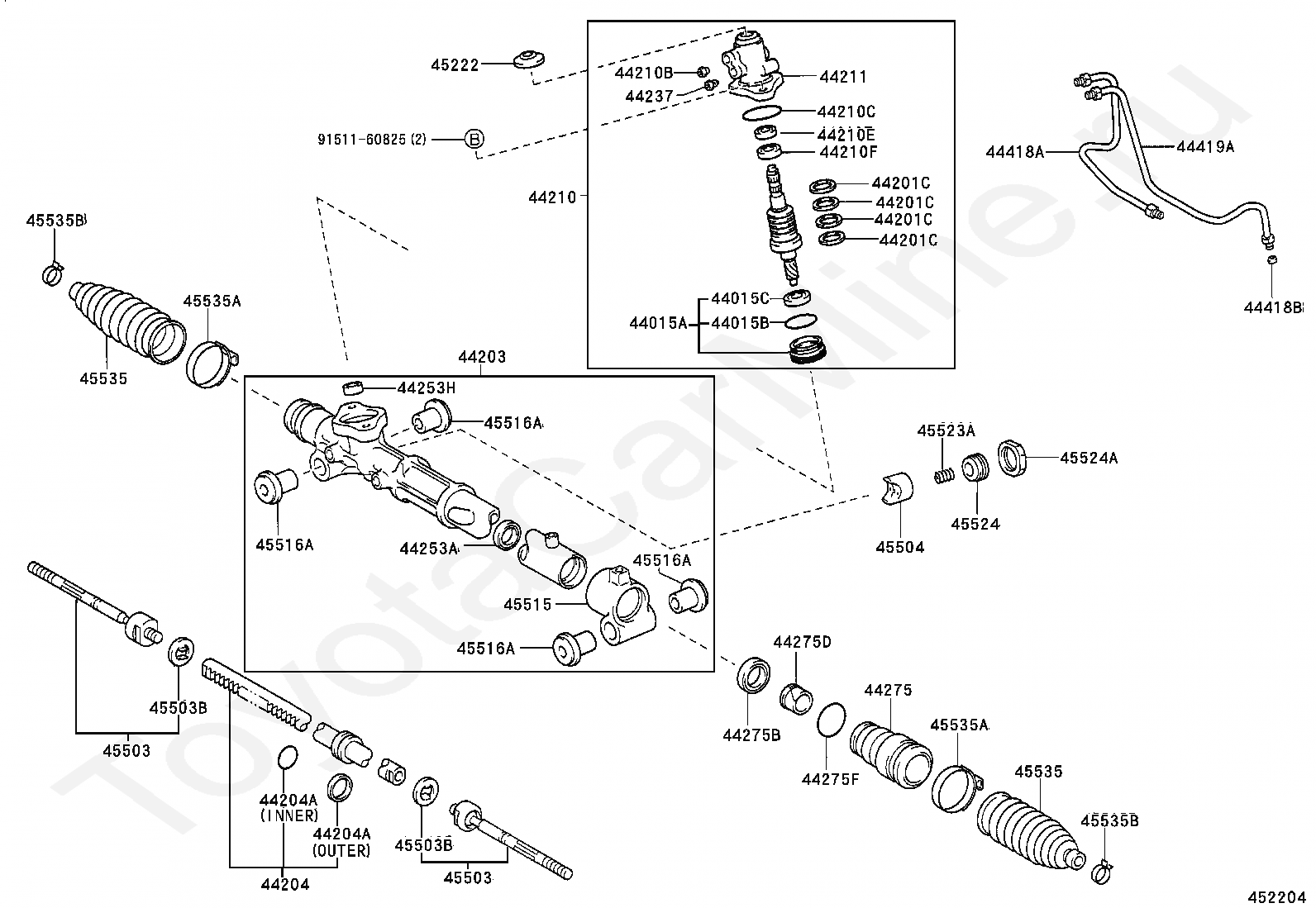

Код
Описание
44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44237
SEAT, PRESSURE CONTROL VALVE ORIFICE
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253H
BEARING, NO.1(FOR POWER STEERING RACK HOUSING)
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44275D
BUSH(FOR CYLINDER END STOPPER)
44275F
RING, O(FOR CYLINDER END STOPPER)
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
45222
COVER, STEERING GEAR DUST
45503
END SUB-ASSY, STEERING RACK
45503B
WASHER, CLAW(FOR STEERING RACK END)
45504
END SUB-ASSY, STEERING RACK, NO.2
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516A
BUSH, STEERING RACK HOUSING, NO.1
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
9151160825
Крепеж

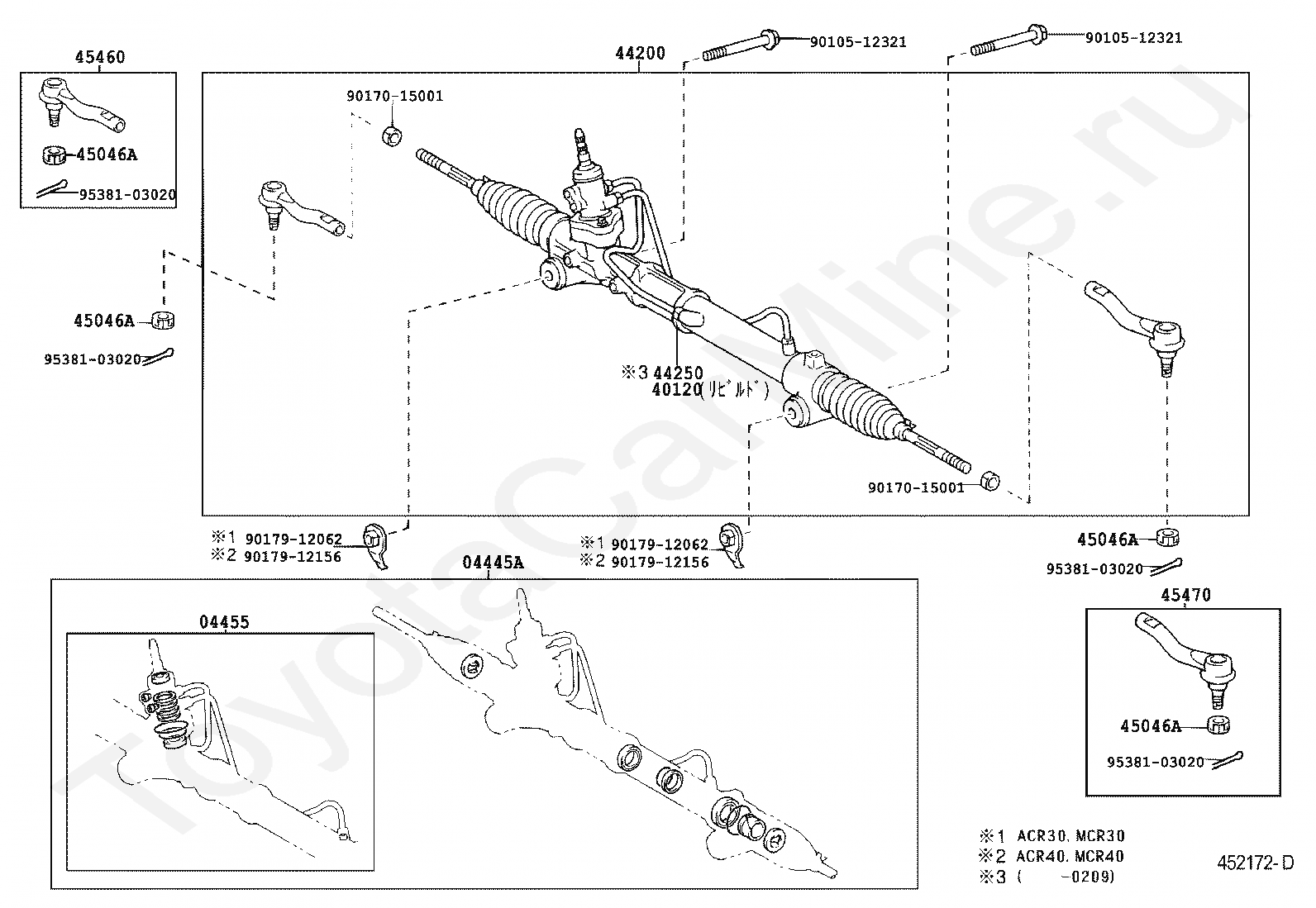

Код
Описание
40120
GEAR ASSY,POWER STEERING,REBUILT
44200
LINK ASSY, POWER STEERING
45046A
NUT, CASTLE(FOR TIE ROD END)
45460
ROD ASSY, TIE, RH
45470
ROD ASSY, TIE, LH
45503
END SUB-ASSY, STEERING RACK
45503B
WASHER, CLAW(FOR STEERING RACK END)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
9010512321
Крепеж
9017016016
Крепеж
9017912062
Крепеж
9017912156
Крепеж
9538103025
Крепеж

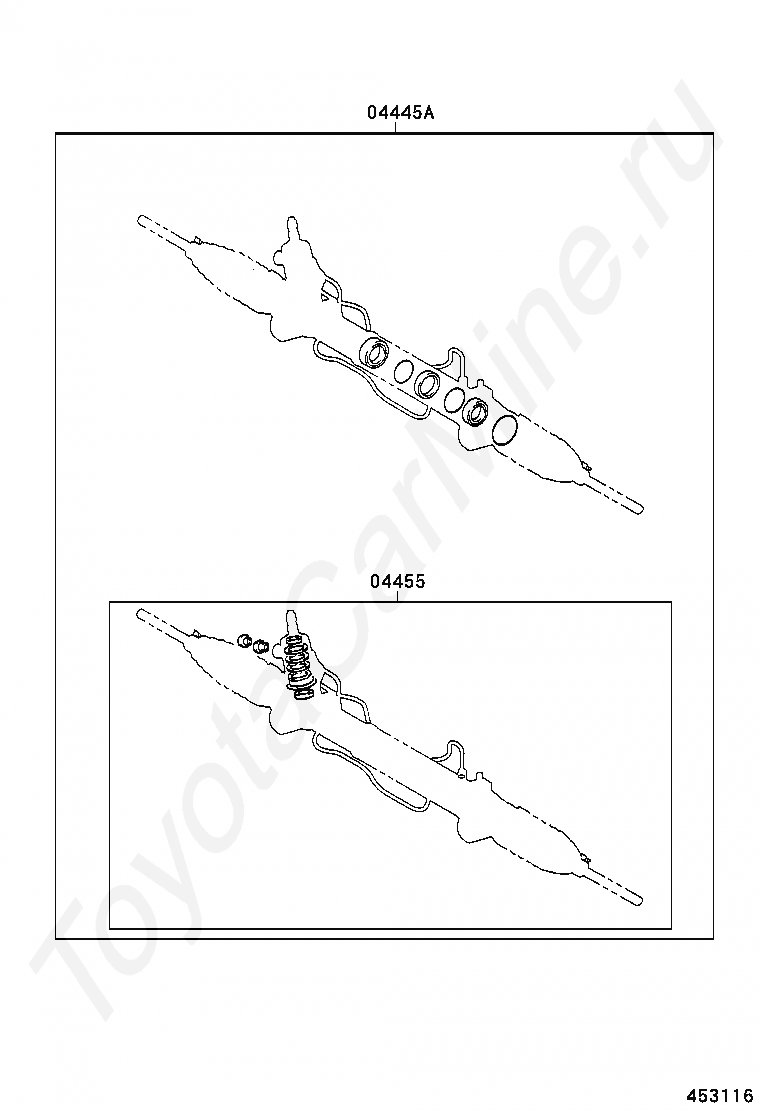

Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
