Шрус TOYOTA ESTIMA T/L, 1999/12 - 2006/01, 3 литра, 24 клапана DOHC, EFI, GRAMS, MCR40

Каталог

Япония

Модель

ESTIMA T/L

Двигатель

3 литра, 24 клапана DOHC, EFI

Класс

GRAMS

Фрейм

MCR40

Опции

7-местный

Код

Описание

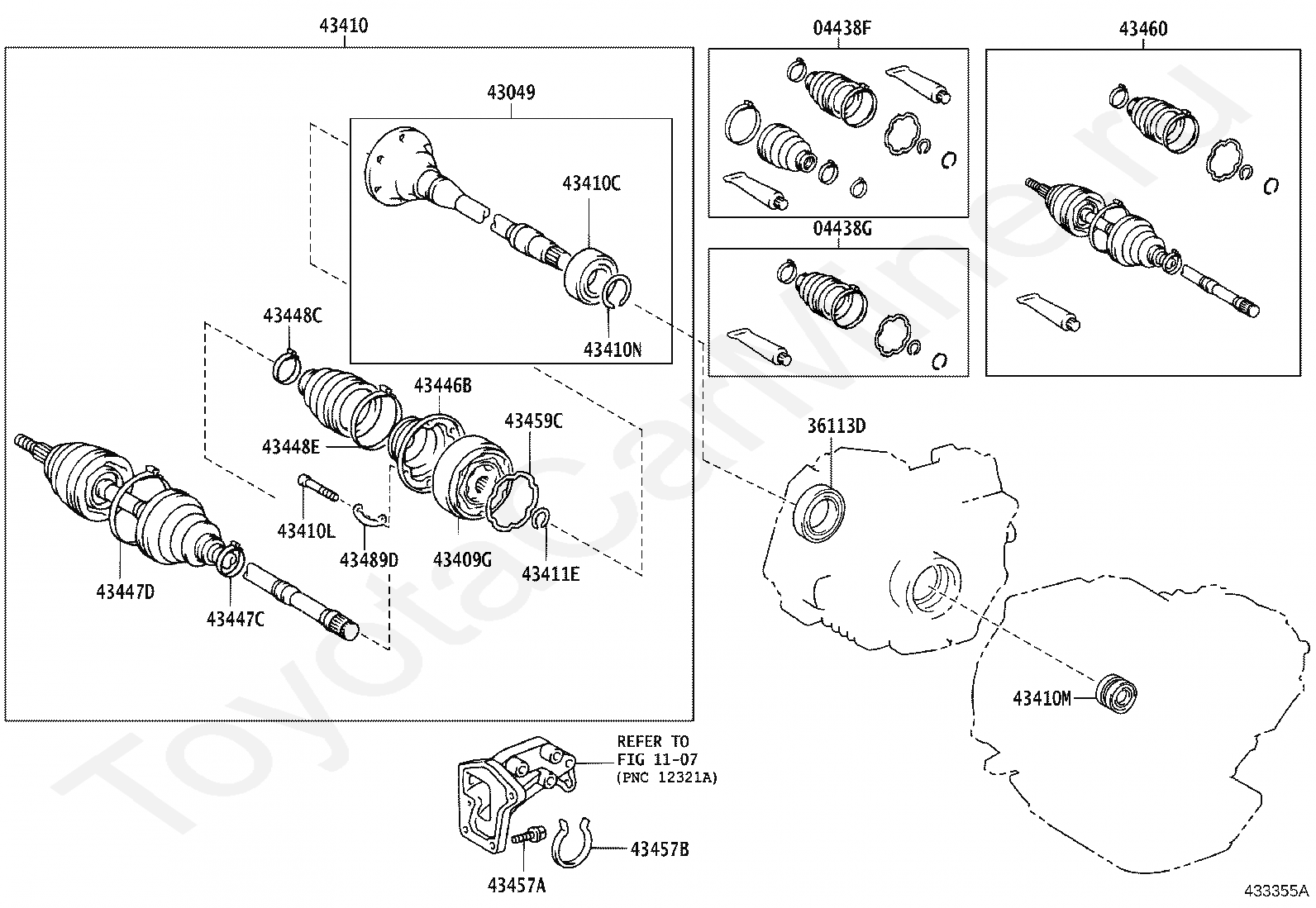

04438F

BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

04438G

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

1107

переход к группе запчастей

36113D

SEAL, OIL (FOR TRANSFER CASE RH)

43049

SHAFT SUB-ASSY, FRONT DRIVE FLANGE

43409G

JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

43410

SHAFT ASSY, FRONT DRIVE, RH

43410C

BEARING (FOR FRONT DRIVE SHAFT)

43410L

BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

43410M

OIL SEAL, FRONT DRIVE SHAFT, RH

43410N

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

43411E

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

43446B

COVER, FRONT AXLE INBOARD JOINT, RH

43447C

CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447D

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43448C

CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448E

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43457A

BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

43457B

RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

43459C

GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

43460

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

43489D

WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

Код

Описание

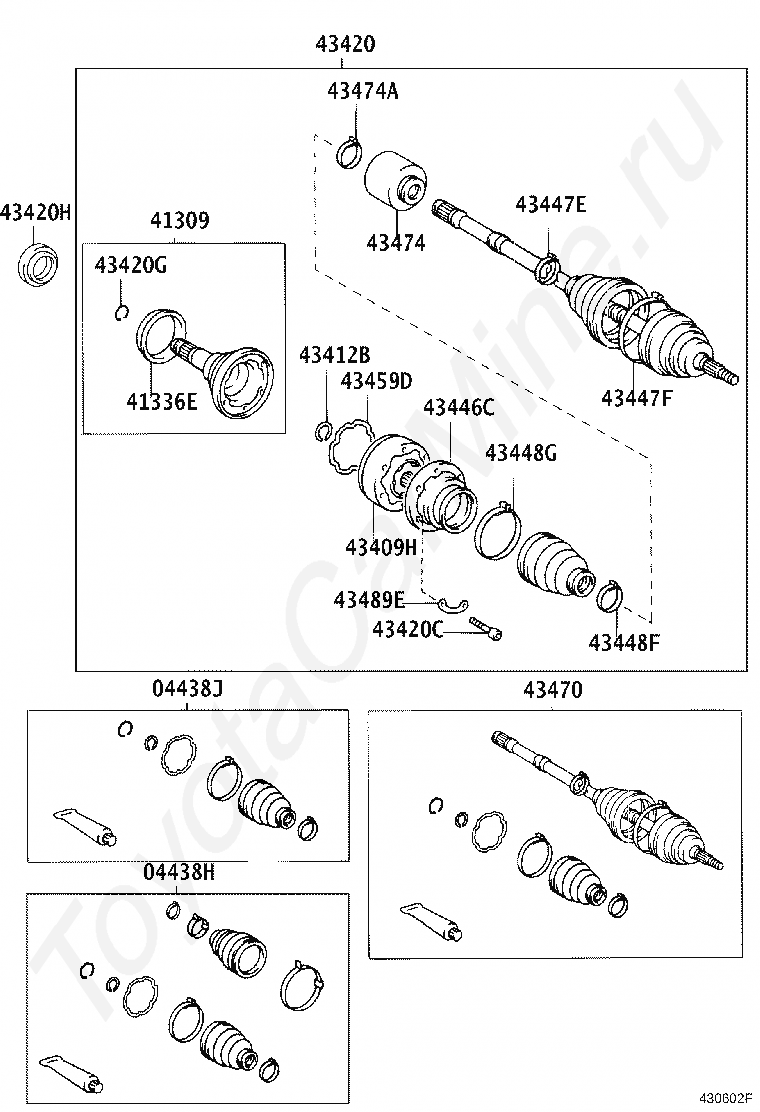

04438H

BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

04438J

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

41309

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

41336E

COVER, FRONT DRIVE SHAFT DUST, LH

43409H

JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH

43412B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

43420

SHAFT ASSY, FRONT DRIVE, LH

43420C

BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)

43420G

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

43420H

OIL SEAL, FRONT DRIVE SHAFT, LH

43446C

COVER, FRONT AXLE INBOARD JOINT, LH

43447E

CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43447F

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43448F

CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43448G

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43459D

GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH

43470

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

43474

DAMPER, DRIVE SHAFT

43474A

CLAMP (FOR DRIVE SHAFT DAMPER SETTING)

43489E

WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH

Код

Описание

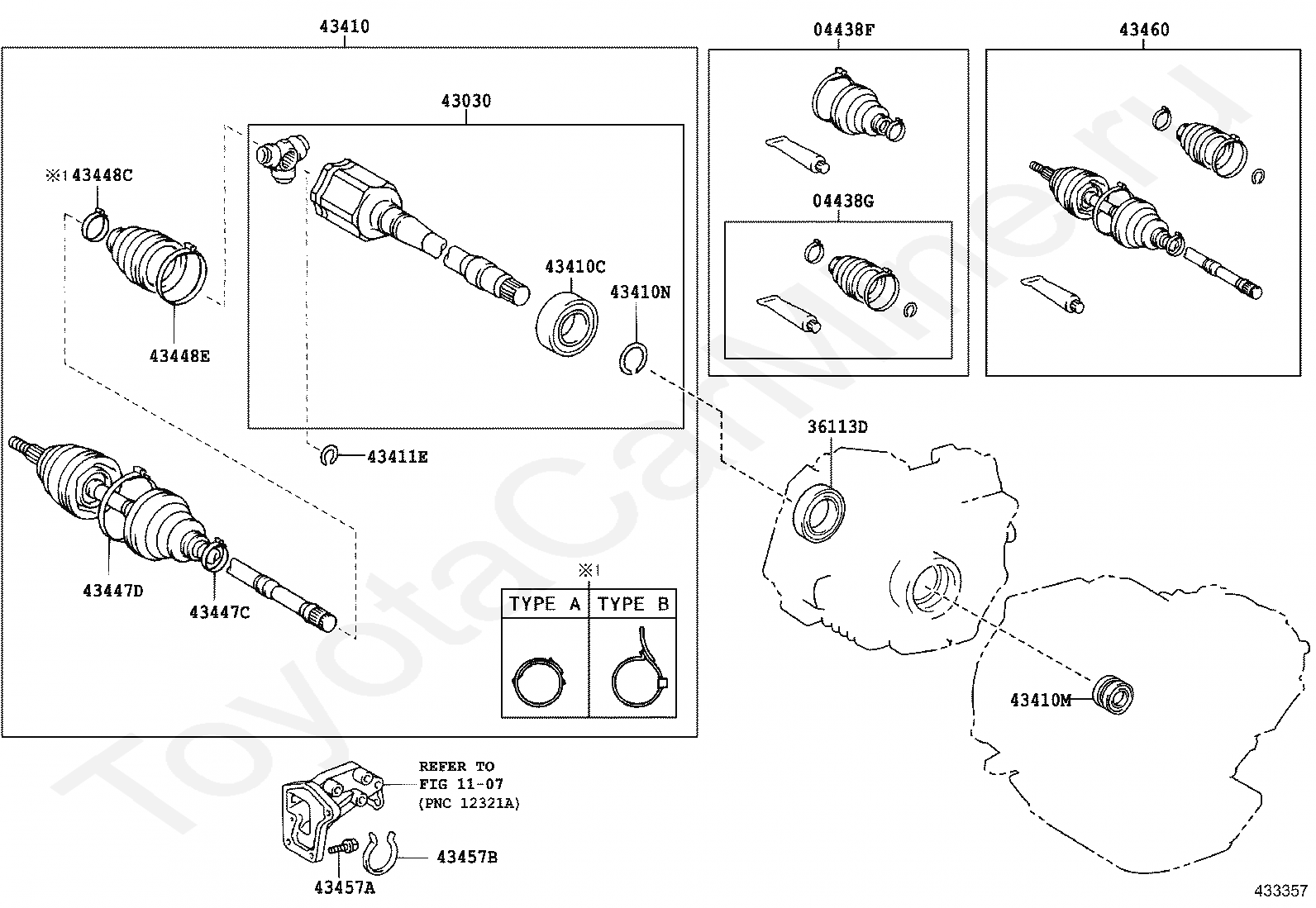

04438F

BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

04438G

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

1107

переход к группе запчастей

36113D

SEAL, OIL (FOR TRANSFER CASE RH)

43030

JOINT ASSY, FRONT DRIVE INBOARD, RH

43410

SHAFT ASSY, FRONT DRIVE, RH

43410C

BEARING (FOR FRONT DRIVE SHAFT)

43410M

OIL SEAL, FRONT DRIVE SHAFT, RH

43410N

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

43411E

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

43447C

CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447D

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43448C

CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448E

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43457A

BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

43457B

RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

43460

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

Код

Описание

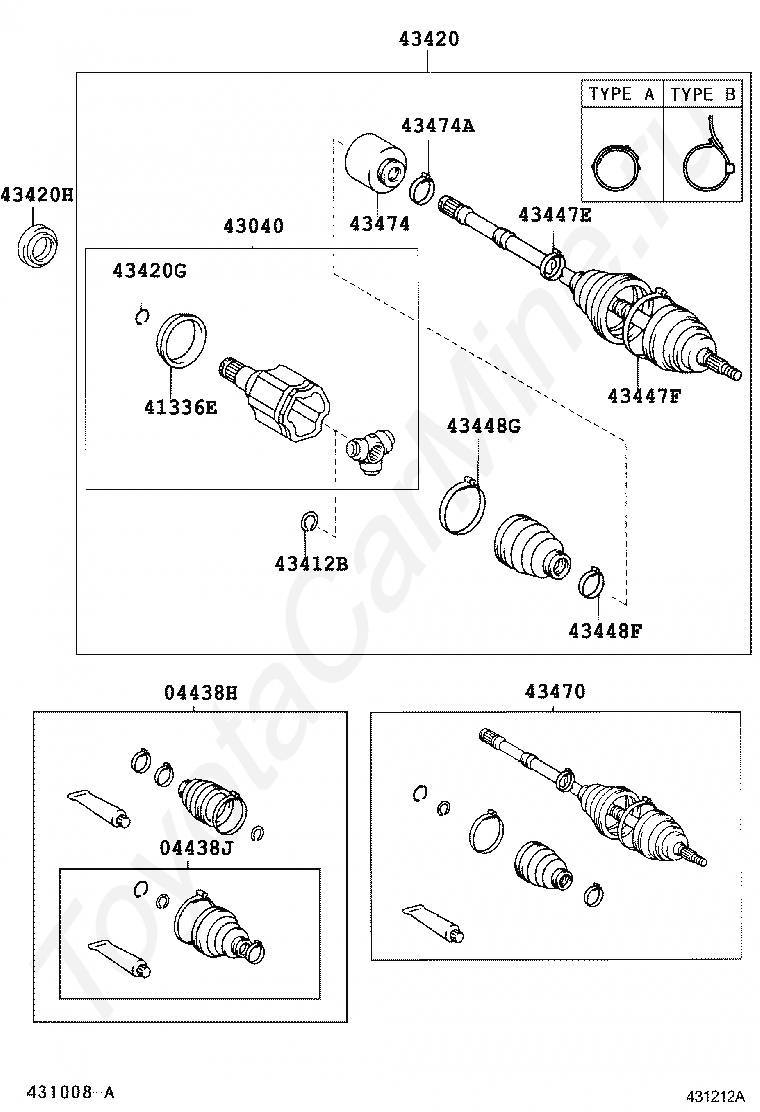

04438H

BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

04438J

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

41336E

COVER, FRONT DRIVE SHAFT DUST, LH

43040

JOINT ASSY, FRONT DRIVE INBOARD, LH

43412B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

43420

SHAFT ASSY, FRONT DRIVE, LH

43420G

RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

43420H

OIL SEAL, FRONT DRIVE SHAFT, LH

43447E

CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43447F

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43448F

CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43448G

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43470

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

43474

DAMPER, DRIVE SHAFT

43474A

CLAMP (FOR DRIVE SHAFT DAMPER SETTING)

Шрус TOYOTA ESTIMA T/L, 1999/12 - 2006/01, 3 литра, 24 клапана DOHC, EFI, GRAMS, MCR40
