Каталог
ЯпонияМодель
ESTIMA HYBRIDДвигатель
2,4 литра, 16 клапанов DOHC, EFIКласс
GRAMSФрейм
AHR20Опции
7-местный 341W
Код
Описание

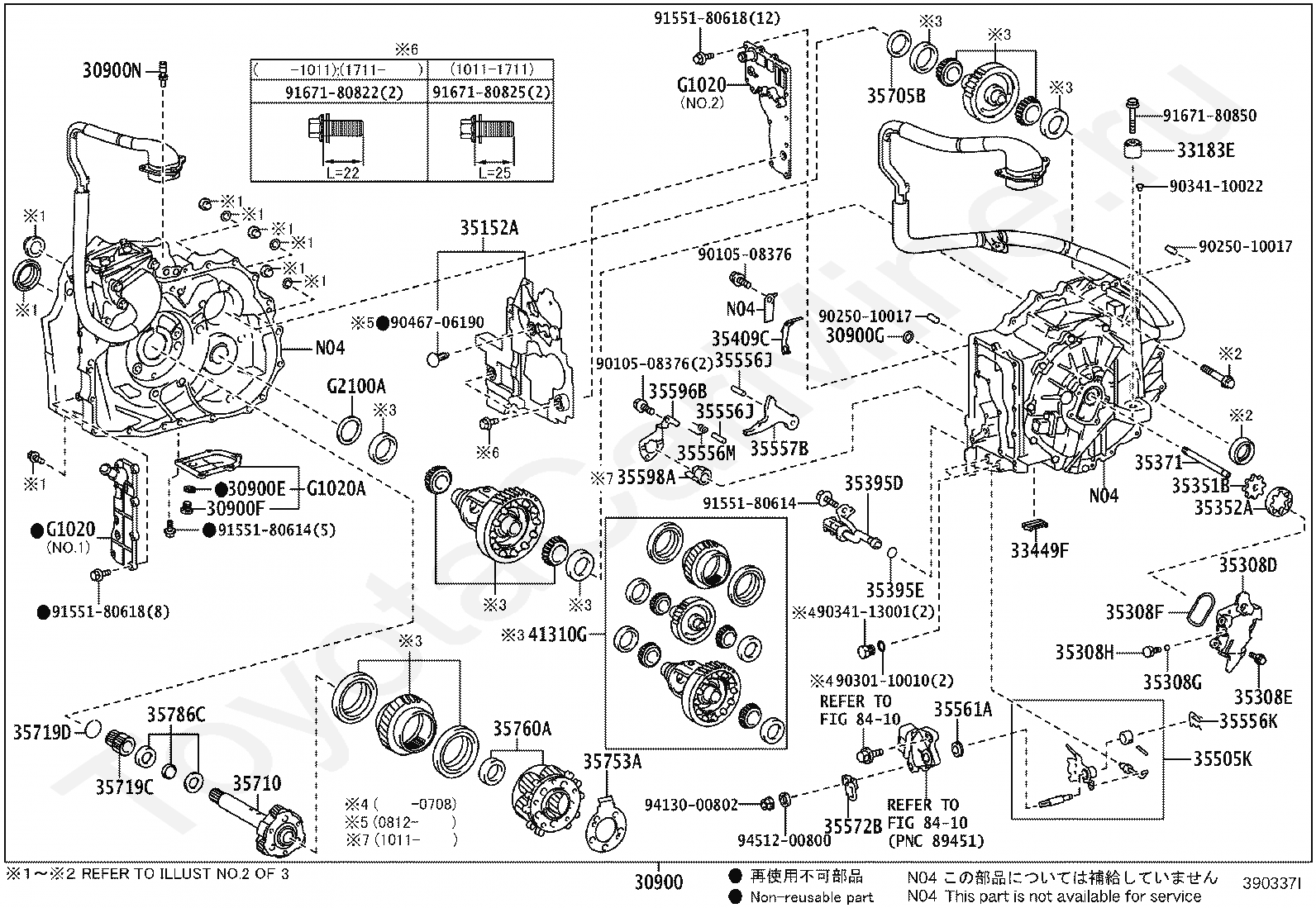

30900
TRANSAXLE ASSY, HYBRID VEHICLE
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900F
PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900G
GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900N
PLUG, BREATHER(FOR TRANSAXLE)
33183E
DAMPER, DYNAMIC
33449F
MAGNET, TRANSMISSION NO.1
35152A
COVER, AUTOMATIC TRANSMISSION CASE, NO.2
35308D
COVER SUB-ASSY, TRANSMISSION OIL PUMP
35308E
BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308F
RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G
RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H
PLUG (FOR TRANSMISSION OIL PUMP COVER)
35351B
ROTOR, TRANSAXLE OIL PUMP DRIVE
35352A
ROTOR, TRANSMISSION OIL PUMP DRIVEN
35371
SHAFT, OIL PUMP DRIVE
35395D
STRAINER, TRANSMISSION OIL
35395E
RING, O(FOR TRANSAXLE OIL STRAINER)
35409C
SPRING SUB-ASSY, MANUAL DETENT
35505K
LEVER SUB-ASSY, PARKING LOCK, NO.1
35556J
SHAFT, PARKING LOCK PAWL
35556K
SPRING, RETAINER
35556M
SPRING, TORSION
35557B
PAWL, PARKING LOCK
35561A
SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)
35572B
LEVER, TRANSMISSION, OUTER
35596B
PLATE, PAWL STOPPER
35598A
SLEEVE, PARKING LOCK
35705B
SHIM(FOR COUNTER DRIVEN GEAR)
35710
SHAFT ASSY, INPUT
35719C
GEAR, PLANETARY SUN
35719D
RING, SNAP(FOR PLANETARY SUN GEAR)
35753A
RECEIVER, PLANETARY OIL
35760A
GEAR ASSY, REAR PLANETARY NO.1
35786C
RACE, THRUST BEARING, NO.1
41310G
GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN
8410
переход к группе запчастей
9010508376
Крепеж
9025010017
Крепеж
9030110010
Крепеж
9034110022
Крепеж
9034113001
Крепеж
9046706190
Крепеж
9155180614
Крепеж
9155180618
Крепеж
9167180822
Крепеж
9167180825
Крепеж
9167180850
Крепеж
9413000802
Крепеж
9451200800
Крепеж
G1020
COVER ASSY, MOTOR WATER JACKET, NO.1
G1020A
COVER ASSY, MOTOR WATER JACKET, NO.2
G2100A
SHIM(FOR DIFFERENTIAL CASE RH)
Код
Описание
30900P
PLUG, DRAIN(HEV)
30900Q
PLUG, FILLER(HEV)
30900R
GASKET, DRAIN PLUG(HEV)
30900S
GASKET, FILLER PLUG(HEV)
30910G
PLUG, STRAIGHT SCREW W/HEAD(FOR TRANSMISSION CASE)
30910H
GASKET(FOR TRANSMISSION CASE)

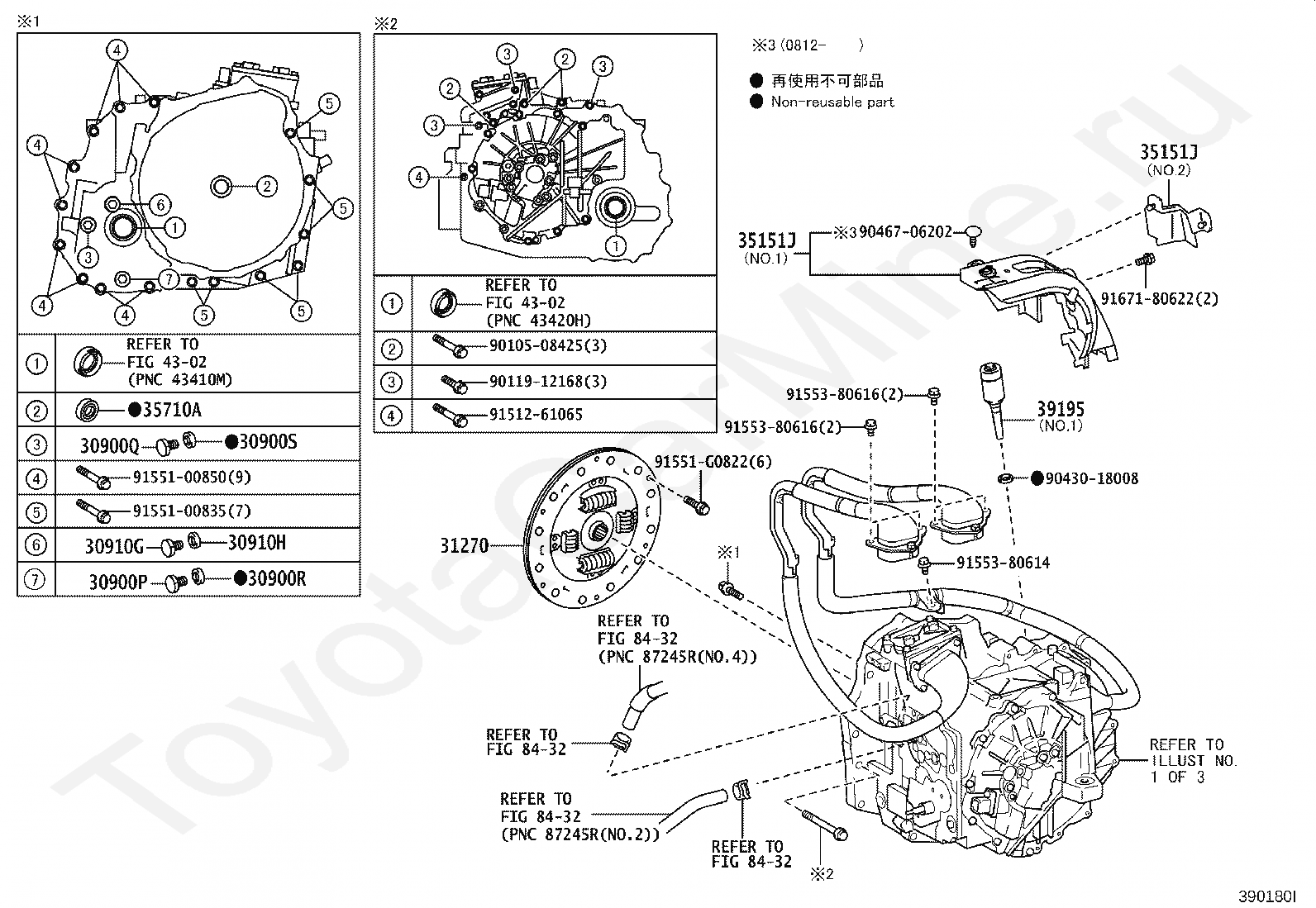

31270
DAMPER ASSY, TRANSMISSION INPUT
35151J
COVER, AUTOMATIC TRANSMISSION CASE
35710A
SEAL, TYPE T OIL(FOR INPUT SHAFT)
39195
DAMPER, HV TRANSAXLE MASS
4302
переход к группе запчастей
8432
переход к группе запчастей
9010508425
Крепеж
9011912168
Крепеж
9043018008
Крепеж
9046706202
Крепеж
9151261065
Крепеж
9155100835
Крепеж
9155100850
Крепеж
91551G0822
Крепеж
9155380614
Крепеж
9155380616
Крепеж
9167180622
Крепеж
Код
Описание
12351D
DAMPER, ENGINE MOUNTING
39195
DAMPER, HV TRANSAXLE MASS
41171A
PROTECTOR, DIFFERENTIAL
41309E
SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41309K
SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41309L
SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309N
SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
41336L
DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH
41336M
DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH
52380F
SUPPORT ASSY, DIFFERENTIAL, FRONT
52390B
SUPPORT ASSY, DIFFERENTIAL, REAR
52393B
PLATE, DIFFERNTIAL MOUNT BOLT
8282447090
Крепеж
8282447100
Крепеж
9011410028
Крепеж
9011908C68
Крепеж
9011912285
Крепеж
9011914127
Крепеж
9017814014
Крепеж
9017912147
Крепеж
9034110065
Крепеж
9034118023
Крепеж
9034122008
Крепеж
9038917010
Крепеж
9043018008
Крепеж
9043036003
Крепеж
9052126004
Крепеж
9056110022
Крепеж
9093003179
Крепеж
9155100845
Крепеж
91552E1250
Крепеж
91552F1240
Крепеж
9167180620
Крепеж

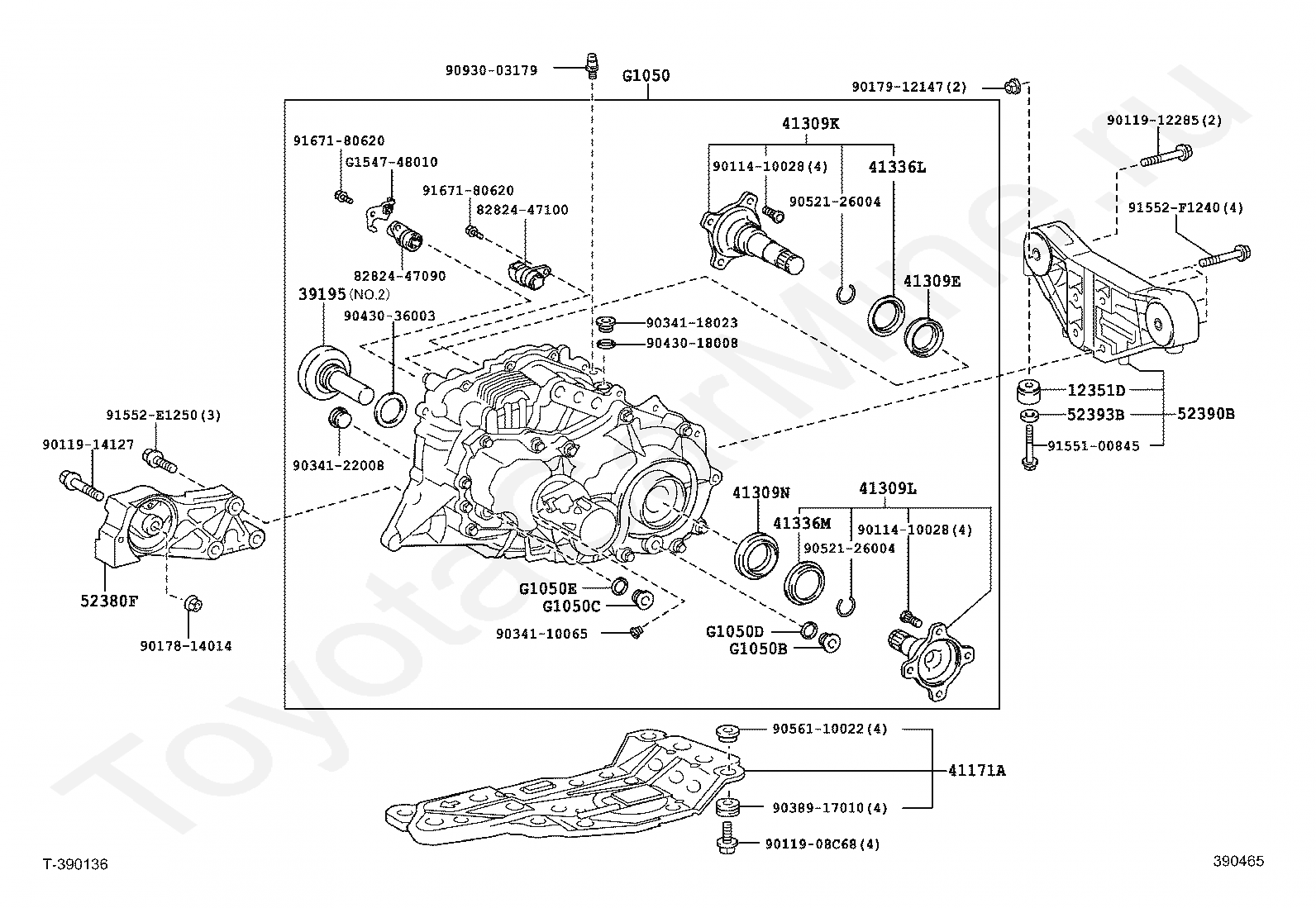

G1050
MOTOR ASSY, RR TRACTION W/TRANSAXLE
G1050B
PLUG, DRAIN(FOR REAR TRACTION MOTOR)
G1050C
PLUG, FILLER(FOR REAR TRACTION MOTOR)
G1050D
GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR)
G1050E
GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR)
G154748010
Крепеж
