Каталог
ЯпонияМодель
ESTIMA EMINA/LUCIDAДвигатель
2,2 литра, турбо-дизельКласс
GRAMSФрейм
CXR21Трансмиссия
автоматОпции
TURBO DIESEL
Код
Описание

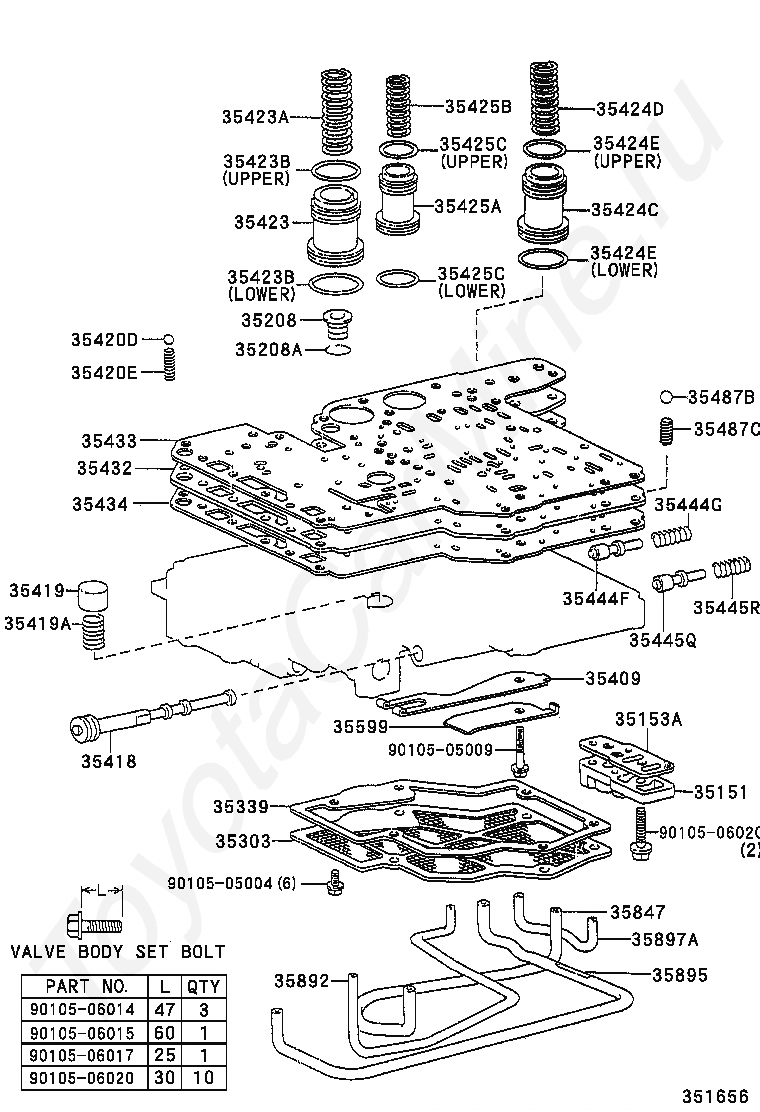

35151
COVER, TRANSMISSION CASE, LOWER
35153A
GASKET, TRANSMISSION CASE LOWER COVER
35208
SPRING SUB-ASSY, B-2 ACCUMULATOR
35208A
RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35303
STRAINER SUB-ASSY, OIL
35339
GASKET, OIL STRAINER
35409
SPRING SUB-ASSY, MANUAL DETENT
35418
VALVE, MANUAL
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420D
BALL (FOR LOWER VALVE BODY)
35420E
SPRING (FOR LOWER VALVE BODY)
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35444F
VALVE, INTERMEDIATE COAST MODULATOR
35444G
SPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)
35445Q
VALVE, LOW COAST MODULATOR
35445R
SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
35487B
BALL, CHECK, NO.4
35487C
SPRING, COMPRESSION (FOR CHECK BALL)
35599
COVER, MANUAL DETENT SPRING
35847
TUBE, TRANSMISSION LUBE APPLY
35892
TUBE, OVERDRIVE BRAKE
35895
TUBE, FRONT CLUTCH APPLY
35897A
TUBE, 1ST & REVERSE BRAKE, NO.1
9010505004
Крепеж
9010505009
Крепеж
9010506014
Крепеж
9010506015
Крепеж
9010506017
Крепеж
9010506020
Крепеж
Код
Описание

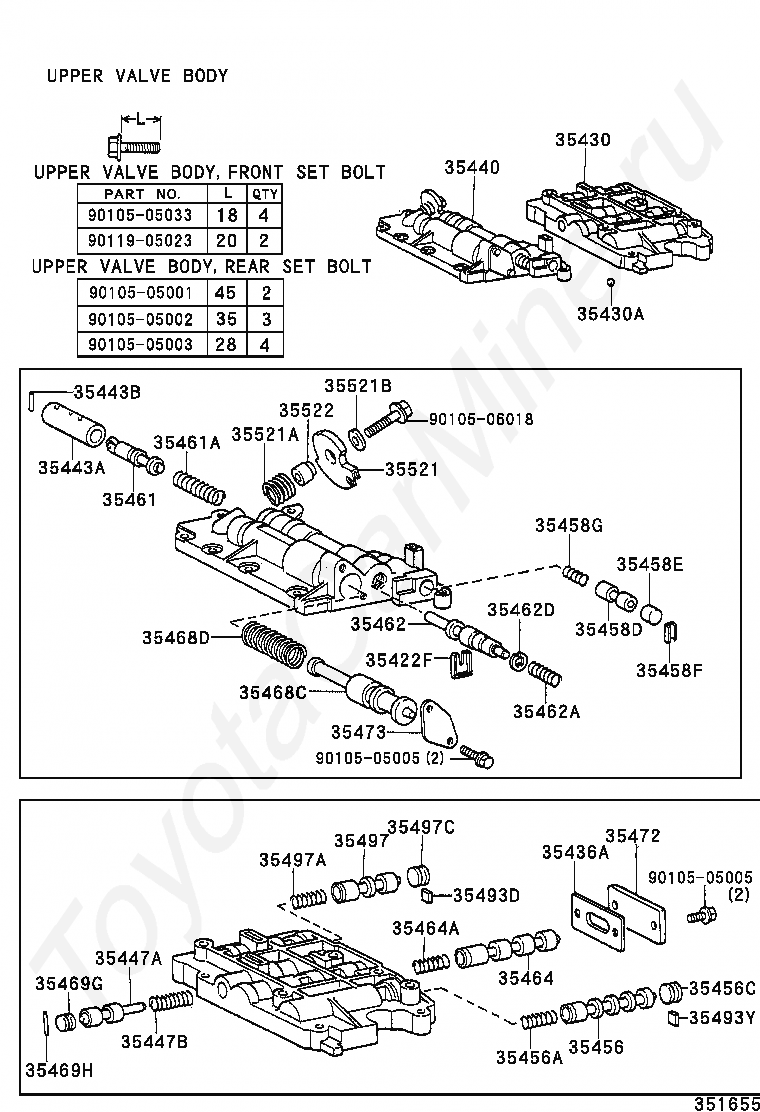

35422F
STOPPER, VALVE VIBRATING
35430
BODY ASSY, REAR UPPER VALVE
35430A
BALL (FOR REAR UPPER VALVE BODY)
35436A
GASKET, VALVE BODY PLATE, NO.4
35440
BODY ASSY, FRONT UPPER VALVE
35443A
SLEEVE, DOWN SHIFT PLUG
35443B
PIN (FOR DOWN SHIFT PLUG SLEEVE)
35447A
VALVE, REVERSE CLUTCH SEQUENCE
35447B
SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE)
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458F
SEAT (FOR CUT BACK VALVE)
35458G
SPRING, COMPRESSION (FOR CUT BACK VALVE)
35461
PLUG, DOWN SHIFT
35461A
SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462D
RING, E (FOR THROTTLE VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35469G
PLUG, REVERSE CLUTCH SEQUENCE VALVE
35469H
ROLLER (FOR REVERSE CLUTCH SEQUENCE VALVE)
35472
COVER, VALVE BODY, NO.2
35473
COVER, TRANSMISSION VALVE BODY
35493D
SEAT, 3-4 SHIFT VALVE PLUG
35493Y
SEAT, 2-3 SHIFT VALVE PLUG
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
9010505001
Крепеж
9010505002
Крепеж
9010505003
Крепеж
9010505005
Крепеж
9010505033
Крепеж
9010506018
Крепеж
9011905023
Крепеж
Код
Описание

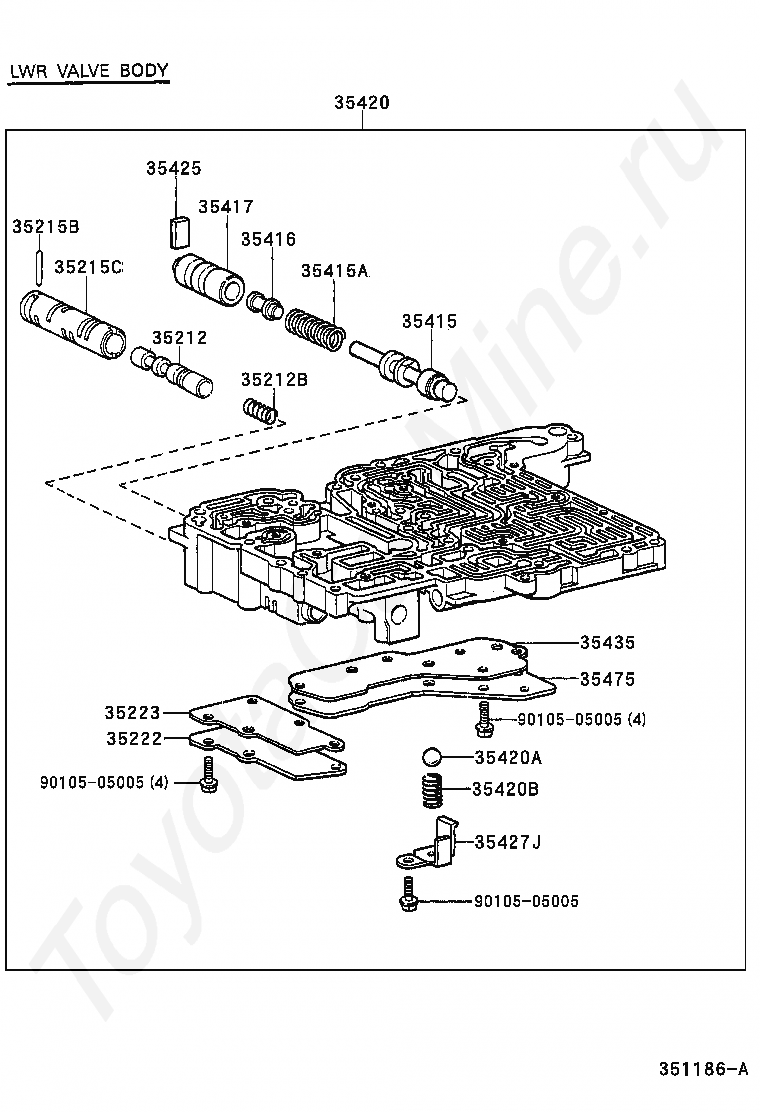

35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35215B
PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35222
PLATE, LOCK UP RELAY VALVE BODY
35223
GASKET, LOCK UP RELAY VALVE BODY
35415
VALVE, PRESSURE REGULATOR
35415A
SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417
SLEEVE, PRESSURE REGULATOR VALVE
35420
BODY ASSY, LOWER VALVE
35420A
BALL (FOR PRESSURE RELIEF)
35420B
SPRING (FOR PRESSURE RELIEF)
35425
SEAT, PRESSURE REGULATOR VALVE SLEEVE
35427J
SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF)
35435
GASKET, VALVE BODY PLATE, NO.3
35475
COVER, VALVE BODY, NO.5
9010505005
Крепеж
