Каталог
ЯпонияМодель
ESTIMA EMINA/LUCIDAДвигатель
2,2 литра, турбо-дизельКласс
GRAMSФрейм
CXR21Трансмиссия
автоматОпции
TURBO DIESEL

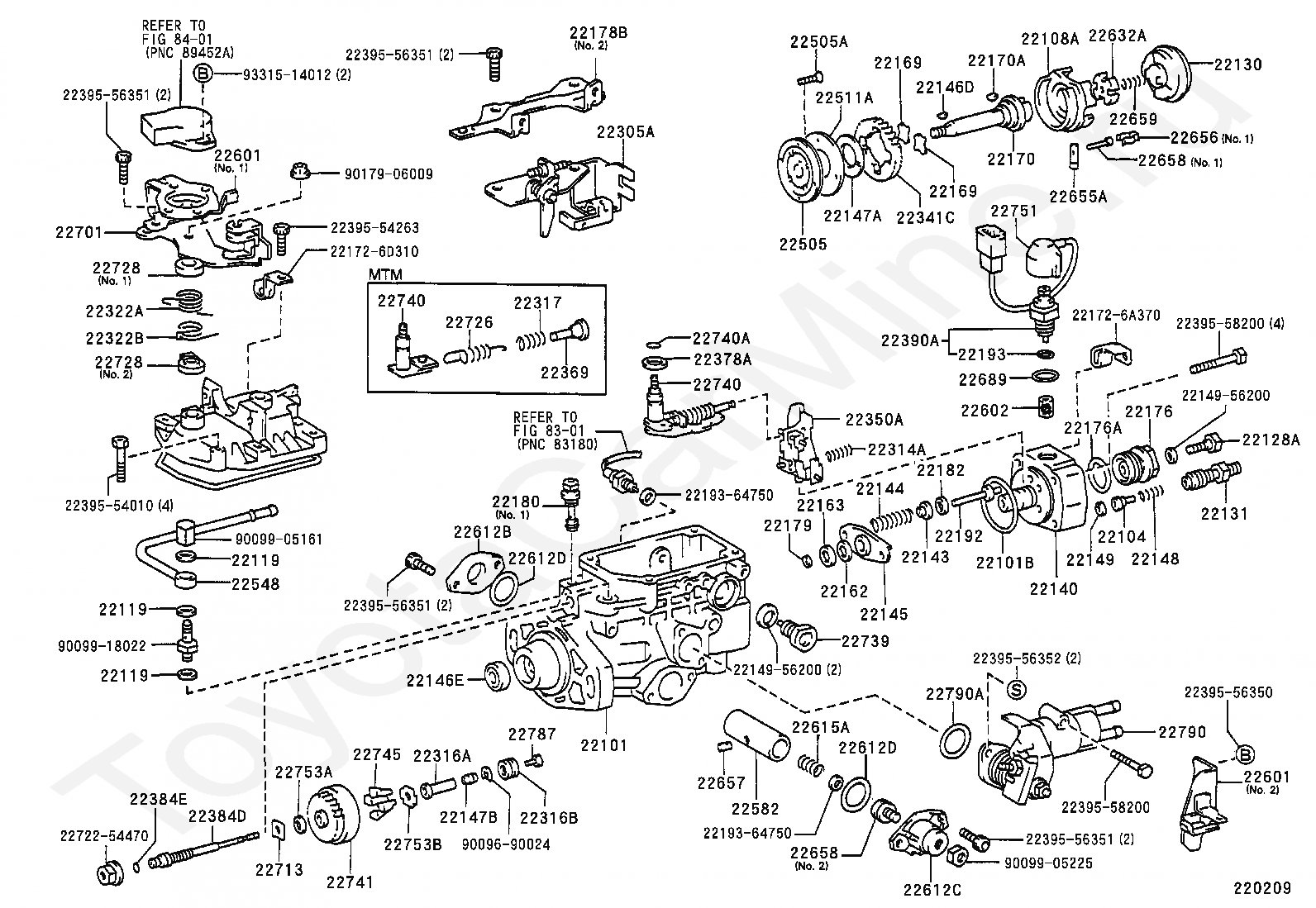

Код
Описание
22101
HOUSING SUB-ASSY, INJECTION PUMP
22101B
RING, O(FOR INJECTION PUMP HOUSING)
22104
VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108A
RING SUB-ASSY, ROLLER
22119
WASHER, AIR BLEEDER NIPPLE
22128A
BOLT, DISTRIBUTIVE HEAD
22130
CAMPLATE SUB-ASSY, FACE
22131
HOLDER, DELIVERY VALVE
22140
HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143
SEAT, SPRING UPPER
22144
SPRING, PUMP PLUNGER
22145
SEAT, SPRING, LOWER
22146D
KEY(FOR DRIVE GEAR)
22146E
SEAL(FOR DRIVE SHAFT)
22147A
WASHER, DRIVE SHAFT
22147B
RING, GOVERNOR SLEEVE
22148
SPRING, DELIVERY VALVE
22149
GASKET, DELIVERY VALVE
2214956200
Крепеж
22162
PLATE, PLUNGER UPPER
22163
PLATE, PLUNGER LOWER
22169
JOINT, RUBBER
22170
SHAFT SUB-ASSY, DRIVE
22170A
KEY(FOR DRIVE SHAFT)
221726A370
Крепеж
221726D310
Крепеж
22176
PLUG, DISTRIBUTIVE HEAD
22176A
RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178B
BRACKET(FOR INJECTION PUMP ASSY)
22179
SHIM, PLUNGER ADJUSTING
22180
VALVE SUB-ASSY, REGULATOR
22182
PLATE, TAPPET ADJUSTING SHIM
22192
GUIDE SUB-ASSY, PLUNGER SPRING
22193
RING, O(FOR LEVER CONNECTING PIN)
2219364750
Крепеж
22305A
IDLE-UP SUB-ASSY
22314A
SPRING, LEVER SUPPORT
22316A
SLEEVE, GOVERNOR
22316B
BEARING, BALL(FOR GOVERNOR SLEEVE)
22317
SPRING, GOVERNOR DOMPER
22322A
SPRING, RETURN
22322B
SPRING, RETURN(INNER)
22341C
GEAR, GOVERNOR DRIVE
22350A
GOVERNOR ASSY, TORQUE CONTROL
22369
SEAT, GOVERNOR SPRING
22378A
WASHER, GOVERNOR THRUST
22384D
SHAFT, GOVERNOR
22384E
RING, O(FOR GOVERNOR MAIN SHAFT)
22390A
SOLENOID ASSY, FUEL CUT
2239554010
Крепеж
2239554263
Крепеж
2239556350
Крепеж
2239556351
Крепеж
2239556352
Крепеж
2239558200
Крепеж
22505
PUMP SUB-ASSY, FUEL FEED
22505A
SCREW(FOR FUEL FEED PUMP)
22511A
COVER, FEED PUMP
22548
NIPPLE, SWIVEL
22582
PISTON ASSY, TIMER
22601
BRACKET SUB-ASSY, IDLE UP
22602
FILTER SUB-ASSY, FUEL INJECTION PUMP
22612B
COVER, TIMER
22612C
COVER, TIMER
22612D
RING, O(FOR TIMER COVER)
22615A
SPRING, TIMER OUTER
22632A
COUPLING, INJECTION PUMP
22655A
PIN, TIMER SLIDE
22656
CLIP, TIMER
22657
CLIP, TIMER
22658
STOPPER, TIMER
22659
SPRING, COUPLING
22689
WASHER(FOR SWIVEL NIPPLE)
22701
LEVER SUB-ASSY, ADJUSTING
22713
WASHER, GOVERNOR GEAR ADJUSTING
2272254470
Крепеж
22726
SPRING, SPEED CONTROL
22728
GUIDE, RETURN SPRING
22739
BOLT, GOVERNOR LINK SUPPORT
22740
SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740A
RING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741
HOLDER SUB-ASSY, FLYWEIGHT
22745
FLYWEIGHT, DISTRIBUTIVE PUMP
22751
WIRE SUB-ASSY, FUEL CUT SOLENOID
22753A
WASHER, FLYWEIGHT, NO.1
22753B
WASHER, FLYWEIGHT, NO.2
22787
PLUG, GOVERNOR SLEEVE
22790
COVER SUB-ASSY, TIMER
22790A
RING, O(FOR TIMER COVER)
8301
переход к группе запчастей
8401
переход к группе запчастей
9009690024
Крепеж
9009905161
Крепеж
9009905225
Крепеж
9009918022
Крепеж
9017906009
Крепеж
9331514012
Крепеж

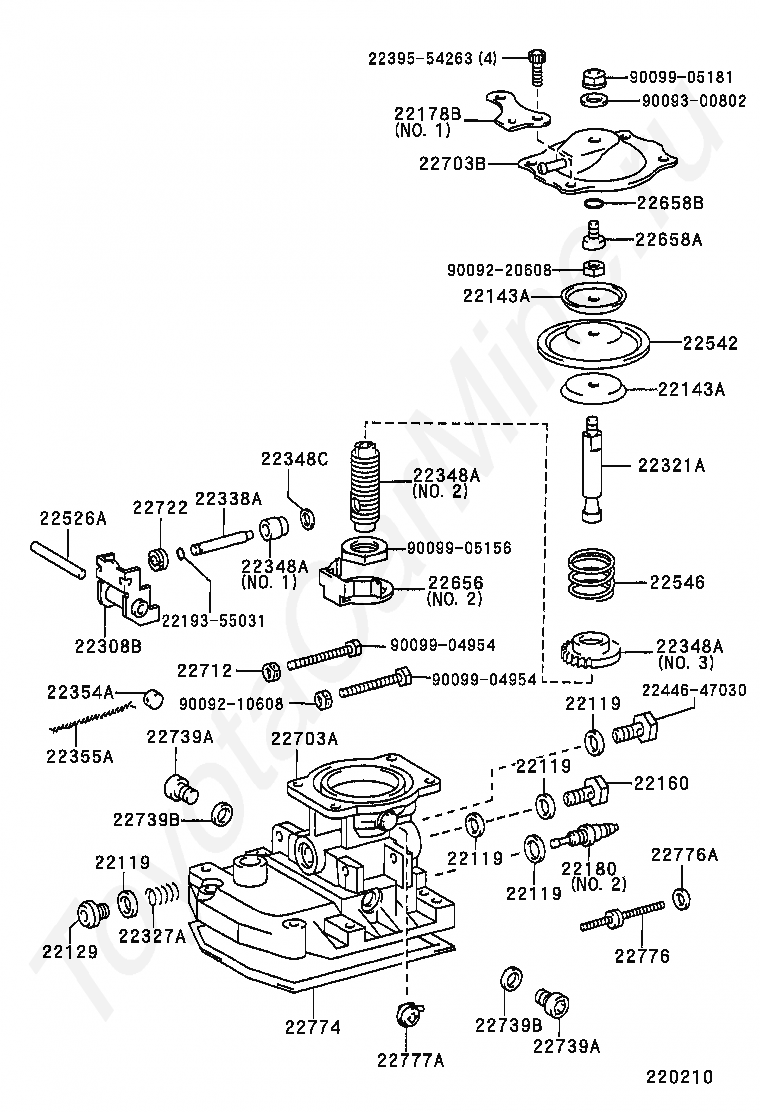

Код
Описание
22119
WASHER, AIR BLEEDER NIPPLE
22129
PLUG, SCREW
22143A
SEAT, SPRING UPPER, NO.2
22160
SCREW SUB-ASSY, OVERFLOW
22178B
BRACKET(FOR INJECTION PUMP ASSY)
22180
VALVE SUB-ASSY, REGULATOR
2219355031
Крепеж
22308B
LEVER SUB-ASSY, CONTROL
22321A
ROD, PUSH
22327A
SPRING(FOR BELLOWS)
22338A
PIN, LEVER CONNECTING
22348A
BUSHING, GUIDE
22348C
WASHER(FOR GUIDE BUSHING)
22354A
SEAL, ROD
22355A
WIRE, GOVERNOR HOUSING SEAL
2239554263
Крепеж
2244647030
Крепеж
22526A
PIN, LEVER SUPPORT
22542
DIAPHRAGM(FOR BOOST COMPENSATOR)
22546
SPRING, BOOST COMPENSATOR
22656
CLIP, TIMER
22658A
STOPPER, TIMER SLIDE
22658B
RING, O(FOR TIMER SLIDE STOPPER)
22703A
COVER SUB-ASSY, GOVERNOR
22703B
COVER, GOVERNOR
22712
NUT, ROCK
22722
NUT, GOVERNOR SHAFT ROCK
22739A
BOLT, GOVERNOR LINK SUPPORT NO.2
22739B
WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22774
GASKET, GOVERNOR COVER
22776
SCREW, SMOKE SET ADJUSTING
22776A
RING, O(FOR SMOKE SET SCREW)
22777A
CAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
9009210608
Крепеж
9009220608
Крепеж
9009300802
Крепеж
9009904954
Крепеж
9009905156
Крепеж
9009905181
Крепеж
