Кресла TOYOTA ESTIMA EMINA/LUCIDA, 1993/08 - 1999/08, 2,2 литра, турбо-дизель, EFI, X TYPE, CXR20, автомат

Каталог

Япония

Модель

ESTIMA EMINA/LUCIDA

Двигатель

2,2 литра, турбо-дизель, EFI

Класс

X TYPE

Фрейм

CXR20

Трансмиссия

автомат

Опции

TURBO DIESEL EFI

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72025A

STRIKER SUB-ASSY, FRONT SEAT LOCK

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72128C

COVER, SEAT TRACK BRACKET, FRONT, LH

72159C

COVER, FRONT SEAT TRACK BRACKET

72250C

LOCK ASSY, FRONT SEAT

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72339A

FRAME, FRONT SEAT LEG SUPPORT

72347

PLATE, SEAT BACK RETURN SPRING STOPPER

72501F

PIPE SUB-ASSY, RECLINING CONNECTING

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72530A

ADJUSTER ASSY, RECLINING SEAT, INNER RH

72540A

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72890

ARMREST ASSY, SEAT, C LH

9010508109

Крепеж

9011908079

Крепеж

9011908269

Крепеж

9011908873

Крепеж

9011910456

Крепеж

9011910643

Крепеж

9011910656

Крепеж

9014940012

Крепеж

9015980049

Крепеж

9016840043

Крепеж

9017908024

Крепеж

9017910073

Крепеж

9038612051

Крепеж

9038614008

Крепеж

9038616011

Крепеж

9038635001

Крепеж

9046818071

Крепеж

9054112010

Крепеж

9054112017

Крепеж

9161661025

Крепеж

9324016025

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812E

COVER, RECLINING ADJUSTER, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72025A

STRIKER SUB-ASSY, FRONT SEAT LOCK

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72128C

COVER, SEAT TRACK BRACKET, FRONT, LH

72137C

COVER, SEAT TRACK INNER, RH

72138C

COVER, SEAT TRACK, LH

72159C

COVER, FRONT SEAT TRACK BRACKET

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72250C

LOCK ASSY, FRONT SEAT

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72339A

FRAME, FRONT SEAT LEG SUPPORT

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551B

COVER, RECLINING HINGE, RH

72552B

COVER, RECLINING HINGE, LH

72848A

CAP, SEAT ARMREST, NO.1

72849A

CAP, SEAT ARMREST, NO.2

72890

ARMREST ASSY, SEAT, C LH

9011908079

Крепеж

9011908873

Крепеж

9011910456

Крепеж

9011910824

Крепеж

9011910834

Крепеж

9015980049

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038635001

Крепеж

9046818071

Крепеж

9054112017

Крепеж

9324016025

Крепеж

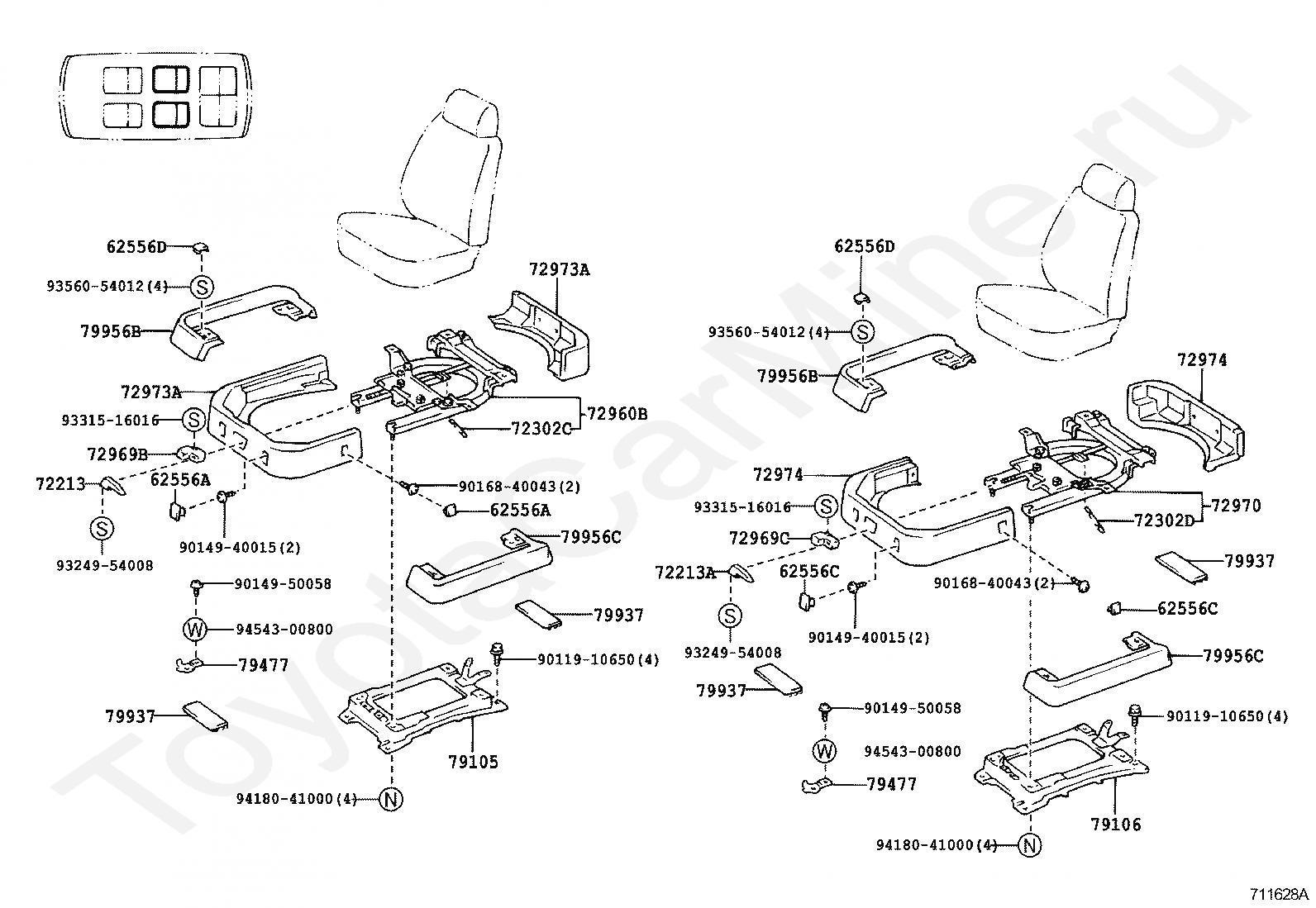

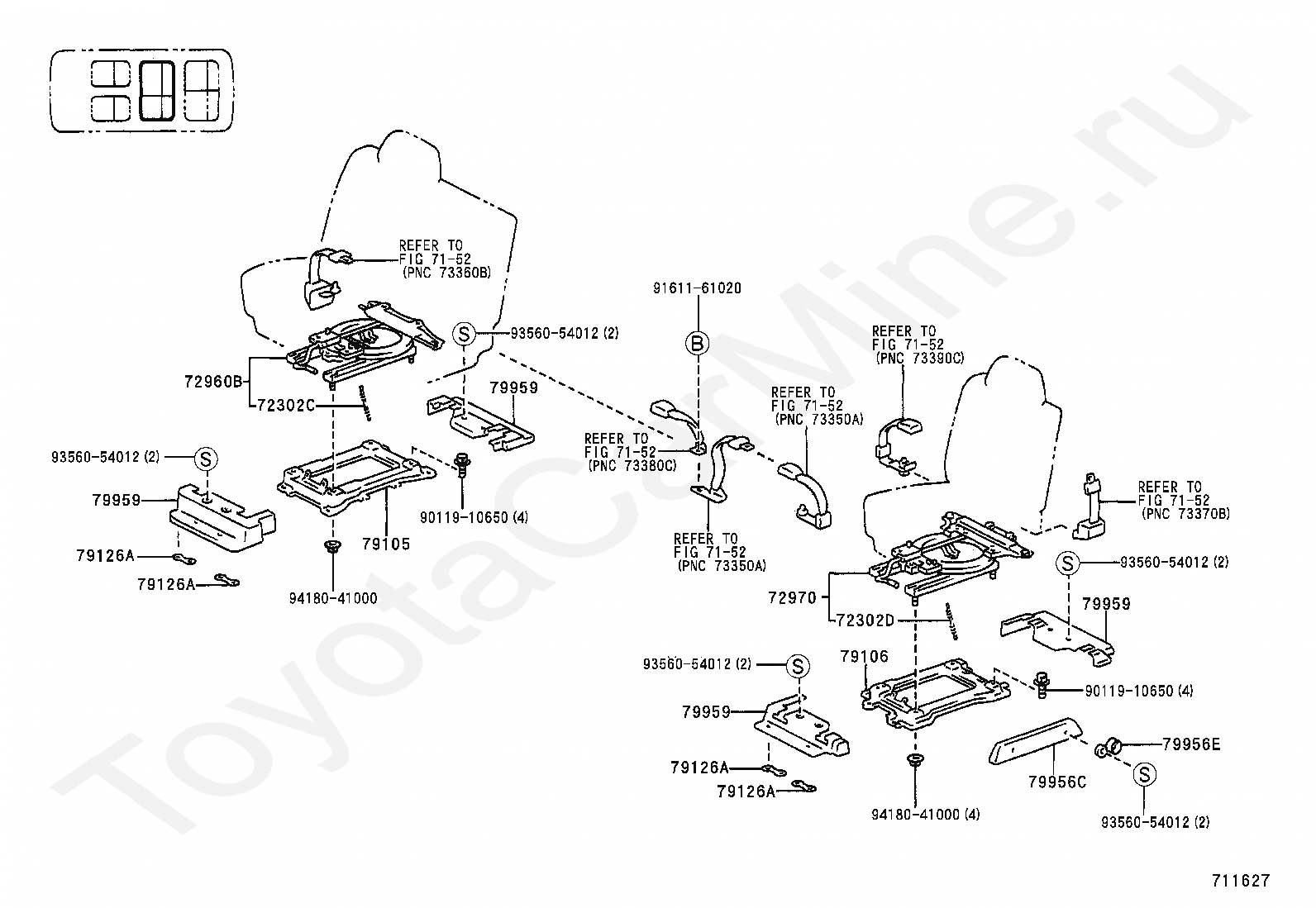

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

7152

переход к группе запчастей

71631A

PAD, REAR SEAT CUSHION CORNER

71665A

PAD, REAR SEAT BACK, SIDE A

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72137A

CLIP (FOR SEAT TRACK COVER)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553

COVER, RECLINING PEDAL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79137

COVER, NO.1 SEAT HINGE

79140

BACK ASSY, NO.1 SEAT, RH

79149

PAD, NO.1 SEAT CUSHION COVER SIDE

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79959

COVER, RR SEAT LEG

9011908766

Крепеж

9011910650

Крепеж

9014940012

Крепеж

9016840043

Крепеж

9016840073

Крепеж

9017906007

Крепеж

9038612051

Крепеж

9046400156

Крепеж

9046818071

Крепеж

9050718025

Крепеж

9052308001

Крепеж

9090339001

Крепеж

9161161020

Крепеж

9161261020

Крепеж

9356054014

Крепеж

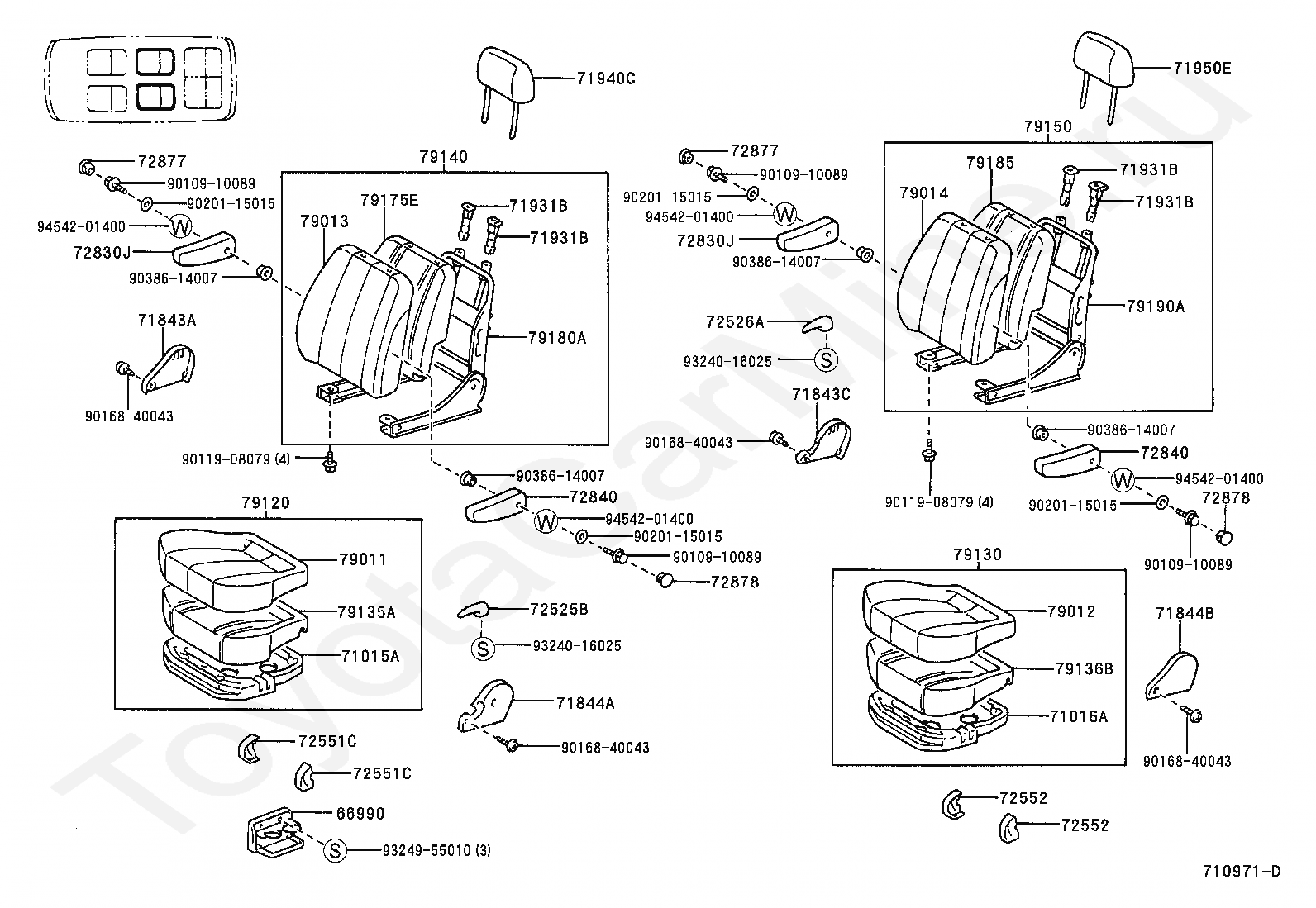

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

7152

переход к группе запчастей

71831E

COVER, REAR SEAT HINGE, RH

71832E

COVER, REAR SEAT HINGE, LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

9010508109

Крепеж

9010910089

Крепеж

9011908079

Крепеж

9016840043

Крепеж

9020118001

Крепеж

9038612051

Крепеж

9038614007

Крепеж

9046807023

Крепеж

9046818071

Крепеж

9161661025

Крепеж

9324056025

Крепеж

9454201400

Крепеж

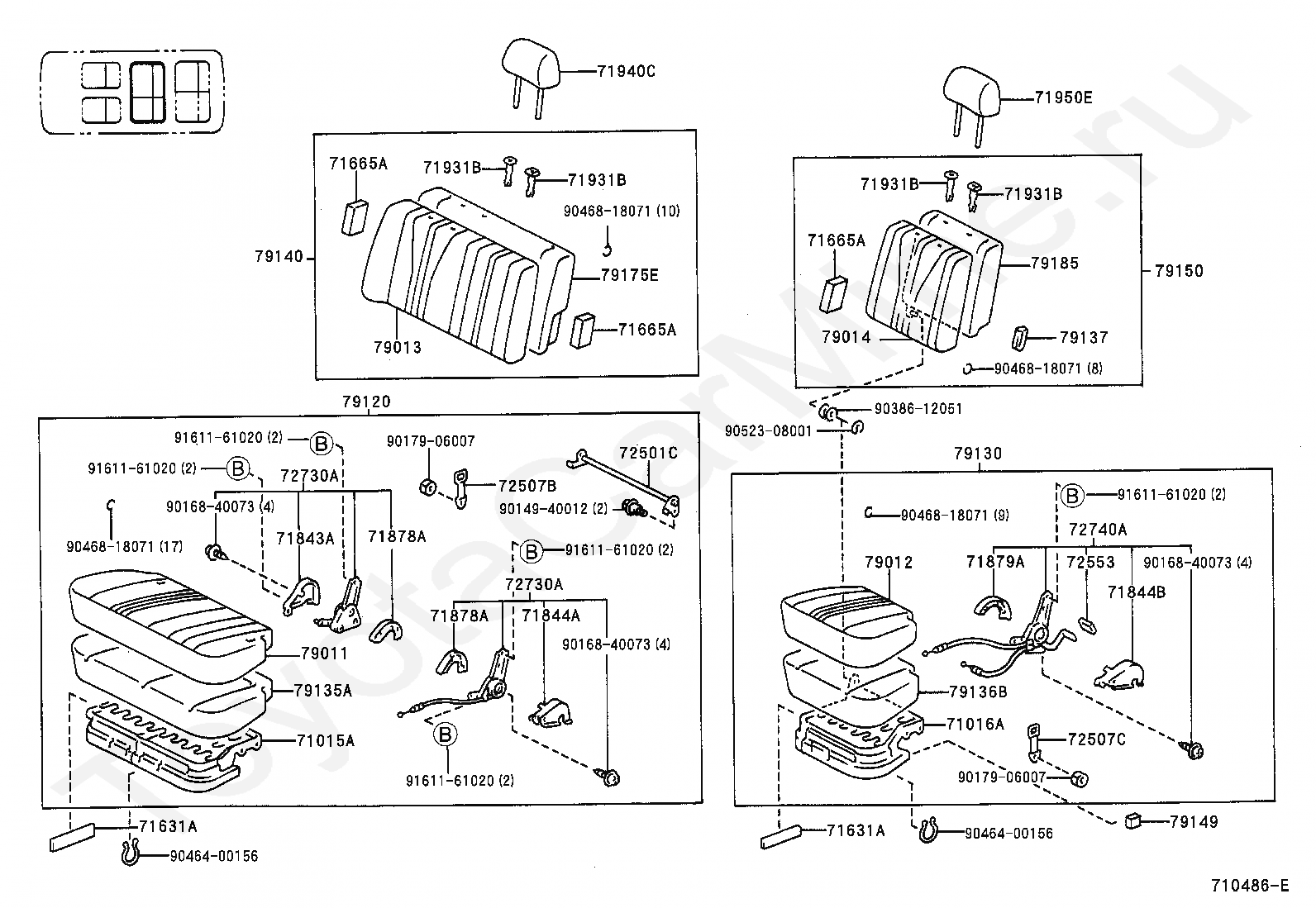

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71631A

PAD, REAR SEAT CUSHION CORNER

71665A

PAD, REAR SEAT BACK, SIDE A

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553

COVER, RECLINING PEDAL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79137

COVER, NO.1 SEAT HINGE

79140

BACK ASSY, NO.1 SEAT, RH

79149

PAD, NO.1 SEAT CUSHION COVER SIDE

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

9014940012

Крепеж

9016840073

Крепеж

9017906007

Крепеж

9038612051

Крепеж

9046400156

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9161161020

Крепеж

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

7152

переход к группе запчастей

71831E

COVER, REAR SEAT HINGE, RH

71832E

COVER, REAR SEAT HINGE, LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

9010508109

Крепеж

9010910089

Крепеж

9011908079

Крепеж

9016840043

Крепеж

9020118001

Крепеж

9038612051

Крепеж

9038614007

Крепеж

9046807023

Крепеж

9046818071

Крепеж

9161661025

Крепеж

9324056025

Крепеж

9454201400

Крепеж

Код

Описание

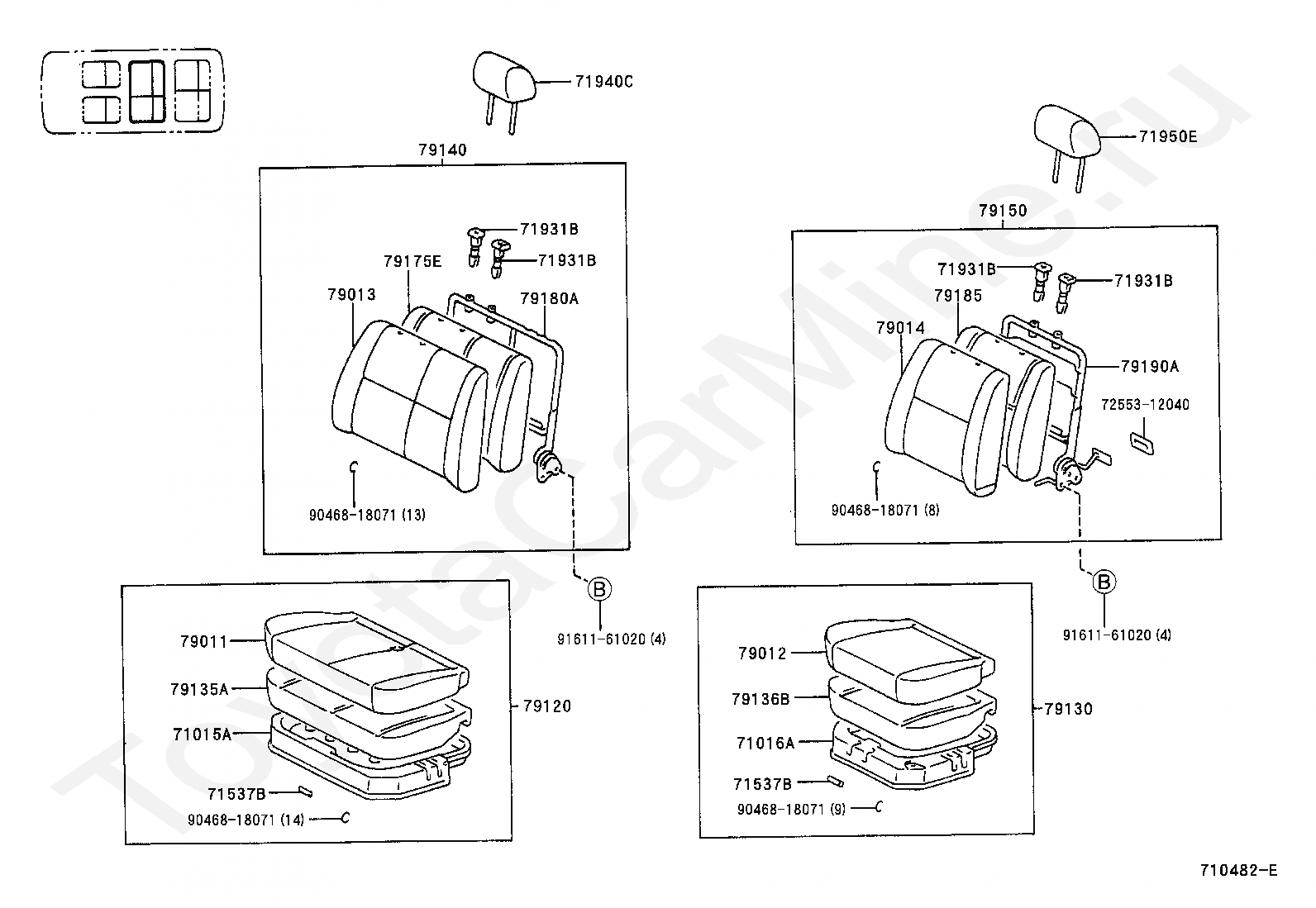

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71537B

PROTECTOR, REAR SEAT CUSHION

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

7255312040

Крепеж

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9046818071

Крепеж

9161161020

Крепеж

Код

Описание

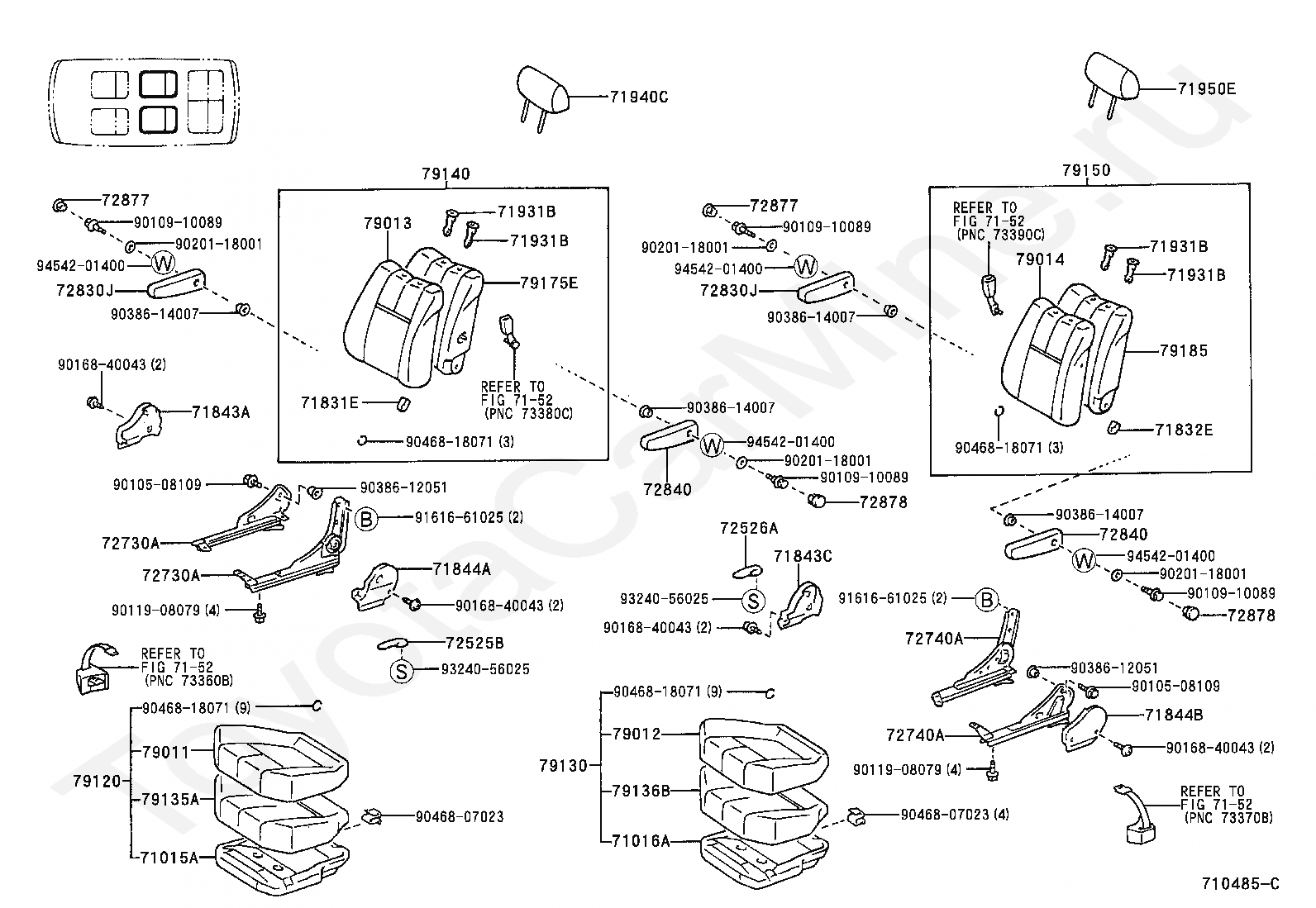

66990

HOLDER ASSY, CUP

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551C

COVER, RECLINING HINGE, NO.2

72552

COVER, RECLINING HINGE, NO.2

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010910089

Крепеж

9011908079

Крепеж

9016840043

Крепеж

9020115015

Крепеж

9038614007

Крепеж

9324016025

Крепеж

9324955010

Крепеж

9454201400

Крепеж

Код

Описание

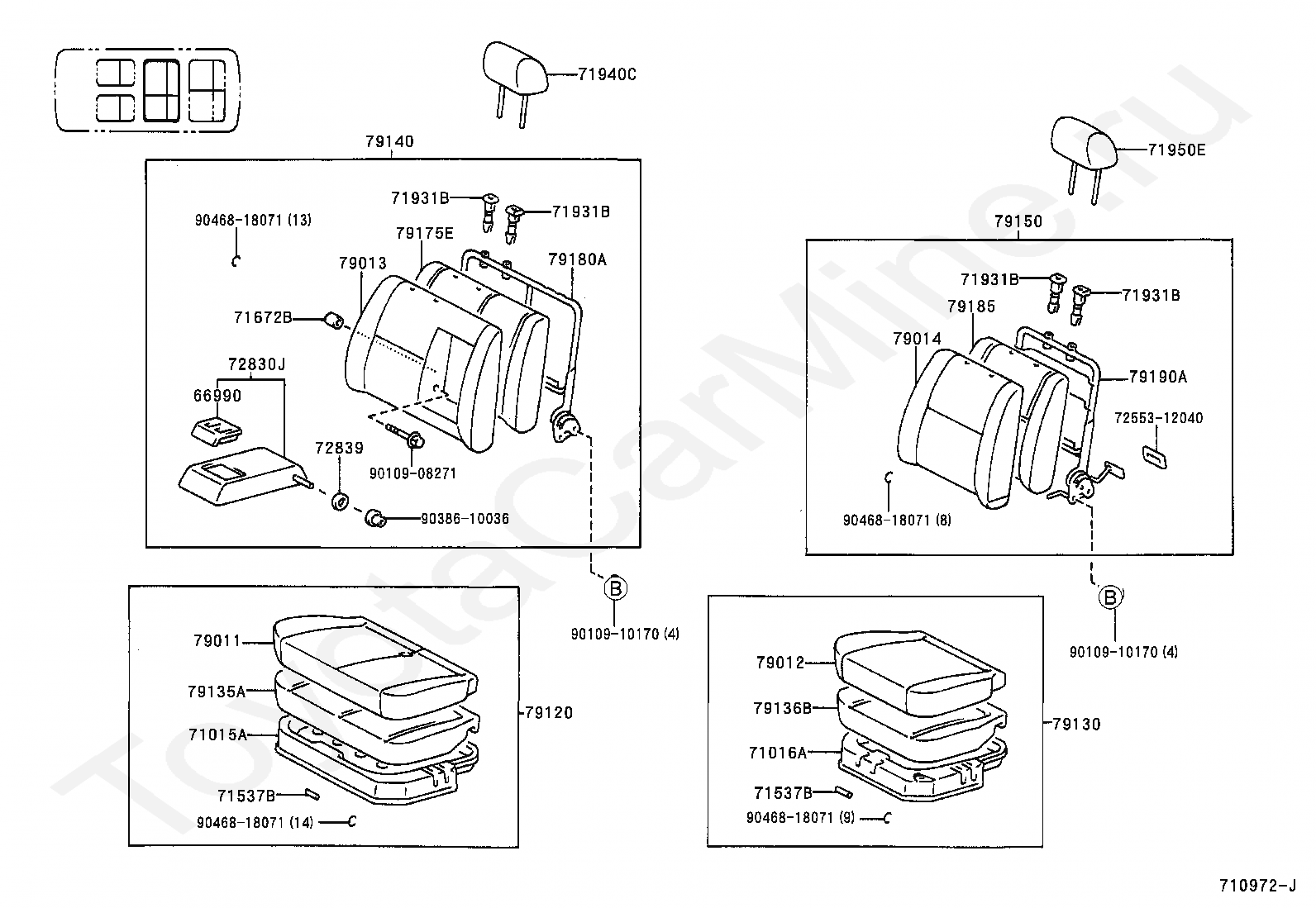

66990

HOLDER ASSY, CUP

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71537B

PROTECTOR, REAR SEAT CUSHION

71672B

SILENCER, REAR SEAT BACK, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940C

HEADREST ASSY, REAR NO.1 SEAT, RH

71950E

HEADREST ASSY, REAR NO.1 SEAT, LH

7255312040

Крепеж

72830J

ARMREST ASSY, REAR NO.1 SEAT, RH

72839

SHIM, REAR SEAT ARMREST HINGE

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010908271

Крепеж

9010910170

Крепеж

9038610036

Крепеж

9046818071

Крепеж

Код

Описание

62556A

CAP, REAR SEAT SIDE GARNISH

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

72137A

CLIP (FOR SEAT TRACK COVER)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72159F

COVER, REAR SEAT TRACK BRACKET, RH

72159G

COVER, REAR SEAT TRACK BRACKET, LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

72973A

COVER, REAR SEAT TURN TABLE

72974

COVER, REAR SEAT TURN LOCK

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79477

BRACKET, REAR SEAT TURN SET LINK, NO.1

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

9011910495

Крепеж

9011910650

Крепеж

9014940015

Крепеж

9014950058

Крепеж

9016840043

Крепеж

9324954008

Крепеж

9331516016

Крепеж

9356054014

Крепеж

9454300800

Крепеж

Код

Описание

7152

переход к группе запчастей

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79126A

REINFORCEMENT, NO.1 SEAT LEG, NO.1

79956C

COVER, REAR SEAT LEG SIDE, LH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79959

COVER, RR SEAT LEG

9011910650

Крепеж

9161161020

Крепеж

9356054012

Крепеж

9418041000

Крепеж

Код

Описание

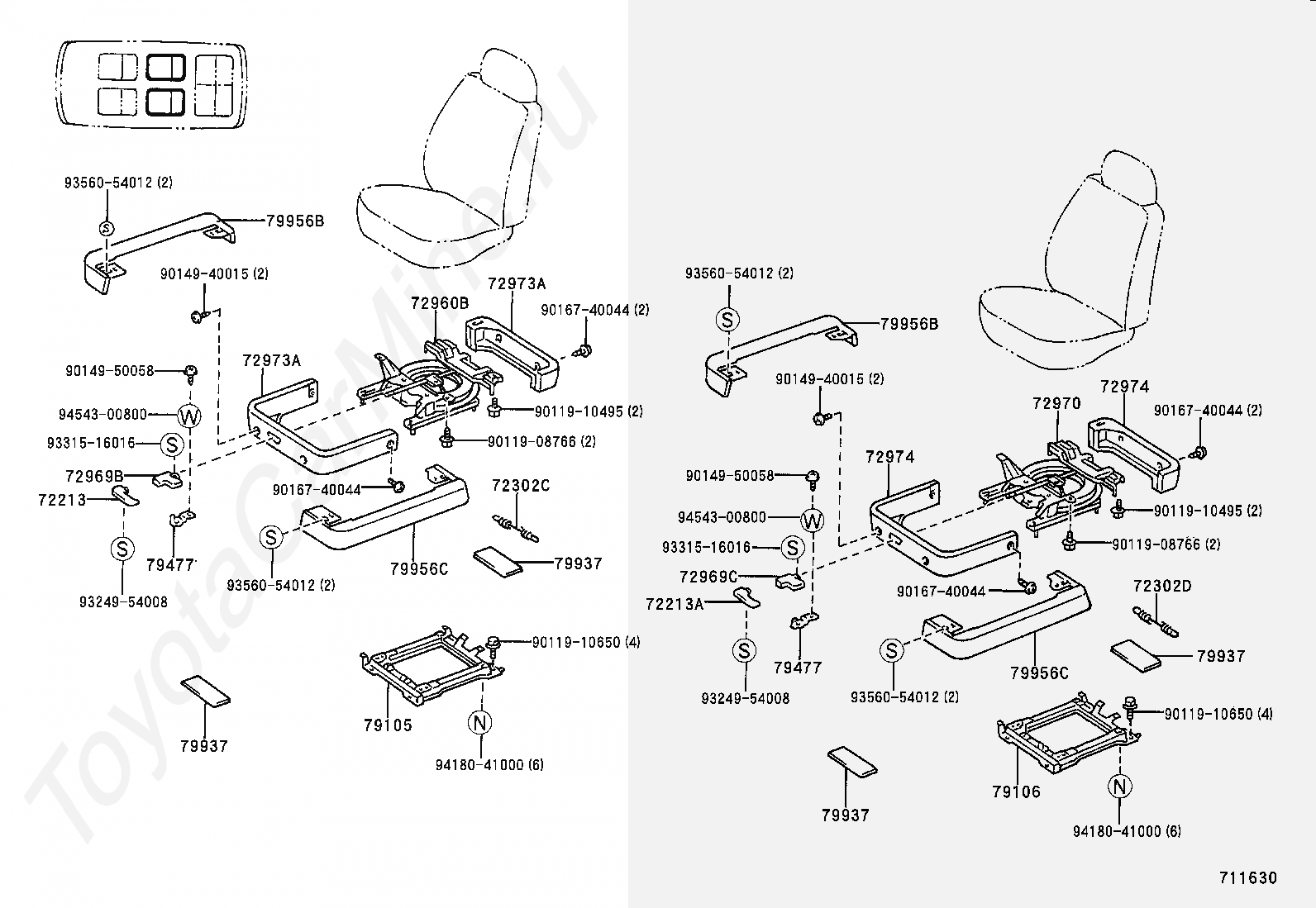

62556A

CAP, REAR SEAT SIDE GARNISH

62556C

CAP, REAR SEAT SIDE GARNISH, NO.2

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

72973A

COVER, REAR SEAT TURN TABLE

72974

COVER, REAR SEAT TURN LOCK

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79477

BRACKET, REAR SEAT TURN SET LINK, NO.1

79937

COVER, REAR SEAT LEG, NO.2

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

9011910650

Крепеж

9014940015

Крепеж

9014950058

Крепеж

9016840043

Крепеж

9324954008

Крепеж

9331516016

Крепеж

9356054012

Крепеж

9418041000

Крепеж

9454300800

Крепеж

Код

Описание

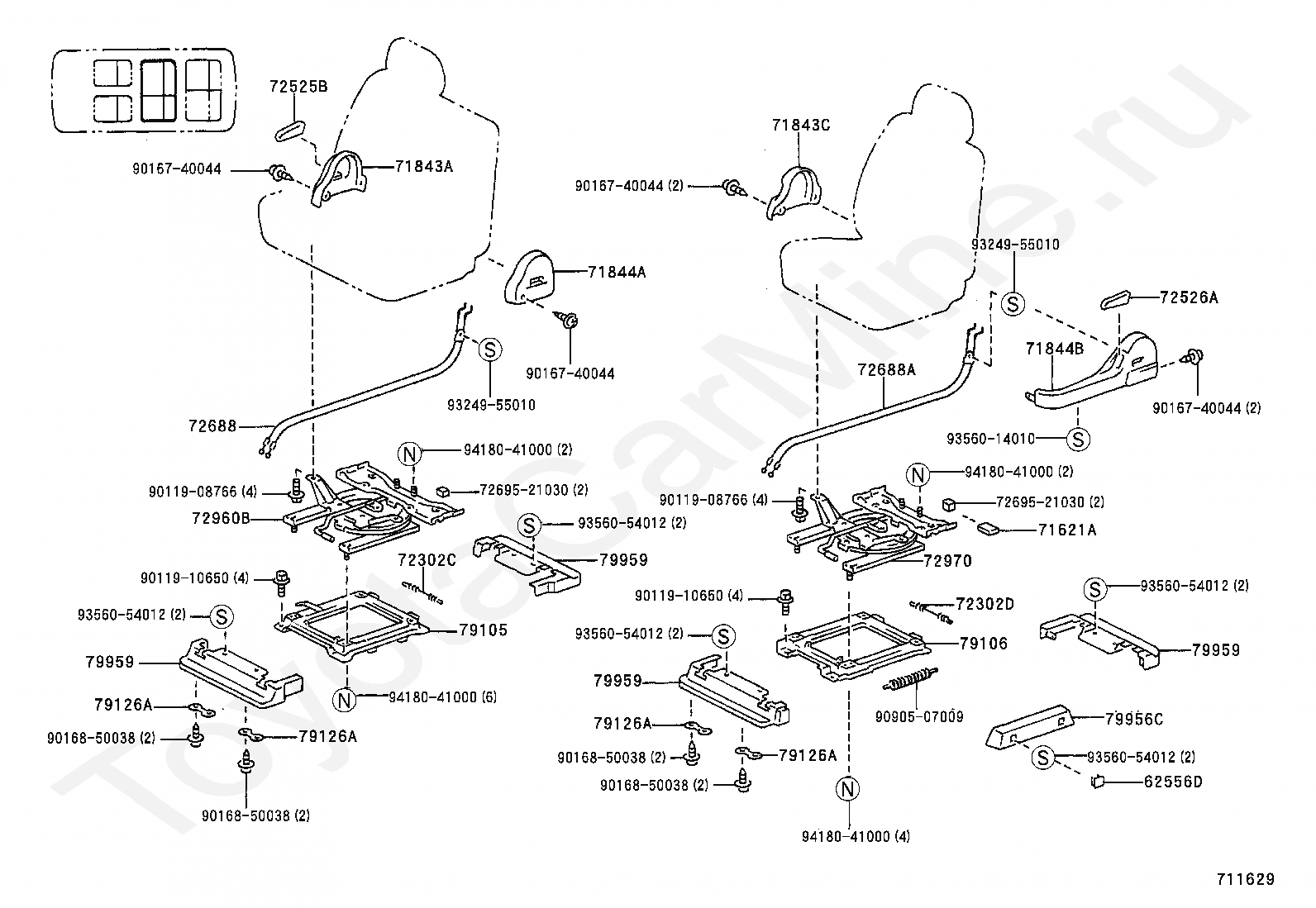

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72688

CABLE, REAR SEAT TRACK & TURN CONTROL

72688A

CABLE, REAR TRACK & TURN CONTROL

7269521030

Крепеж

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79126A

REINFORCEMENT, NO.1 SEAT LEG, NO.1

79956C

COVER, REAR SEAT LEG SIDE, LH

79959

COVER, RR SEAT LEG

9011908766

Крепеж

9011910650

Крепеж

9016740044

Крепеж

9016850038

Крепеж

9090507009

Крепеж

9324955010

Крепеж

9356014010

Крепеж

9356054012

Крепеж

9418041000

Крепеж

Код

Описание

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

72973A

COVER, REAR SEAT TURN TABLE

72974

COVER, REAR SEAT TURN LOCK

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79477

BRACKET, REAR SEAT TURN SET LINK, NO.1

79937

COVER, REAR SEAT LEG, NO.2

79956B

COVER, REAR SEAT LEG SIDE, RH

79956C

COVER, REAR SEAT LEG SIDE, LH

9011908766

Крепеж

9011910495

Крепеж

9011910650

Крепеж

9014940015

Крепеж

9014950058

Крепеж

9016740044

Крепеж

9324954008

Крепеж

9331516016

Крепеж

9356054012

Крепеж

9418041000

Крепеж

9454300800

Крепеж

Код

Описание

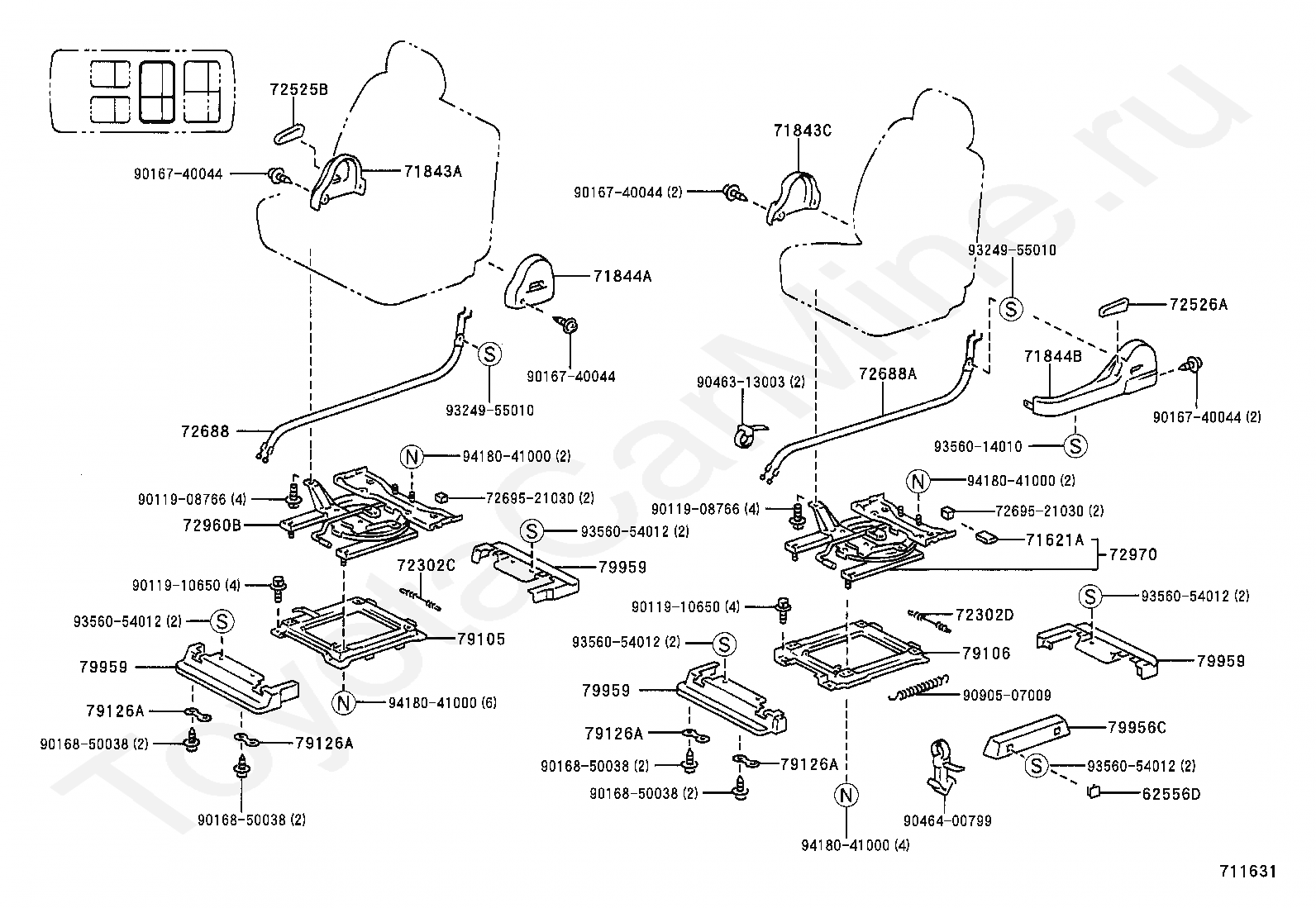

62556D

CAP, REAR SEAT SIDE GARNISH, NO.3

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843C

COVER, RECLINING ADJUSTER, RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844B

COVER, RECLINING ADJUSTER, LH

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72688

CABLE, REAR SEAT TRACK & TURN CONTROL

72688A

CABLE, REAR TRACK & TURN CONTROL

7269521030

Крепеж

72960B

TABLE ASSY, REAR SEAT TURN, RH

72970

TABLE ASSY, REAR SEAT TURN, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79126A

REINFORCEMENT, NO.1 SEAT LEG, NO.1

79956C

COVER, REAR SEAT LEG SIDE, LH

79959

COVER, RR SEAT LEG

9011908766

Крепеж

9011910650

Крепеж

9016740044

Крепеж

9016850038

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9090507009

Крепеж

9324955010

Крепеж

9356014010

Крепеж

9356054012

Крепеж

9418041000

Крепеж

Код

Описание

71324A

CUSHION, REAR SEAT

71324B

CUSHION, REAR SEAT

7152

переход к группе запчастей

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71665B

PAD, REAR SEAT BACK, SIDE B

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940D

HEADREST ASSY, REAR NO.2 SEAT, RH

71950F

HEADREST ASSY, REAR NO.2 SEAT, LH

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72613B

STRIKER, REAR SEAT LOCK

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72650B

LOCK ASSY, REAR NO.3 SEAT, RH

72651D

ROD, REAR SEAT BACK LOCK, RH

72660B

LOCK ASSY, REAR NO.3 SEAT, LH

72690B

LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH

72690C

LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79273

COVER, NO.2 SEAT HINGE

79318

BRACKET, NO.3 SEAT LEG

79366

COVER, NO.3 SEAT LEG, NO.1

79367

COVER, NO.3 SEAT LEG, NO.2

79374

COVER, NO.3 SEAT LEG, REAR RH

79384

COVER, NO.3 SEAT LEG, REAR LH

79955

COVER, REAR SEAT FRONT BRACKET, FRONT

79957

COVER, REAR SEAT REAR BRACKET, REAR

9010908095

Крепеж

9010910055

Крепеж

9010910170

Крепеж

9011910650

Крепеж

9011910804

Крепеж

9011911023

Крепеж

9015960280

Крепеж

9016840049

Крепеж

9017906007

Крепеж

9020115015

Крепеж

9020612064

Крепеж

9038612057

Крепеж

9038614007

Крепеж

9046818071

Крепеж

9050626018

Крепеж

9052308001

Крепеж

9161160616

Крепеж

9161661025

Крепеж

9356815012

Крепеж

9454201400

Крепеж

9454300800

Крепеж

9616000600

Крепеж

Кресла TOYOTA ESTIMA EMINA/LUCIDA, 1993/08 - 1999/08, 2,2 литра, турбо-дизель, EFI, X TYPE, CXR20, автомат

Товар добавлен в корзину!

Заполните форму
