REAR SEAT & SEAT TRACK TOYOTA ESTIMA, 2012/04 - 2025, 3,5 литра, 24 клапана, DOHC, EFI, AERAS TYPE, GSR50, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

ESTIMA

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Класс

AERAS TYPE

Фрейм

GSR50

Трансмиссия

автомат АКПП, 6 скоростей

Опции

8-местный 566W

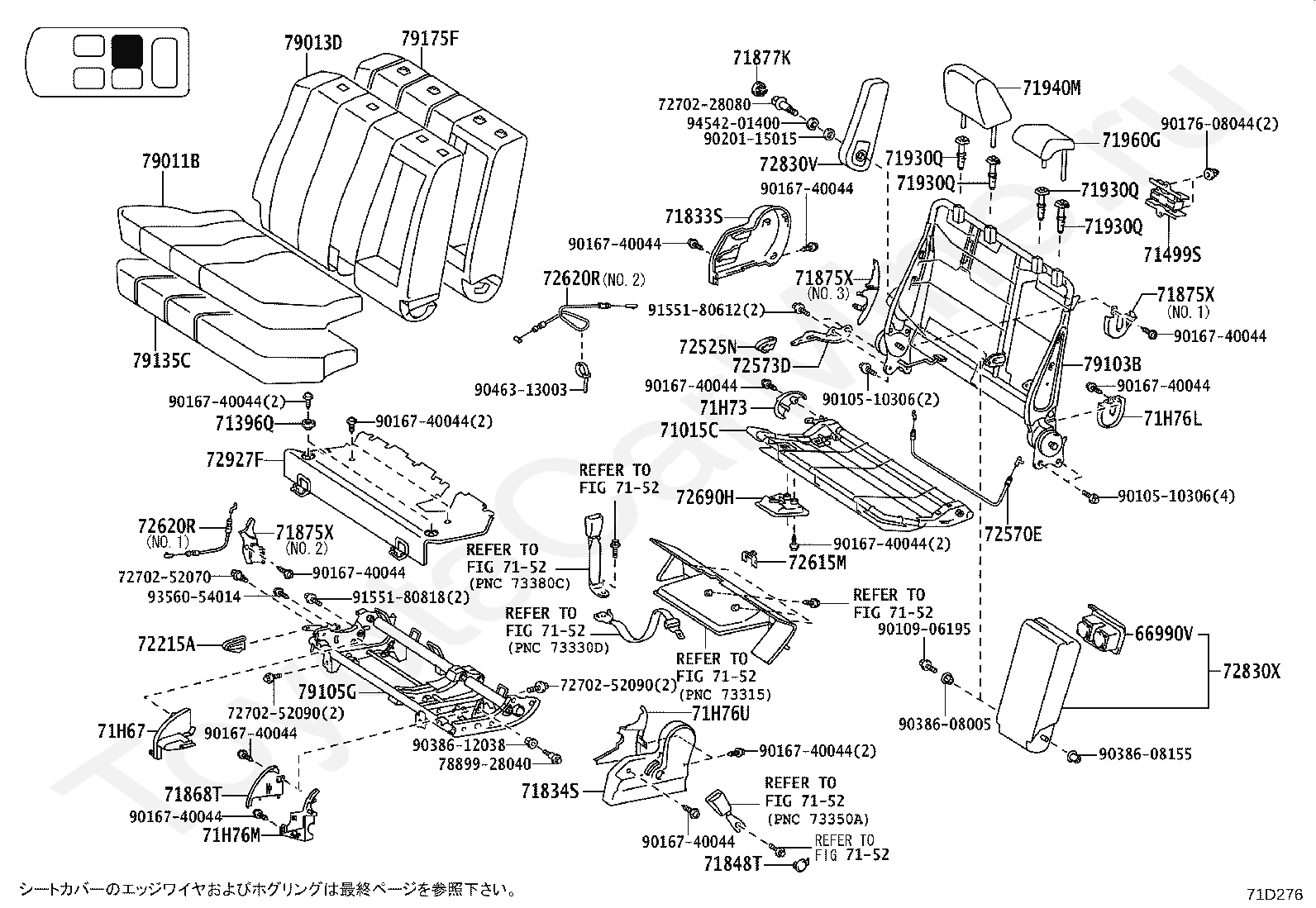

Код

Описание

66990V

HOLDER ASSY, CUP

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71396Q

CUSHION, NO.1 SEAT SUPPORT, CENTER

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71H73

SHIELD, REAR SEAT CUSHION, LOWER RH

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

71H76U

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR RH SEAT)

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72573D

LEVER, NO.1 SEAT RECLINING CONTROL, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72690H

LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, RH

7270228080

Крепеж

7270252070

Крепеж

7270252090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830X

ARMREST ASSY, REAR SEAT, CENTER

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7889928040

Крепеж

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

9010510306

Крепеж

9010906195

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9020115015

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180818

Крепеж

9356054014

Крепеж

9454201400

Крепеж

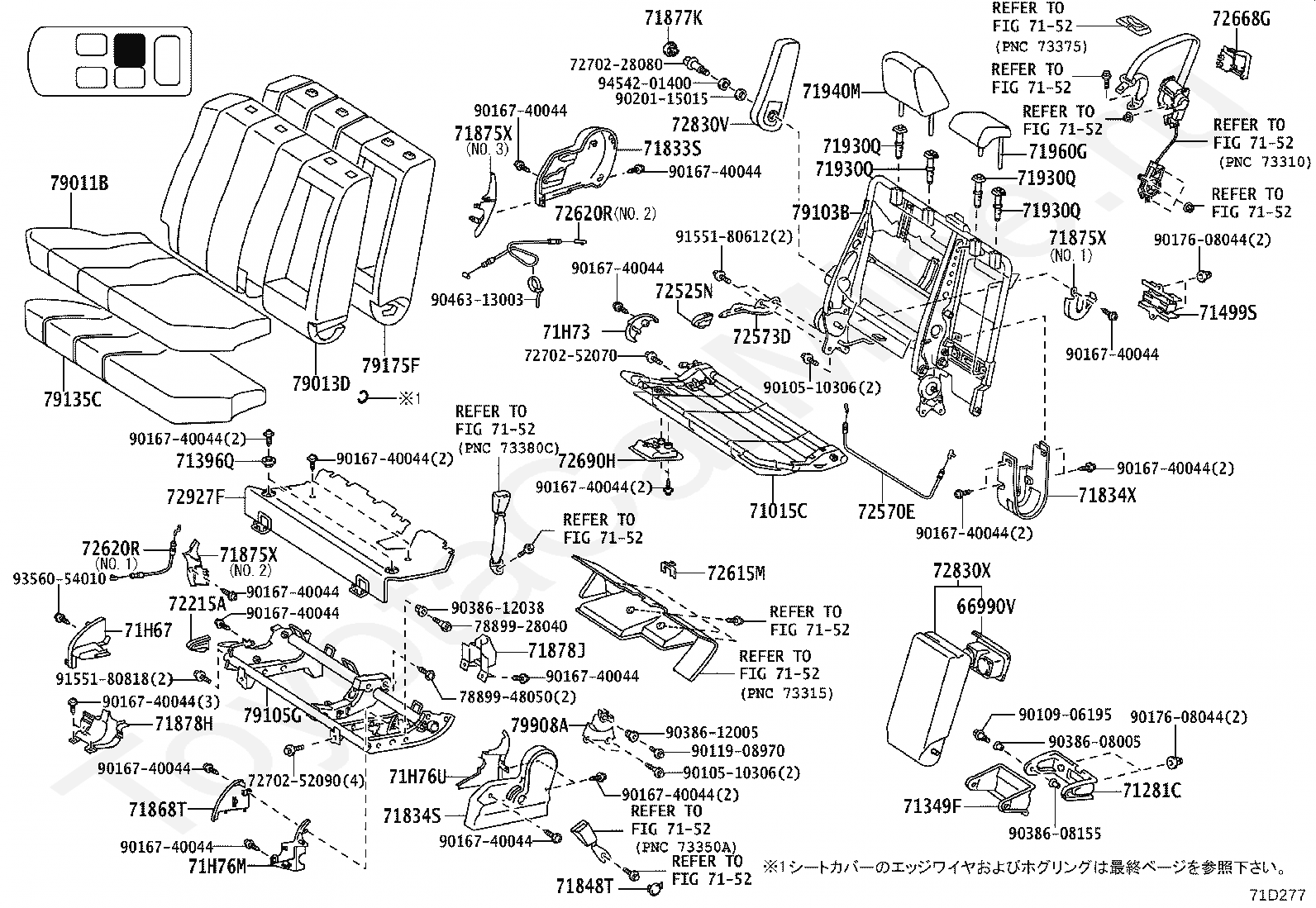

Код

Описание

66990V

HOLDER ASSY, CUP

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71281C

HINGE, NO.1 SEAT CENTER ARMREST

71349F

COVER, NO.1 SEAT BACK HINGE, RH

71396Q

CUSHION, NO.1 SEAT SUPPORT, CENTER

71499S

DAMPER, SEAT CUSHION SPRING

7152

переход к группе запчастей

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71834X

COVER, REAR SEAT RECLINING, NO.2 LH

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71H73

SHIELD, REAR SEAT CUSHION, LOWER RH

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

71H76U

COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR RH SEAT)

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72573D

LEVER, NO.1 SEAT RECLINING CONTROL, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72668G

BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT)

72690H

LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, RH

7270228080

Крепеж

7270252070

Крепеж

7270252090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830X

ARMREST ASSY, REAR SEAT, CENTER

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7889928040

Крепеж

7889948050

Крепеж

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79908A

PLATE SUB-ASSY, SEAT HINGE, LH

9010510306

Крепеж

9010906195

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9020115015

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180818

Крепеж

9356054010

Крепеж

9454201400

Крепеж

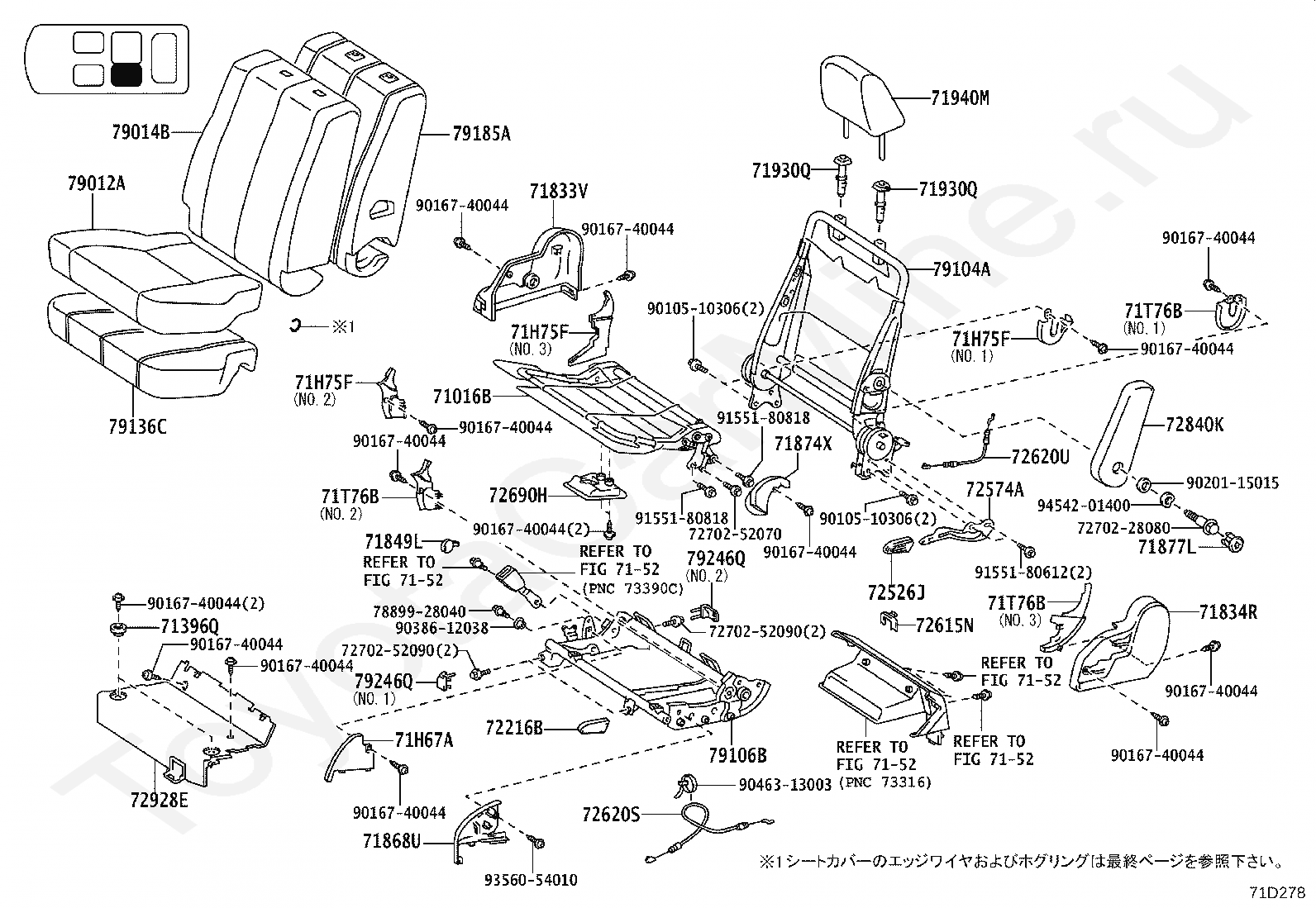

Код

Описание

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71396Q

CUSHION, NO.1 SEAT SUPPORT, CENTER

7152

переход к группе запчастей

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71868U

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT)

71874X

SHIELD, REAR SEAT CUSHION, LOWER LH

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71H67A

SHIELD, NO.1 SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT)

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72574A

LEVER, RECLINING CONTROL, LH

72615N

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR LH SEAT)

72620S

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)

72620U

CABLE ASSY, REAR NO.1 SEAT LOCK

72690H

LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, RH

7270228080

Крепеж

7270252070

Крепеж

7270252090

Крепеж

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

7889928040

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79246Q

COVER, REAR SEAT LEG, RH (FOR LH SEAT)

9010510306

Крепеж

9016740044

Крепеж

9020115015

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180818

Крепеж

9356054010

Крепеж

9454201400

Крепеж

Код

Описание

6777126230B0

Крепеж

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71321A

CUSHION, REAR SEAT

71485E

COVER, REAR SEAT HINGE

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71695T

PROTECTOR, REAR SEAT, NO.2

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551F

COVER, RECLINING LINK, RH NO.1

72552F

COVER, RECLINING LINK, LH NO.1

72570G

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

72691D

STRIKER, REAR SEAT CUSHION LOCK

7270228120

Крепеж

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

72905A

LINK SUB-ASSY, 3RD SEAT, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79275F

PAD, NO.2 SEAT BACK, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959L

CLIP, NO.2 SEAT LEG COVER, RH

9016740044

Крепеж

9017608044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054010

Крепеж

9415080800

Крепеж

9418560600

Крепеж

Код

Описание

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71321A

CUSHION, REAR SEAT

71485E

COVER, REAR SEAT HINGE

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72551G

COVER, RECLINING LINK, RH NO.2

72552G

COVER, RECLINING LINK, LH NO.2

72570H

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72679C

BEZEL, REAR SEAT BACK LOCK CONTROL

72691D

STRIKER, REAR SEAT CUSHION LOCK

7270228120

Крепеж

72906A

LINK SUB-ASSY, 3RD SEAT, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79273E

COVER, NO.2 SEAT HINGE, REAR LH

79285C

PAD, NO.2 SEAT BACK, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79959M

CLIP, NO.2 SEAT LEG COVER, LH

9016740044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054010

Крепеж

9415080800

Крепеж

9418560600

Крепеж

Код

Описание

71465A

SPRING, REAR SEAT CUSHION, NO.5

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

72670E

LOCK ASSY, REAR SEAT CUSHION, NO.2 RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

72680F

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

Код

Описание

6777126230B0

Крепеж

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693M

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71695T

PROTECTOR, REAR SEAT, NO.2

71843K

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

72551F

COVER, RECLINING LINK, RH NO.1

72552F

COVER, RECLINING LINK, LH NO.1

72597D

BEZEL, RECLINING REMOTE CONTROL, RH

7270228120

Крепеж

72830W

ARMREST ASSY, REAR NO.2 SEAT, RH

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79273D

COVER, NO.2 SEAT HINGE, REAR RH

79275F

PAD, NO.2 SEAT BACK, RH

79621B

STOPPER, NO.2 SEAT CUSHION

79959G

COVER, NO.2 SEAT LEG, RH NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9017608044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

6777126230B0

Крепеж

7152

переход к группе запчастей

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71940J

HEADREST ASSY, NO.2 SEAT, LH

72551G

COVER, RECLINING LINK, RH NO.2

72552G

COVER, RECLINING LINK, LH NO.2

72598C

BEZEL, RECLINING REMOTE CONTROL, LH

7270228120

Крепеж

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79273E

COVER, NO.2 SEAT HINGE, REAR LH

79285C

PAD, NO.2 SEAT BACK, LH

79621B

STOPPER, NO.2 SEAT CUSHION

79959J

COVER, NO.2 SEAT LEG, LH NO.1

8202

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9017908046

Крепеж

9155281022

Крепеж

9155281050

Крепеж

9321056016

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

6974932020

Крепеж

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71309H

LEG SUB-ASSY, REAR SEAT, REAR RH

71309J

LEG SUB-ASSY, REAR SEAT, REAR LH

71337C

PLATE, REAR SEAT LEG

71465A

SPRING, REAR SEAT CUSHION, NO.5

71611F

PAD, REAR SEAT CUSHION, A

72650H

CABLE ASSY, REAR NO.2 SEAT LOCK, RH

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

8271428020

Крепеж

84920Q

SWITCH ASSY, POWER SEAT

84920R

SWITCH ASSY, POWER SEAT

85H20

MOTOR ASSY, POWER SEAT

9011006040

Крепеж

9016740044

Крепеж

9017908087

Крепеж

9616000400

Крепеж

Код

Описание

64090B

BELT ASSY, WHEEL CHAIR

64090C

BELT ASSY, WHEEL CHAIR, NO.2

7155

переход к группе запчастей

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

REAR SEAT & SEAT TRACK TOYOTA ESTIMA, 2012/04 - 2025, 3,5 литра, 24 клапана, DOHC, EFI, AERAS TYPE, GSR50, автомат, АКПП, 6 скоростей

Товар добавлен в корзину!

Заполните форму
