Каталог
ЯпонияМодель
ESTIMAДвигатель
2,4 литра, 16 клапанов, DOHC, EFIКузов
фургонКласс
STANDARD TYPEФрейм
TCR21Трансмиссия
автоматОпции
7-местный электронная система впрыска топлива

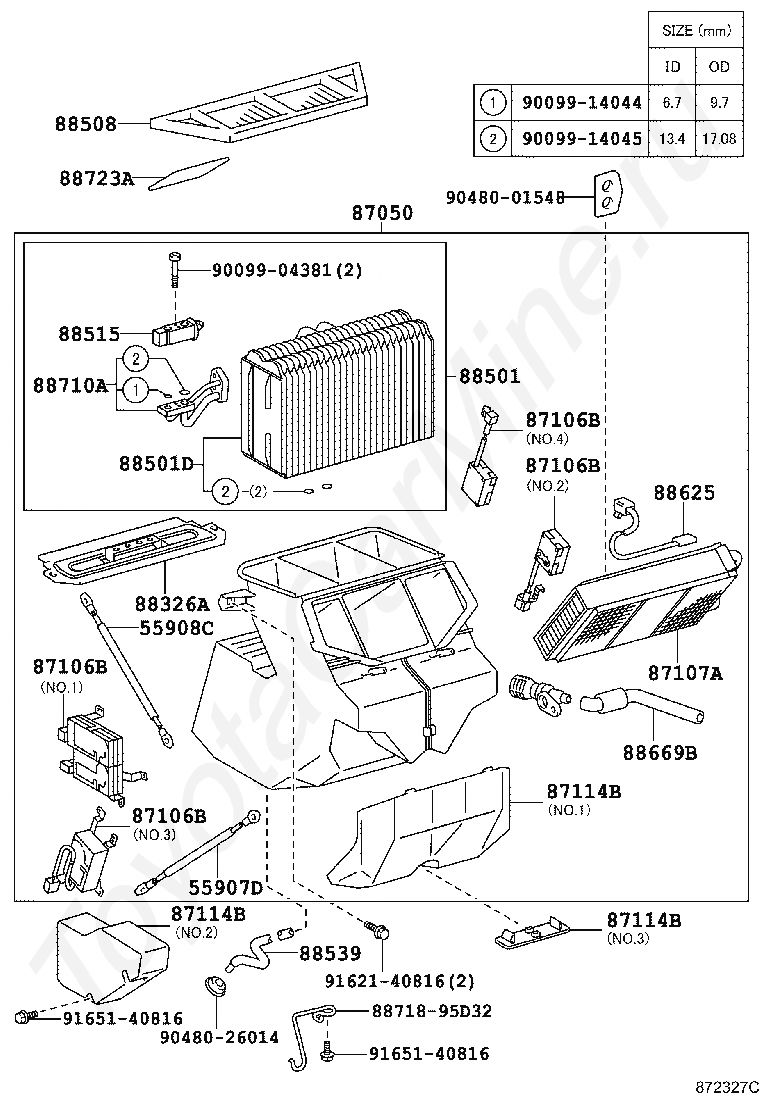

Код
Описание
55907D
CABLE SUB-ASSY, WATER VALVE CONTROL
55908C
CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
87050
RADIATOR ASSY, AIR CONDITIONER
87106B
SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87114B
COVER, HEATER
88326A
PLATE, COVER
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88501D
EVAPORATOR SUB-ASSY, COOLER, NO.2
88508
FILTER SUB-ASSY, CLEAN AIR
88515
VALVE, COOLER EXPANSION
88539
HOSE, COOLER UNIT DRAIN, NO.1
88625
THERMISTOR, COOLER, NO.1
88669B
HOSE, COOLER AIR
88710A
TUBE ASSY, AIR CONDITIONER
8871895D32
Крепеж
88723A
LABEL, COOLER SERVICE CAUTION
9009904381
Крепеж
9009914044
Крепеж
9009914045
Крепеж
9048001548
Крепеж
9048026014
Крепеж
9162140816
Крепеж
9165140816
Крепеж

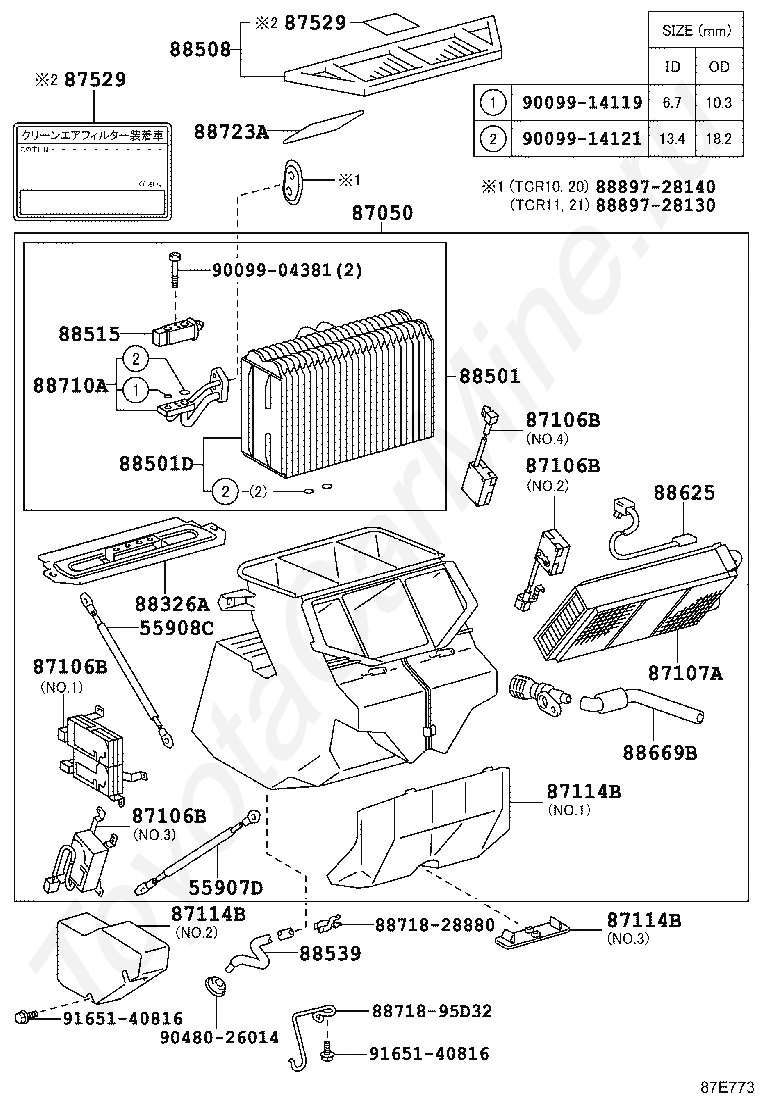

Код
Описание
55907D
CABLE SUB-ASSY, WATER VALVE CONTROL
55908C
CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
87050
RADIATOR ASSY, AIR CONDITIONER
87106B
SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87114B
COVER, HEATER
87529
PLATE, AIR FILTER CAUTION
88326A
PLATE, COVER
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88501D
EVAPORATOR SUB-ASSY, COOLER, NO.2
88508
FILTER SUB-ASSY, CLEAN AIR
88515
VALVE, COOLER EXPANSION
88539
HOSE, COOLER UNIT DRAIN, NO.1
88625
THERMISTOR, COOLER, NO.1
88669B
HOSE, COOLER AIR
88710A
TUBE ASSY, AIR CONDITIONER
8871828880
Крепеж
8871895D32
Крепеж
88723A
LABEL, COOLER SERVICE CAUTION
8889728130
Крепеж
8889728140
Крепеж
9009904381
Крепеж
9009914119
Крепеж
9009914121
Крепеж
9048026014
Крепеж
9165140816
Крепеж

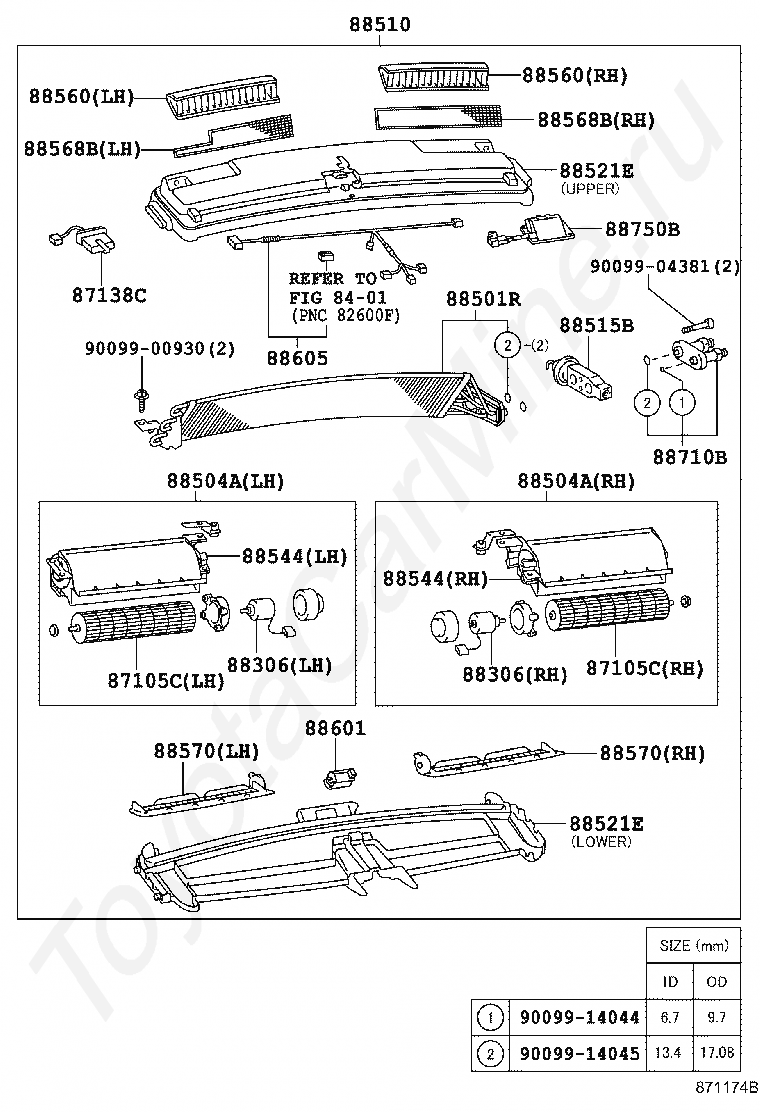

Код
Описание
8401
переход к группе запчастей
87105C
FAN SUB-ASSY, BLOWER, REAR
87138C
RESISTOR, BLOWER
88306
MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88501R
EVAPORATOR SUB-ASSY (REAR)
88504A
CASE SUB-ASSY, BLOWER
88510
UNIT ASSY, COOLER
88515B
VALVE, REAR COOLING UNIT EXPANSION
88521E
CASE SUB-ASSY, COOLING UNIT
88544
CASE, COOLER BLOWER
88560
GRILLE ASSY, COOLER AIR INLET
88568B
FILTER, AIR
88570
GRILLE SUB-ASSY, COOLER AIR OUTLET
88601
SWITCH SUB-ASSY, COOLER CONTROL
88605
HARNESS SUB-ASSY, COOLER WIRING, NO.1
88710B
TUBE ASSY, AIR CONDITIONER
88750B
TRANSISTOR ASSY, BLOWER RESISTOR
9009900930
Крепеж
9009904381
Крепеж
9009914044
Крепеж
9009914045
Крепеж

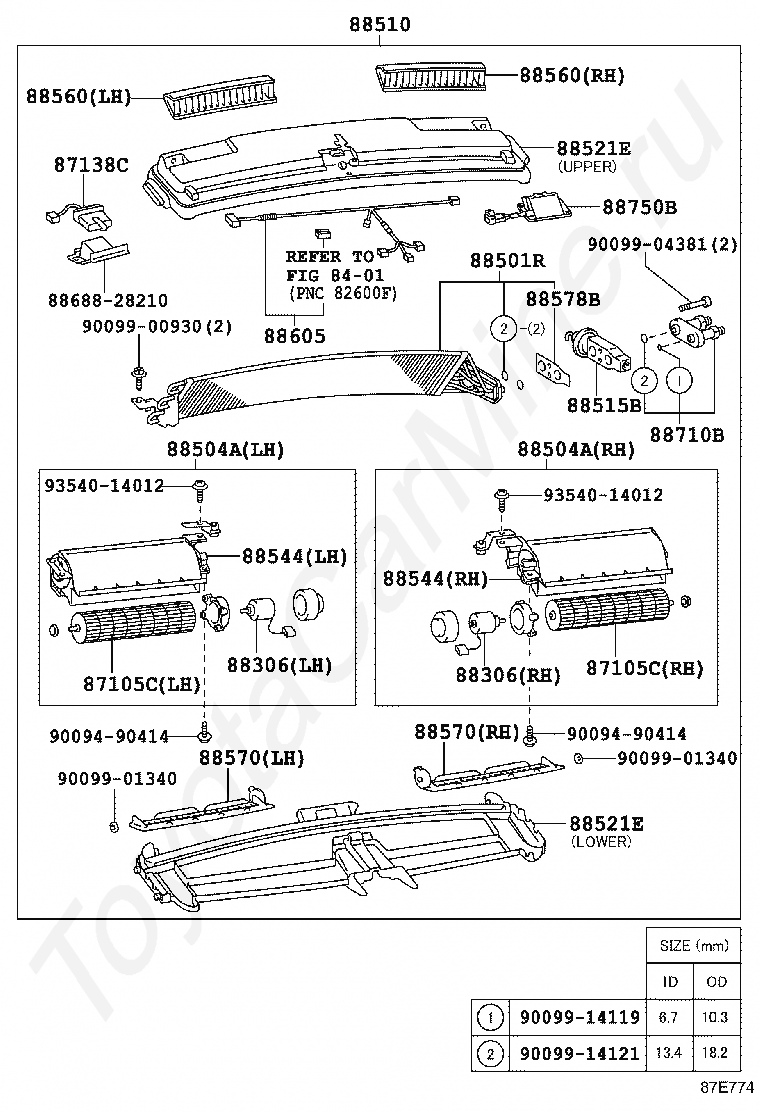

Код
Описание
8401
переход к группе запчастей
87105C
FAN SUB-ASSY, BLOWER, REAR
87138C
RESISTOR, BLOWER
88306
MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88501R
EVAPORATOR SUB-ASSY (REAR)
88504A
CASE SUB-ASSY, BLOWER
88510
UNIT ASSY, COOLER
88515B
VALVE, REAR COOLING UNIT EXPANSION
88521E
CASE SUB-ASSY, COOLING UNIT
88544
CASE, COOLER BLOWER
88560
GRILLE ASSY, COOLER AIR INLET
88570
GRILLE SUB-ASSY, COOLER AIR OUTLET
88578B
PACKING, COOLING UNIT, NO.1
88605
HARNESS SUB-ASSY, COOLER WIRING, NO.1
8868828210
Крепеж
88710B
TUBE ASSY, AIR CONDITIONER
88750B
TRANSISTOR ASSY, BLOWER RESISTOR
9009490414
Крепеж
9009900930
Крепеж
9009901340
Крепеж
9009904381
Крепеж
9009914119
Крепеж
9009914121
Крепеж
9354014012
Крепеж

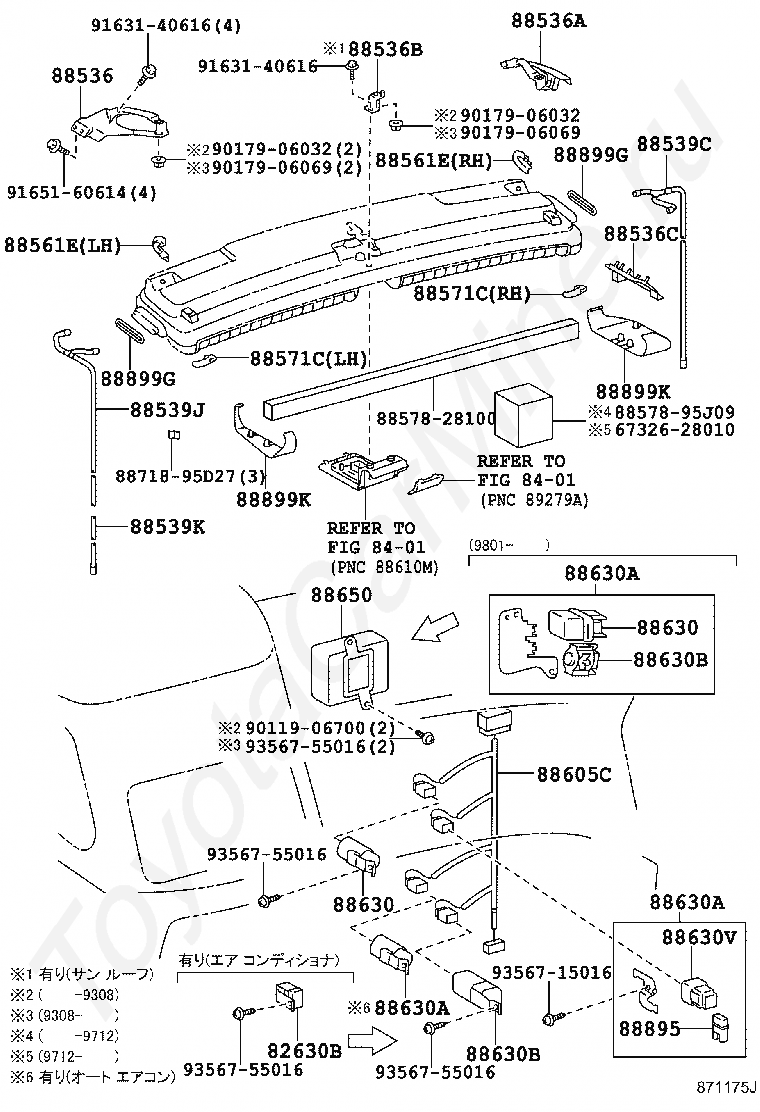

Код
Описание
6732628010
Крепеж
82630B
HOLDER ASSY, FUSE
8401
переход к группе запчастей
88536
BRACKET, COOLING UNIT, NO.1
88536A
BRACKET, COOLING UNIT, NO.2
88536B
BRACKET, COOLING UNIT, NO.3
88536C
BRACKET, COOLING UNIT, NO.4
88539C
HOSE, COOLER UNIT DRAIN, NO.2
88539J
HOSE, DRAIN COOLER
88539K
HOSE, DRAIN COOLER
88561E
GRILLE, AIR INLET
88571C
GRILLE, COOLER AIR OUTLET
8857828100
Крепеж
8857895J09
Крепеж
88605C
HARNESS SUB-ASSY, COOLER WIRING, NO.2
88630
RELAY ASSY, COOLER
88630A
RELAY ASSY, COOLER
88630B
RELAY ASSY, COOLER
88630V
RELAY ASSY
88650
AMPLIFIER ASSY, COOLER STABILIZER
8871895D27
Крепеж
88895
HOLDER, FUSE
88899G
MOULDING, PROTECTOR
88899K
PLATE, COVER
9011906700
Крепеж
9017906032
Крепеж
9017906069
Крепеж
9163140616
Крепеж
9165160614
Крепеж
9356715016
Крепеж
9356755016
Крепеж

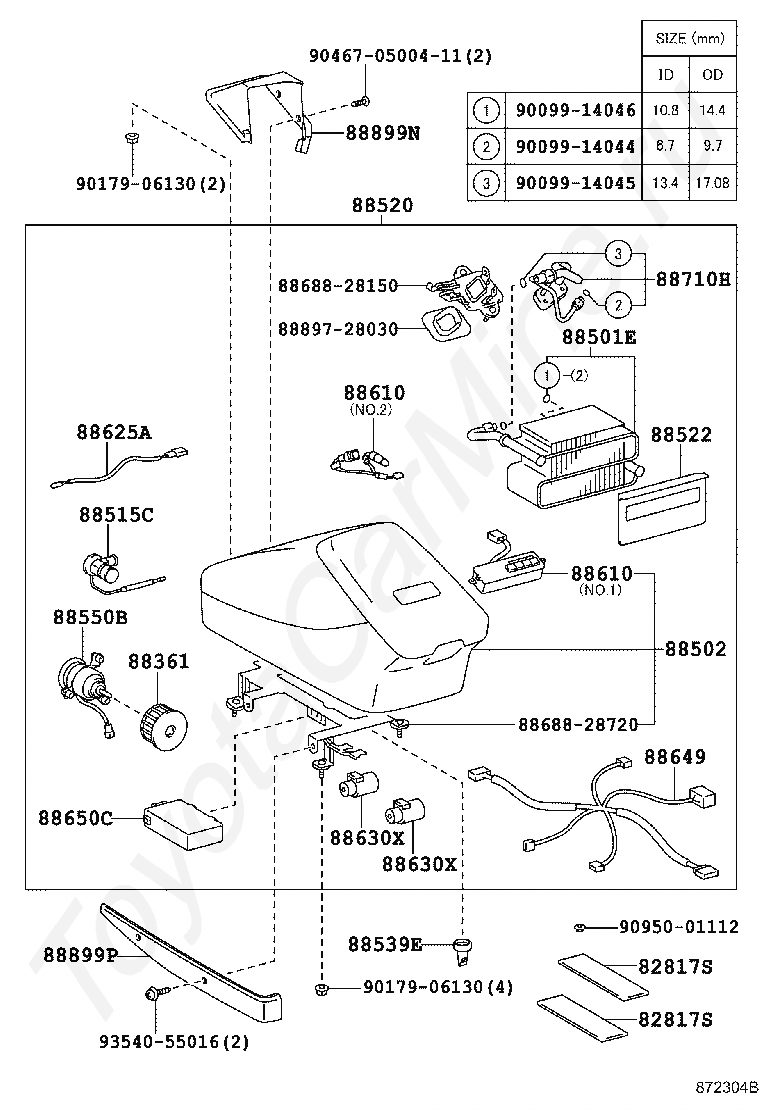

Код
Описание
82817S
PROTECTOR, WIRING HARNESS
88361
FAN, COOLER BLOWER, NO.1
88501E
EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88502
CASE SUB-ASSY, COOLING UNIT
88515C
VALVE, COOLING BOX EXPANSION
88520
BOX ASSY, COOLING
88522
DOOR, COOLING UNIT
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88550B
MOTOR ASSY, BLOWER
88610
SWITCH ASSY, COOLER CONTROL
88625A
THERMISTOR, COOLER NO.2
88630X
RELAY ASSY
88649
WIRING, COOLER, NO.2
88650C
AMPLIFIER SUB-ASSY, AIRCONDITIONER
8868828150
Крепеж
8868828720
Крепеж
88710H
TUBE & ACCESSORY ASSY, AIR CONDITIONER
8889728030
Крепеж
88899N
PLATE, COVER
88899P
PLATE, COVER
9009914044
Крепеж
9009914045
Крепеж
9009914046
Крепеж
9017906130
Крепеж
904670500411
Крепеж
9095001112
Крепеж
9354055016
Крепеж

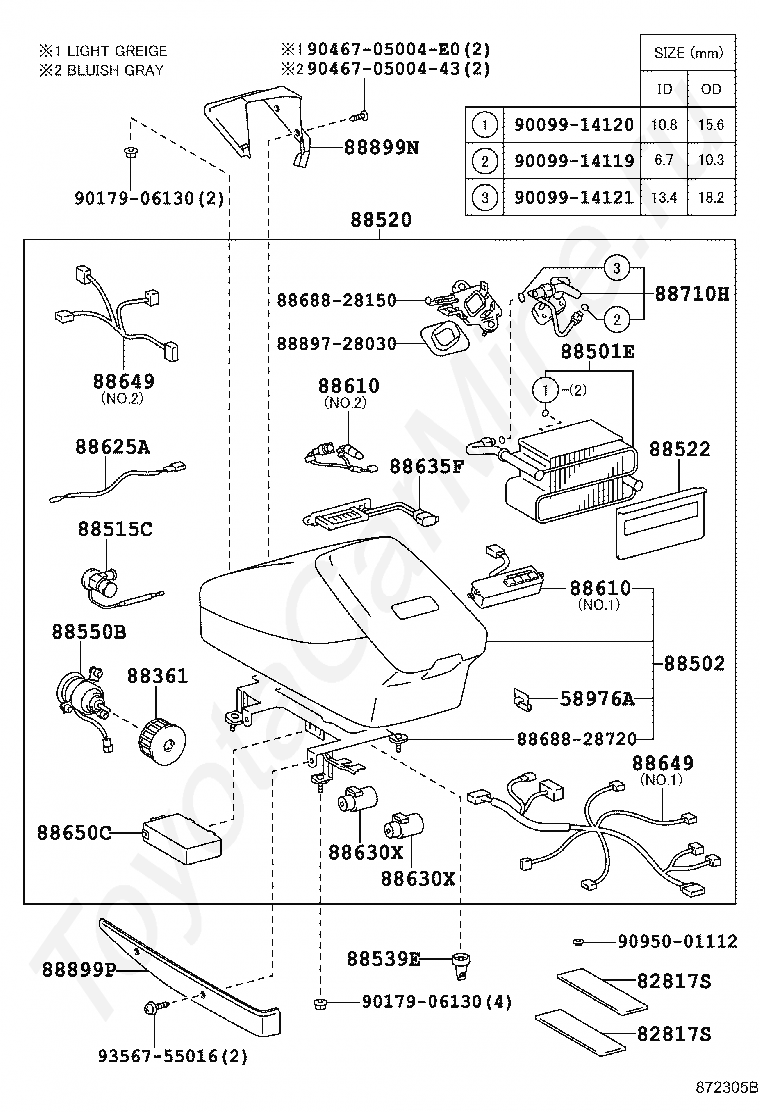

Код
Описание
58976A
STRIKER, CONSOLE COMPARTMENT DOOR LOCK
82817S
PROTECTOR, WIRING HARNESS
88361
FAN, COOLER BLOWER, NO.1
88501E
EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88502
CASE SUB-ASSY, COOLING UNIT
88515C
VALVE, COOLING BOX EXPANSION
88520
BOX ASSY, COOLING
88522
DOOR, COOLING UNIT
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88550B
MOTOR ASSY, BLOWER
88610
SWITCH ASSY, COOLER CONTROL
88625A
THERMISTOR, COOLER NO.2
88630X
RELAY ASSY
88635F
RESISTER, COOLER BLOWER
88649
WIRING, COOLER, NO.2
88650C
AMPLIFIER SUB-ASSY, AIRCONDITIONER
8868828150
Крепеж
8868828720
Крепеж
88710H
TUBE & ACCESSORY ASSY, AIR CONDITIONER
8889728030
Крепеж
88899N
PLATE, COVER
88899P
PLATE, COVER
9009914119
Крепеж
9009914120
Крепеж
9009914121
Крепеж
9017906130
Крепеж
904670500443
Крепеж
9046705004E0
Крепеж
9095001112
Крепеж
9356755016
Крепеж

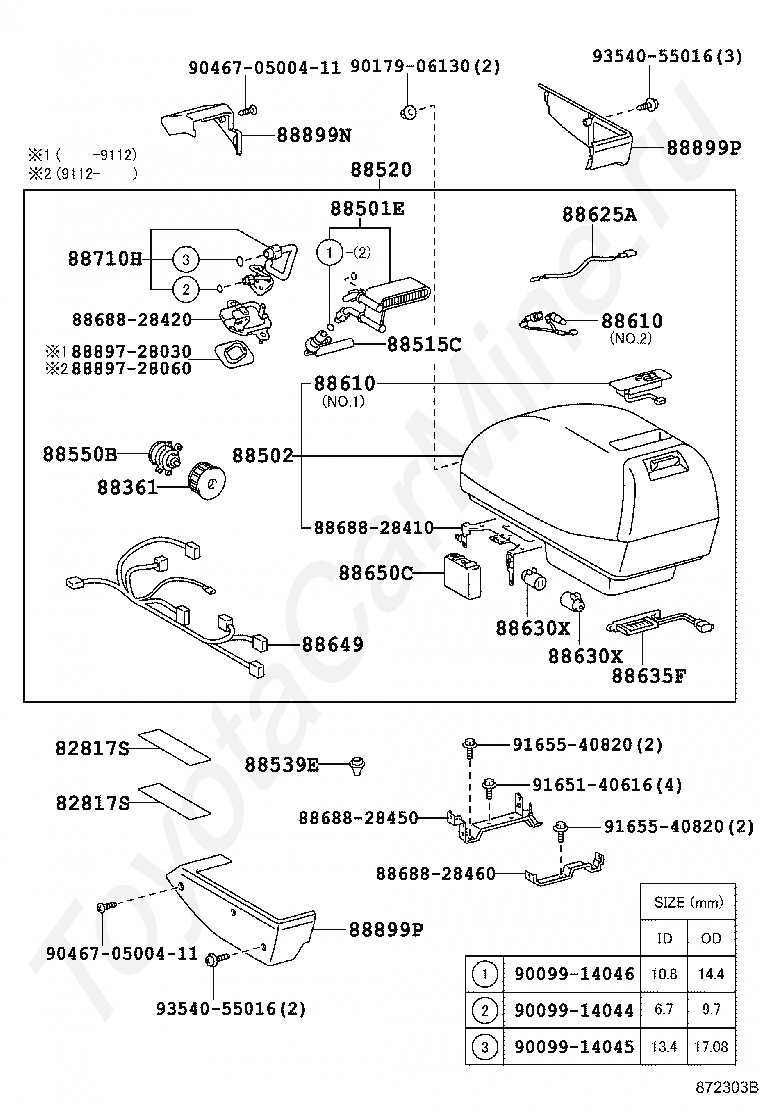

Код
Описание
82817S
PROTECTOR, WIRING HARNESS
88361
FAN, COOLER BLOWER, NO.1
88501E
EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88502
CASE SUB-ASSY, COOLING UNIT
88515C
VALVE, COOLING BOX EXPANSION
88520
BOX ASSY, COOLING
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88550B
MOTOR ASSY, BLOWER
88610
SWITCH ASSY, COOLER CONTROL
88625A
THERMISTOR, COOLER NO.2
88630X
RELAY ASSY
88635F
RESISTER, COOLER BLOWER
88649
WIRING, COOLER, NO.2
88650C
AMPLIFIER SUB-ASSY, AIRCONDITIONER
8868828410
Крепеж
8868828420
Крепеж
8868828450
Крепеж
8868828460
Крепеж
88710H
TUBE & ACCESSORY ASSY, AIR CONDITIONER
8889728030
Крепеж
8889728060
Крепеж
88899N
PLATE, COVER
88899P
PLATE, COVER
9009914044
Крепеж
9009914045
Крепеж
9009914046
Крепеж
9017906130
Крепеж
904670500411
Крепеж
9165140616
Крепеж
9165540820
Крепеж
9354055016
Крепеж

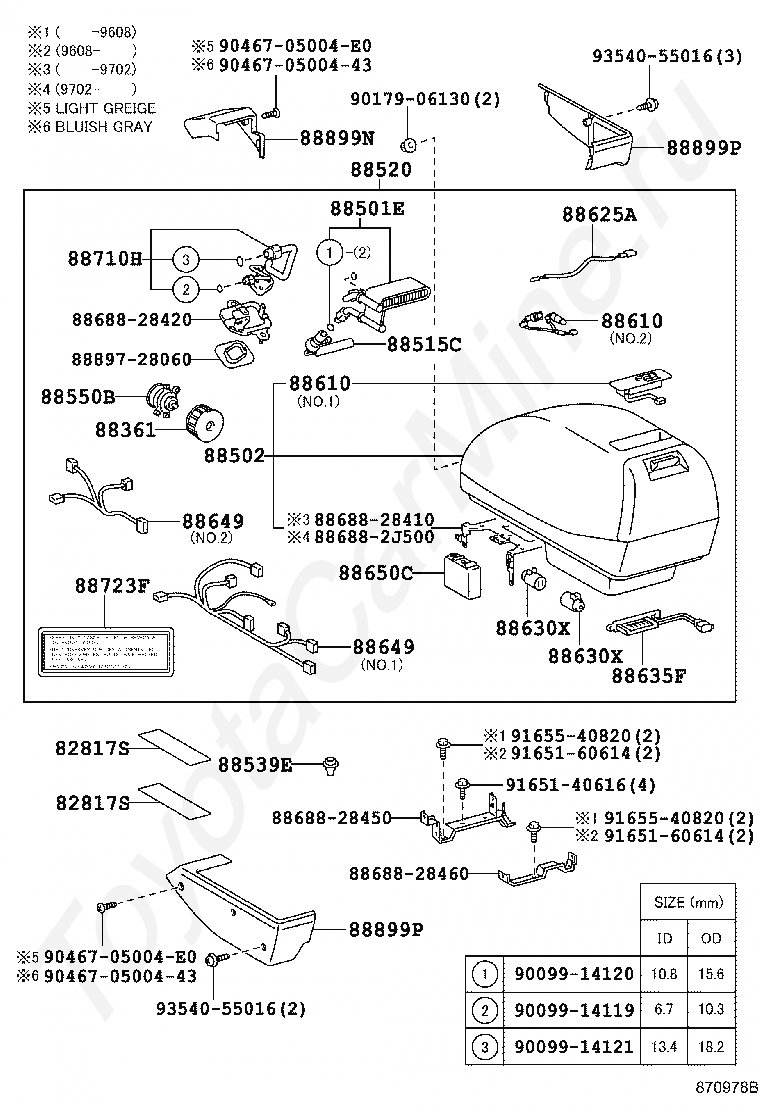

Код
Описание
82817S
PROTECTOR, WIRING HARNESS
88361
FAN, COOLER BLOWER, NO.1
88501E
EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88502
CASE SUB-ASSY, COOLING UNIT
88515C
VALVE, COOLING BOX EXPANSION
88520
BOX ASSY, COOLING
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88550B
MOTOR ASSY, BLOWER
88610
SWITCH ASSY, COOLER CONTROL
88625A
THERMISTOR, COOLER NO.2
88630X
RELAY ASSY
88635F
RESISTER, COOLER BLOWER
88649
WIRING, COOLER, NO.2
88650C
AMPLIFIER SUB-ASSY, AIRCONDITIONER
8868828410
Крепеж
8868828420
Крепеж
8868828450
Крепеж
8868828460
Крепеж
886882J500
Крепеж
88710H
TUBE & ACCESSORY ASSY, AIR CONDITIONER
88723F
LABEL, COOLER SERVICE CAUTION
8889728060
Крепеж
88899N
PLATE, COVER
88899P
PLATE, COVER
9009914119
Крепеж
9009914120
Крепеж
9009914121
Крепеж
9017906130
Крепеж
904670500443
Крепеж
9046705004E0
Крепеж
9165140616
Крепеж
9165160614
Крепеж
9165540820
Крепеж
9354055016
Крепеж
