Торпеда с бардачком TOYOTA ESTIMA, 1990/05 - 1994/08, 2,4 литра, 16 клапанов, DOHC, EFI, фургон, STANDARD TYPE, TCR21, автомат

Каталог

Япония

Модель

ESTIMA

Двигатель

2,4 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

STANDARD TYPE

Фрейм

TCR21

Трансмиссия

автомат

Опции

7-местный электронная система впрыска топлива

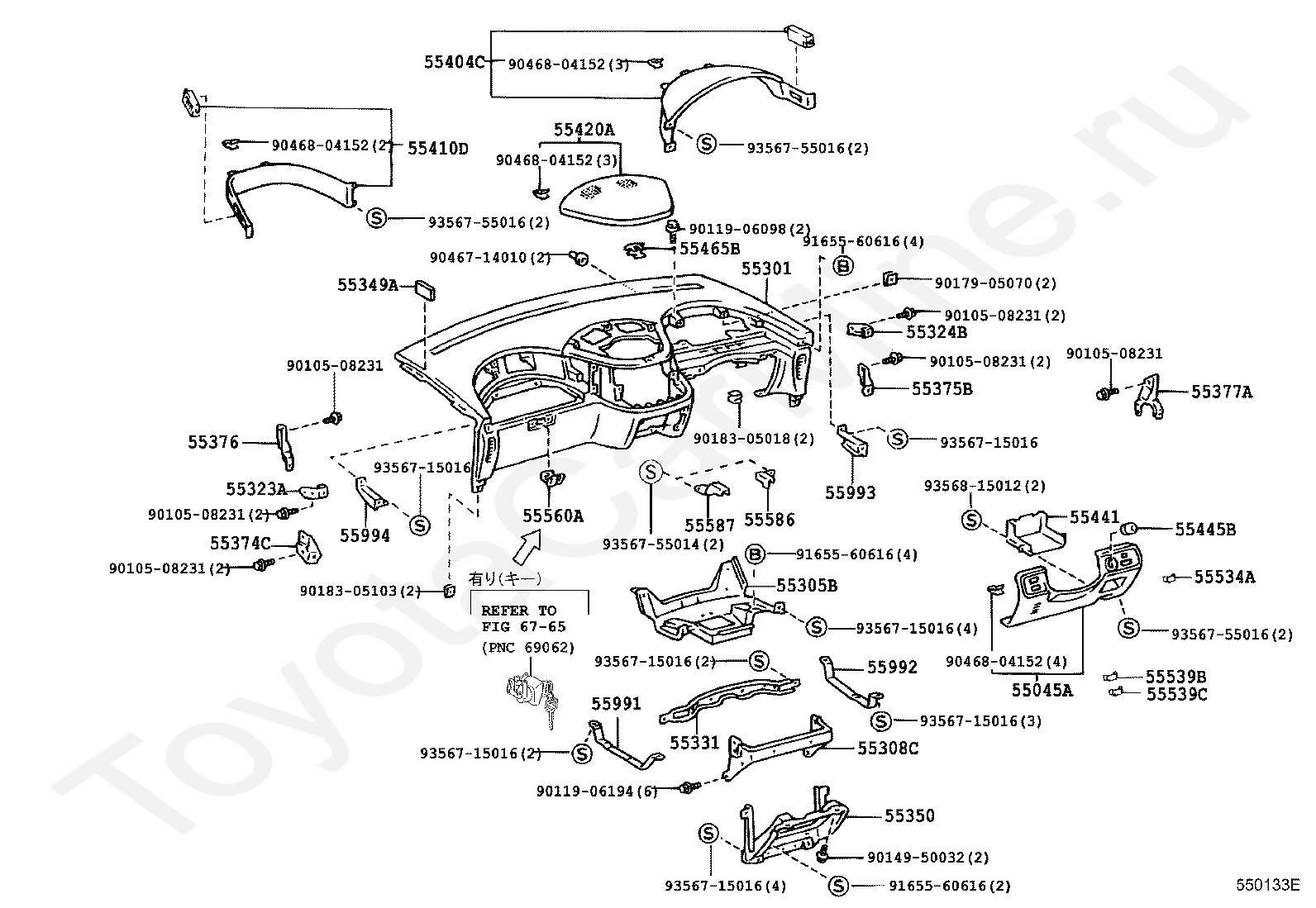

Код

Описание

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55301

PANEL SUB-ASSY, INSTRUMENT

55305B

REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

55308C

BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

55323A

BRACKET, INSTRUMENT PANEL, NO.3

55324B

BRACKET, INSTRUMENT PANEL, NO.4

55331

REINFORCEMENT, INSTRUMENT PANEL

55349A

CUSHION, INSTRUMENT PANEL

55350

BRACE ASSY, INSTRUMENT PANEL

55374C

BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

55375B

BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

55376

BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

55377A

BRACKET, INSTRUMENT PANEL MOUNTING, NO.2

55404C

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

55410D

PANEL ASSY, INSTRUMENT CLUSTER FINISH, END

55420A

PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55441

BOX, INSTRUMENT PANEL

55445B

PLATE, INSTRUMENT PANEL FINISH

55465B

KNOB, INSTRUMENT PANEL BOX LOCK

55534A

COVER, ILLUMINATION LAMP HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55586

SUPPORT, SHELL BOX, NO.1

55587

SUPPORT, SHELL BOX, NO.2

55991

BRACKET, DEFROSTER DUCT, NO.1

55992

BRACKET, DEFROSTER DUCT, NO.2

55993

BRACKET, DEFROSTER DUCT, NO.3

55994

BRACKET, DEFROSTER DUCT, NO.4

6765

переход к группе запчастей

9010508231

Крепеж

9011906098

Крепеж

9011906194

Крепеж

9014950032

Крепеж

9017905070

Крепеж

9018305018

Крепеж

9018305103

Крепеж

9046714010

Крепеж

9046804152

Крепеж

9165560616

Крепеж

9356715016

Крепеж

9356755014

Крепеж

9356755016

Крепеж

9356815012

Крепеж

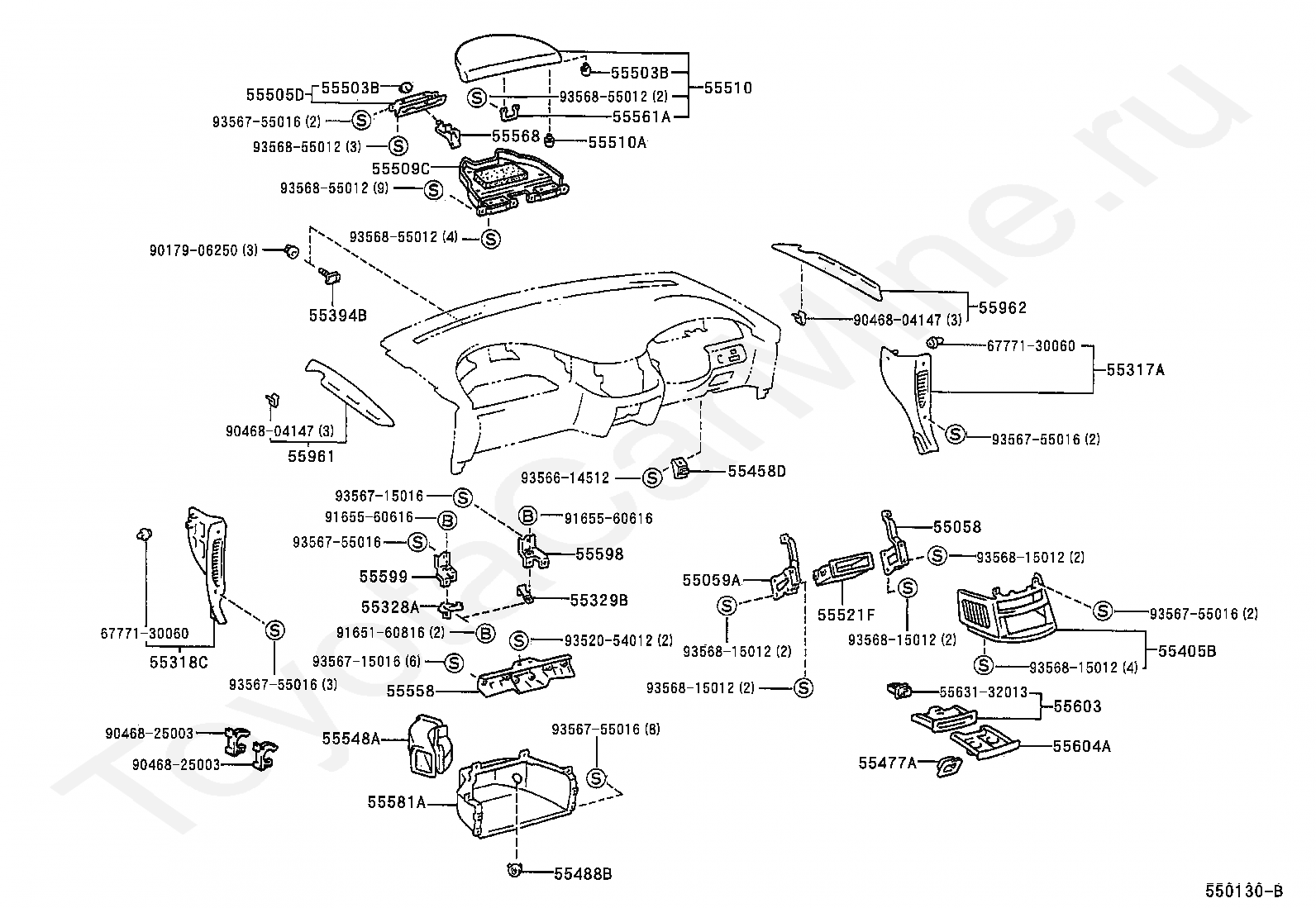

Код

Описание

55058

RETAINER SUB-ASSY, RADIO TUNER OPENING, RH

55059A

RETAINER SUB-ASSY, RADIO TUNER OPENING, LH

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55328A

STAY, INSTRUMENT PANEL, NO.3

55329B

STAY, INSTRUMENT PANEL, NO.4

55394B

BOLT, INSTRUMENT PANEL

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55458D

COVER, INSTRUMENT LOWER, RH

55477A

BEZEL, CIGARETTE LIGHTER HOLE

55488B

LENS, FRONT FOOT LAMP, NO.1

55503B

CUSHION(FOR GLOVE COMPARTMENT)

55505D

HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

55509C

PANEL SUB-ASSY, GLOVE COMPARTMENT

55510

DOOR ASSY, GLOVE COMPARTMENT

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55521F

COVER, STEREO OPENING, NO.2

55548A

COVER, INSTRUMENT PANEL HOLE

55558

REINFORCEMENT, GLOVE COMPARTMENT DOOR

55561A

STRIKER, GLOVE COMPARTMENT DOOR LOCK

55568

PLATE, GLOVE COMPARTMENT DOOR PAD

55581A

COMPARTMENT, GLOVE

55598

BRACKET, GLOVE COMPARTMENT DOOR HINGE, RH

55599

BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH

55603

CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER

55604A

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

5563132013

Крепеж

55961

NOZZLE, SIDE DEFROSTER, NO.1

55962

NOZZLE, SIDE DEFROSTER, NO.2

6777130060

Крепеж

9017906250

Крепеж

9046804147

Крепеж

9046825003

Крепеж

9165160816

Крепеж

9165560616

Крепеж

9352054012

Крепеж

9356614512

Крепеж

9356715016

Крепеж

9356755016

Крепеж

9356815012

Крепеж

9356855012

Крепеж
