Каталог
ЯпонияМодель
DYNA/TOYOACE HVДвигатель
4 литра, дизельФрейм
XKU712Трансмиссия
AUTOMATED MANUAL TRANSMISSION МКПП, 6 скоростейОпции
SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOIV3 878W

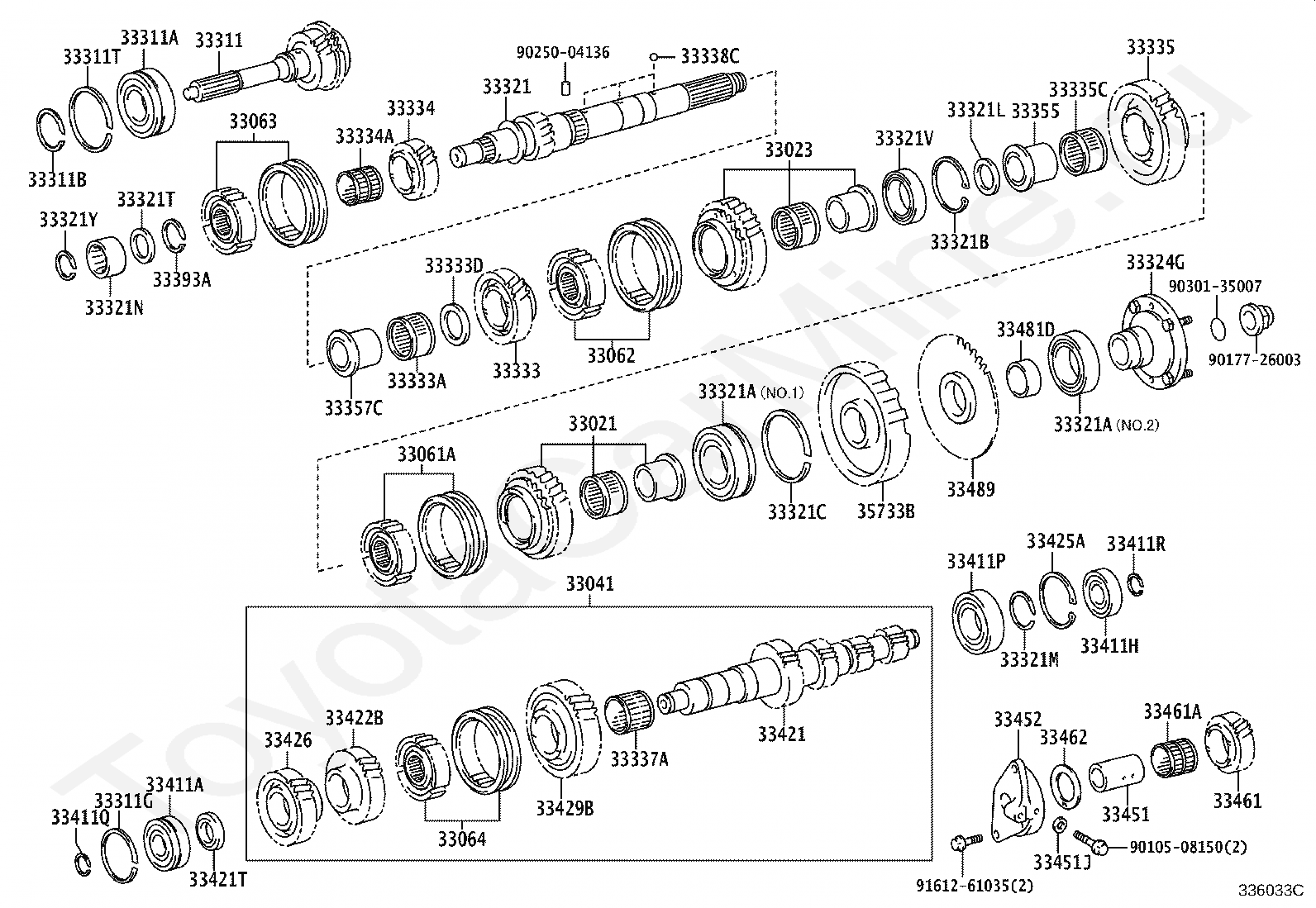

Код
Описание
33021
GEAR SET, REVERSE
33023
GEAR SET, 2ND
33041
GEAR SET, COUNTER
33061A
SLEEVE SUB-ASSY, TRANSMISSION, NO.1
33062
SLEEVE SUB-ASSY, TRANSMISSION, NO.2
33063
SLEEVE SUB-ASSY, TRANSMISSION, NO.3
33064
SLEEVE SUB-ASSY, TRANSMISSION, NO.4
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311G
RING, SHAFT SNAP (FOR FRONT BEARING)
33311T
RING, SHAFT SNAP (FOR INPUT SHAFT)
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321B
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321C
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321L
SHIM (FOR OUTPUT SHAFT CENTER BEARING)
33321M
RING, SHAFT SNAP (FOR BEARING)
33321N
BEARING (FOR OUTPUT SHAFT FRONT)
33321T
SPACER (FOR OUTPUT SHAFT)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33321Y
RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
33324G
FLANGE, OUTPUT SHAFT COMPANION (MTM)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333D
SPACER (FOR 3RD GEAR)
33334
GEAR, 4TH
33334A
BEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337A
BEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33338C
BALL, REVERSE SHIFT RESTRICT
33355
RACE, 1ST GEAR BEARING INNER
33357C
RACE, 3RD GEAR BEARING, INNER
33393A
RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411H
BEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411P
BEARING, COUNTER SHAFT CENTER
33411Q
RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33411R
RING, SNAP, COUNTER GEAR REAR BEARING
33421
GEAR, COUNTER
33421T
SPACER, COUNTER GEAR
33422B
GEAR, 4TH DRIVEN
33425A
RING, SHAFT SNAP (FOR COUNTER GEAR)
33426
GEAR, COUNTER SHAFT DRIVE
33429B
GEAR, 6TH DRIVEN
33451
SHAFT, REVERSE IDLER GEAR
33451J
GASKET (FOR REVERSE IDLER GEAR SHAFT)
33452
STOPPER, REVERSE IDLER GEAR SHAFT
33461
GEAR, REVERSE IDLER
33461A
BEARING, REVERSE IDLER GEAR
33462
WASHER, REVERSE IDLER THRUST
33481D
SPACER (FOR SPEEDOMETER DRIVE GEAR)
33489
ROTOR, SPEED SENSOR
35733B
GEAR, PARKING LOCK
9010508150
Крепеж
9017726003
Крепеж
9025004136
Крепеж
9030135007
Крепеж
9161261035
Крепеж

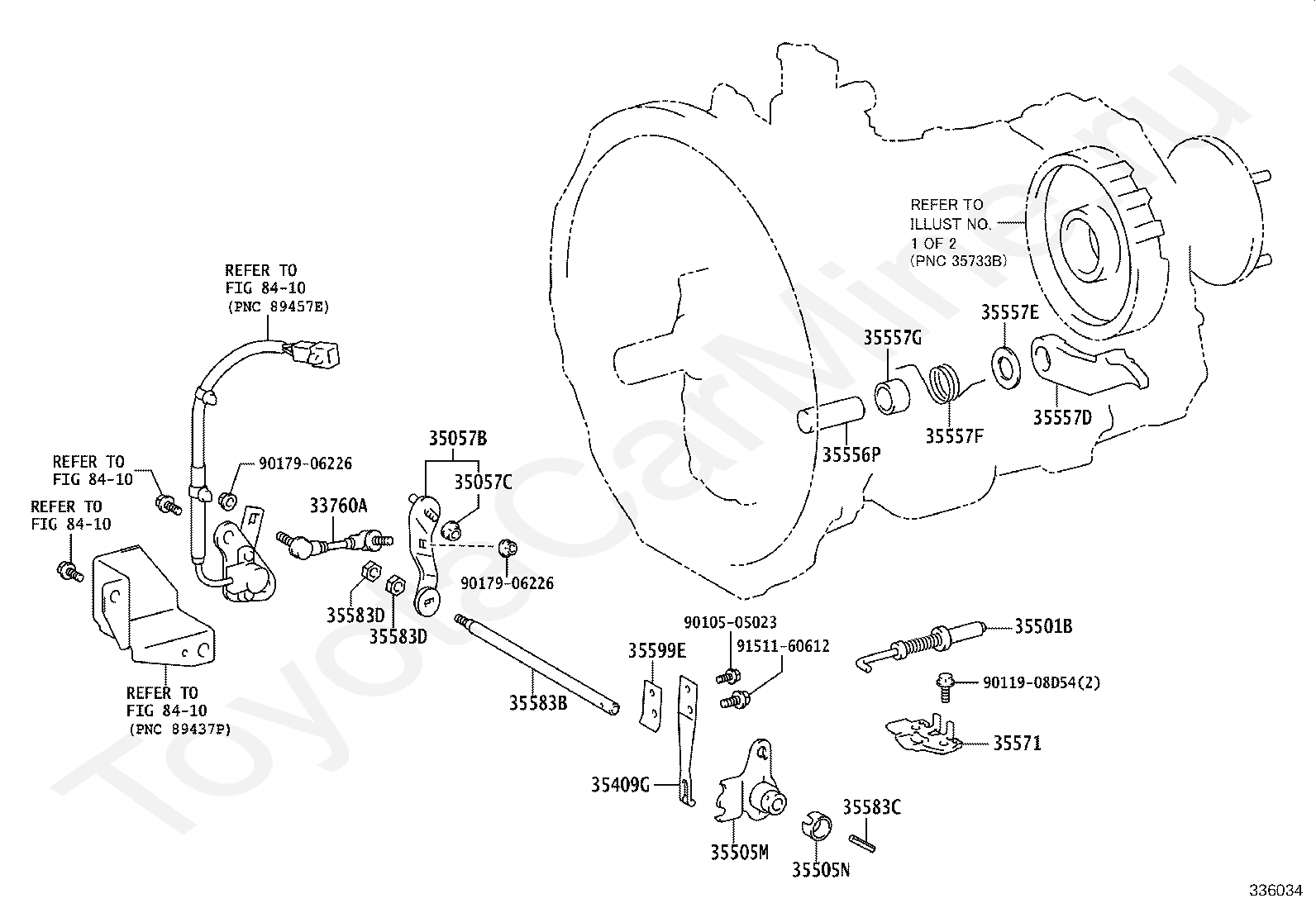

Код
Описание
33760A
ROD ASSY, CONNECTING, NO.1
35057B
LEVER SUB-ASSY, PARKING LOCK
35057C
NUT, LOCK(FOR PARKING LOCK LEVER)
35409G
SPRING SUB-ASSY, MANUAL DETENT
35501B
ROD SUB-ASSY, PARKING LOCK
35505M
LEVER SUB-ASSY, PARKING LOCK, NO.1
35505N
SPACER(FOR PARKING LOCK LEVER NO.1)
35556P
SHAFT, PARKING LOCK PAWL
35557D
PAWL, PARKING LOCK
35557E
WASHER, PLATE(FOR PARKING LOCK PAWL)
35557F
SPRING, TORSION(FOR PARKING LOCK PAWL)
35557G
SPACER(FOR PARKING LOCK PAWL)
35571
BRACKET, PARKING SLEEVE
35583B
SHAFT, PARKING LOCK
35583C
PIN, SLOTTED SPRING(FOR PARKING LOCK SHAFT)
35583D
NUT(FOR PARKING LOCK SHAFT)
35599E
COVER, MANUAL DETENT SPRING
8410
переход к группе запчастей
9010505023
Крепеж
9011908D54
Крепеж
9017906226
Крепеж
9151160612
Крепеж
