Кресла TOYOTA DYNA/TOYOACE, 1984/09 - 1987/08, 2 литра, V(MODEL MARK), YU70, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

YU70

Трансмиссия

МКПП, 5 скоростей

Опции

DYNA STANDARD ROOF 6-местный ST CBR CBU

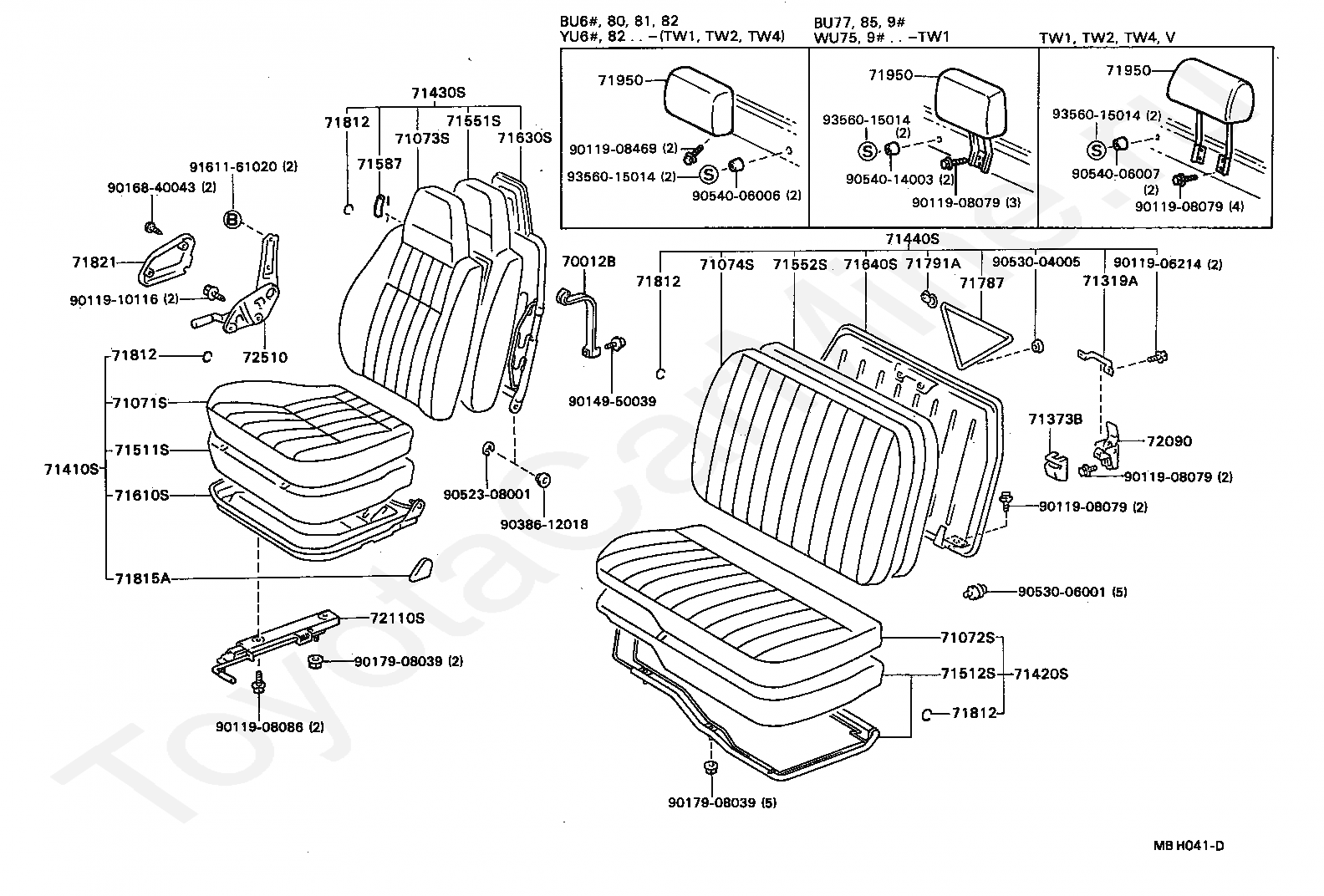

Код

Описание

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71319A

STRIKER, FRONT SEAT BACK

71373B

COVER, FRONT SEAT BACK LOCK

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71787

BAND, FRONT SEAT BACK POCKET

71791A

RETAINER, FRONT SEAT BACK POCKET

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71821

SHIELD, FRONT SEAT SIDE, RH

71950

HEADREST ASSY, FRONT SEAT

72090

LOCK ASSY, FRONT SEAT BACK

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

9011906214

Крепеж

9011908079

Крепеж

9011908086

Крепеж

9011908469

Крепеж

9011910116

Крепеж

9014950039

Крепеж

9016840043

Крепеж

9017908039

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9053004005

Крепеж

9053006001

Крепеж

9054006006

Крепеж

9054006007

Крепеж

9054014003

Крепеж

9161161020

Крепеж

9356015014

Крепеж

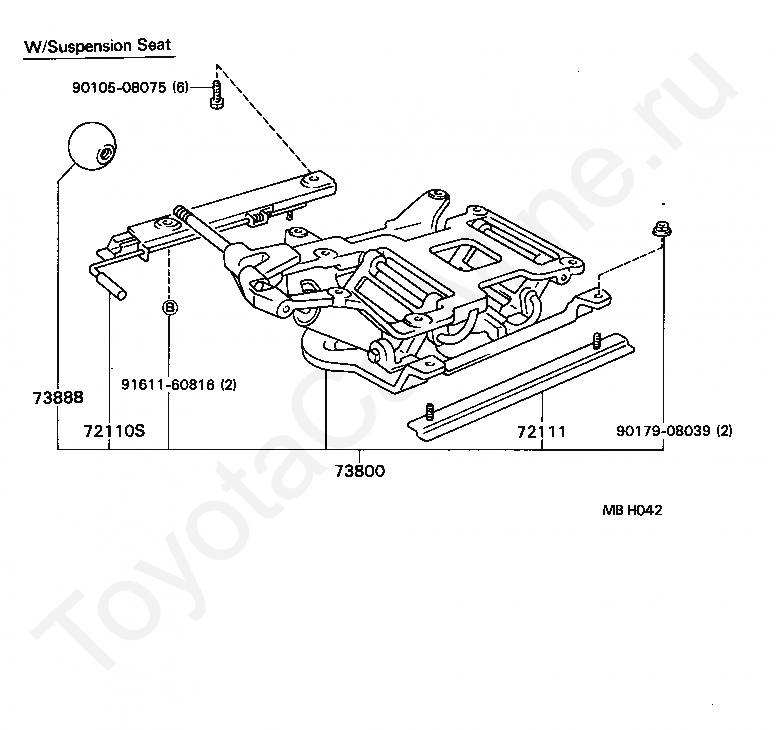

Код

Описание

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72111

RAIL, SEAT TRACK UPPER

73800

SUSPENSION ASSY, SEAT, RH

73888

HANDLE, SEAT SUSPENSION CONTROL

9010508075

Крепеж

9017908039

Крепеж

9161160816

Крепеж

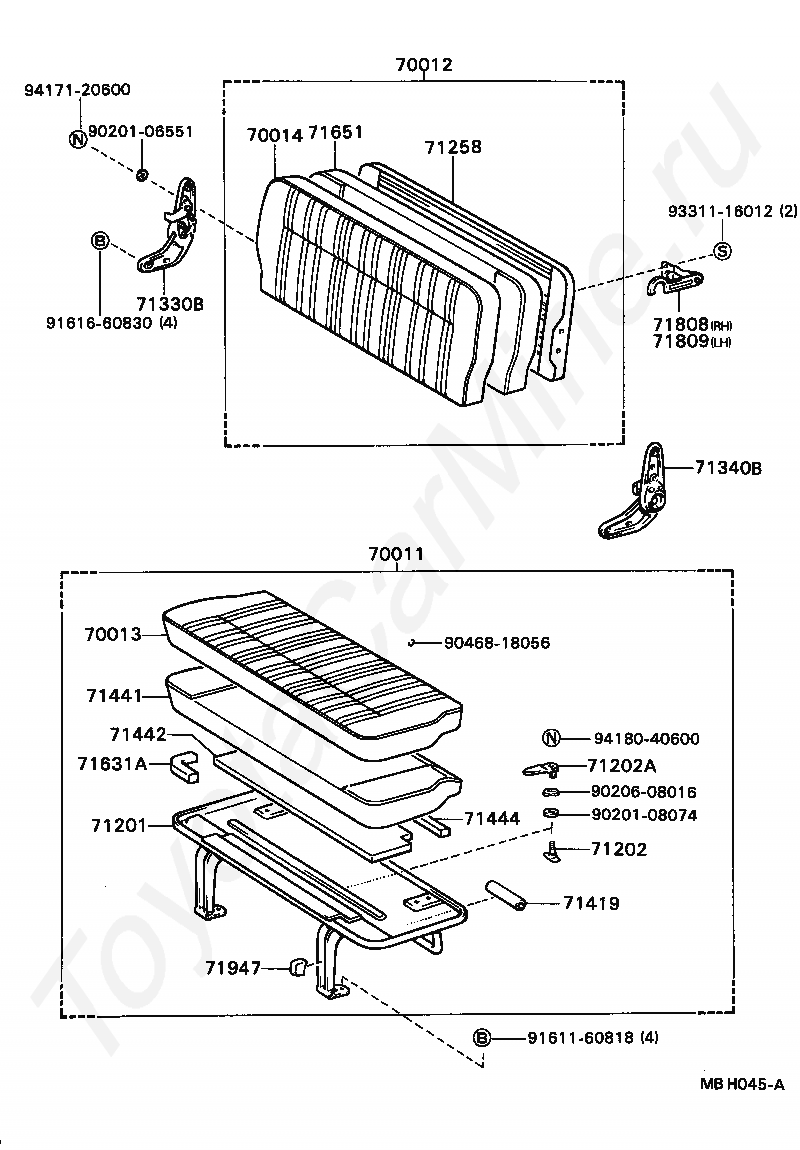

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71201

PANEL SUB-ASSY, REAR SEAT CUSHION

71202

STOPPER SUB-ASSY, REAR SEAT LEG

71202A

HANDLE, REAR SEAT LEG STOPPER

71258

PANEL SUB-ASSY, REAR SEAT BACK

71330B

HINGE ASSY, REAR NO.2 SEAT, RH

71340B

HINGE ASSY, REAR NO.2 SEAT, LH

71419

CUSHION (FOR REAR SEAT LEG)

71441

PAD, REAR SEAT CUSHION

71442

PAD, REAR SEAT CUSHION, UNDER

71444

PAD, REAR SEAT CUSHION, REAR

71631A

PAD, REAR SEAT CUSHION CORNER

71651

PAD, REAR NO.1 SEAT BACK

71808

STOPPER SUB-ASSY, REAR SEAT BACK, RH

71809

STOPPER SUB-ASSY, REAR SEAT BACK, LH

71947

BUMPER, PASSENGER SEAT CUSHION

9020106551

Крепеж

9020108074

Крепеж

9020608016

Крепеж

9046818056

Крепеж

9161160818

Крепеж

9161660830

Крепеж

9331116012

Крепеж

9417120600

Крепеж

9418040600

Крепеж
