Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
2 литраКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
YU60Трансмиссия
МКПП, 5 скоростейОпции
DYNA DOUBLE CAB TRUCK (STANDARD) 6-местный SINGAPORE TAXI 175 CBR CBU

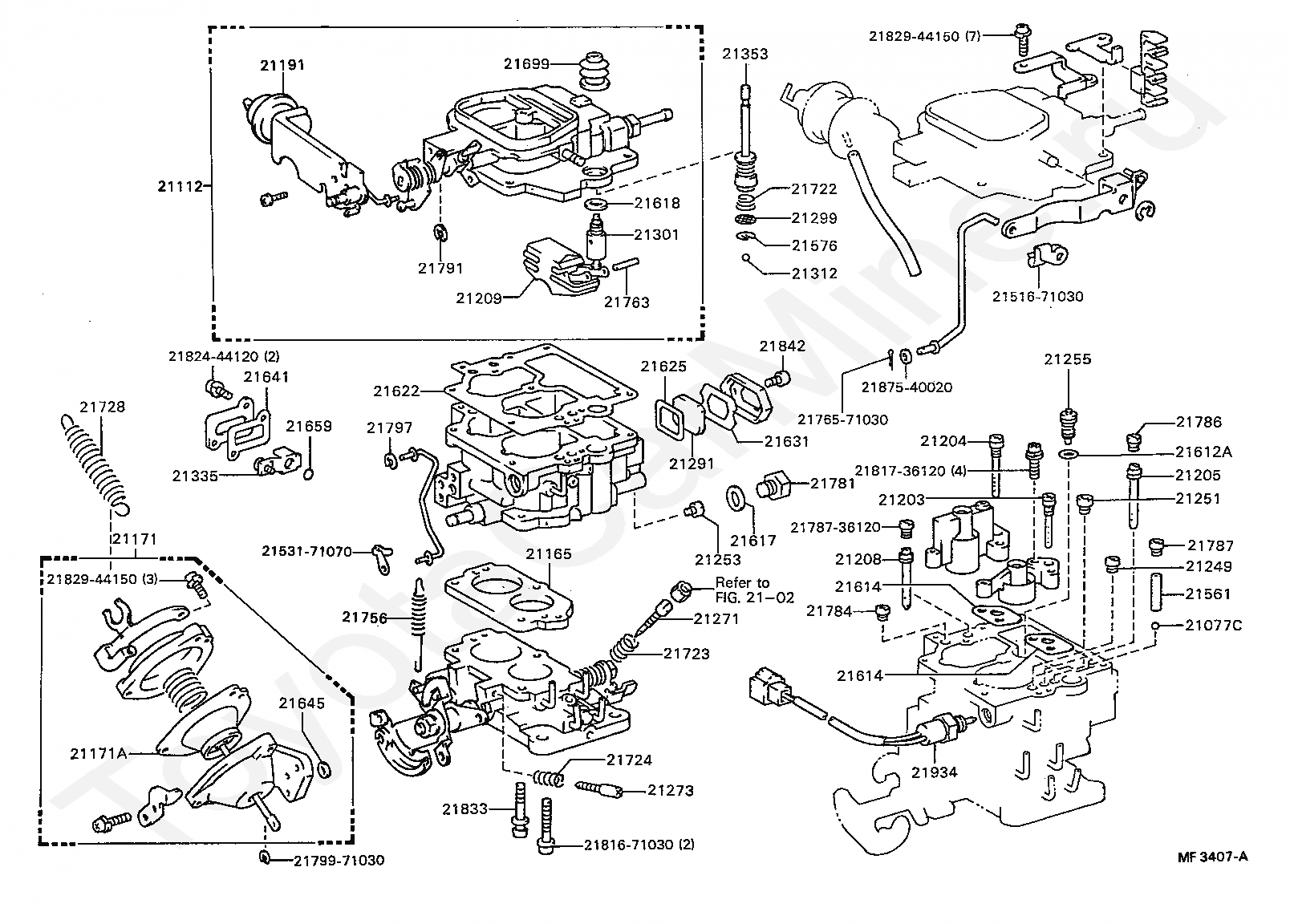

Код
Описание
2102
переход к группе запчастей
21077C
BALL, STEEL(FOR AUXILIARY ACCELERATION PUMP)
21112
HORN, AIR
21165
INSULATOR
21171
CHAMBER, DIAPHRAGM
21171A
DIAPHRAGM(FOR DIDPHRAGM CHAMBER)
21191
OPENER
21203
BLEEDER SUB-ASSY, 1ST MAIN AIR
21204
BLEEDER SUB-ASSY, 2ND MAIN AIR
21205
JET SUB-ASSY, SLOW
21208
JET SUB-ASSY, STEP
21209
FLOAT SUB-ASSY
21249
JET, AIR BLEED, NO.2
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21271
SCREW, IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21299
NET, PUMP FILTER
21301
VALVE SUB-ASSY, NEEDLE
21312
BALL, STEEL
21335
VALVE, THERMOSTATIC
21353
PLUNGER, PUMP
2151671030
Крепеж
2153171070
Крепеж
21561
WEIGHT, PUMP DISCHARGE
21576
CLIP, PUMP STRAINER
21612A
GASKET, POWER JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21631
GASKET, MAIN GUIDE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21659
RING, O(FOR THERMOSTATIC VALVE)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
2176571030
Крепеж
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21784
PLUG, SLOW PASSAGE
21786
PLUG, PUMP PASSAGE
21787
PLUG, PUMP JET
2178736120
Крепеж
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21797
RING, SNAP, NO.4(FOR CARBURETOR LINK)
2179971030
Крепеж
2181671030
Крепеж
2181736120
Крепеж
2182444120
Крепеж
2182944150
Крепеж
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2187540020
Крепеж
21934
SOLENOID, THROTTLE VALVE
Код
Описание
21015
HOUSING SUB-ASSY, COIL
2102
переход к группе запчастей
21112
HORN, AIR
21133
COVER(FOR DIAPHRAGM)
21165
INSULATOR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
2124913090
Крепеж
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21256
JET(FOR CARBURETOR)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21341
VALVE, POWER
21347
VALVE, SOLENOID
21347A
GASKET(FOR VALVE, SOLENOID)
21351
PISTON, POWER
21511
CLAMP, LEVEL GAGE
21609
DIAPHRAGM SUB-ASSY
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21627
GASKET, COIL HOUSING
2164933080
Крепеж
2165511040
Крепеж
21667
DIAPHRAGM
21669
DIAPHRAGM
21699A
BOOT(FOR ACCELERATION PUMP)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
2175672160
Крепеж
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182113310
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182131140
Крепеж
21824
SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21831
SCREW, POWER PISTON STOP
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188538310
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9033903002
Крепеж
9041304004
Крепеж
9099992002
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
