Рама TOYOTA DYNA/TOYOACE, 2002/06 - 2004/06, 4,6 литра, дизель, XZU352, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4,6 литра, дизель

Фрейм

XZU352

Трансмиссия

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB FULL JUST LOW DUMP TRUCK 2 тонны DOUBLE TIRE CBU DSL 4NO

Код

Описание

51100F

FRAME SUB-ASSY

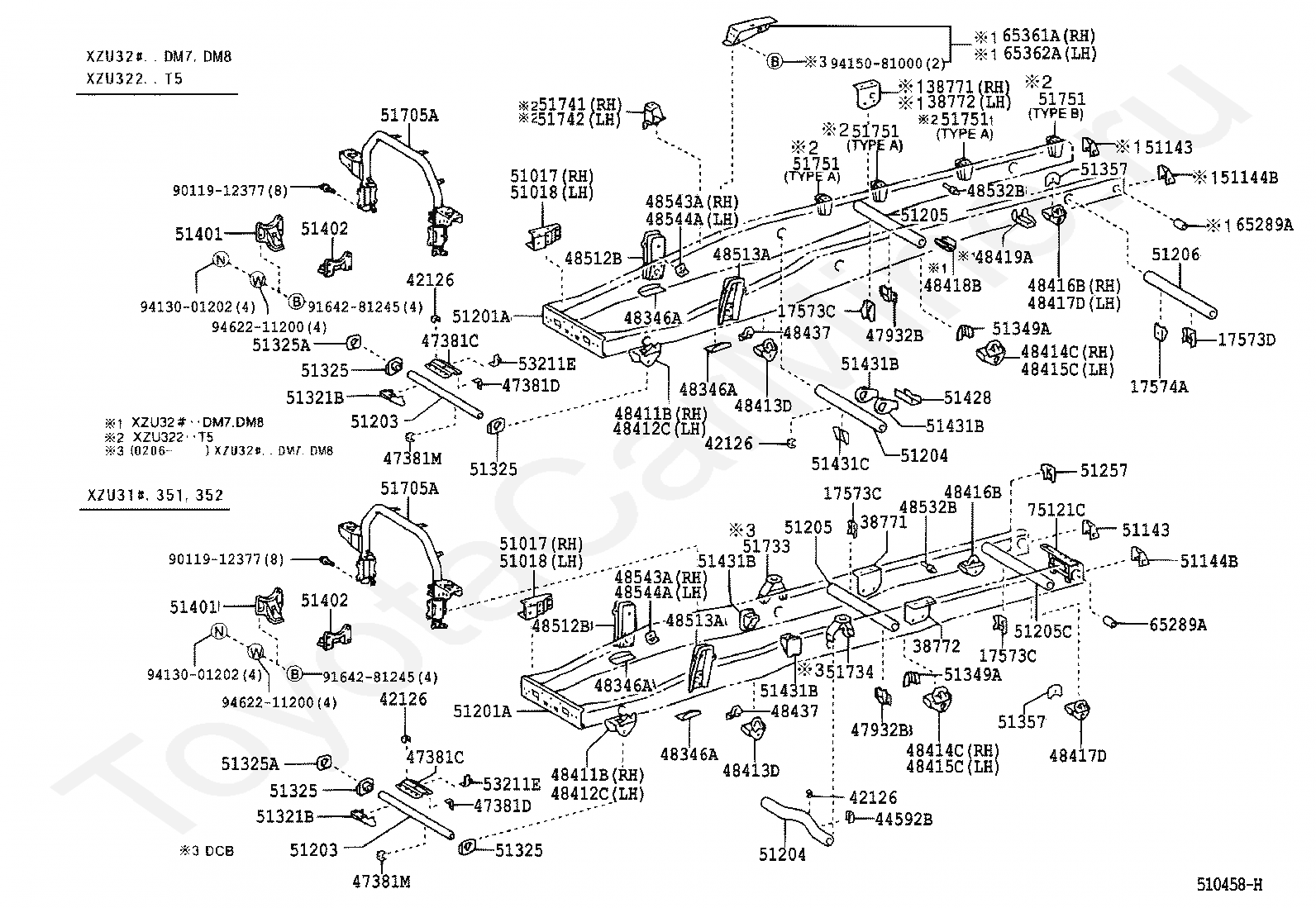

Код

Описание

17573C

BRACKET, EXHAUST PIPE SUPPORT, NO.3

17573D

BRACKET, EXHAUST PIPE SUPPORT, NO.3

17574A

BRACKET, EXHAUST PIPE SUPPORT, NO.4

38771

STAY, TRUNNION BRACKET, RH

38772

STAY, TRUNNION BRACKET, LH

42126

ATTACHMENT, BRAKE 3 WAY

44592B

BRACKET, BRAKE ACTUATOR, NO.2

47381C

BRACKET, TUBE CLAMP

47381D

BRACKET, TUBE CLAMP

47381M

BRACKET, TUBE CLAMP

47932B

BRACKET, LOAD SENSING VALVE, NO.2

48346A

STOPPER, BUMPER, FR

48411B

BRACKET, SPRING, NO.1 RH

48412C

BRACKET, SPRING, NO.1 LH

48413D

BRACKET, SPRING, NO.2

48414C

BRACKET, SPRING, NO.3 RH

48415C

BRACKET, SPRING, NO.3 LH

48416B

BRACKET, SPRING, NO.4 RH

48417D

BRACKET, SPRING, NO.4 LH

48418B

BRACKET, SPRING, NO.6

48419A

BRACKET, SPRING, NO.7

48437

ATTACHMENT, SPRING BRACKET

48512B

BRACKET, FRONT SHOCK ABSORBER, UPPER RH

48513A

BRACKET, FRONT SHOCK ABSORBER, UPPER LH

48532B

PIN, REAR SHOCK ABSORBER UPPER PIVOT

48543A

REINFORCEMENT, FRONT ABSORBER BRACKET, RH

48544A

REINFORCEMENT, FRONT ABSORBER BRACKET, LH

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51143

REINFORCEMENT, SIDE RAIL, REAR RH

51144B

REINFORCEMENT, SIDE RAIL, REAR LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51257

REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH

51321B

GUSSET, CROSSMEMBER, NO.2

51325

RETAINER, FRAME NO.2 CROSSMEMBER

51325A

RETAINER, FRAME NO.2 CROSSMEMBER

51349A

REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2

51357

REINFORCEMENT, REAR SPRING REAR BRACKET, RH

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51428

REINFORCE, ENGINE MOUNTING, REAR

51431B

BRACKET, ENGINE REAR MOUNTING

51431C

BRACKET, ENGINE REAR MOUNTING

51705A

BRACKET SUB-ASSY, CAB MOUNTING, NO.3

51733

BRACKET, CAB REAR MOUNTING, NO.2 RH

51734

BRACKET, CAB REAR MOUNTING, NO.2 LH

51741

BRACKET, REAR BODY MOUNTING, NO.1

51742

BRACKET, BODY MOUNTING, NO.2

51751

BRACKET, BODY SUPPORT, NO.1

53211E

SUPPORT, RADIATOR

65289A

SUPPORT, VESSEL HINGE

65361A

STAY, VESSEL LOCK, RH

65362A

STAY, VESSEL LOCK, LH

75121C

BRACKET, REAR LICENSE PLATE

9011912377

Крепеж

9164281245

Крепеж

9413001202

Крепеж

9415081000

Крепеж

9462211200

Крепеж

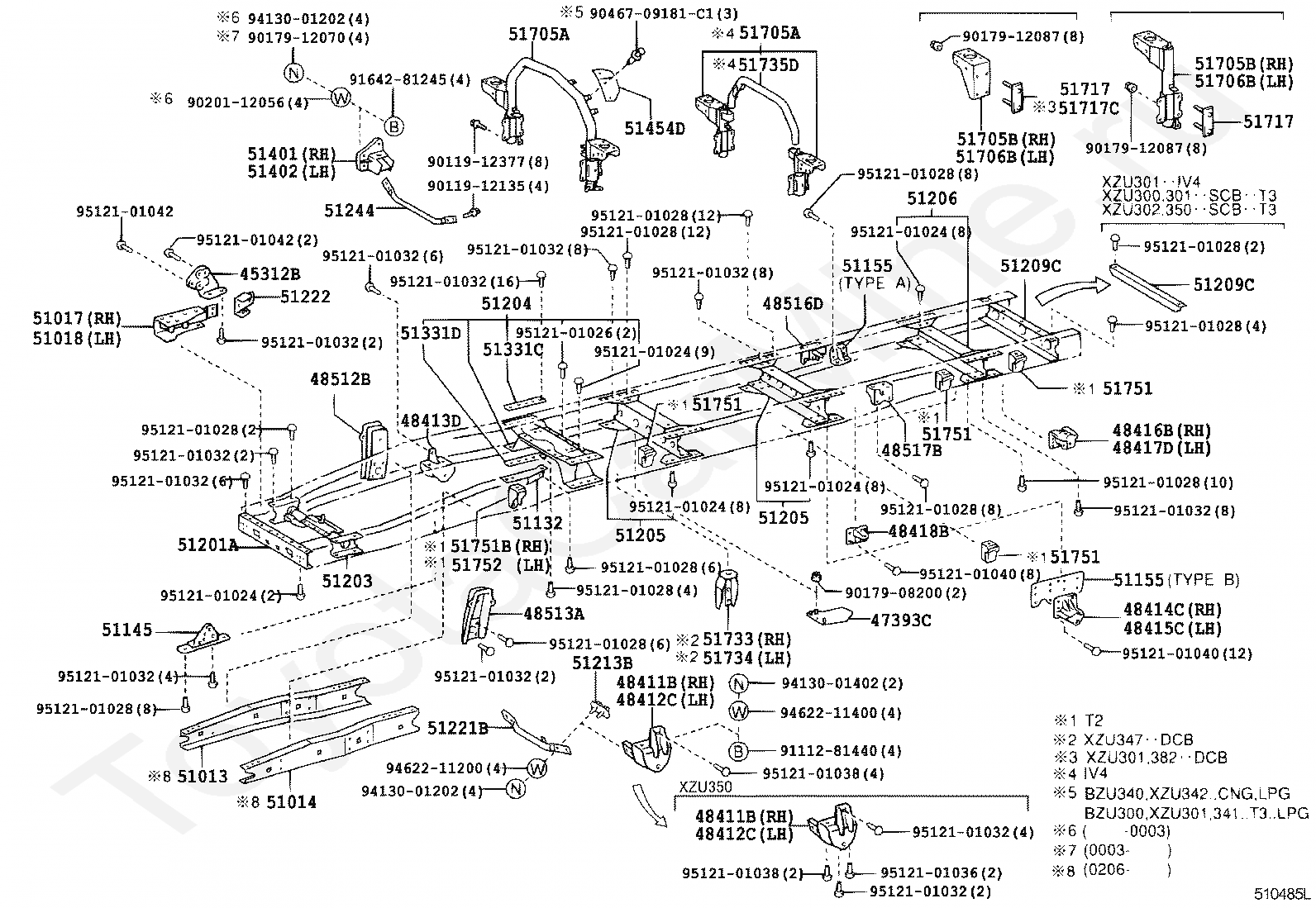

Код

Описание

45312B

BRACKET, STEERING GEAR HOUSING

47393C

INSULATOR, BRAKE TUBE HEAT

48411B

BRACKET, SPRING, NO.1 RH

48412C

BRACKET, SPRING, NO.1 LH

48413D

BRACKET, SPRING, NO.2

48414C

BRACKET, SPRING, NO.3 RH

48415C

BRACKET, SPRING, NO.3 LH

48416B

BRACKET, SPRING, NO.4 RH

48417D

BRACKET, SPRING, NO.4 LH

48418B

BRACKET, SPRING, NO.6

48512B

BRACKET, FRONT SHOCK ABSORBER, UPPER RH

48513A

BRACKET, FRONT SHOCK ABSORBER, UPPER LH

48516D

BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

48517B

BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

51013

CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH

51014

CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51132

RAIL, FRONT FRAME, LH

51145

STIFFENER, FRAME SIDE RAIL

51155

STIFFENER, FRAME SIDE RAIL, REAR RH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51213B

PLATE, FRAME CROSSMEMBER, FRONT

51221B

CROSSMEMBER, FRONT SUSPENSION

51222

REINFORCEMENT, FRAME NO.2 CROSSMEMBER

51244

MEMBER, ENGINE FRONT SUPPORT

51331C

GUSSET, FRAME NO.3 CROSSMEMBER

51331D

GUSSET, FRAME NO.3 CROSSMEMBER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51454D

SILENCER, ENGINE REAR COVER

51705A

BRACKET SUB-ASSY, CAB MOUNTING, NO.3

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51717

PLATE, BODY SUPPORT BRACKET

51717C

PLATE, BODY SUPPORT BRACKET

51733

BRACKET, CAB REAR MOUNTING, NO.2 RH

51734

BRACKET, CAB REAR MOUNTING, NO.2 LH

51735D

REINFORCEMENT, CAB REAR MOUNTING

51751

BRACKET, BODY SUPPORT, NO.1

51751B

BRACKET, BODY SUPPORT, NO.1 RH

51752

BRACKET, BODY SUPPORT, NO.1 LH

9011912135

Крепеж

9011912377

Крепеж

9017908200

Крепеж

9017912070

Крепеж

9017912087

Крепеж

9020112056

Крепеж

9046709181C1

Крепеж

9111281440

Крепеж

9164281245

Крепеж

9413001202

Крепеж

9413001402

Крепеж

9462211200

Крепеж

9462211400

Крепеж

9512101024

Крепеж

9512101026

Крепеж

9512101028

Крепеж

9512101032

Крепеж

9512101036

Крепеж

9512101038

Крепеж

9512101040

Крепеж

9512101042

Крепеж

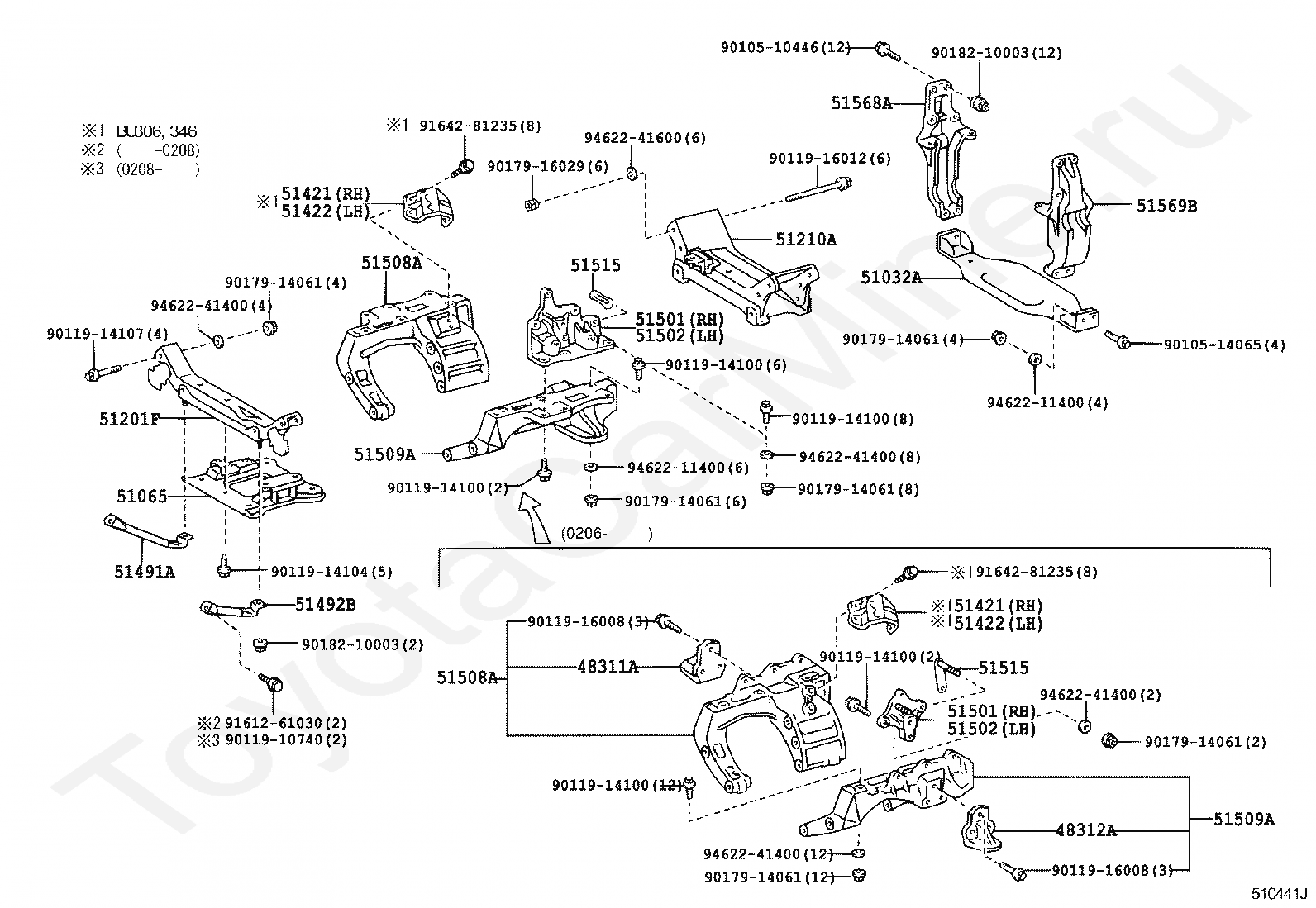

Код

Описание

48311A

BRACKET, HOLLOW SPRING, RH

48312A

BRACKET, HOLLOW SPRING, LH

51032A

MEMBER SUB-ASSY, ANCHOR ARM SUPPORT

51065

SUPPORT SUB-ASSY, STEERING GEAR BOX

51201F

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51210A

MEMBER ASSY, FRONT SUSPENSION

51421

BRACKET, ENGINE FRONT MOUNTING, RH

51422

BRACKET, ENGINE FRONT MOUNTING, LH

51491A

BAR, UNDER GUARD, FRONT NO.1

51492B

BAR, UNDER GUARD, FRONT NO.2

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51508A

BRACKET SUB-ASSY, LOWER ARM, RH

51509A

BRACKET SUB-ASSY, LOWER ARM, LH

51515

SUPPORT, UPPER ARM, NO.2 RH

51568A

SUPPORT, ANCHOR ARM, LOWER RH

51569B

SUPPORT, ANCHOR ARM, LOWER LH

9010510446

Крепеж

9010514065

Крепеж

9011910740

Крепеж

9011914100

Крепеж

9011914104

Крепеж

9011914107

Крепеж

9011916008

Крепеж

9011916012

Крепеж

9017914061

Крепеж

9017916029

Крепеж

9018210003

Крепеж

9161261030

Крепеж

9164281235

Крепеж

9462211400

Крепеж

9462241400

Крепеж

9462241600

Крепеж

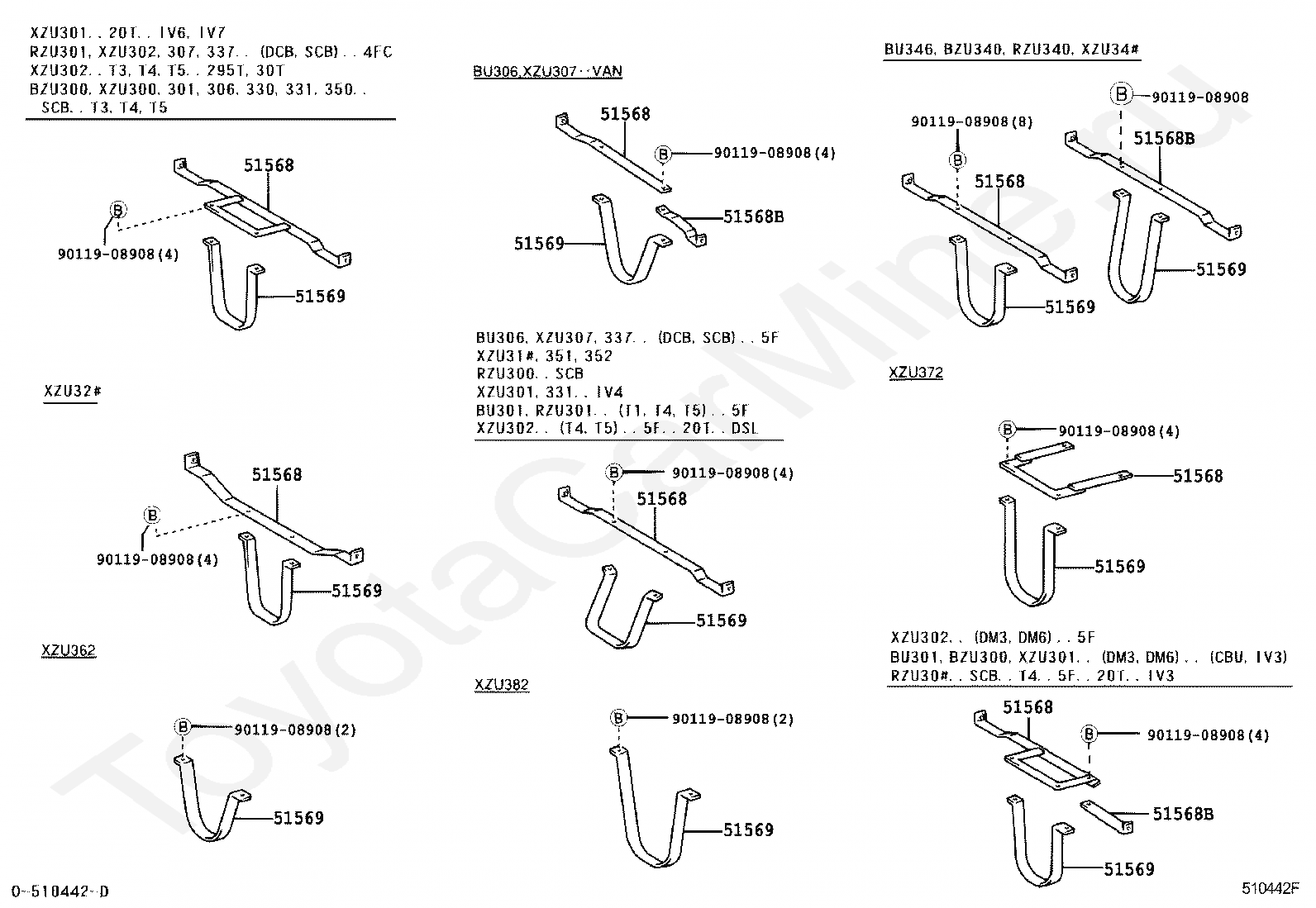

Код

Описание

51568

BRACKET, PROPELLER SHAFT GUARD

51568B

BRACKET, PROPELLER SHAFT GUARD

51569

GUARD, PROPELLER SHAFT

9011908908

Крепеж
