Задние амортизаторы TOYOTA DYNA/TOYOACE, 2019/05 - 2021/03, 4 литра, дизель, XZU700, механика, МКПП, 6 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZU700

Трансмиссия

механика МКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB DUMP грузоподъемность 4 тонны DOUBLE TIRE DCVUOIV5 795W

Код

Описание

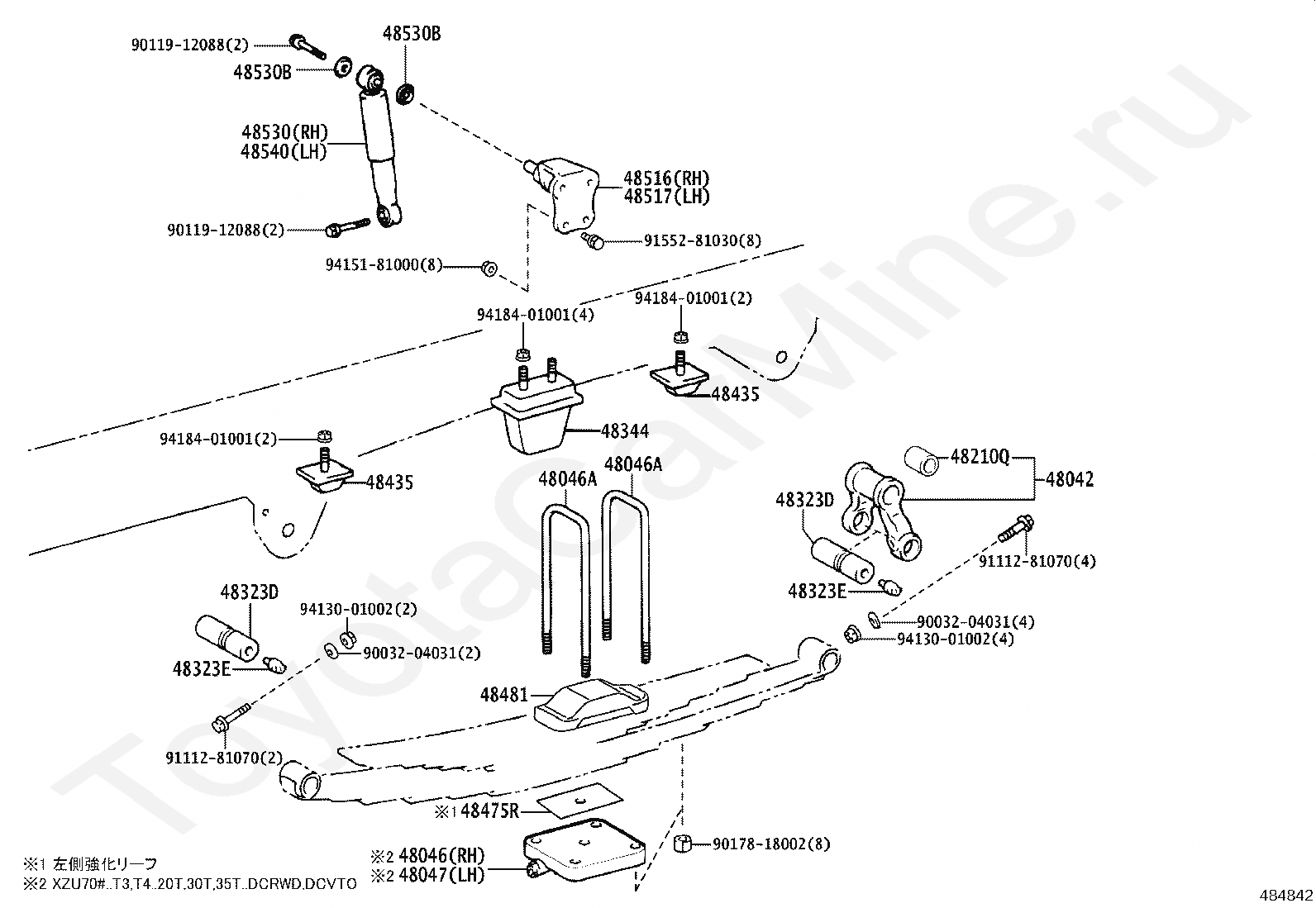

48042

SHACKLE SUB-ASSY, REAR SPRING, NO.2

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210Q

BUSH(FOR REAR SPRING SHACKLE)

48323D

PIN, REAR SPRING BRACKET

48323E

NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)

48344

STOPPER, BUMPER, REAR

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48475R

PLATE, DISTANCE(FOR REAR)

48481

SEAT, REAR SPRING, UPPER

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48540

ABSORBER ASSY, SHOCK, REAR LH

9003204031

Крепеж

9011912088

Крепеж

9017818002

Крепеж

9111281070

Крепеж

9155281030

Крепеж

9413001002

Крепеж

9415181000

Крепеж

9418401001

Крепеж

Код

Описание

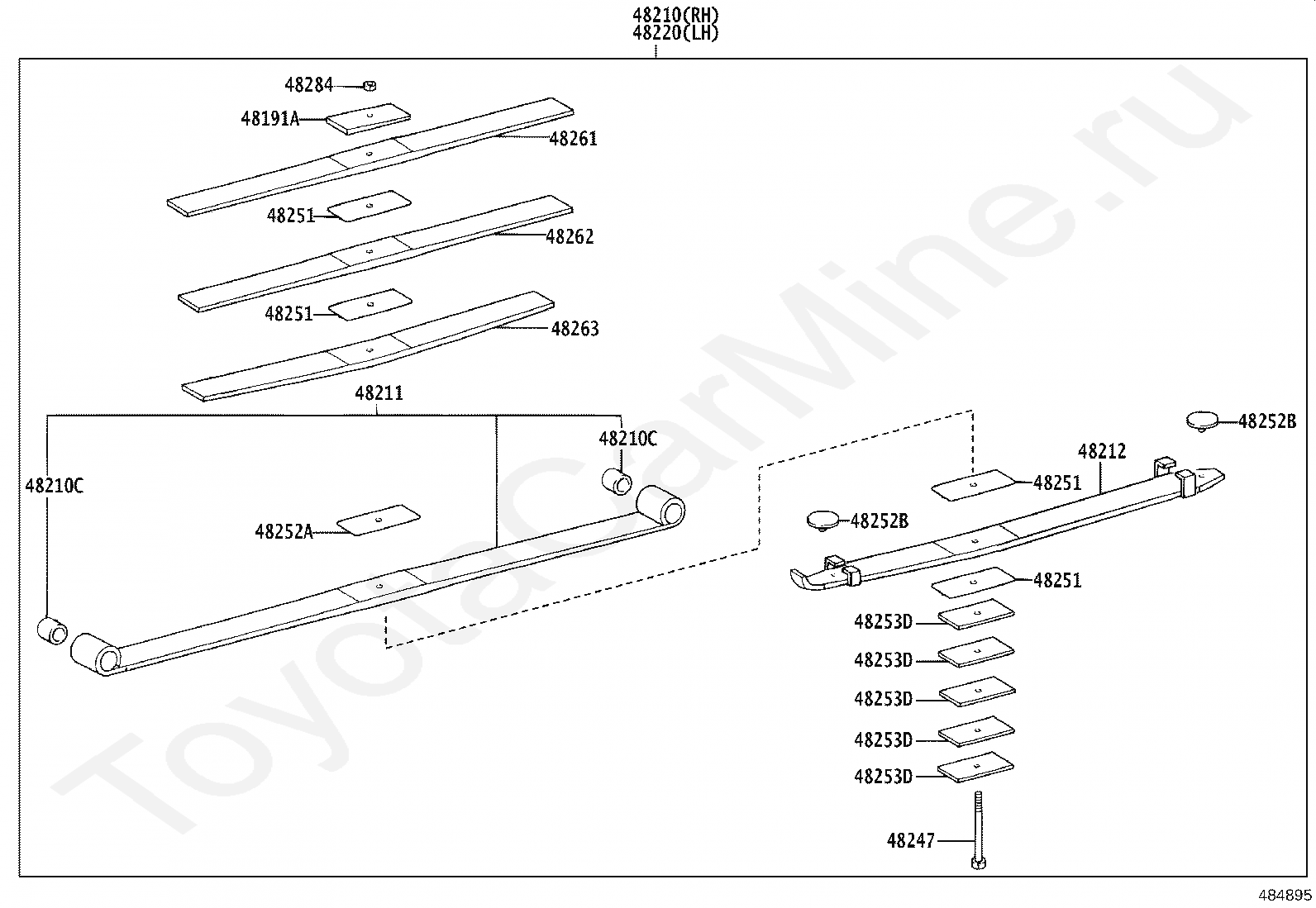

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252

SILENCER, REAR SPRING

48252B

SILENCER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48284

NUT, REAR SPRING CENTER BOLT

Код

Описание

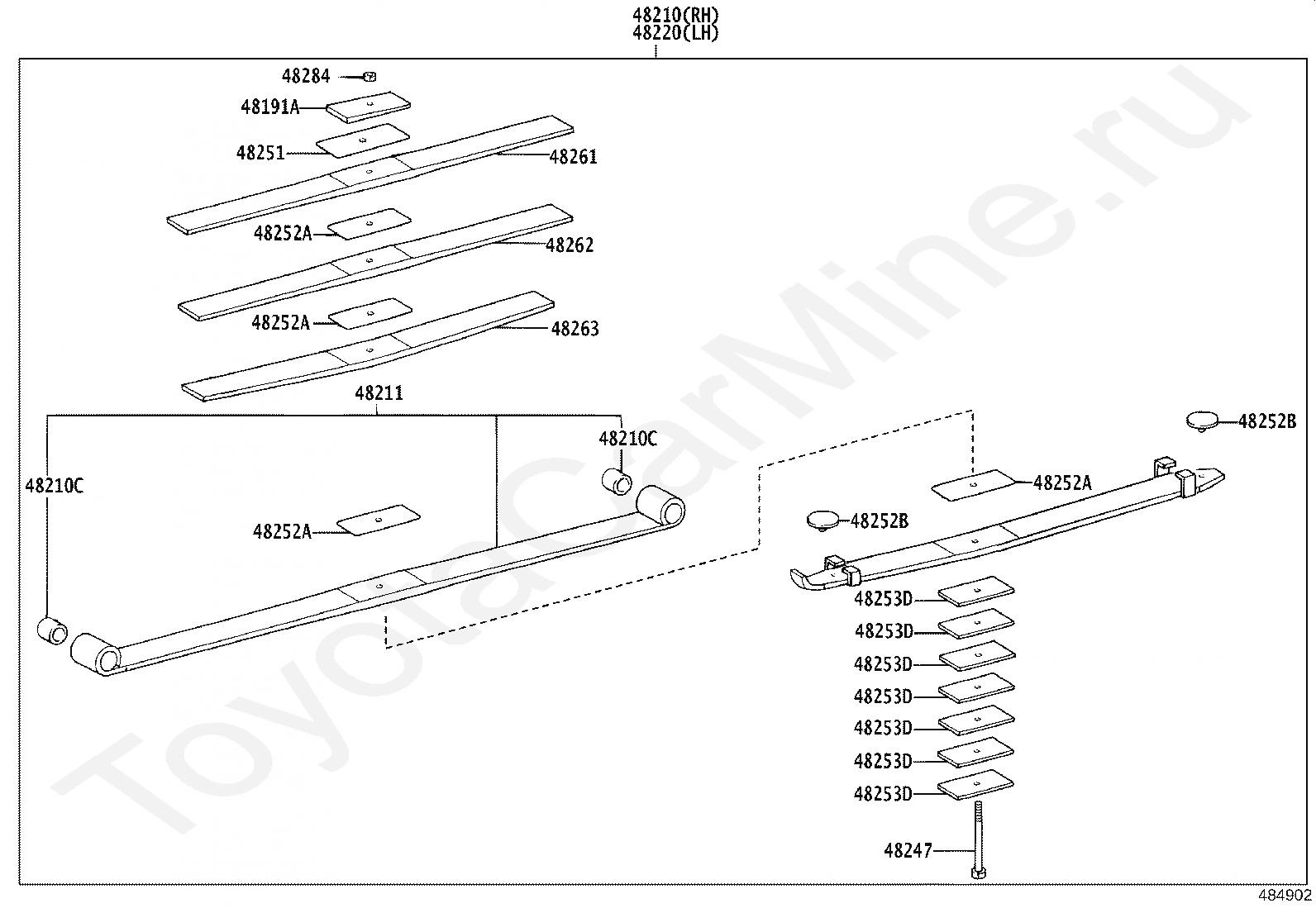

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252A

SPACER, REAR SPRING, NO.2

48252B

SILENCER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48284

NUT, REAR SPRING CENTER BOLT

Код

Описание

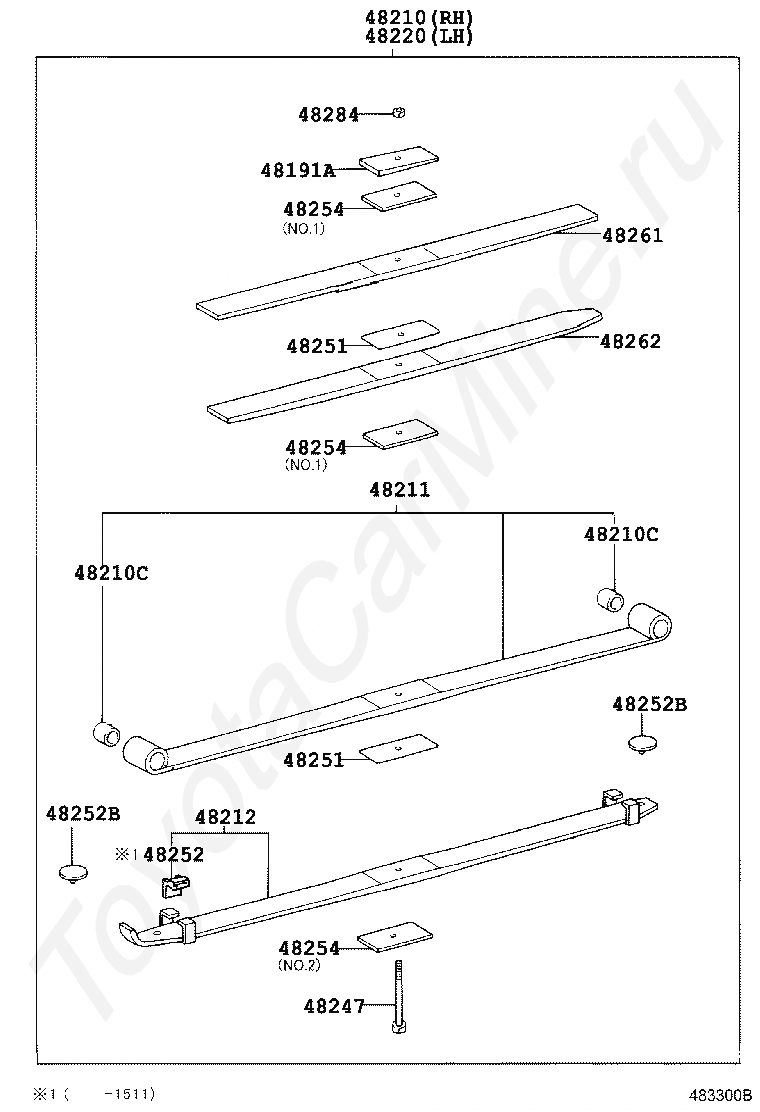

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252A

SPACER, REAR SPRING, NO.2

48252B

SILENCER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48284

NUT, REAR SPRING CENTER BOLT

Задние амортизаторы TOYOTA DYNA/TOYOACE, 2019/05 - 2021/03, 4 литра, дизель, XZU700, механика, МКПП, 6 скоростей
