ЯпонияМодель
DYNA/TOYOACEДвигатель
4 литра, дизельФрейм
XZC610Трансмиссия
механика МКПП, 5 скоростейОпции

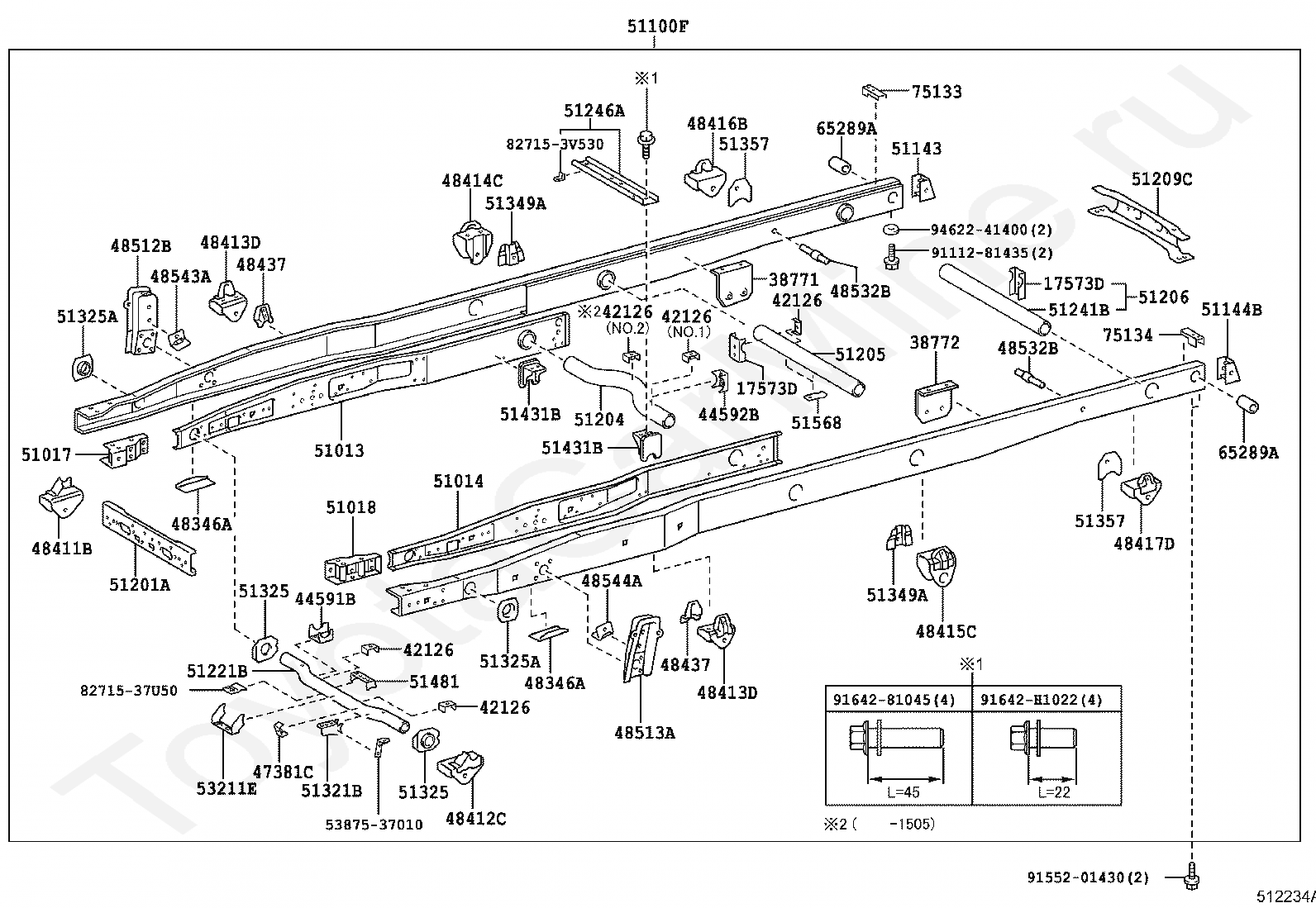

SINGLE CARBURETOR:SINGLE CAB FULL JUST LOW DUMP TRUCK 2 тонны DOUBLE TIRE DCRTJCBU 742W
Код
Описание
51100F
FRAME SUB-ASSY
51401
BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402
BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51454D
SILENCER, ENGINE REAR COVER
51705A
BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705D
BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51706D
BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51717C
PLATE, BODY SUPPORT BRACKET
82715K
BRACKET, WIRING HARNESS CLAMP
9046709101
Крепеж
9155281240
Крепеж
91552F1240
Крепеж
9415121201
Крепеж
9415181200
Крепеж
Код
Описание
17573D
BRACKET, EXHAUST PIPE SUPPORT, NO.3
38771
STAY, TRUNNION BRACKET, RH
38772
STAY, TRUNNION BRACKET, LH
42126
ATTACHMENT, BRAKE 3 WAY
44591B
BRACKET, BRAKE ACTUATOR
44592B
BRACKET, BRAKE ACTUATOR, NO.2
47381C
BRACKET, TUBE CLAMP
48346A
STOPPER, BUMPER, FR
48411B
BRACKET, SPRING, NO.1 RH
48412C
BRACKET, SPRING, NO.1 LH
48413D
BRACKET, SPRING, NO.2
48414C
BRACKET, SPRING, NO.3 RH
48415C
BRACKET, SPRING, NO.3 LH
48416B
BRACKET, SPRING, NO.4 RH
48417D
BRACKET, SPRING, NO.4 LH
48437
ATTACHMENT, SPRING BRACKET
48512B
BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48513A
BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48532B
PIN, REAR SHOCK ABSORBER UPPER PIVOT
48543A
REINFORCEMENT, FRONT ABSORBER BRACKET, RH
48544A
REINFORCEMENT, FRONT ABSORBER BRACKET, LH
51013
CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51014
CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51017
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51100F
FRAME SUB-ASSY
51143
REINFORCEMENT, SIDE RAIL, REAR RH
51144B
REINFORCEMENT, SIDE RAIL, REAR LH
51201A
CROSSMEMBER SUB-ASSY, FRAME, FRONT
51204
CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205
CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206
CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209C
CROSSMEMBER SUB-ASSY, FRAME, REAR
51221B
CROSSMEMBER, FRONT SUSPENSION
51241B
CROSSMEMBER, FRAME, NO.4
51246A
MEMBER, ENGINE REAR SUPPORT
51321B
GUSSET, CROSSMEMBER, NO.2
51325
RETAINER, FRAME NO.2 CROSSMEMBER
51325A
RETAINER, FRAME NO.2 CROSSMEMBER
51349A
REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2
51357
REINFORCEMENT, REAR SPRING REAR BRACKET, RH
51431B
BRACKET, ENGINE REAR MOUNTING
51481
BRACKET, POWER STEERING TUBE CLAMP
51568
BRACKET, PROPELLER SHAFT GUARD
53211E
SUPPORT, RADIATOR
5387537010
Крепеж
65289A
SUPPORT, VESSEL HINGE
75133
BASE, COMBINATION REAR LAMP BRACKET, RH
75134
BASE, COMBINATION REAR LAMP BRACKET, LH
8271537U50
Крепеж
827153V530
Крепеж
9111281435
Крепеж
9155201430
Крепеж
9164281045
Крепеж
91642H1022
Крепеж
9462241400
Крепеж
Код
Описание
51568
BRACKET, PROPELLER SHAFT GUARD
51568C
BRACKET, PROPELLER SHAFT GUARD
51568D
NUT, HEXAGON
51568E
NUT, HEXAGON
51569
GUARD, PROPELLER SHAFT
51569C
GUARD, PROPELLER SHAFT
51569D
NUT, HEXAGON
51569E
NUT, HEXAGON
9155180825
Крепеж
Код
Описание
9512101024
Крепеж
9512101026
Крепеж
9512101028
Крепеж
9512101032
Крепеж
9512101036
Крепеж
9512101038
Крепеж
9512101040
Крепеж
