Передние амортизаторы TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC610, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZC610

Трансмиссия

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB FULL JUST LOW DUMP TRUCK 2 тонны DOUBLE TIRE DCRTJCBU 742W

Код

Описание

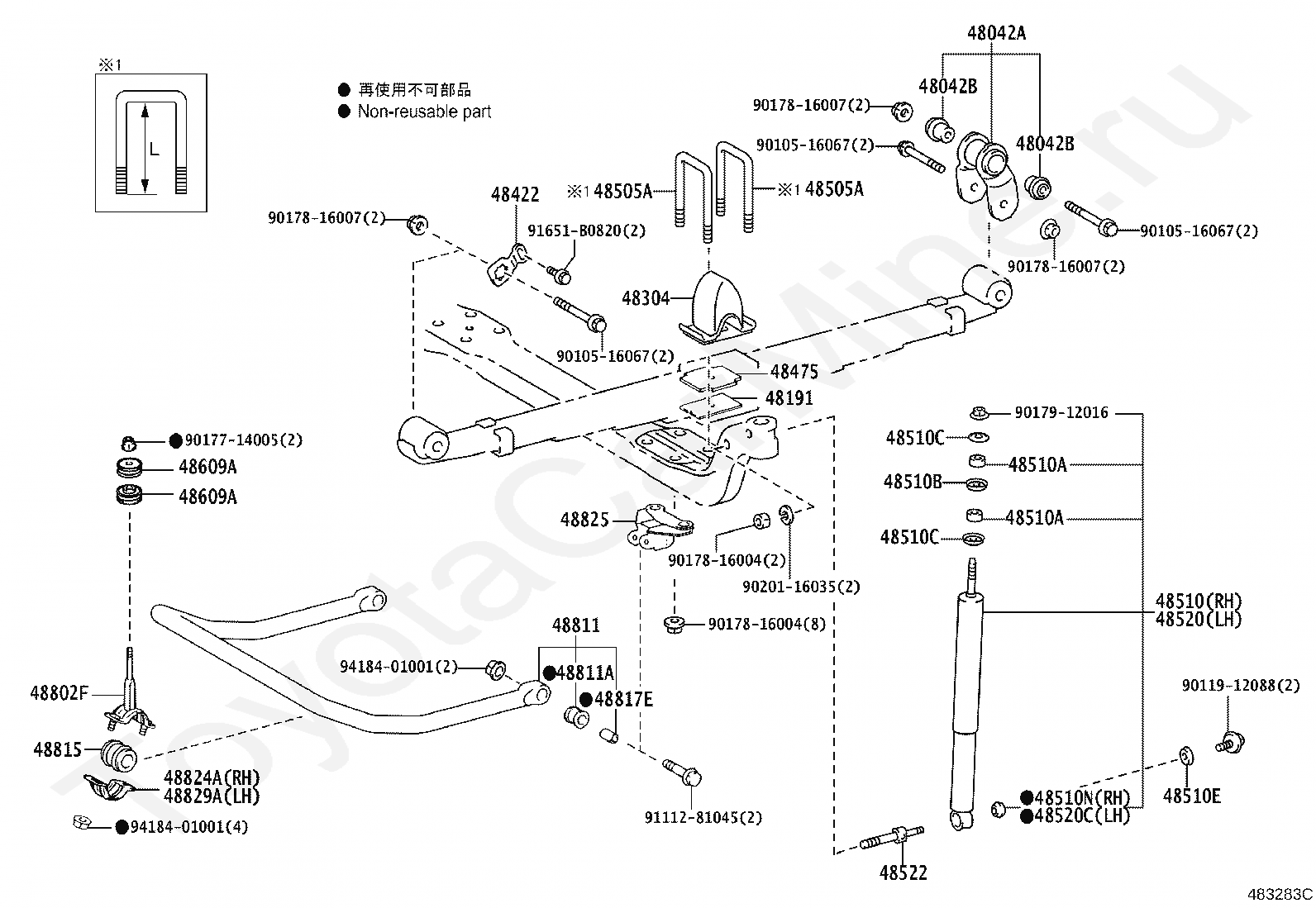

48042A

SHACKLE SUB-ASSY, FRONT SPRING, NO.2

48042B

BUSH, FRONT SPRING NO.2 SHACKLE

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48422

SUPPORT, FRONT SPRING PIN

48475

PLATE, DISTANCE(FOR FRONT)

48505A

BOLT, U(FOR FRONT SPRING)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510N

BUSH(FOR FRONT SHOCK ABSORBER RH)

48520

ABSORBER ASSY, SHOCK, FRONT LH

48520C

BUSH(FOR FRONT SHOCK ABSORBER LH)

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

48609A

SUPPORT SUB-ASSY, FRONT SUSPENSION

48802F

LINK SUB-ASSY, FRONT STABILIZER

48811

BAR, STABILIZER, FRONT

48811A

BUSH(FOR FRONT STABILIZER BAR)

48815

BUSH, FRONT STABILIZER BAR, NO.1

48817E

SPACER(FOR STABILIZER BAR)

48824A

BRACKET, FRONT STABILIZER, NO.1 RH

48825

BRACKET, STABILIZER, NO.2

48829A

BRACKET, FRONT STABILIZER, NO.1 LH

9010516067

Крепеж

9011912088

Крепеж

9017714005

Крепеж

9017816004

Крепеж

9017816007

Крепеж

9017912016

Крепеж

9020116035

Крепеж

9111281045

Крепеж

91651B0820

Крепеж

9418401001

Крепеж

Код

Описание

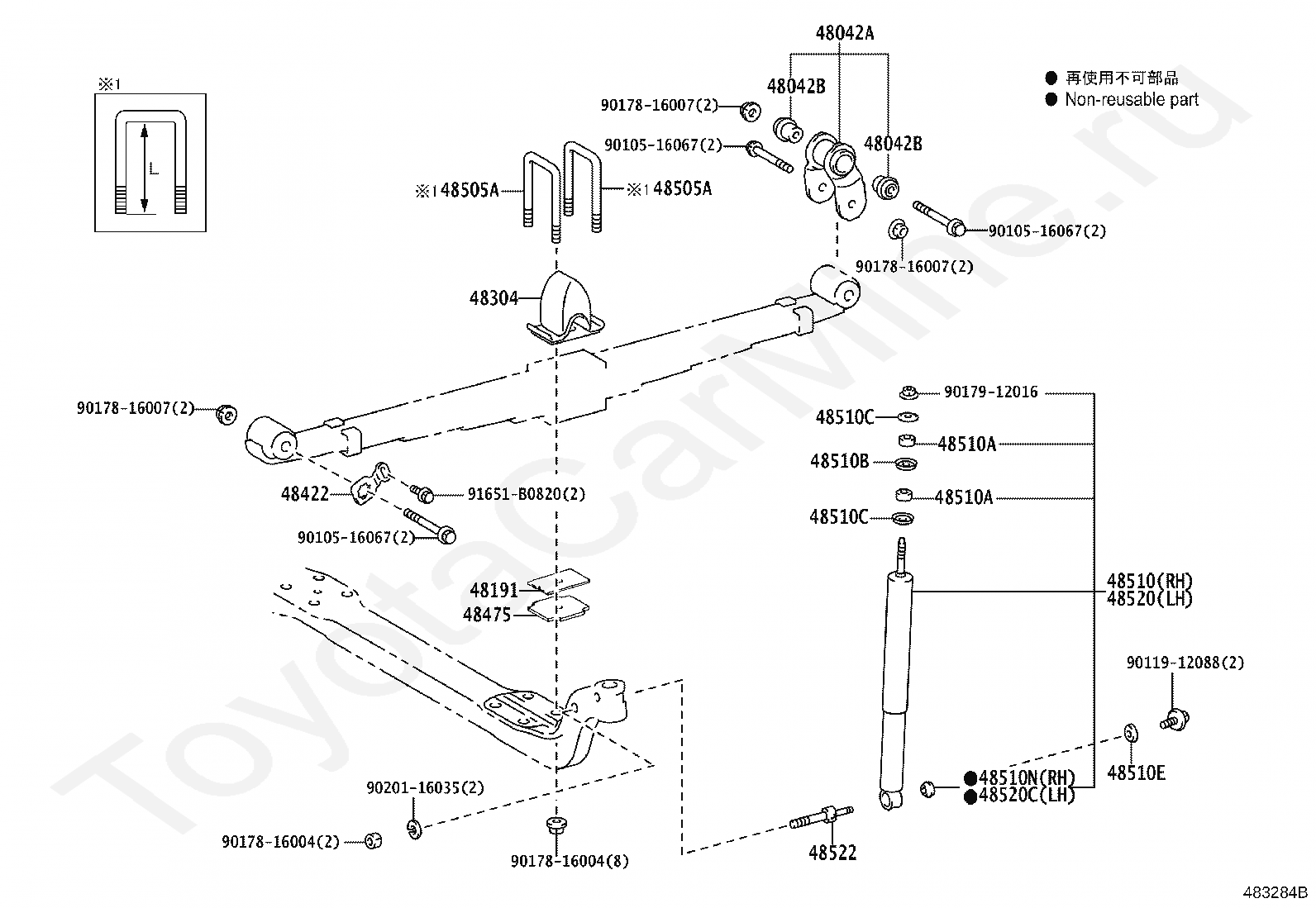

48042A

SHACKLE SUB-ASSY, FRONT SPRING, NO.2

48042B

BUSH, FRONT SPRING NO.2 SHACKLE

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48422

SUPPORT, FRONT SPRING PIN

48475

PLATE, DISTANCE(FOR FRONT)

48505A

BOLT, U(FOR FRONT SPRING)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510N

BUSH(FOR FRONT SHOCK ABSORBER RH)

48520

ABSORBER ASSY, SHOCK, FRONT LH

48520C

BUSH(FOR FRONT SHOCK ABSORBER LH)

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

9010516067

Крепеж

9011912088

Крепеж

9017816004

Крепеж

9017816007

Крепеж

9017912016

Крепеж

9020116035

Крепеж

91651B0820

Крепеж

Код

Описание

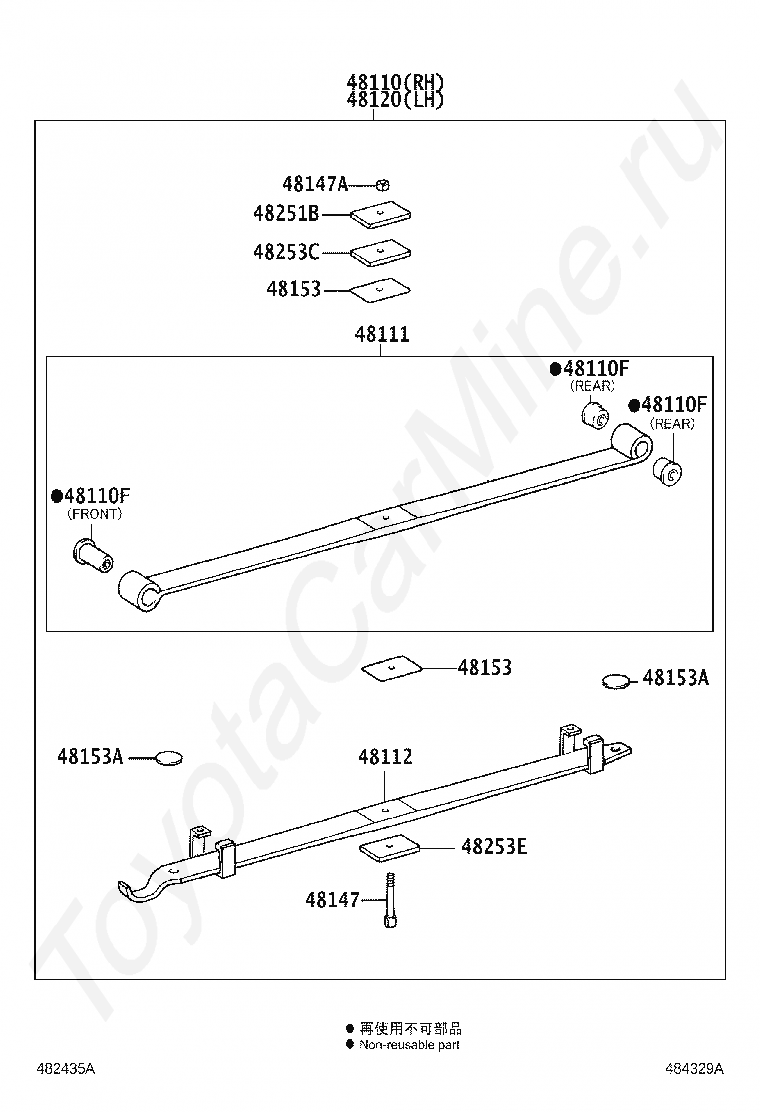

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153

SPACER, FRONT LEAF SPRING, NO.1

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48252D

SILENCER

48253C

SPACER, FRONT LEAF SPRING, NO.2

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153

SPACER, FRONT LEAF SPRING, NO.1

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48113

LEAF, FRONT SPRING, NO.3

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153

SPACER, FRONT LEAF SPRING, NO.1

48153A

SILENCER, FRONT SPRING, NO.1

48252D

SILENCER

48253C

SPACER, FRONT LEAF SPRING, NO.2

Передние амортизаторы TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC610, механика, МКПП, 5 скоростей
