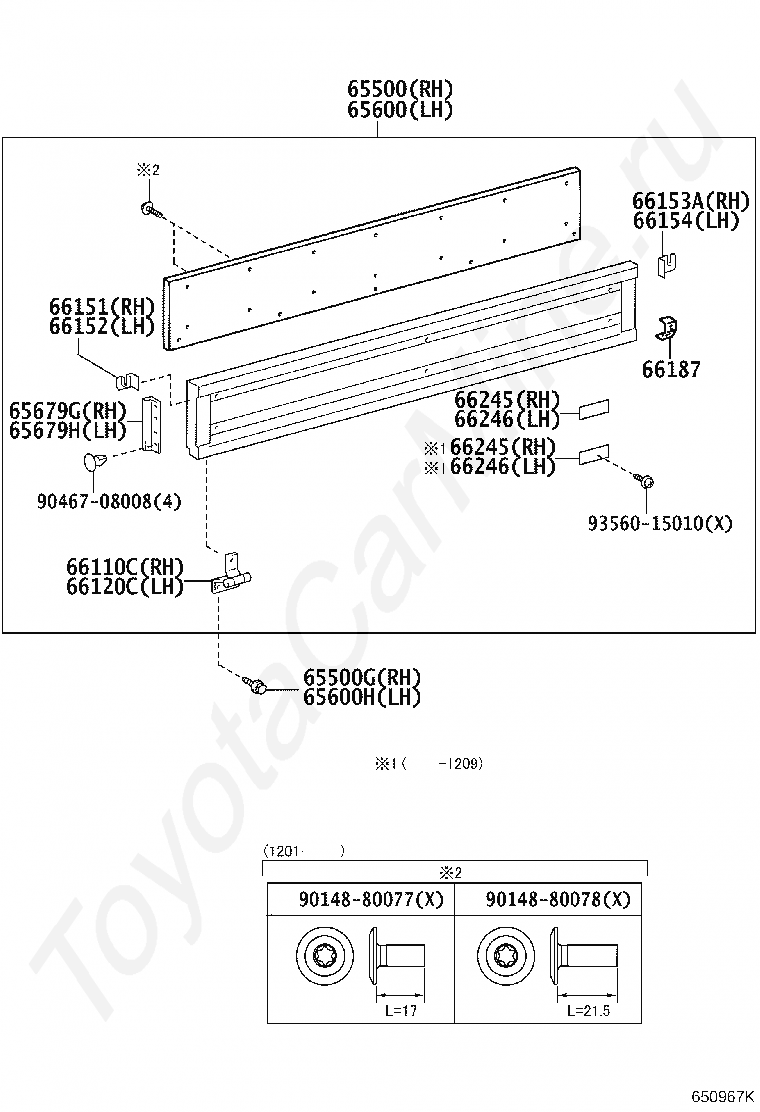

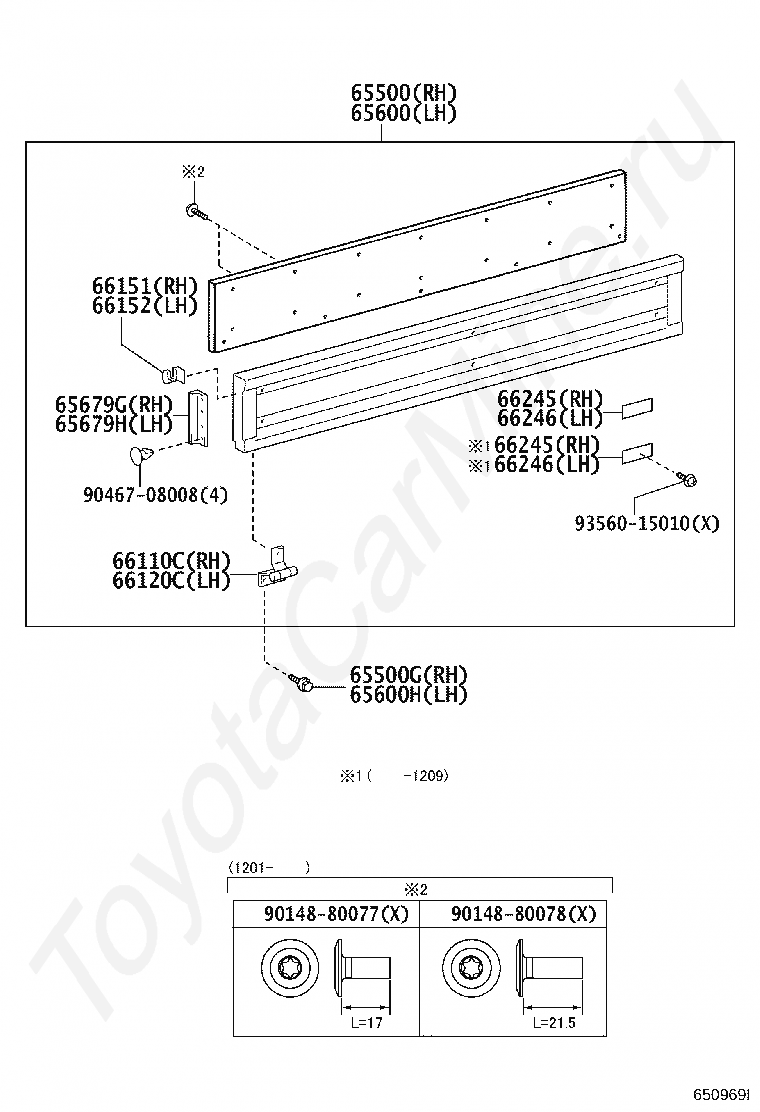

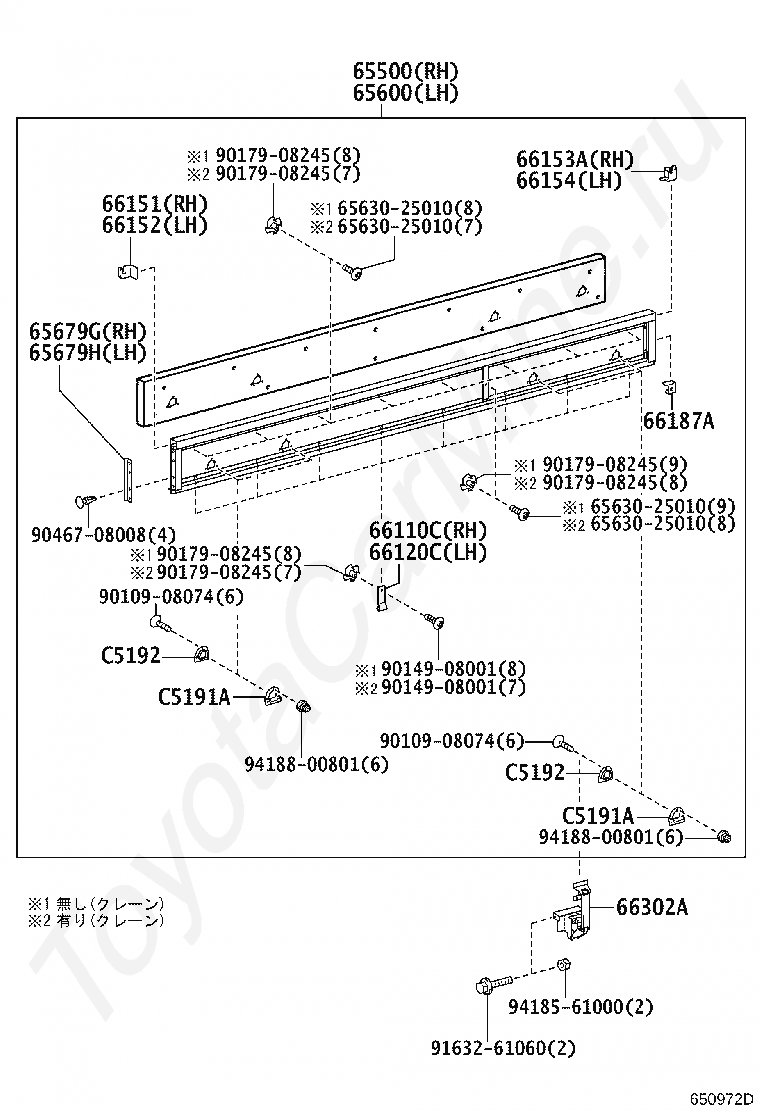

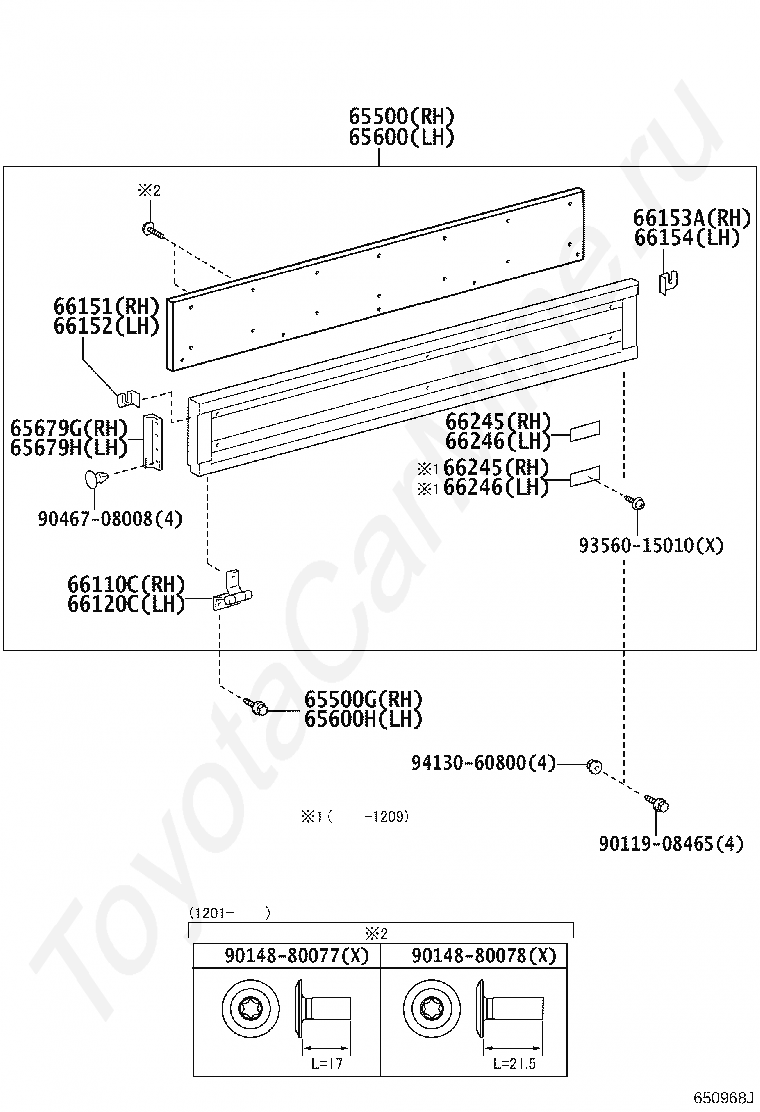

REAR BODY SIDE PANEL TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC605, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZC605

Трансмиссия

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) 2 тонны DOUBLE TIRE DCRTHCBU 742W

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66187

HANDLE, SIDE GATE LATCH, CENTER NO.2

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

9011908465

Крепеж

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

9413060800

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65500G

BOLT, W/WASHER(FOR SIDE GATE, RH)

65600

PANEL ASSY, REAR BODY SIDE, LH

65600H

BOLT, W/WASHER(FOR SIDE GATE, LH)

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66245

PROTECTOR, REAR BODY, NO.3 RH

66246

PROTECTOR, REAR BODY, NO.3 LH

9014880077

Крепеж

9014880078

Крепеж

9046708008

Крепеж

9356015010

Крепеж

Код

Описание

65500

PANEL ASSY, REAR BODY SIDE, RH

65600

PANEL ASSY, REAR BODY SIDE, LH

6563025010

Крепеж

65679G

SEAL, SIDE GATE

65679H

SEAL, SIDE GATE

66110C

HINGE ASSY, SIDE GATE, NO.1 RH

66120C

HINGE ASSY, SIDE GATE, NO.1 LH

66151

LATCH, SIDE GATE FEMALE, RH

66152

LATCH, SIDE GATE FEMALE, LH

66153A

LATCH, TAIL GATE FEMALE, RH

66154

LATCH, TAIL GATE FEMALE, LH

66187A

LATCH, SIDE GATE SUPPORT

66302A

LINK SUB-ASSY, GATE HELPER

9010908074

Крепеж

9014908001

Крепеж

9017908245

Крепеж

9046708008

Крепеж

9163261060

Крепеж

9418561000

Крепеж

9418800801

Крепеж

C5191A

PLATE, GATE ROPE THROUGH, OUTER

C5192

PLATE, GATE ROPE THROUGH, INNER

REAR BODY SIDE PANEL TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC605, автомат, АКПП, 6 скоростей
