Рама TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC605, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZC605

Трансмиссия

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) 2 тонны DOUBLE TIRE DCRTHCBU 742W

Код

Описание

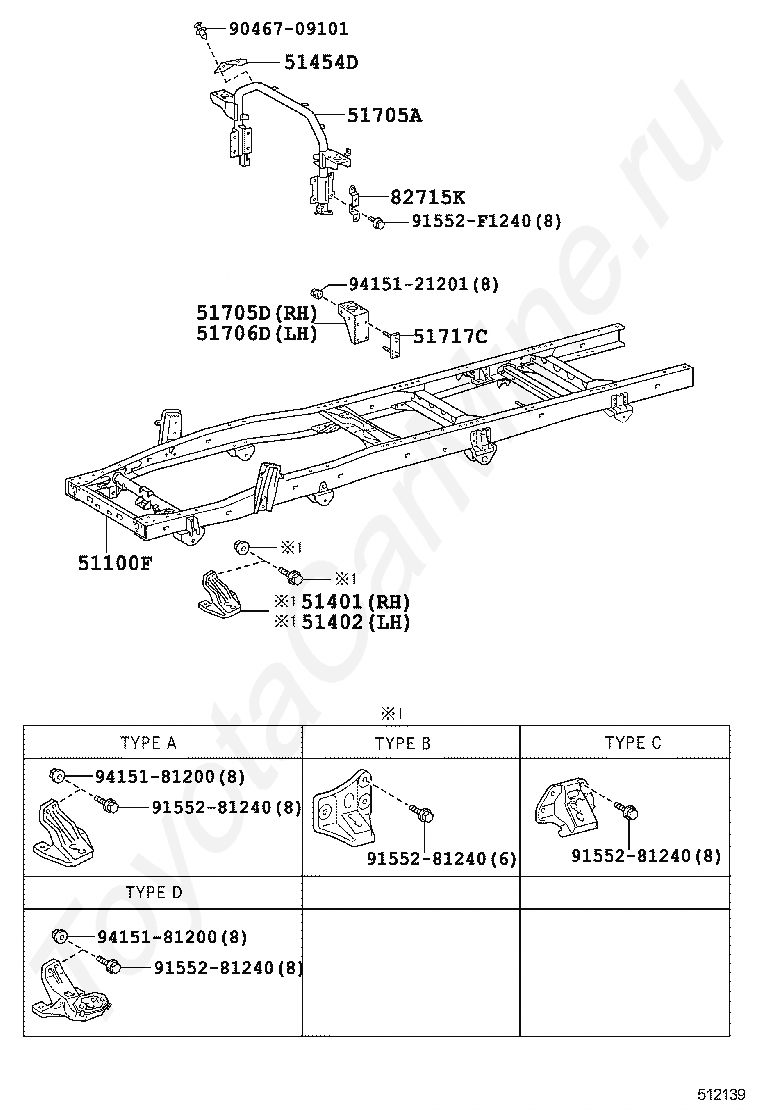

51100F

FRAME SUB-ASSY

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51454D

SILENCER, ENGINE REAR COVER

51705A

BRACKET SUB-ASSY, CAB MOUNTING, NO.3

51705D

BRACKET SUB-ASSY, CAB REAR MOUNTING, RH

51706D

BRACKET SUB-ASSY, CAB REAR MOUNTING, RH

51717C

PLATE, BODY SUPPORT BRACKET

82715K

BRACKET, WIRING HARNESS CLAMP

9046709101

Крепеж

9155281240

Крепеж

91552F1240

Крепеж

9415121201

Крепеж

9415181200

Крепеж

Код

Описание

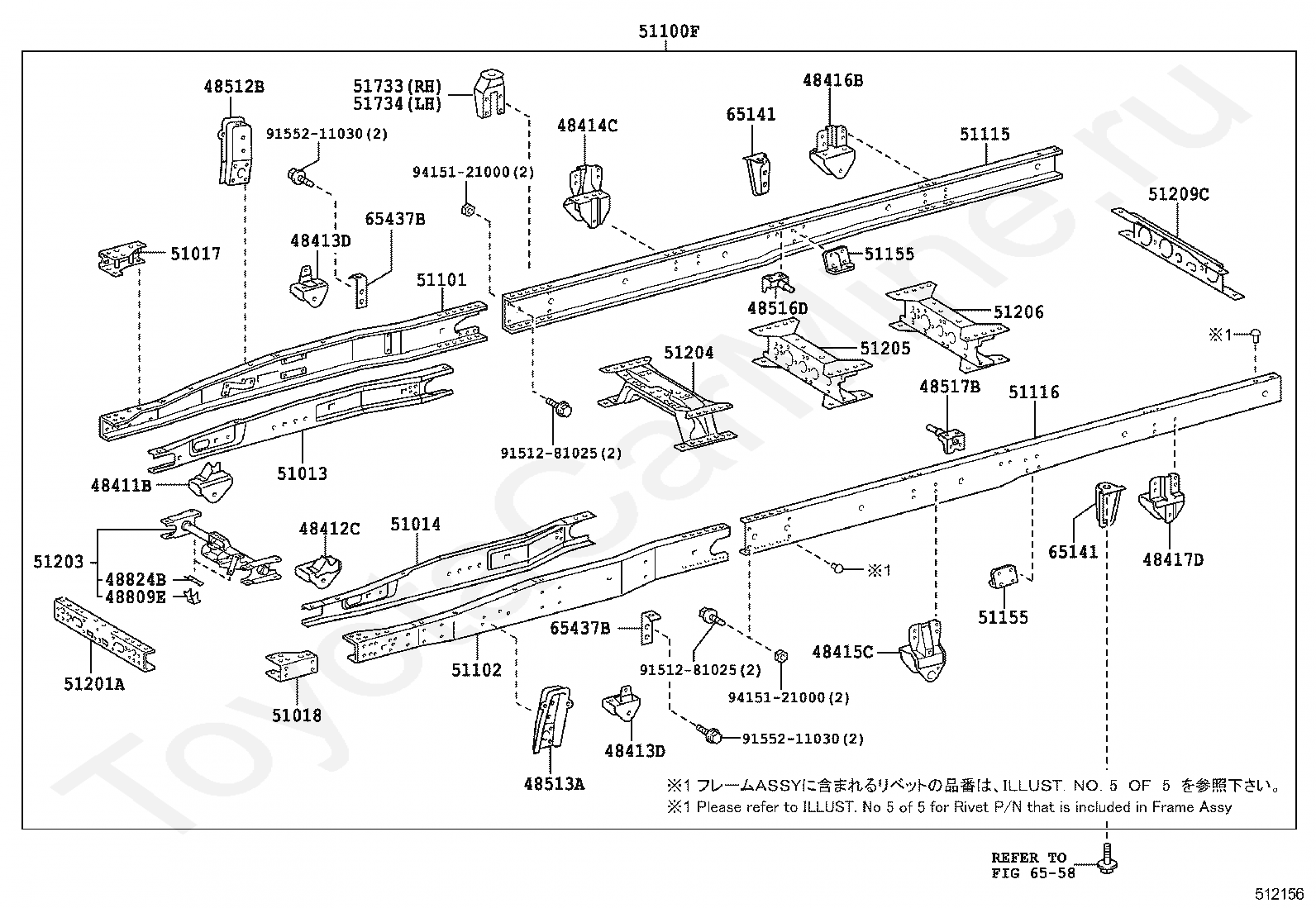

48411B

BRACKET, SPRING, NO.1 RH

48412C

BRACKET, SPRING, NO.1 LH

48413D

BRACKET, SPRING, NO.2

48414C

BRACKET, SPRING, NO.3 RH

48415C

BRACKET, SPRING, NO.3 LH

48416B

BRACKET, SPRING, NO.4 RH

48417D

BRACKET, SPRING, NO.4 LH

48512B

BRACKET, FRONT SHOCK ABSORBER, UPPER RH

48513A

BRACKET, FRONT SHOCK ABSORBER, UPPER LH

48516D

BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

48517B

BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

48809E

BRACKET SUB-ASSY, STABILIZER

48824B

BRACKET, STABILIZER

51013

CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH

51014

CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH

51017

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

51018

REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

51100F

FRAME SUB-ASSY

51101

RAIL, FRONT FRAME SIDE, RH

51102

RAIL, FRONT FRAME SIDE, LH

51115

RAIL, FRAME SIDE, REAR RH

51116

RAIL, FRAME SIDE, REAR LH

51155

STIFFENER, FRAME SIDE RAIL, REAR RH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51733

BRACKET, CAB REAR MOUNTING, NO.2 RH

51734

BRACKET, CAB REAR MOUNTING, NO.2 LH

65141

SUPPORT, MAIN SILL

65437B

SUPPORT, REAR BODY GUARD FRAME

6558

переход к группе запчастей

9151281025

Крепеж

9155211030

Крепеж

9415121000

Крепеж

Код

Описание

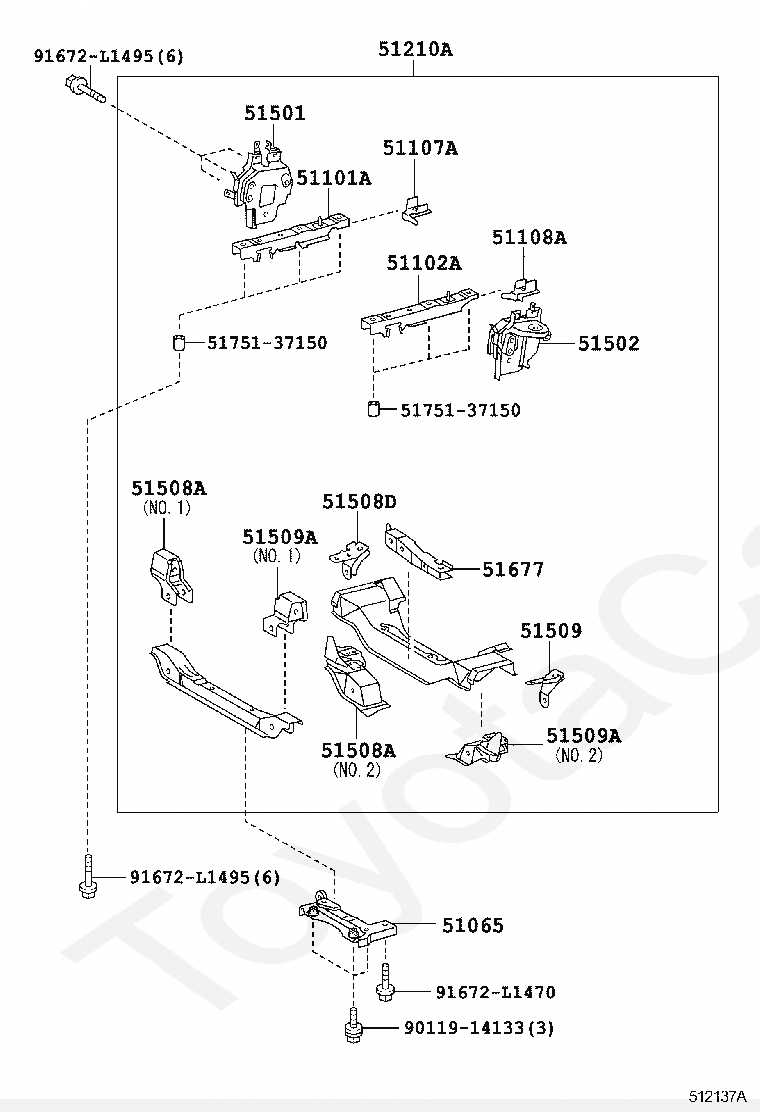

51065

SUPPORT SUB-ASSY, STEERING GEAR BOX

51101A

RAIL SUB-ASSY, FRONT FRAME SIDE, RH

51102A

RAIL SUB-ASSY, FRONT FRAME SIDE, LH

51107A

REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

51108A

REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

51210A

MEMBER ASSY, FRONT SUSPENSION

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51508A

BRACKET SUB-ASSY, LOWER ARM, RH

51508D

SUPPORT SUB-ASSY, STABILIZER, RH

51509

SUPPORT SUB-ASSY, STABILIZER

51509A

BRACKET SUB-ASSY, LOWER ARM, LH

51677

BRACKET, STEERING GEAR BOX

5175137150

Крепеж

9011914133

Крепеж

91672L1470

Крепеж

91672L1495

Крепеж

Код

Описание

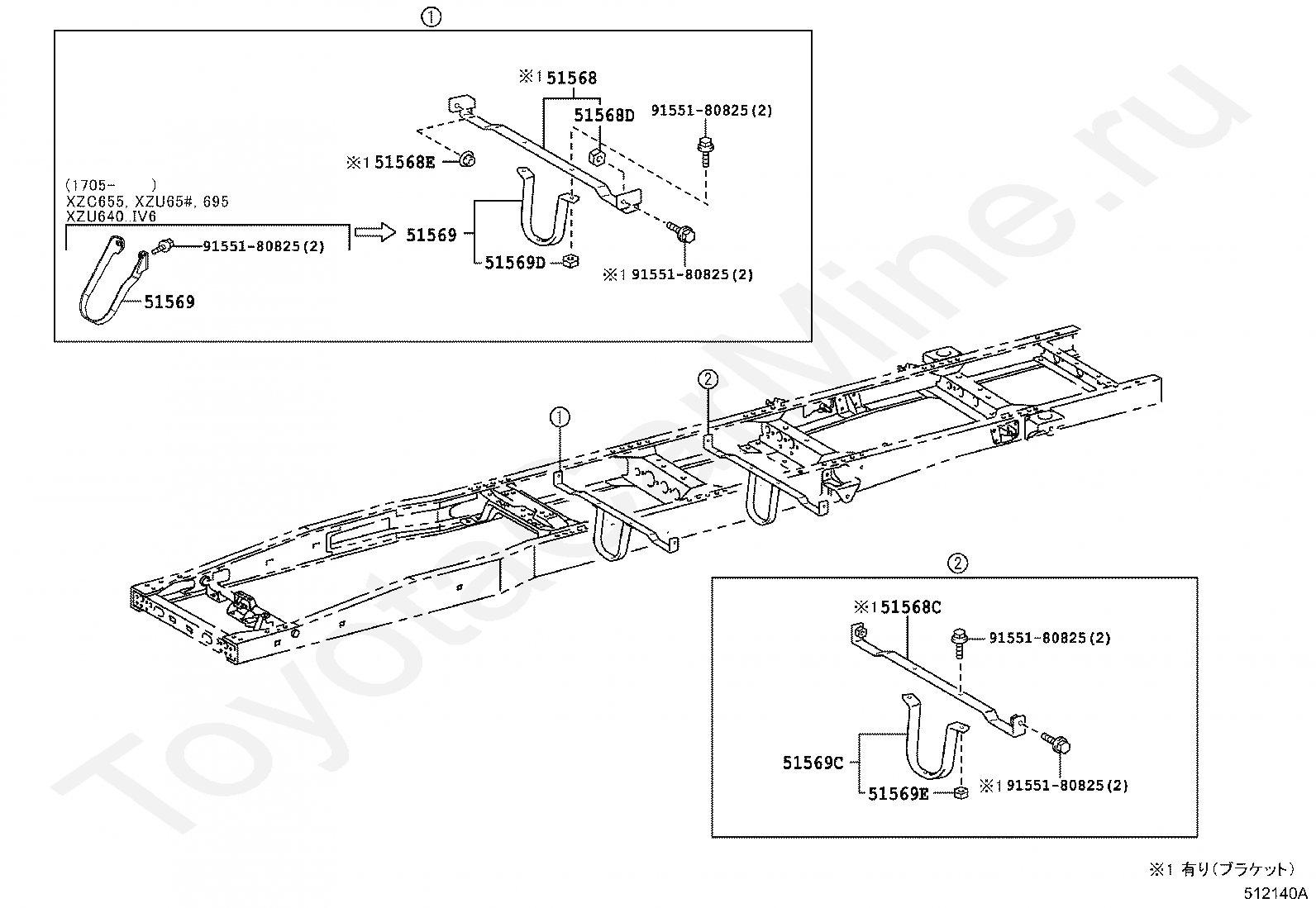

51568

BRACKET, PROPELLER SHAFT GUARD

51568C

BRACKET, PROPELLER SHAFT GUARD

51568D

NUT, HEXAGON

51568E

NUT, HEXAGON

51569

GUARD, PROPELLER SHAFT

51569C

GUARD, PROPELLER SHAFT

51569D

NUT, HEXAGON

51569E

NUT, HEXAGON

9155180825

Крепеж

Код

Описание

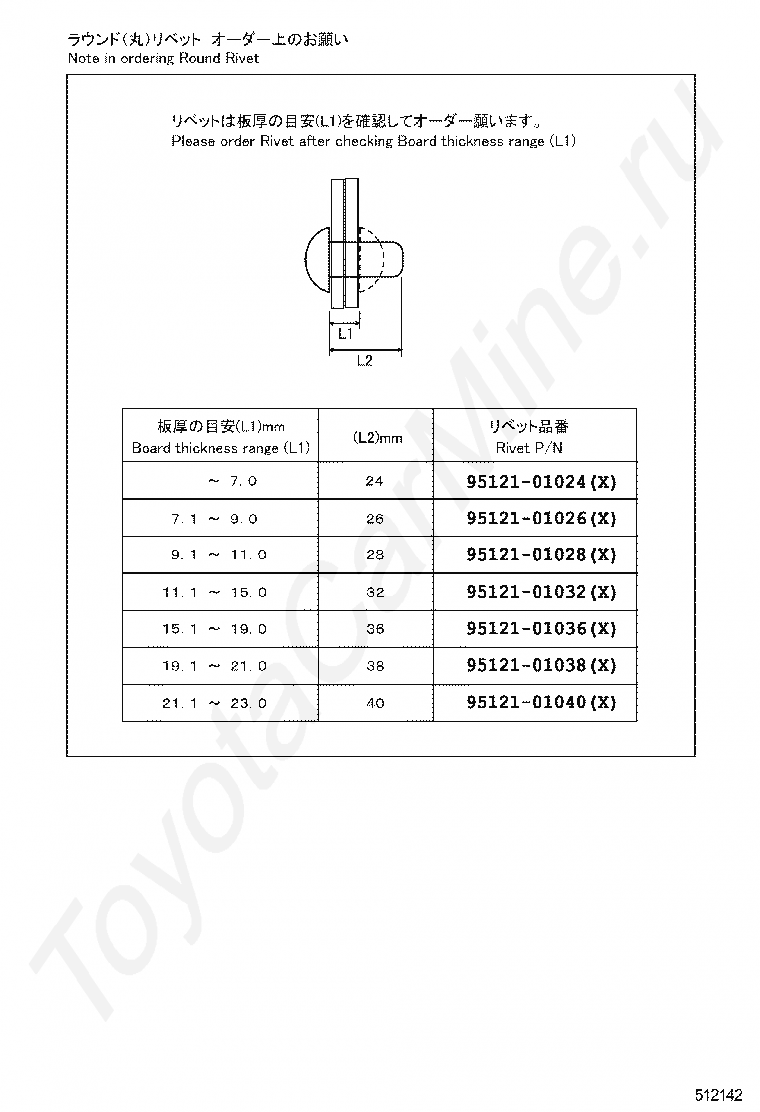

9512101024

Крепеж

9512101026

Крепеж

9512101028

Крепеж

9512101032

Крепеж

9512101036

Крепеж

9512101038

Крепеж

9512101040

Крепеж

Рама TOYOTA DYNA/TOYOACE, 2017/05 - 2025, 4 литра, дизель, XZC605, автомат, АКПП, 6 скоростей
