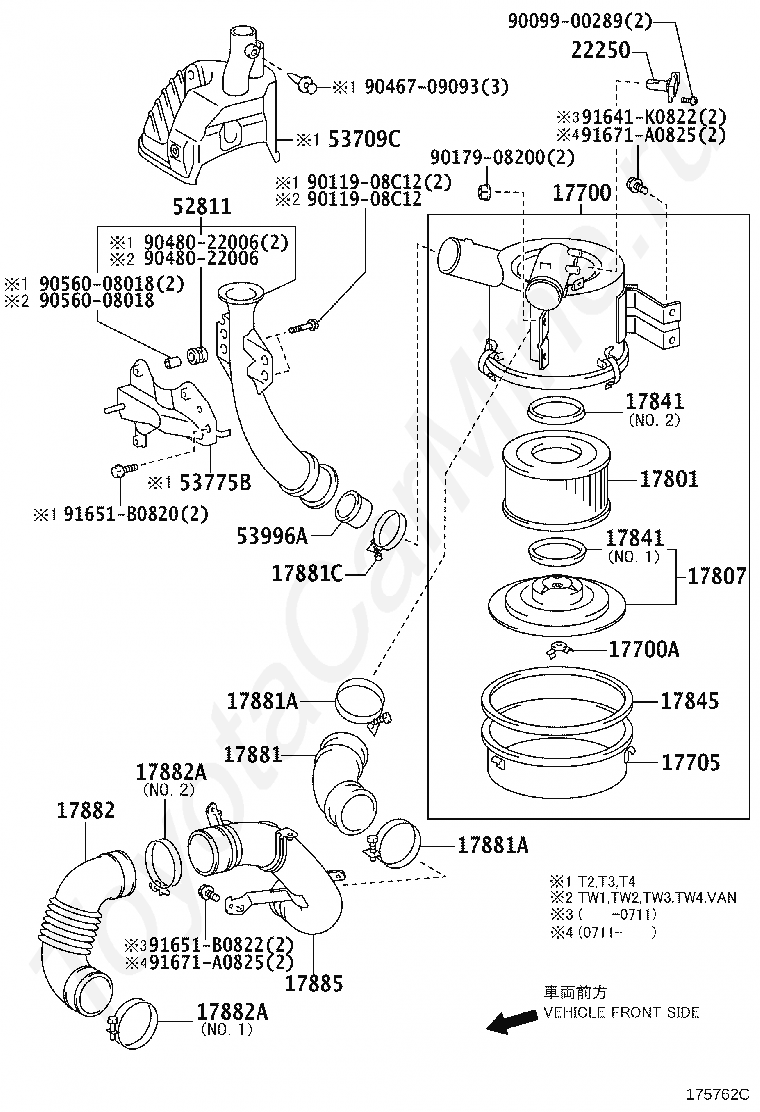

Воздушный фильтр TOYOTA DYNA/TOYOACE, 2007/09 - 2025, 3 литра, турбо-дизель, KDY281, механика

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

3 литра, турбо-дизель

Фрейм

KDY281

Трансмиссия

механика

Опции

DOUBLE CAB TRUCK (STANDARD) STEEL-MADE DECK 1,25 тонн SINGAPORE TAXI DCR CBU

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881C

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17885

PIPE, AIR CLEANER

22250

METER ASSY, INTAKE AIR FLOW

52811

DUCT, COOL AIR INTAKE, NO.1

53709C

COVER SUB-ASSY, AIR CLEANER INLET

53775B

BRACKET, COOL AIR INTAKE DUCT MOUNTING

53996A

PACKING, AIR CLEANER INLET PIPE

9009900289

Крепеж

9011908C12

Крепеж

9017908200

Крепеж

9046709093

Крепеж

9048022006

Крепеж

9056008018

Крепеж

91641K0822

Крепеж

91651B0820

Крепеж

91651B0822

Крепеж

91671A0825

Крепеж

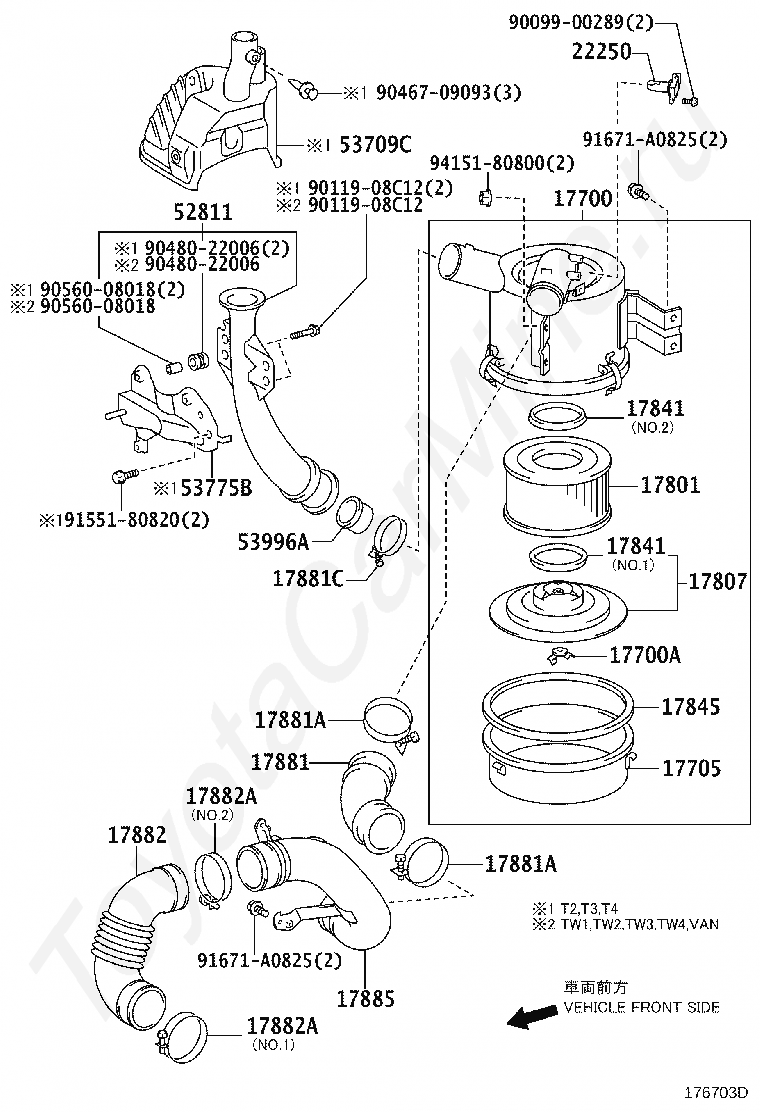

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881C

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17885

PIPE, AIR CLEANER

22250

METER ASSY, INTAKE AIR FLOW

52811

DUCT, COOL AIR INTAKE, NO.1

53709C

COVER SUB-ASSY, AIR CLEANER INLET

53775B

BRACKET, COOL AIR INTAKE DUCT MOUNTING

53996A

PACKING, AIR CLEANER INLET PIPE

9009900289

Крепеж

9011908C12

Крепеж

9046709093

Крепеж

9048022006

Крепеж

9056008018

Крепеж

9155180820

Крепеж

91671A0825

Крепеж

9415180800

Крепеж

Код

Описание

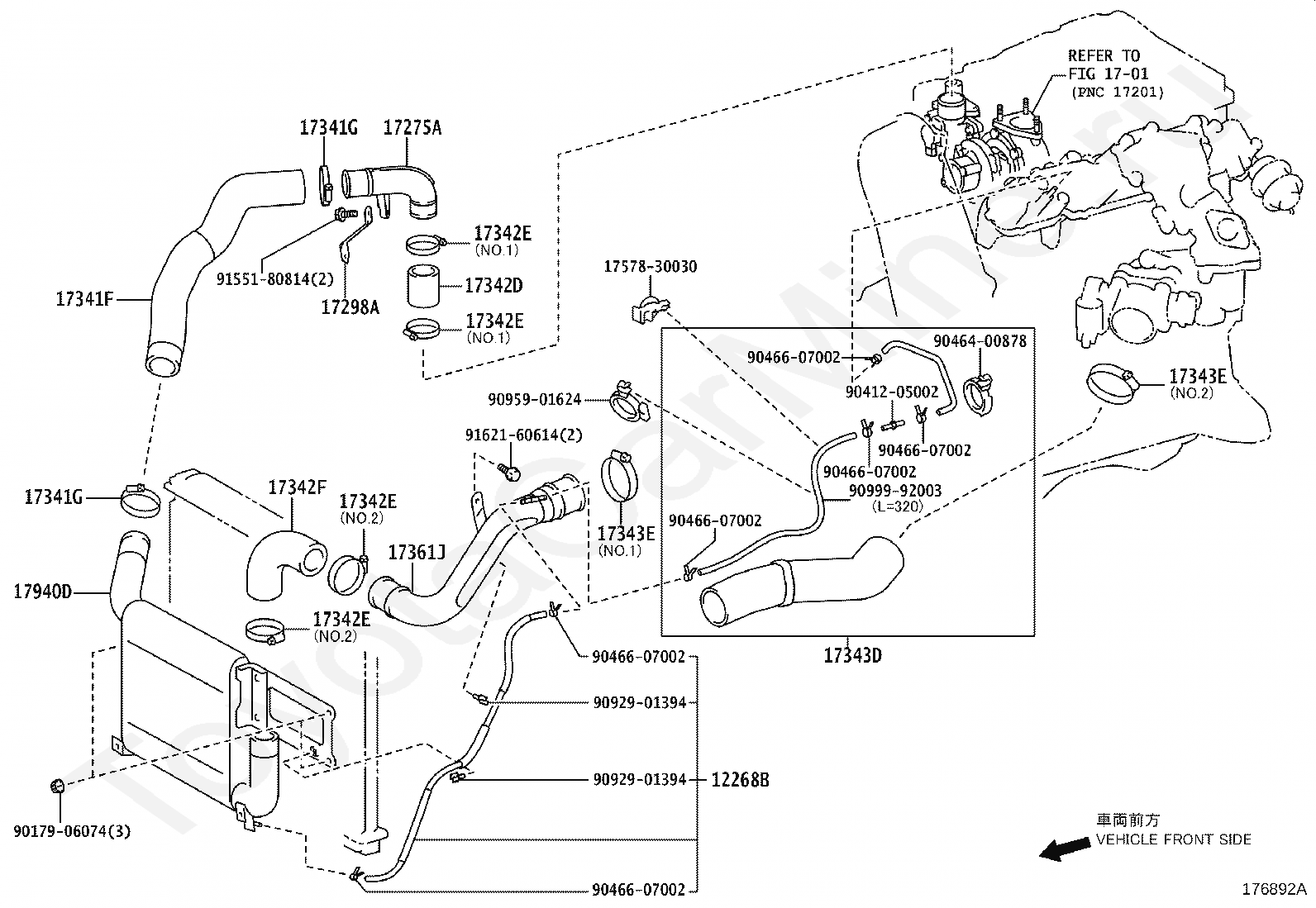

12268B

HOSE, OIL RETURN

1701

переход к группе запчастей

17275A

ELBOW, COMPRESSOR OUTLET

17298A

STAY, COMPRESSOR ELBOW

17341F

HOSE, AIR, NO.1

17341G

CLAMP OR CLIP(FOR AIR HOSE, NO.1)

17342D

HOSE, AIR, NO.2

17342E

CLAMP OR CLIP(FOR AIR HOSE, NO.2)

17342F

HOSE, AIR, NO.2(FOR INTERCOOLER)

17343D

HOSE, AIR, NO.3

17343E

CLAMP, HOSE(FOR AIR HOSE, NO.3)

17361J

TUBE, AIR, NO.1

1757830030

Крепеж

17940D

INTERCOOLER ASSY

9017906074

Крепеж

9046400184

Крепеж

9046400301

Крепеж

9046607002

Крепеж

9092901394

Крепеж

9095901624

Крепеж

9155180814

Крепеж

9162160614

Крепеж

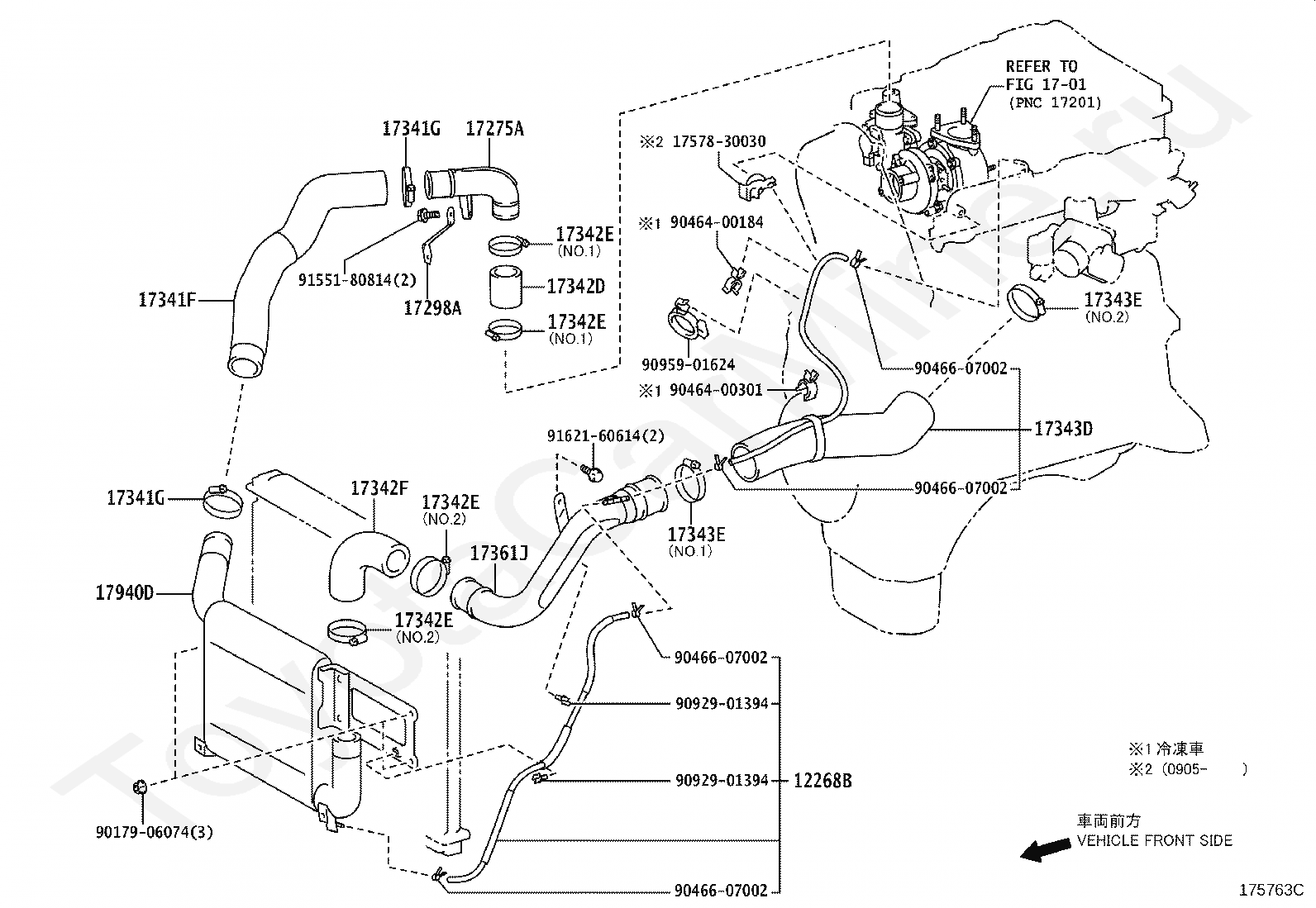

Код

Описание

12268B

HOSE, OIL RETURN

1701

переход к группе запчастей

17275A

ELBOW, COMPRESSOR OUTLET

17298A

STAY, COMPRESSOR ELBOW

17341F

HOSE, AIR, NO.1

17341G

CLAMP OR CLIP(FOR AIR HOSE, NO.1)

17342D

HOSE, AIR, NO.2

17342E

CLAMP OR CLIP(FOR AIR HOSE, NO.2)

17342F

HOSE, AIR, NO.2(FOR INTERCOOLER)

17343D

HOSE, AIR, NO.3

17343E

CLAMP, HOSE(FOR AIR HOSE, NO.3)

17361J

TUBE, AIR, NO.1

1757830030

Крепеж

17940D

INTERCOOLER ASSY

9017906074

Крепеж

9041205002

Крепеж

9046400878

Крепеж

9046607002

Крепеж

9092901394

Крепеж

9095901624

Крепеж

9099992003

Крепеж

9155180814

Крепеж

9162160614

Крепеж
