Кресла TOYOTA DYNA/TOYOACE, 2007/09 - 2025, 3 литра, турбо-дизель, KDY241, механика

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

3 литра, турбо-дизель

Фрейм

KDY241

Трансмиссия

механика

Опции

VAN 6-местный 1.5 TONNE DOUBLE TIRE DCR CBU

Код

Описание

6751

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

73178B

CAP, SEAT BELT ANCHOR COVER

9011908134

Крепеж

9011910111

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908149

Крепеж

9017911010

Крепеж

9165160614

Крепеж

Код

Описание

6751

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71832D

COVER, FRONT SEAT HINGE, LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73178B

CAP, SEAT BELT ANCHOR COVER

9011908134

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908149

Крепеж

9017911010

Крепеж

Код

Описание

6751

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71491C

SPRING, REAR SEAT SET

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

72641

PIN, REAR SEAT BACK LOCK

9011908C25

Крепеж

9356015030

Крепеж

9616000800

Крепеж

Код

Описание

6751

переход к группе запчастей

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71491C

SPRING, REAR SEAT SET

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71849

CAP, SEAT ADJUSTER COVER, LH

72641

PIN, REAR SEAT BACK LOCK

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

9011908C25

Крепеж

9356015030

Крепеж

9616000800

Крепеж

Код

Описание

5851

переход к группе запчастей

6751

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71848B

CAP, SEAT ADJUSTER COVER, RH

9011908C25

Крепеж

9017908039

Крепеж

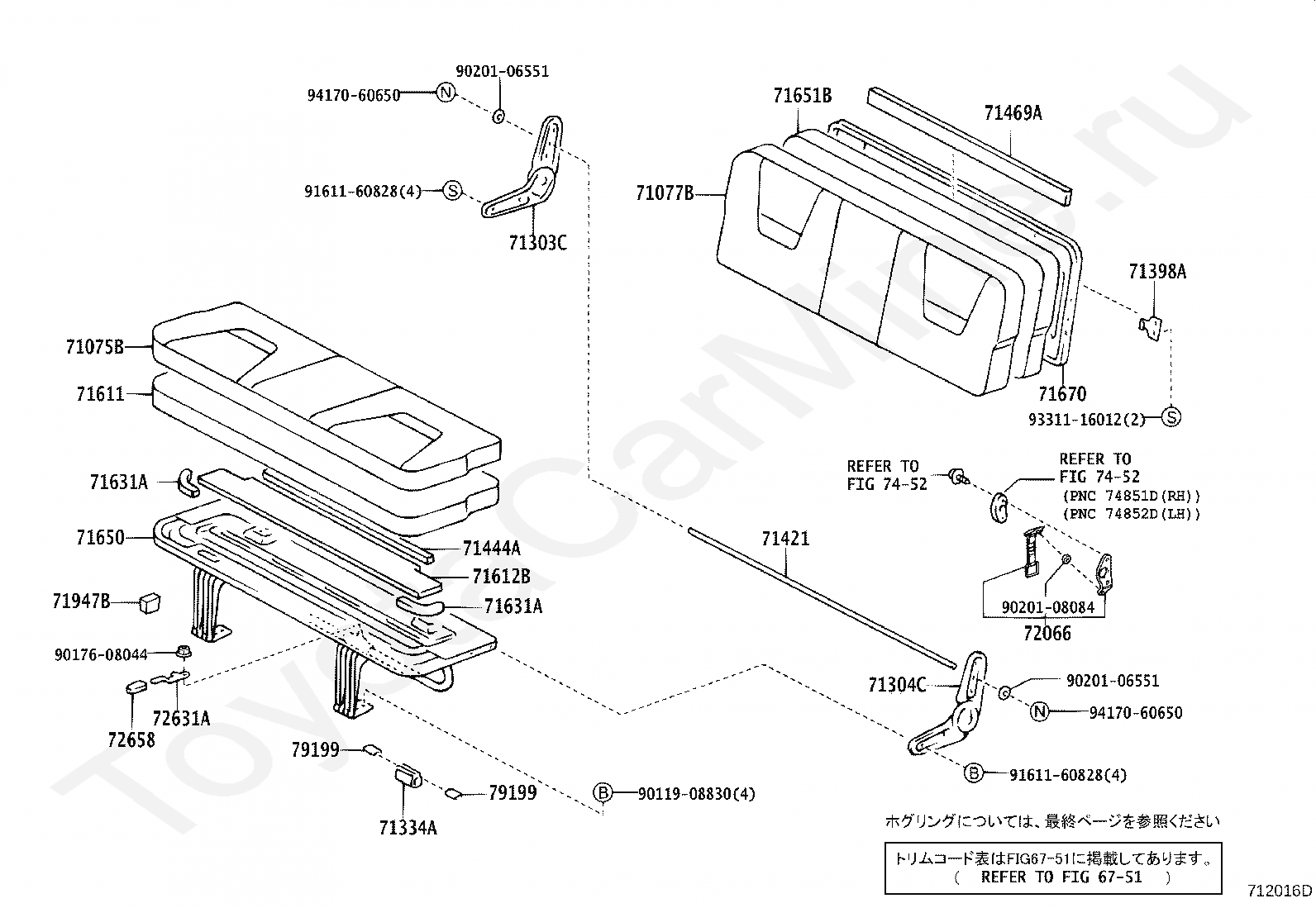

Код

Описание

6751

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71334A

STOPPER, REAR SEAT LEG

71398A

HOLDER, REAR SEAT BACK

71421

BAR, REAR SEAT BACK EQUALIZING

71444A

PAD, REAR SEAT CUSHION, REAR

71469A

PAD, REAR SEAT BACK

71611

PAD, REAR SEAT CUSHION

71612B

PAD, REAR SEAT CUSHION, B

71631A

PAD, REAR SEAT CUSHION CORNER

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71947B

BUMPER, REAR PASSENGER SEAT CUSHION

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72631A

HANDLE, REAR SEAT LEG STOPPER

72658

KNOB, REAR SEAT HANDLE

7452

переход к группе запчастей

79199

HOLDER, NO.1 SEAT LEG STOPPER

9011908830

Крепеж

9017608044

Крепеж

9020106551

Крепеж

9020108084

Крепеж

9161160828

Крепеж

9331116012

Крепеж

9417060650

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
