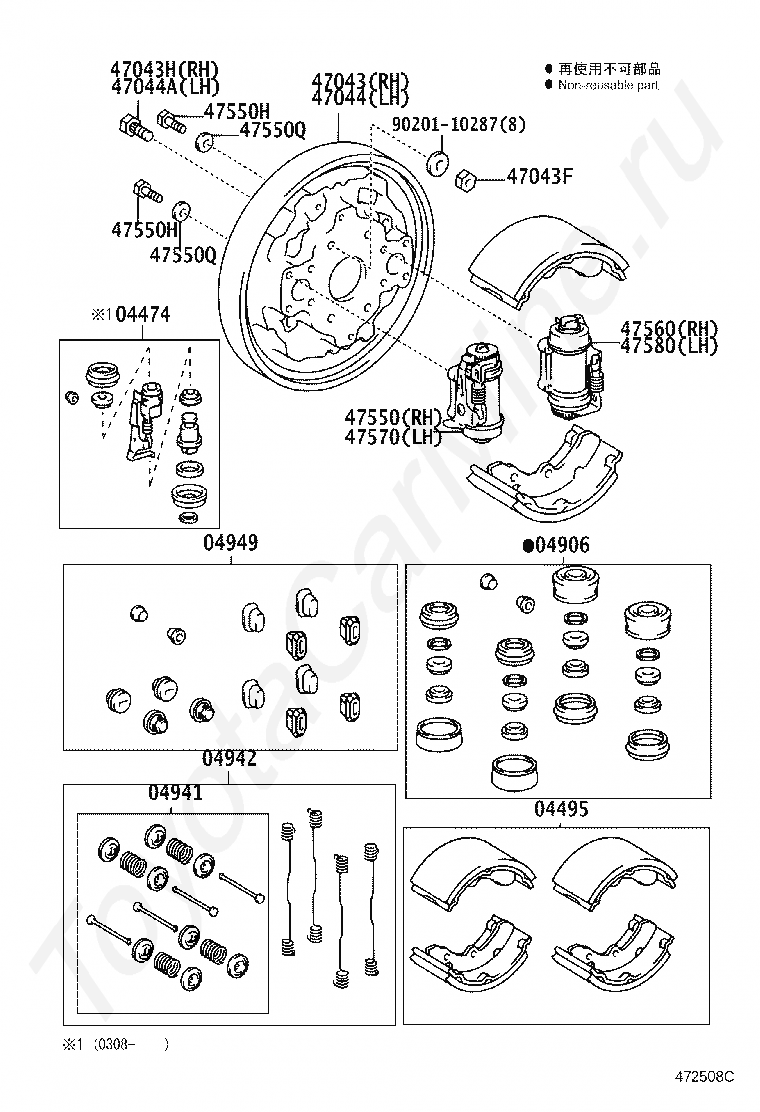

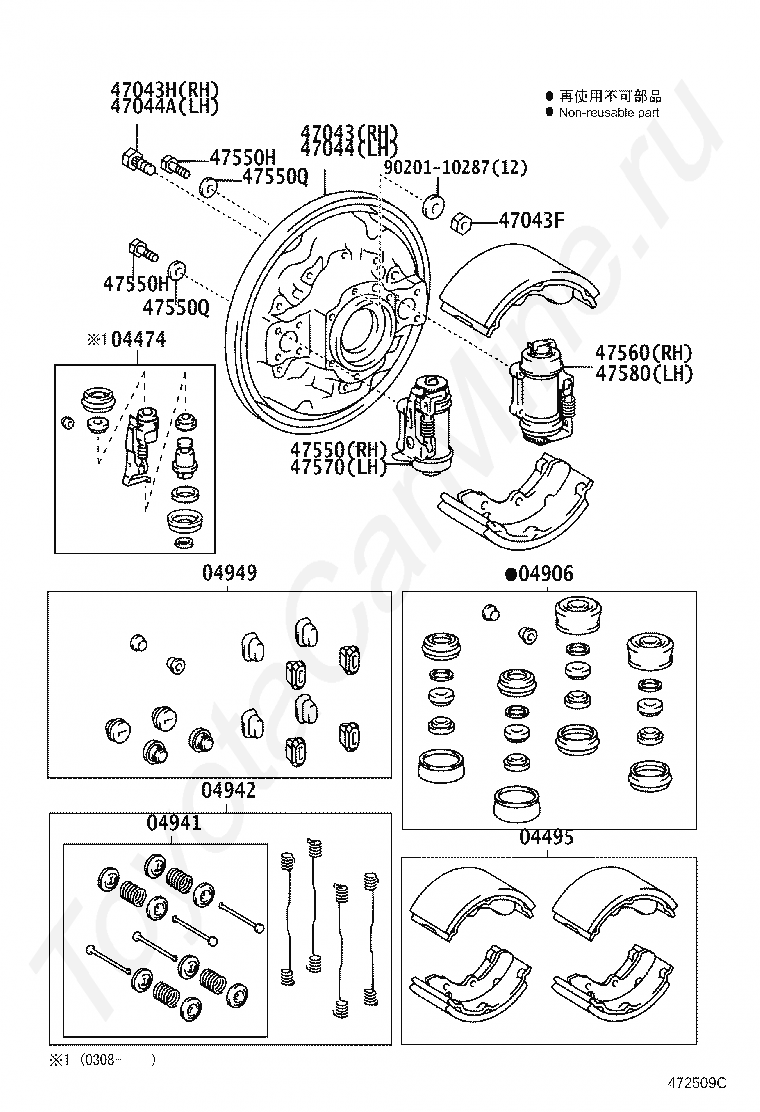

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA DYNA/TOYOACE, 2007/09 - 2025, 3 литра, турбо-дизель, KDY241, механика

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

3 литра, турбо-дизель

Фрейм

KDY241

Трансмиссия

механика

Опции

VAN 6-местный 1.5 TONNE DOUBLE TIRE DCR CBU

Код

Описание

04474

CYLINDER KIT, REAR WHEEL

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

04941

SPRING KIT, REAR BRAKE SHOE HOLD DOWN

04942

SPRING KIT, REAR BRAKE

04949

PLUG KIT, REAR BRAKE

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47043H

BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47044A

BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550H

BOLT(FOR REAR WHEEL CYLINDER)

47550Q

WASHER(FOR REAR WHEEL CYLINDER)

47560

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47580

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

9020110287

Крепеж

Код
