Передние амортизаторы TOYOTA DYNA 200/TOYOACE G25, 1996/10 - 1999/05, 4,1 литра, дизель, TRUCK (EXCLUDING DUMP TRUCK), BU147, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA 200/TOYOACE G25

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU147

Трансмиссия

механика МКПП, 5 скоростей

Опции

LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) 3-местный DOUBLE TIRE 2 тонны DSL CBU

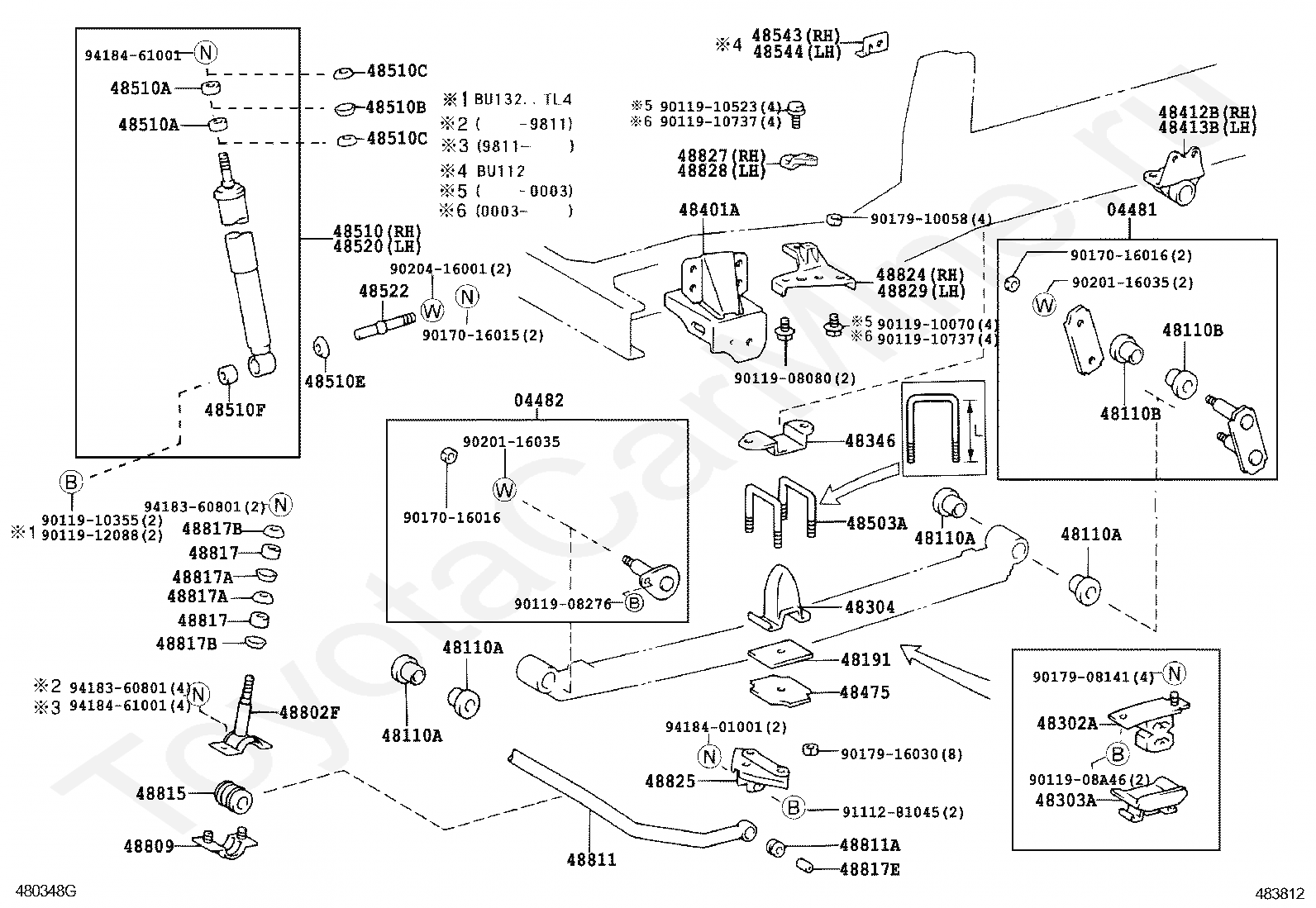

Код

Описание

04481

SHACKLE KIT, FRONT SPRING

04482

PIN KIT, FRONT SPRING

48110A

BUSH(FOR FRONT SPRING SHACKLE)

48110B

BUSH(FOR FRONT SPRING PIN)

48191

WEDGE, CASTER(FOR FRONT LEAF SPRING)

48302A

SPRING, HOLLOW(FOR FRONT SUSPENSION)

48303A

SEAT SUB-ASSY, HOLLOW SPRING

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48346

STOPPER, BUMPER, FRONT

48401A

BRACKET SUB-ASSY, SPRING, NO.1

48412B

BRACKET, SPRING, NO.2 RH

48413B

BRACKET, SPRING, NO.2 LH

48475

PLATE, DISTANCE(FOR FRONT)

48503A

BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510E

WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

48510F

CUSHION, SHOCK ABSORBER

48520

ABSORBER ASSY, SHOCK, FRONT LH

48522

PIN, FRONT SHOCK ABSORBER LOWER PIVOT

48543

REINFORCEMENT, FRONT ABSORBER BRACKET, RH

48544

REINFORCEMENT, FRONT ABSORBER BRACKET, LH

48802F

LINK SUB-ASSY, FRONT STABILIZER

48809

BRACKET SUB-ASSY, STABILIZER

48811

BAR, STABILIZER, FRONT

48811A

BUSH(FOR FRONT STABILIZER BAR)

48815

BUSH, FRONT STABILIZER BAR, NO.1

48817

CUSHION, FRONT STABILIZER

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48817E

SPACER(FOR STABILIZER BAR)

48824

BRACKET, STABILIZER, FRONT

48825

BRACKET, STABILIZER, NO.2

48827

BRACKET, FRONT STABILIZER, NO.2 RH

48828

BRACKET, FRONT STABILIZER, NO.2 LH

48829

BRACKET, STABILIZER

9011908080

Крепеж

9011908276

Крепеж

9011908A46

Крепеж

9011910070

Крепеж

9011910355

Крепеж

9011910523

Крепеж

9011910737

Крепеж

9011912088

Крепеж

9017016015

Крепеж

9017016016

Крепеж

9017908141

Крепеж

9017910058

Крепеж

9017916030

Крепеж

9020116035

Крепеж

9020416001

Крепеж

9111281045

Крепеж

9418360801

Крепеж

9418401001

Крепеж

9418461001

Крепеж

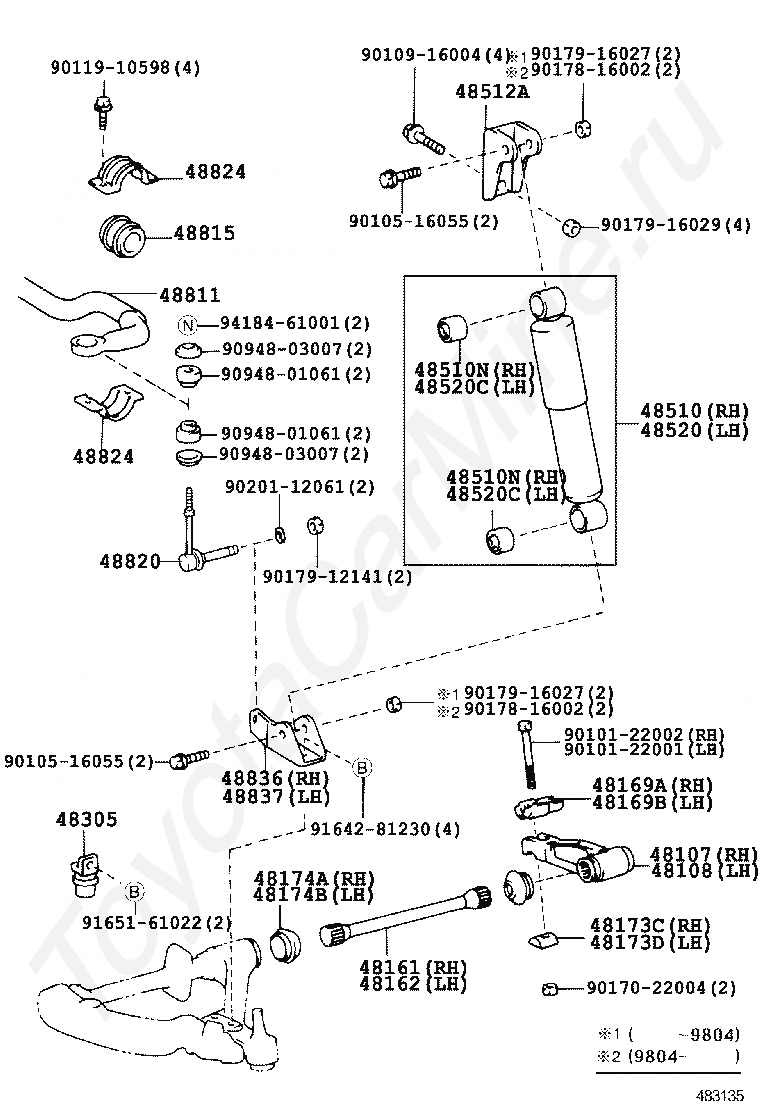

Код

Описание

48107

ARM SUB-ASSY, ANCHOR, RH

48108

ARM SUB-ASSY, ANCHOR, LH

48161

SPRING, TORSION BAR, RH

48162

SPRING, TORSION BAR, LH

48169A

SWIVEL, ANCHOR ARM, RH

48169B

SWIVEL, ANCHOR ARM, LH

48173C

SEAT, ANCHOR ARM ADJUSTER, RH

48173D

SEAT, ANCHOR ARM ADJUSTER, LH

48174A

COVER, TORSION BAR DUST, RH

48174B

COVER, TORSION BAR DUST, LH

48305

BUMPER SUB-ASSY, FRONT SPRING, NO.2

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510N

BUSH(FOR FRONT SHOCK ABSORBER RH)

48512A

BRACKET, FRONT SHOCK ABSORBER, UPPER RH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48520C

BUSH(FOR FRONT SHOCK ABSORBER LH)

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48820

LINK ASSY, FRONT STABILIZER

48824

BRACKET, STABILIZER, FRONT

48836

BRACKET, FRONT STABILIZER END, RH

48837

BRACKET, FRONT STABILIZER END, LH

9010122001

Крепеж

9010122002

Крепеж

9010516055

Крепеж

9010916004

Крепеж

9011910598

Крепеж

9017022004

Крепеж

9017816002

Крепеж

9017912141

Крепеж

9017916027

Крепеж

9017916029

Крепеж

9020112061

Крепеж

9094801061

Крепеж

9094803007

Крепеж

9164281230

Крепеж

9165161022

Крепеж

9418461001

Крепеж
