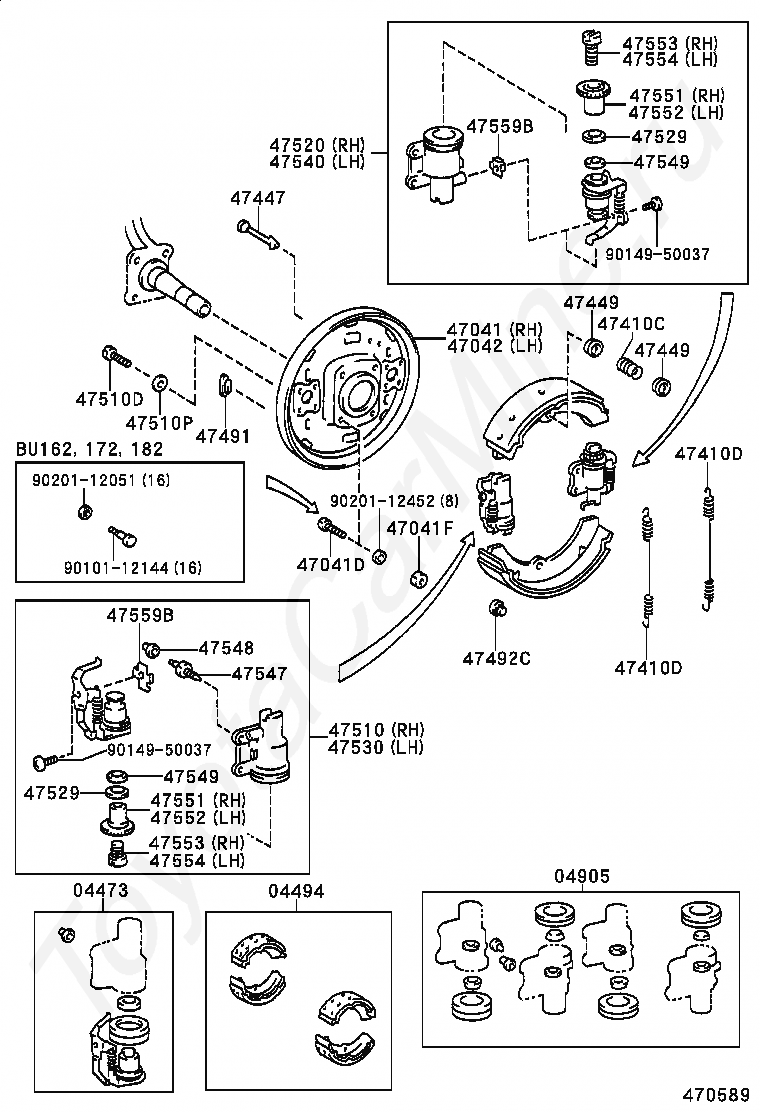

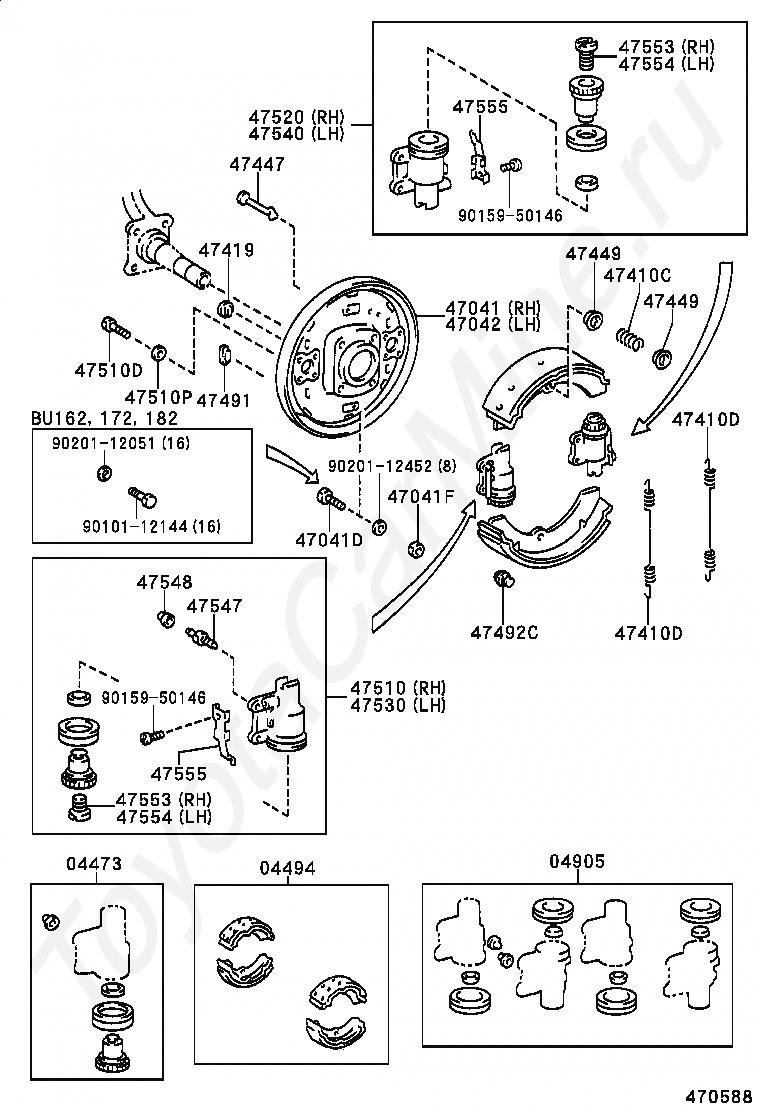

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA DYNA 200/TOYOACE G25, 1996/10 - 1999/05, 4,1 литра, дизель, TRUCK (EXCLUDING DUMP TRUCK), BU147, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA 200/TOYOACE G25

Двигатель

4,1 литра, дизель

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

BU147

Трансмиссия

механика МКПП, 5 скоростей

Опции

LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) 3-местный DOUBLE TIRE 2 тонны DSL CBU

Код

Описание

04473

CYLINDER KIT, FRONT WHEEL

04494

SHOE KIT, FRONT BRAKE

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041D

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

47041F

NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47419

PLUG, HOLE(FOR FRONT BRAKE)

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47492C

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510D

BOLT(FOR FRONT WHEEL CYLINDER)

47510P

WASHER(FOR FRONT WHEEL CYLINDER)

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47555

SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

9010112144

Крепеж

9015950146

Крепеж

9020112051

Крепеж

9020112452

Крепеж

Код

Описание

04473

CYLINDER KIT, FRONT WHEEL

04494

SHOE KIT, FRONT BRAKE

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041D

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

47041F

NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47492C

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510D

BOLT(FOR FRONT WHEEL CYLINDER)

47510P

WASHER(FOR FRONT WHEEL CYLINDER)

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47529

SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47549

SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT

47551

NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47552

NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47559B

SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT

9010112144

Крепеж

9014950037

Крепеж

9020112051

Крепеж

9020112452

Крепеж
