Кресла TOYOTA DYNA 150, 1995/05 - 1998/05, 2,8 литра, дизель, LY211

Каталог

Европа

Модель

DYNA 150

Двигатель

2,8 литра, дизель

Фрейм

LY211

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES STEEL-MADE DECK SINGAPORE TAXI 15T EUR IV

Код

Описание

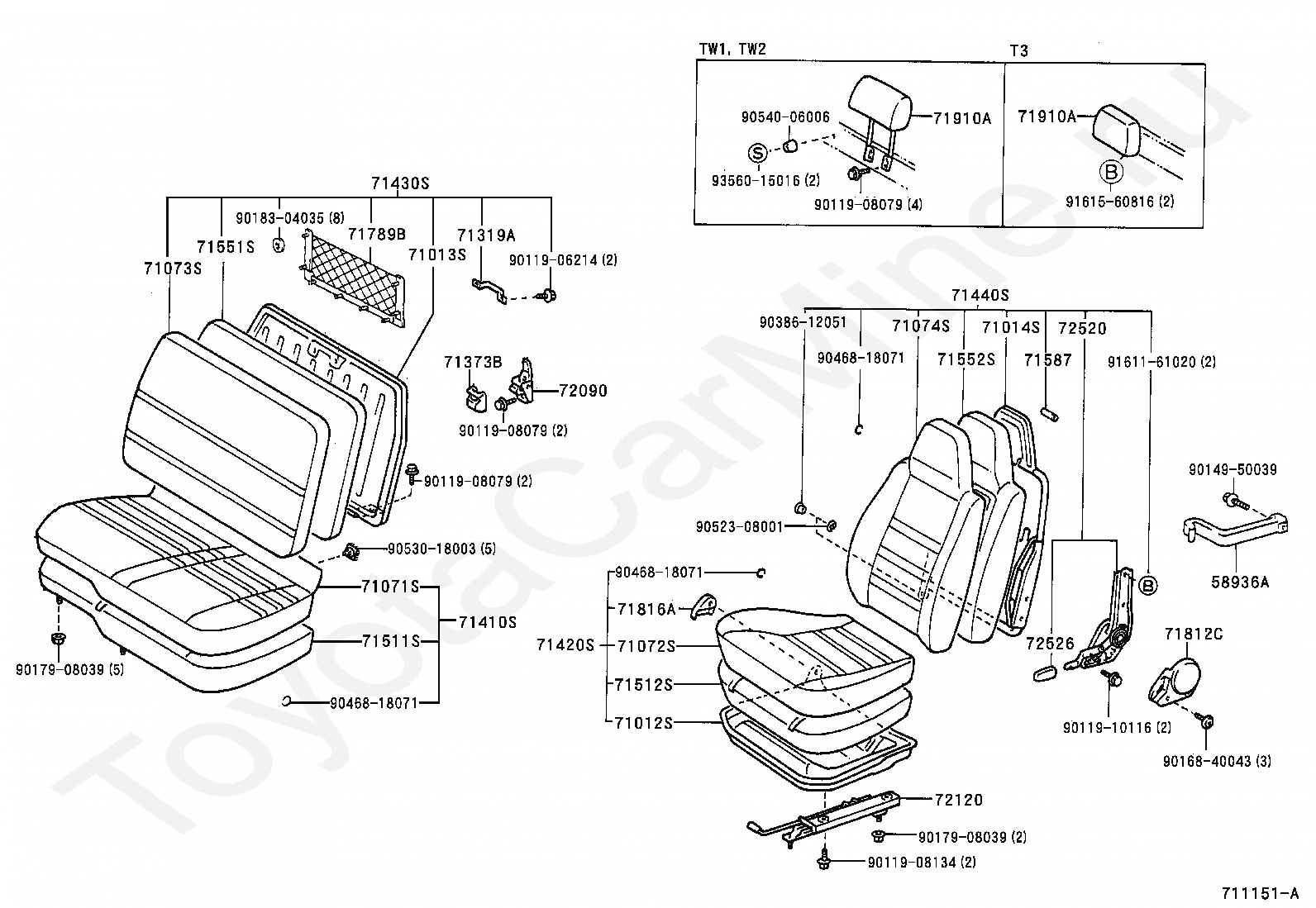

58936A

BAND, ENGINE SERVICE HOLE COVER SUPPORT

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71319A

STRIKER, FRONT SEAT BACK

71373B

COVER, FRONT SEAT BACK LOCK

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71789B

POCKET, FRONT SEAT BACK BOARD

71812C

COVER, RECLINING ADJUSTER, LH

71816A

COVER, FRONT SEAT CUSHION HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

72090

LOCK ASSY, FRONT SEAT BACK

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011906214

Крепеж

9011908079

Крепеж

9011908134

Крепеж

9011910116

Крепеж

9014950039

Крепеж

9016840043

Крепеж

9017908039

Крепеж

9018304035

Крепеж

9038612051

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9053018003

Крепеж

9054006006

Крепеж

9161161020

Крепеж

9161560816

Крепеж

9356015016

Крепеж

Код

Описание

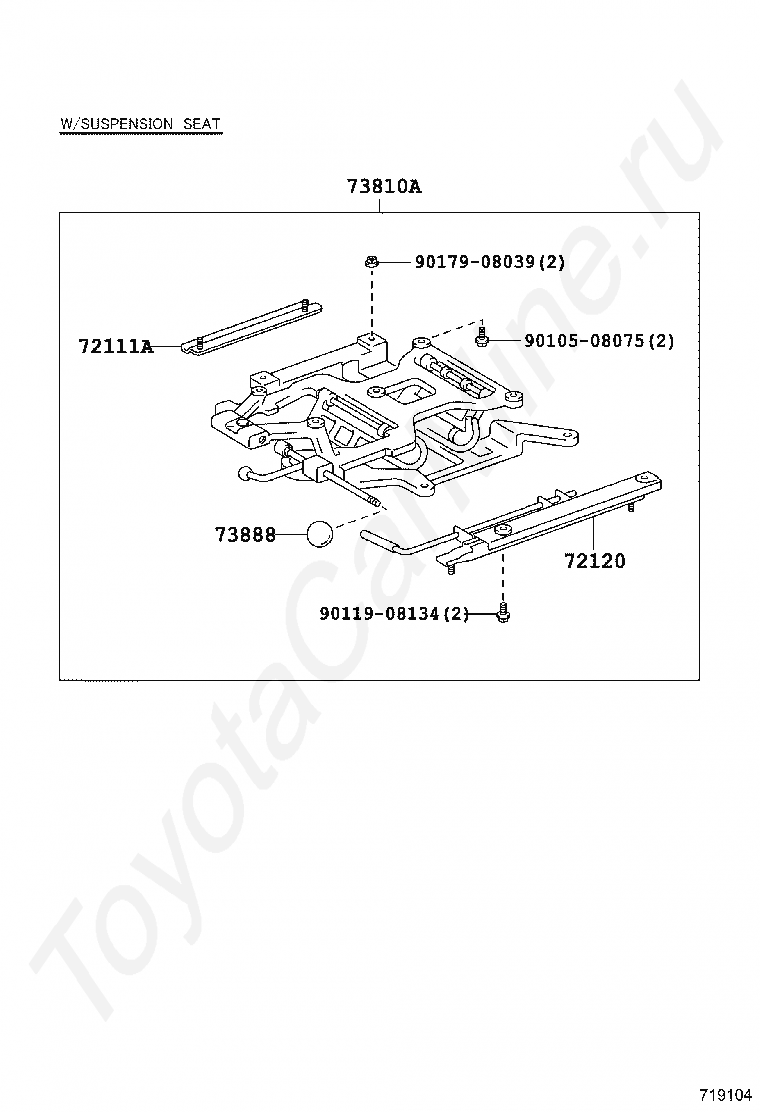

72111A

RAIL, FRONT INNER SEAT TRACK, UPPER

72120

TRACK ASSY, FRONT SEAT, OUTER LH

73810A

SUSPENSION ASSY, SEAT, LH

73888

HANDLE, SEAT SUSPENSION CONTROL

9010508075

Крепеж

9011908134

Крепеж

9017908039

Крепеж

Код

Описание

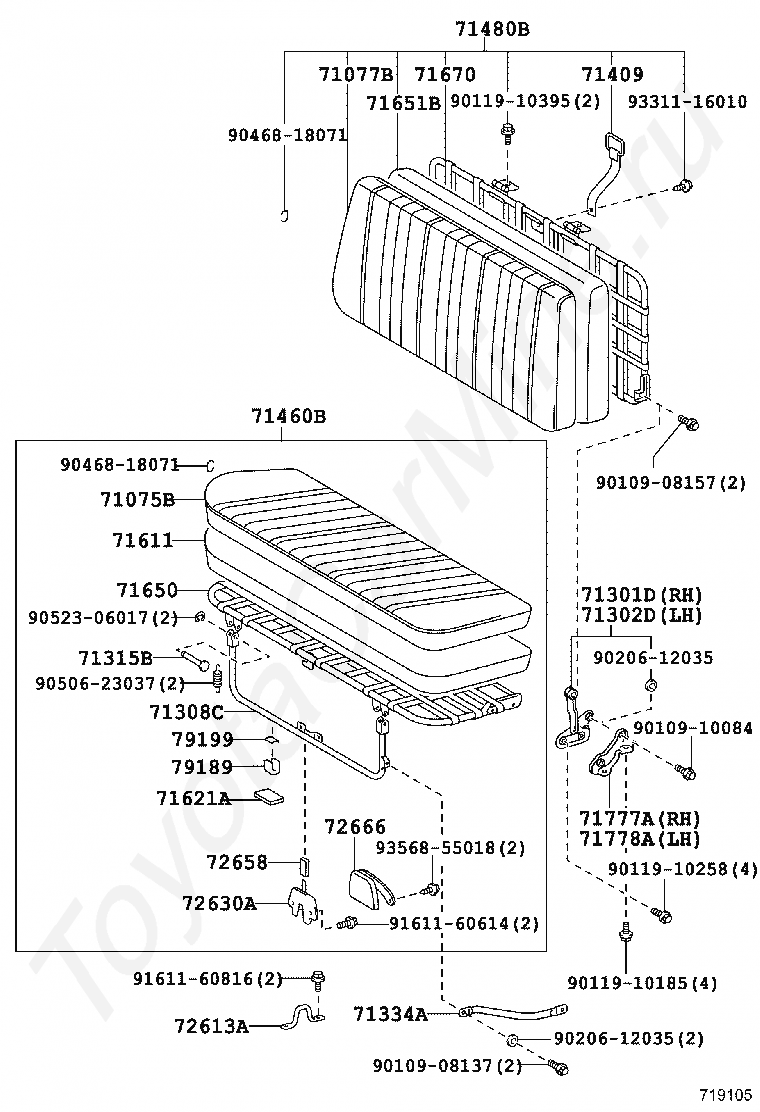

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71308C

LEG SUB-ASSY, REAR SEAT, FRONT

71315B

PIN, REAR SEAT HINGE

71334A

STOPPER, REAR SEAT LEG

71409

STOPPER SUB-ASSY, REAR SEAT BACK

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71777A

PLATE, REAR SIDE SEAT HINGE, LOWER RH

71778A

PLATE, REAR SIDE SEAT HINGE, LOWER LH

72613A

STRIKER, FRONT SEAT LOCK

72630A

LOCK ASSY, REAR NO.1 SEAT

72658

KNOB, REAR SEAT HANDLE

72666

COVER, REAR SEAT BACK LOCK, LH

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

9010908137

Крепеж

9010908157

Крепеж

9010910084

Крепеж

9011910185

Крепеж

9011910258

Крепеж

9011910395

Крепеж

9020612035

Крепеж

9046818071

Крепеж

9050623037

Крепеж

9052306017

Крепеж

9161160614

Крепеж

9161160816

Крепеж

9331116010

Крепеж

9356855018

Крепеж
