Каталог
ЕвропаМодель
DYNA 150Двигатель
2 литраФрейм
YY211Опции
правый руль LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK DOUBLE TIRE 15T GEN CBU

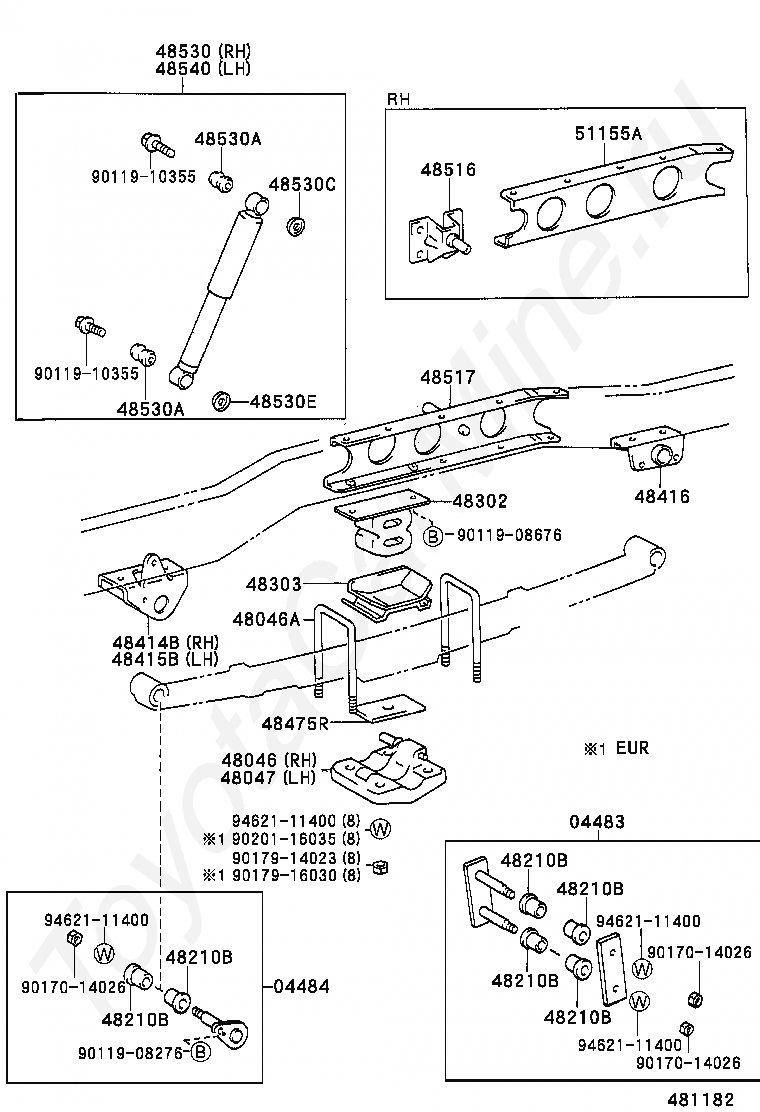

Код
Описание
04483
SHACKLE KIT, REAR SPRING
04484
PIN KIT, REAR SPRING
48046
SEAT SUB-ASSY, SPRING U BOLT, RH
48046A
BOLT, U(FOR REAR SPRING)
48047
SEAT SUB-ASSY, SPRING U BOLT, LH
48210B
BUSH(FOR REAR SPRING PIN)
48302
SPRING SUB-ASSY, HOLLOW
48303
SEAT SUB-ASSY, HOLLOW SPRING
48414B
BRACKET, SPRING, NO.3 RH
48415B
BRACKET, SPRING, NO.3 LH
48416
BRACKET, SPRING, NO.4
48475R
PLATE, DISTANCE(FOR REAR)
48516
BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517
BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530
ABSORBER ASSY, SHOCK, REAR RH
48530A
BUSH(FOR REAR SHOCK ABSORBER)
48530C
WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530E
WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540
ABSORBER ASSY, SHOCK, REAR LH
51155A
STIFFENER, FRAME SIDE RAIL, REAR RH
9011908276
Крепеж
9011908676
Крепеж
9011910355
Крепеж
9017014026
Крепеж
9017914023
Крепеж
9017916030
Крепеж
9020116035
Крепеж
9462111400
Крепеж

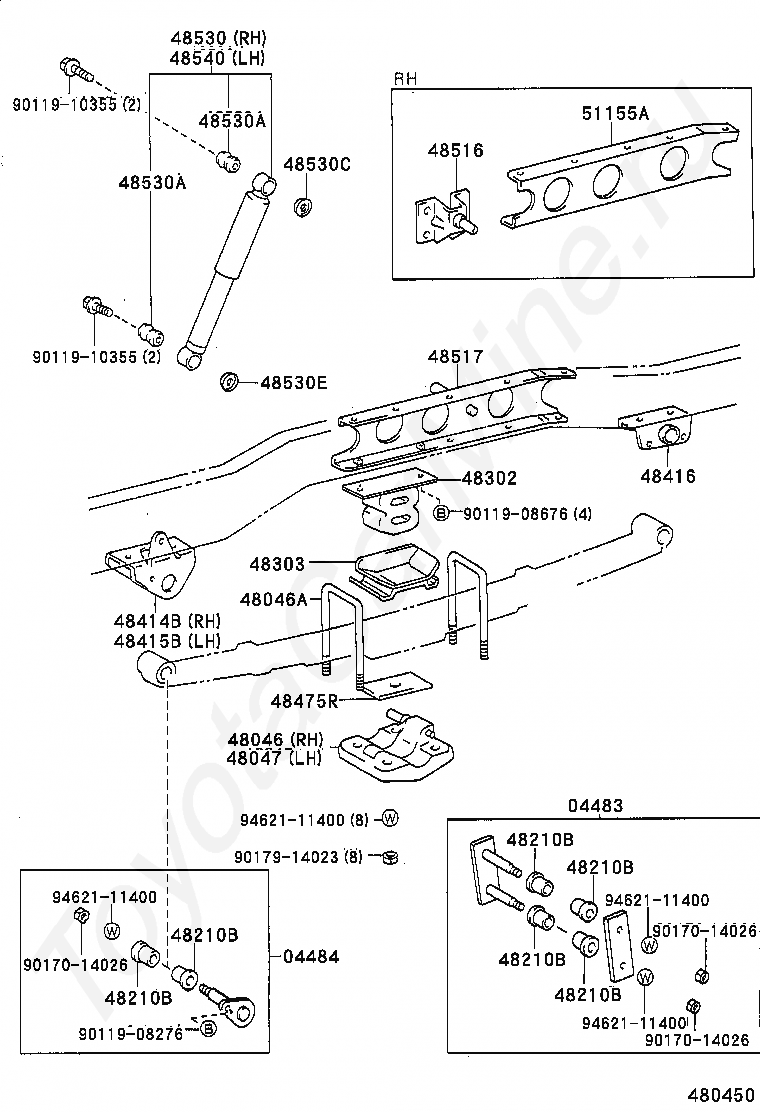

Код
Описание
04483
SHACKLE KIT, REAR SPRING
04484
PIN KIT, REAR SPRING
48046
SEAT SUB-ASSY, SPRING U BOLT, RH
48046A
BOLT, U(FOR REAR SPRING)
48047
SEAT SUB-ASSY, SPRING U BOLT, LH
48210B
BUSH(FOR REAR SPRING PIN)
48302
SPRING SUB-ASSY, HOLLOW
48303
SEAT SUB-ASSY, HOLLOW SPRING
48414B
BRACKET, SPRING, NO.3 RH
48415B
BRACKET, SPRING, NO.3 LH
48416
BRACKET, SPRING, NO.4
48475R
PLATE, DISTANCE(FOR REAR)
48516
BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517
BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530
ABSORBER ASSY, SHOCK, REAR RH
48530A
BUSH(FOR REAR SHOCK ABSORBER)
48530C
WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530E
WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540
ABSORBER ASSY, SHOCK, REAR LH
51155A
STIFFENER, FRAME SIDE RAIL, REAR RH
9011908276
Крепеж
9011908676
Крепеж
9011910355
Крепеж
9017014026
Крепеж
9017914023
Крепеж
9462111400
Крепеж

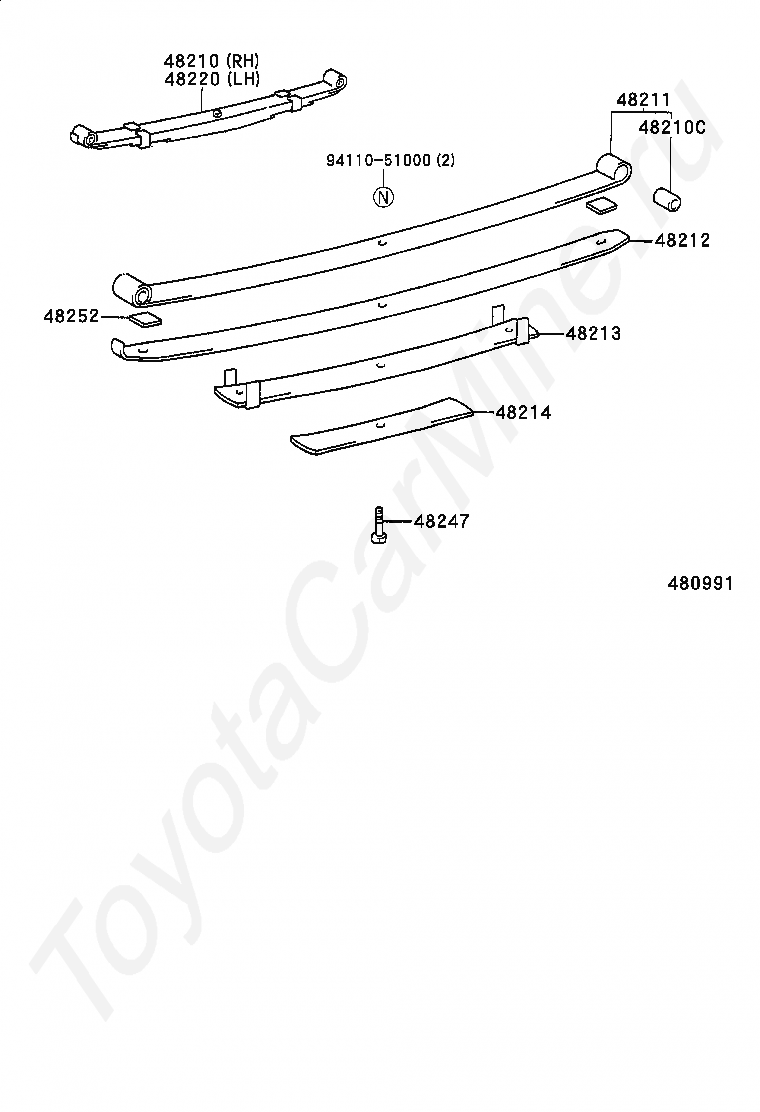

Код
Описание
48210
SPRING ASSY, REAR RH
48210C
BUSH(FOR REAR SPRING LEAF)
48211
LEAF, REAR SPRING, NO.1
48212
LEAF, REAR SPRING, NO.2
48213
LEAF, REAR SPRING, NO.3
48214
LEAF, REAR SPRING, NO.4
48220
SPRING ASSY, REAR LH
48247
BOLT, REAR SPRING, CENTER
48252
SILENCER, REAR SPRING
9411051000
Крепеж
