Каталог
ЕвропаМодель
DYNA200Двигатель
4,1 литра, турбо-дизель, EFIФрейм
BU223Опции
левый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 4 тонны TDEFIGEN IV3 TB

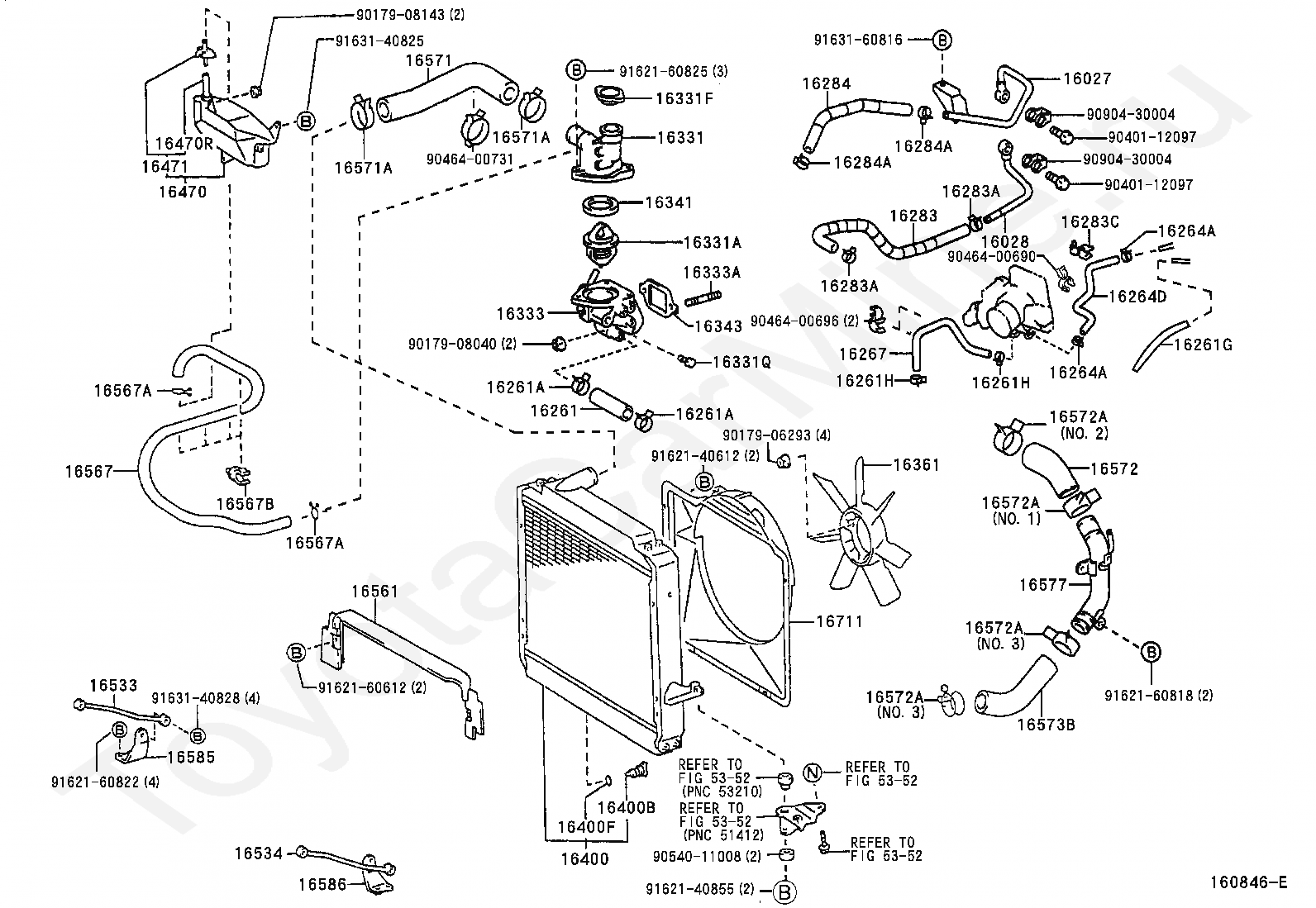

Код
Описание
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16028
PIPE SUB-ASSY, TURBO WATER, NO.2
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16267
HOSE, WATER BY-PASS, NO.3
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283C
CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16284
HOSE, TURBO WATER, NO.1
16284A
CLIP(FOR TURBO WATER HOSE NO.1)
16331
OUTLET, WATER
16331A
THERMOSTAT
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16331Q
PLUG(FOR WATER OUTLET)
16333
HOUSING, WATER OUTLET
16333A
BOLT, STUD(FOR WATER OUTLET HOUSING)
16341
GASKET, WATER OUTLET
16343
GASKET, WATER OUTLET HOUSING
16361
FAN
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470
TANK ASSY, RADIATOR RESERVE
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16533
SUPPORT, RADIATOR, UPPER
16534
SUPPORT, RADIATOR, NO.2
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16567B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16577
PIPE, RADIATOR, NO.7
16585
BRACKET, RADIATOR, NO.3
16586
BRACKET, RADIATOR, NO.4
16711
SHROUD, FAN
5352
переход к группе запчастей
9017906293
Крепеж
9017908040
Крепеж
9017908143
Крепеж
9040112097
Крепеж
9046400690
Крепеж
9046400696
Крепеж
9046400731
Крепеж
9054011008
Крепеж
9090430004
Крепеж
9162140612
Крепеж
9162140855
Крепеж
9162160612
Крепеж
9162160818
Крепеж
9162160822
Крепеж
9162160825
Крепеж
9163140825
Крепеж
9163140828
Крепеж
9163160816
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16443
PLATE, RADIATOR TANK, LOCK, UPPER
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16455
BOLT, RADIATOR SIDE SUPPORT PLATE
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16463
PLATE, RADIATOR TANK, LOCK, LOWER
