Задние амортизаторы TOYOTA DYNA200, 1997/08 - 2002/12, 4,1 литра, дизель, BU222

Каталог

Европа

Модель

DYNA200

Двигатель

4,1 литра, дизель

Фрейм

BU222

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 4 тонны DSL ARL IV3 TB

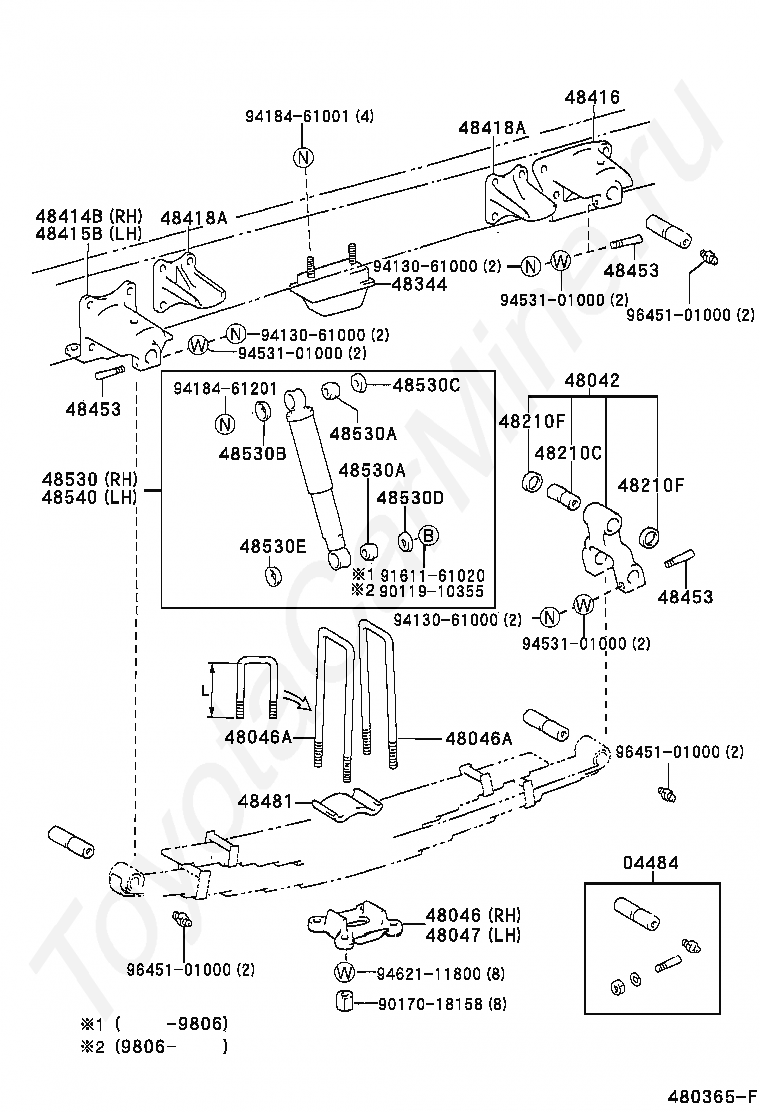

Код

Описание

04484

PIN KIT, REAR SPRING

48042

SHACKLE SUB-ASSY, REAR SPRING, NO.2

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210C

BUSH(FOR REAR SPRING LEAF)

48210F

SEAL, DUST(FOR REAR SPRING PIN)

48344

STOPPER, BUMPER, REAR

48414B

BRACKET, SPRING, NO.3 RH

48415B

BRACKET, SPRING, NO.3 LH

48416

BRACKET, SPRING, NO.4

48418A

BRACKET, HELPER SPRING, FRONT

48453

PIN, REAR SPRING PIN LOCK

48481

SEAT, REAR SPRING, UPPER

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48540

ABSORBER ASSY, SHOCK, REAR LH

9011910355

Крепеж

9017018158

Крепеж

9161161020

Крепеж

9413061000

Крепеж

9418461001

Крепеж

9418461201

Крепеж

9453101000

Крепеж

9462111800

Крепеж

9645101000

Крепеж

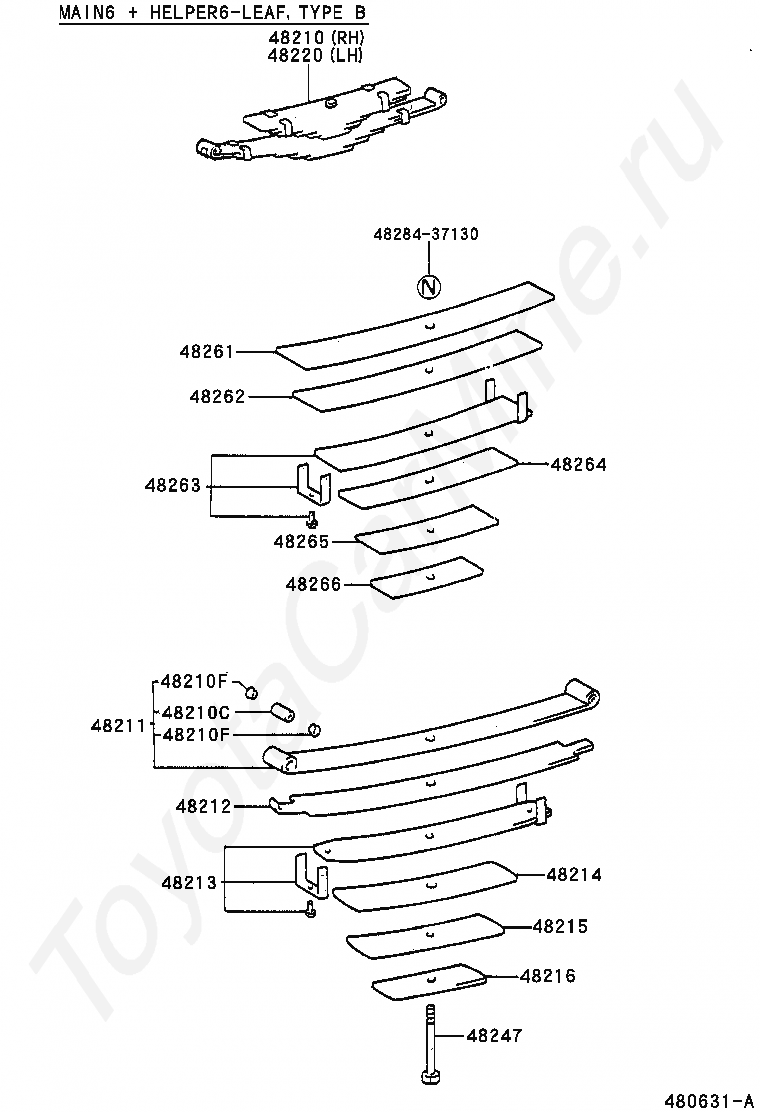

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210F

SEAL, DUST(FOR REAR SPRING PIN)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

4828437130

Крепеж

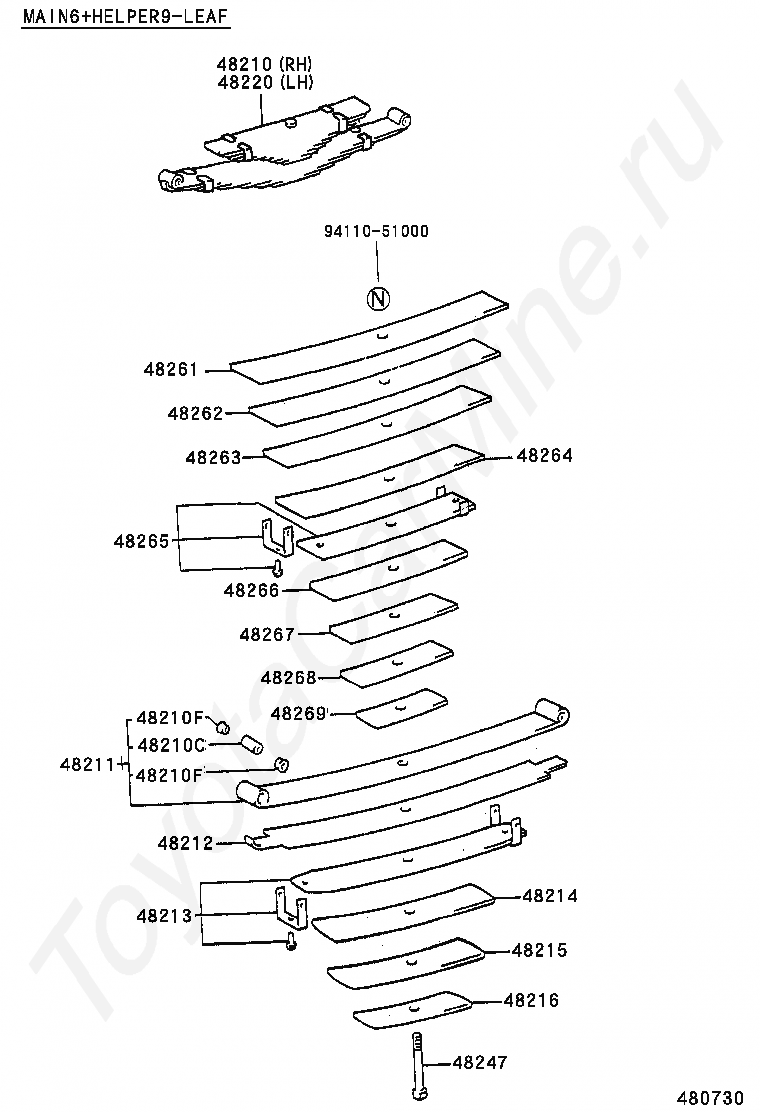

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210F

SEAL, DUST(FOR REAR SPRING PIN)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48268

LEAF, REAR HELPER SPRING, NO.8

48269

LEAF, REAR HELPER SPRING, NO.9

9411051000

Крепеж

Задние амортизаторы TOYOTA DYNA200, 1997/08 - 2002/12, 4,1 литра, дизель, BU222
