Каталог
ЕвропаМодель
DYNA200Двигатель
4,1 литра, дизельФрейм
BU222Опции
правый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 4 тонны DSL ARL IV3 TB

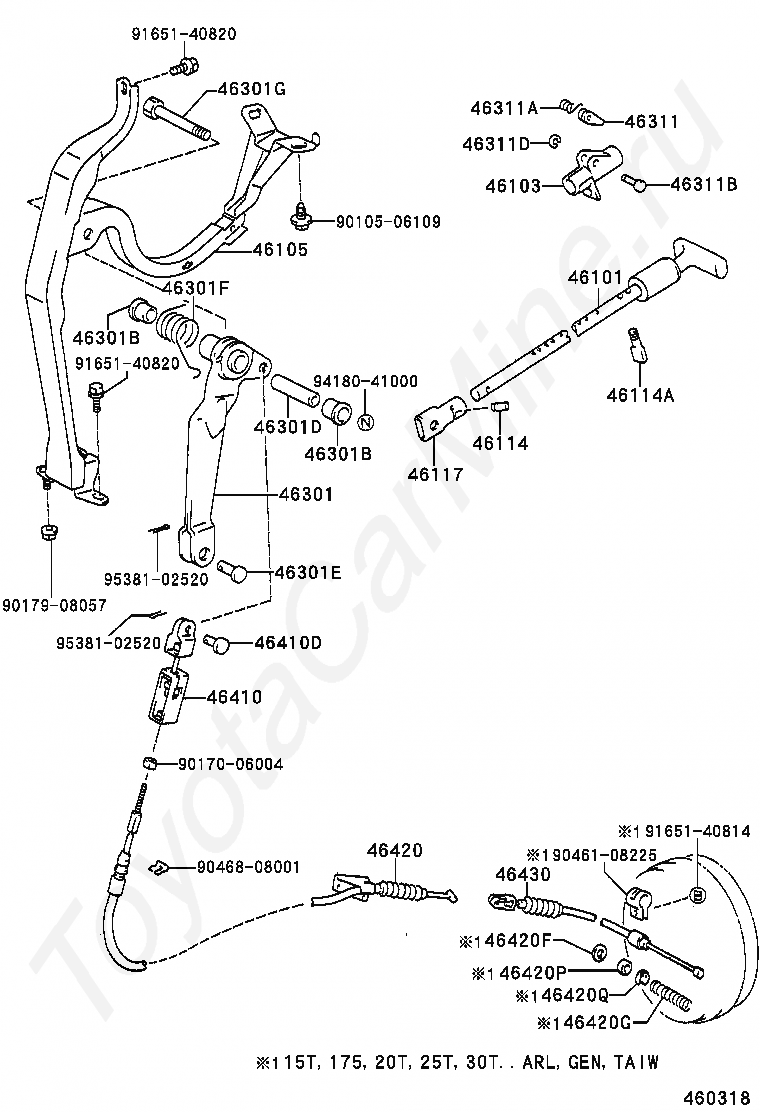

Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46105
BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL
46114
PIN, PARKING BRAKE PLUNGER
46114A
PIN, PARKING BRAKE PLUNGER
46117
SLEEVE, PARKING BRAKE PLUNGER
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301B
BUSH(FOR INTERMEDIATE LEVER)
46301D
COLLAR(FOR INTERMEDIATE LEVER)
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46301F
SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46301G
BOLT(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46311D
WASHER, TYPE C(FOR PARKING BRAKE PAWL)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46420Q
RING, E(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
9010506109
Крепеж
9017006004
Крепеж
9017908057
Крепеж
9046108225
Крепеж
9046808001
Крепеж
9165140814
Крепеж
9165140820
Крепеж
9418041000
Крепеж
9538102520
Крепеж

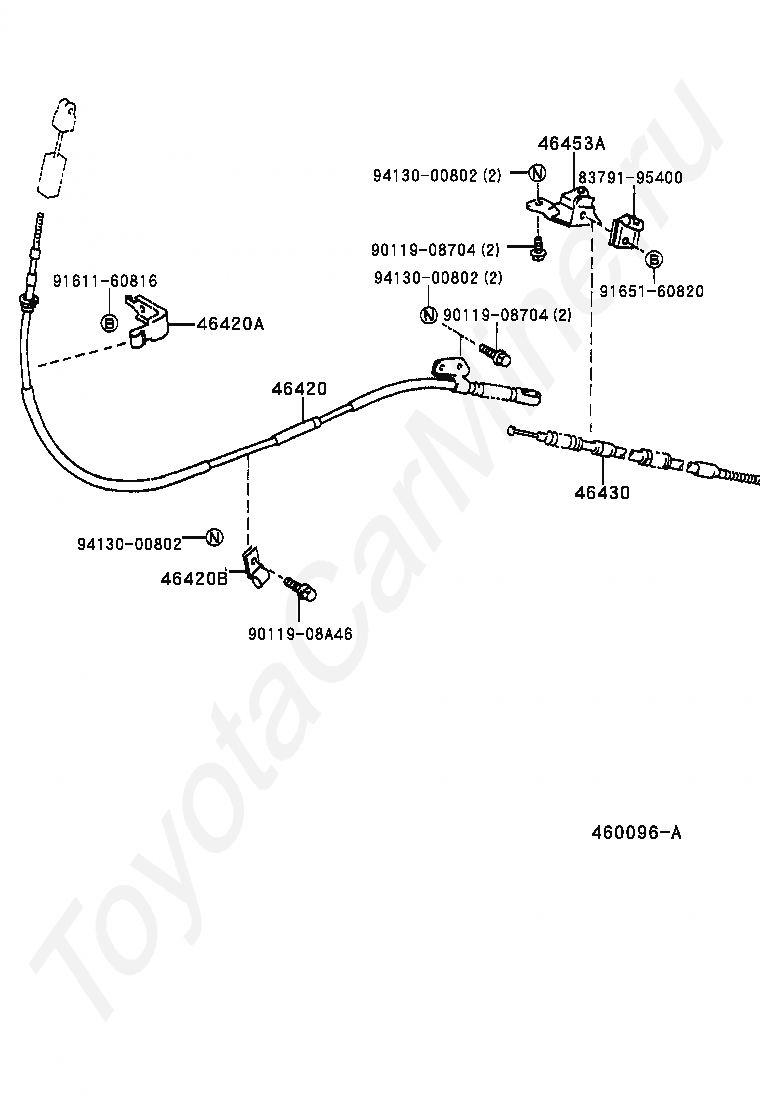

Код
Описание
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420A
CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420B
CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
46453A
BRACKET, CABLE SUPPORT, NO.3
8379195400
Крепеж
9011908704
Крепеж
9011908A46
Крепеж
9161160816
Крепеж
9165160820
Крепеж
9413000802
Крепеж
Код
Описание

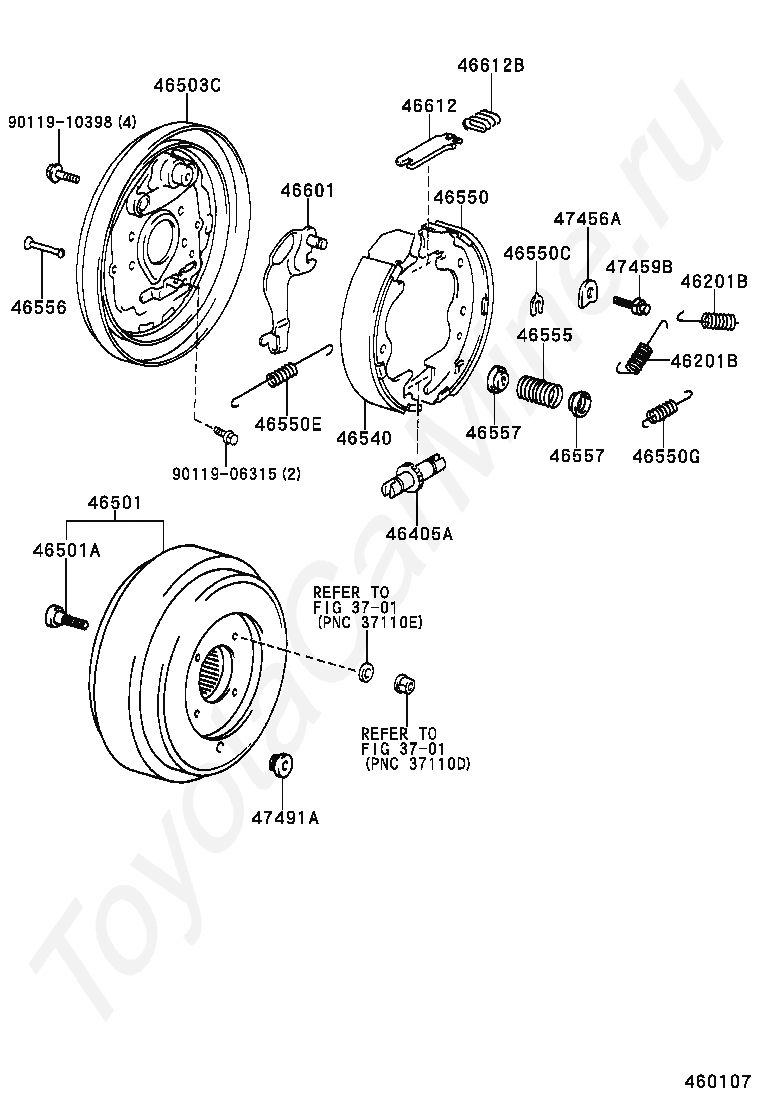

3701
переход к группе запчастей
46201B
SPRING, TENSION
46405A
SCREW SET, SHOE ADJUSTING, RH
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46503C
PLATE SUB-ASSY, PARKING BRAKE
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46557
CUP, BRAKE SHOE HOLD DOWN
46601
LEVER SUB-ASSY, PARKING BRAKE SHOE
46612
STRUT, PARKING BRAKE SHOE LEVER
46612B
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47491A
PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
9011906315
Крепеж
9011910398
Крепеж
