Каталог
ЕвропаМодель
DYNA200Двигатель
3,4 литра, дизельФрейм
BU100Опции
левый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE 2 тонны DSL GEN CBU TS

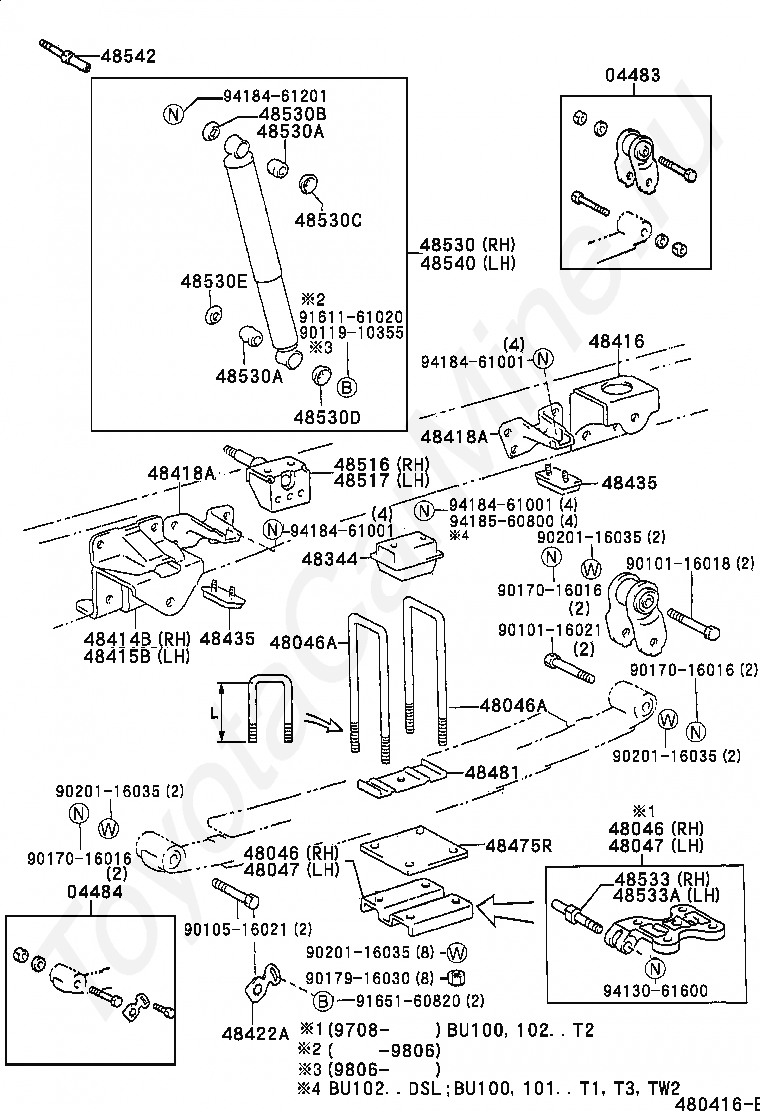

Код
Описание
04483
SHACKLE KIT, REAR SPRING
04484
PIN KIT, REAR SPRING
48046
SEAT SUB-ASSY, SPRING U BOLT, RH
48046A
BOLT, U(FOR REAR SPRING)
48047
SEAT SUB-ASSY, SPRING U BOLT, LH
48191A
WEDGE, CASTER(FOR REAR LEAF SPRING)
48210A
BUSH(FOR REAR SPRING SHACKLE UPPER)
48343
BRACKET, REAR AXLE CUSHION
48344
STOPPER, BUMPER, REAR
48414B
BRACKET, SPRING, NO.3 RH
48415B
BRACKET, SPRING, NO.3 LH
48416
BRACKET, SPRING, NO.4
48422A
SUPPORT, REAR SPRING PIN
48481
SEAT, REAR SPRING, UPPER
48516
BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517
BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530
ABSORBER ASSY, SHOCK, REAR RH
48530A
BUSH(FOR REAR SHOCK ABSORBER)
48530B
WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530C
WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530D
WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530E
WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48533
PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533A
PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48540
ABSORBER ASSY, SHOCK, REAR LH
48542
PIN, SHOCK ABSORBER UPPER PIVOT, REAR
9010116021
Крепеж
9010116025
Крепеж
9010116026
Крепеж
9010516021
Крепеж
9011908276
Крепеж
9011910355
Крепеж
9017016016
Крепеж
9017916030
Крепеж
9020116035
Крепеж
9161161020
Крепеж
9413061600
Крепеж
9418461001
Крепеж
9418461201
Крепеж
9418461601
Крепеж
9418560800
Крепеж
9462111600
Крепеж

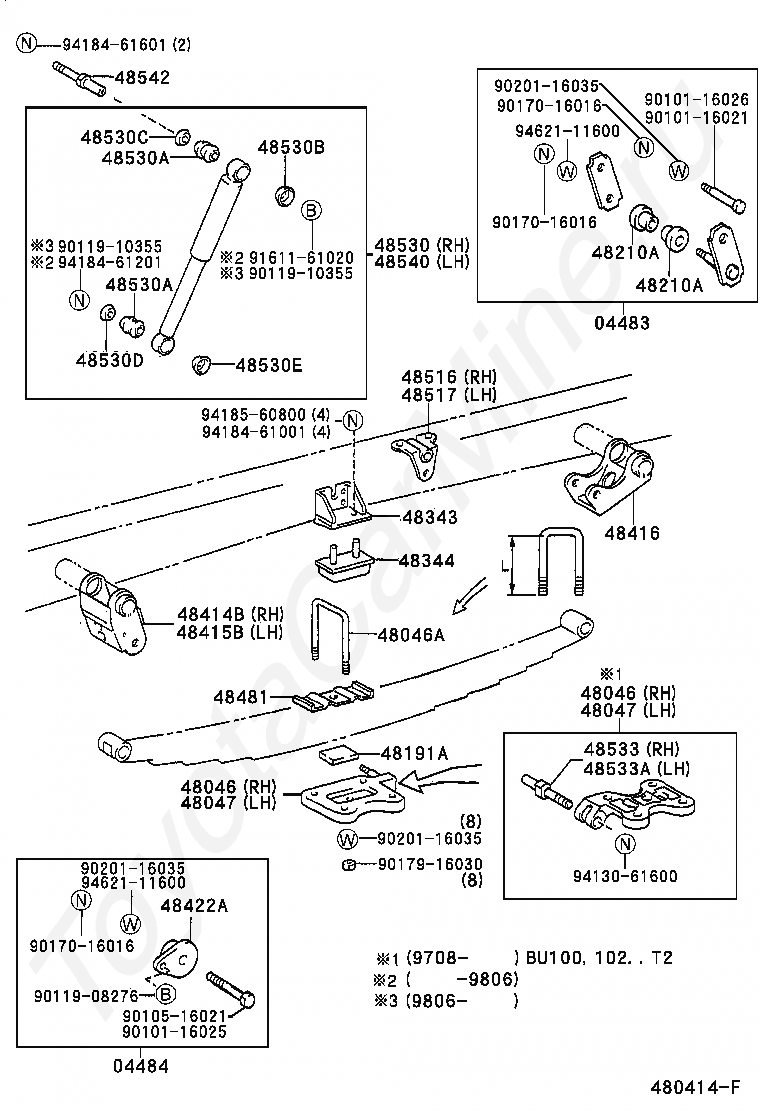

Код
Описание
04483
SHACKLE KIT, REAR SPRING
04484
PIN KIT, REAR SPRING
48046
SEAT SUB-ASSY, SPRING U BOLT, RH
48046A
BOLT, U(FOR REAR SPRING)
48047
SEAT SUB-ASSY, SPRING U BOLT, LH
48344
STOPPER, BUMPER, REAR
48414B
BRACKET, SPRING, NO.3 RH
48415B
BRACKET, SPRING, NO.3 LH
48416
BRACKET, SPRING, NO.4
48418A
BRACKET, HELPER SPRING, FRONT
48422A
SUPPORT, REAR SPRING PIN
48435
ATTACHMENT, HELPER SPRING BRACKET, NO.1
48475R
PLATE, DISTANCE(FOR REAR)
48481
SEAT, REAR SPRING, UPPER
48516
BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517
BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530
ABSORBER ASSY, SHOCK, REAR RH
48530A
BUSH(FOR REAR SHOCK ABSORBER)
48530B
WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530C
WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530D
WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530E
WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48533
PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533A
PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48540
ABSORBER ASSY, SHOCK, REAR LH
48542
PIN, SHOCK ABSORBER UPPER PIVOT, REAR
9010116018
Крепеж
9010116021
Крепеж
9010516021
Крепеж
9011910355
Крепеж
9017016016
Крепеж
9017916030
Крепеж
9020116035
Крепеж
9161161020
Крепеж
9165160820
Крепеж
9418461001
Крепеж
9418461201
Крепеж
9418560800
Крепеж

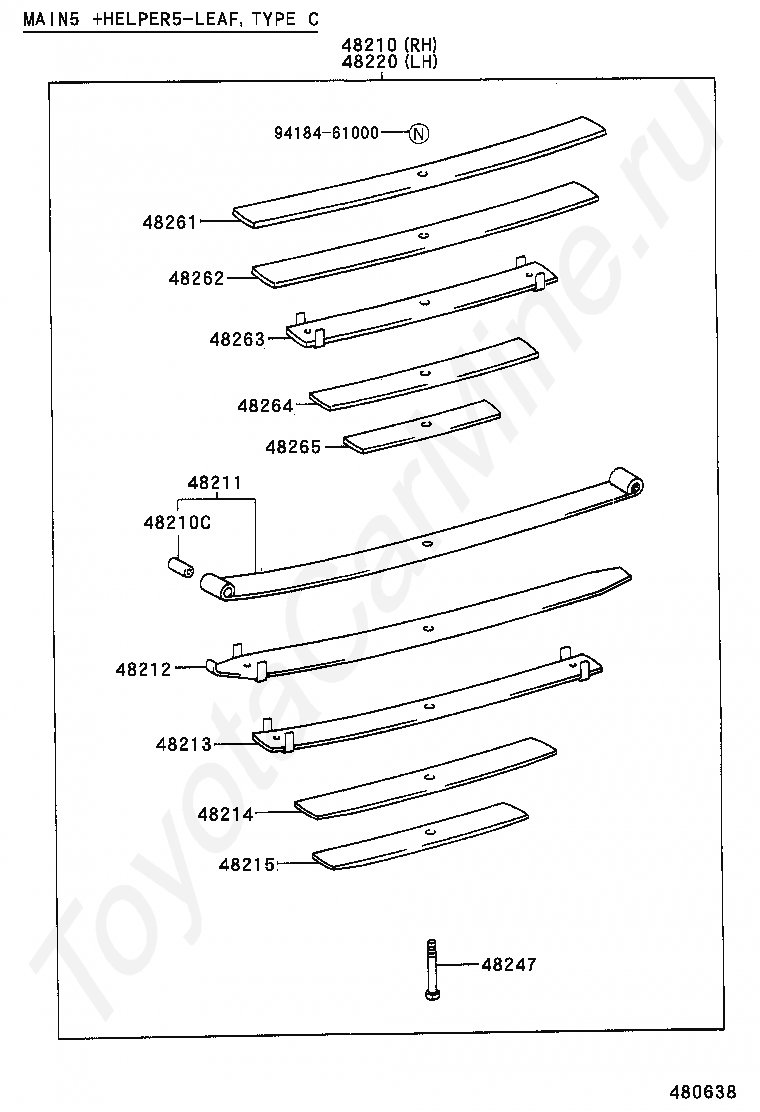

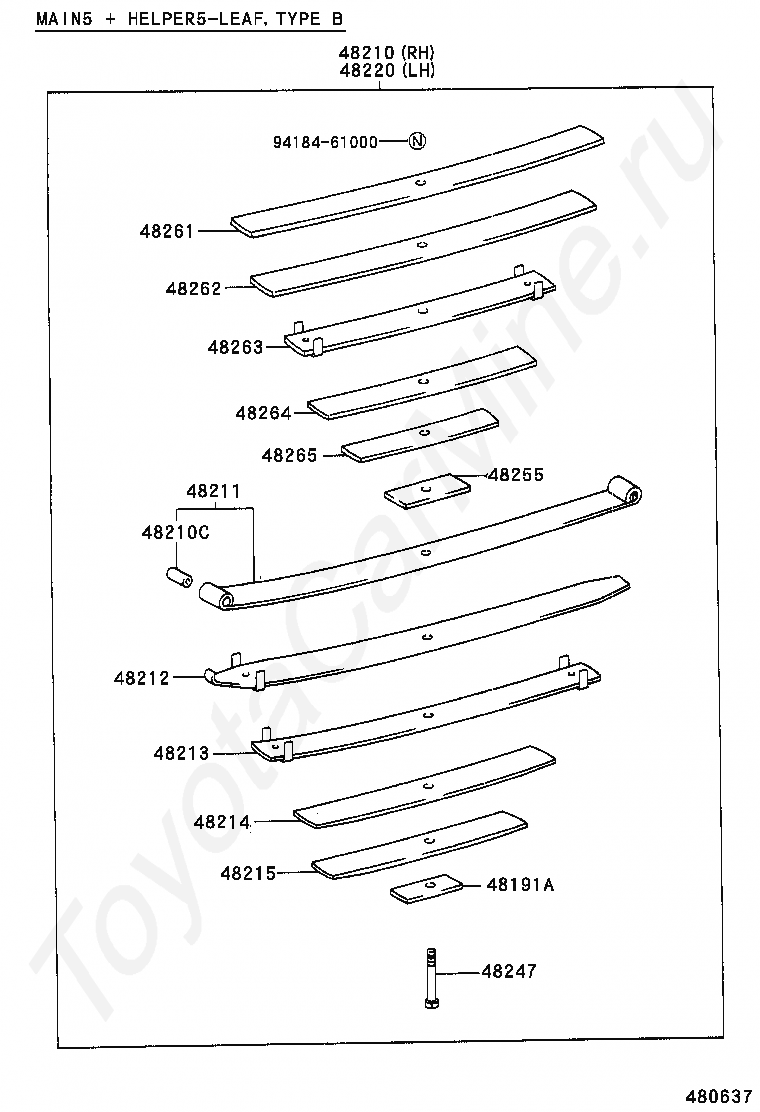

Код
Описание
48191A
WEDGE, CASTER(FOR REAR LEAF SPRING)
48210
SPRING ASSY, REAR RH
48210C
BUSH(FOR REAR SPRING LEAF)
48211
LEAF, REAR SPRING, NO.1
48212
LEAF, REAR SPRING, NO.2
48213
LEAF, REAR SPRING, NO.3
48214
LEAF, REAR SPRING, NO.4
48215
LEAF, REAR SPRING, NO.5
48220
SPRING ASSY, REAR LH
48247
BOLT, REAR SPRING, CENTER
48255
SPACER, REAR SPRING LEAF
48261
LEAF, REAR HELPER SPRING, NO.1
48262
LEAF, REAR HELPER SPRING, NO.2
48263
LEAF, REAR HELPER SPRING, NO.3
48264
LEAF, REAR HELPER SPRING, NO.4
48265
LEAF, REAR HELPER SPRING, NO.5
9418461000
Крепеж
Код
Описание
48210
SPRING ASSY, REAR RH
48210C
BUSH(FOR REAR SPRING LEAF)
48211
LEAF, REAR SPRING, NO.1
48212
LEAF, REAR SPRING, NO.2
48213
LEAF, REAR SPRING, NO.3
48214
LEAF, REAR SPRING, NO.4
48215
LEAF, REAR SPRING, NO.5
48220
SPRING ASSY, REAR LH
48247
BOLT, REAR SPRING, CENTER
48261
LEAF, REAR HELPER SPRING, NO.1
48262
LEAF, REAR HELPER SPRING, NO.2
48263
LEAF, REAR HELPER SPRING, NO.3
48264
LEAF, REAR HELPER SPRING, NO.4
48265
LEAF, REAR HELPER SPRING, NO.5
9418461000
Крепеж
