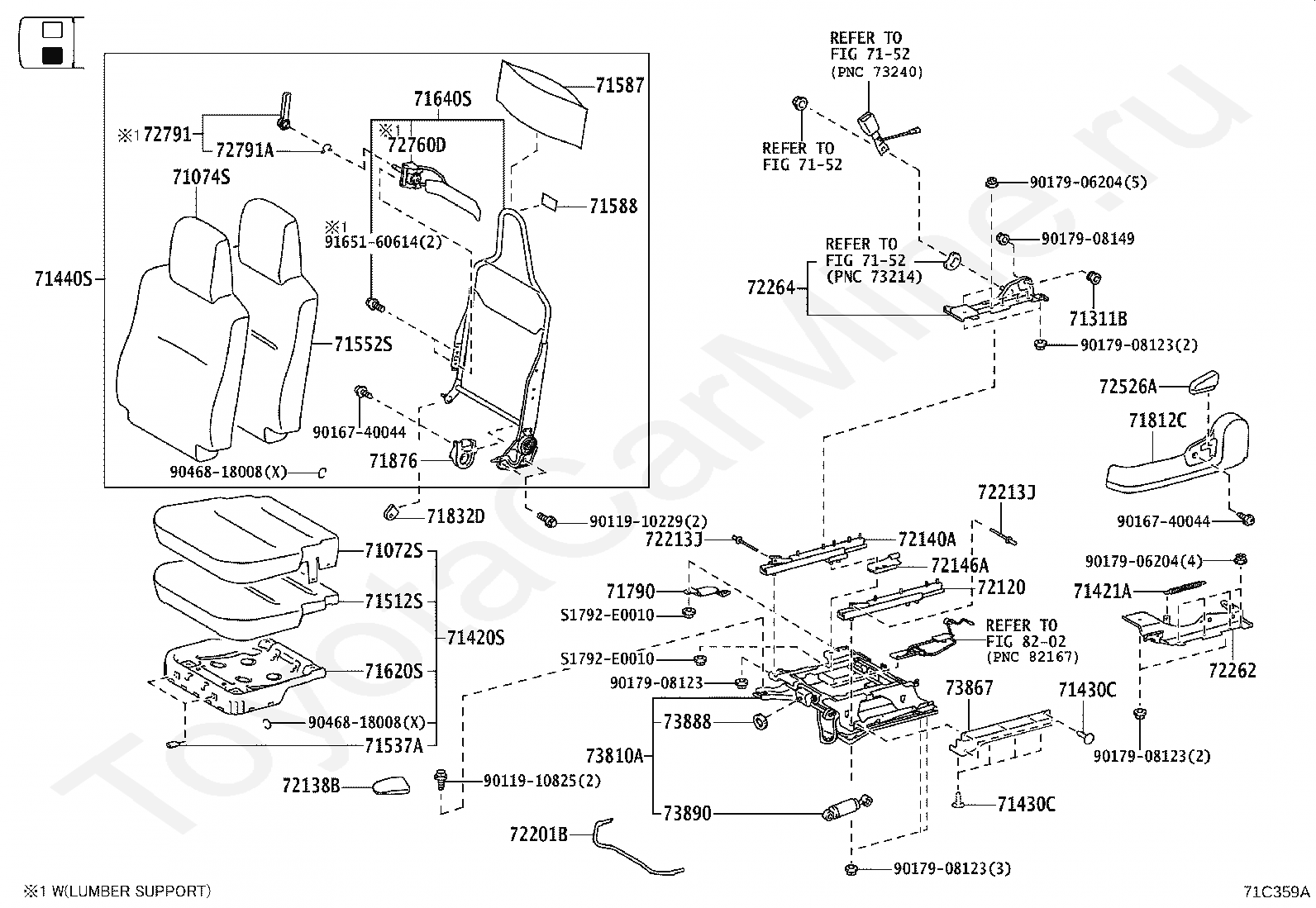

Кресла TOYOTA DYNA, 2013/06 - 2025, 4 литра, дизель, XZU720, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

DYNA

Двигатель

4 литра, дизель

Фрейм

XZU720

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль 7,5 тонн DOUBLE TIRE Европа CHASSIS WITH CAB 534W

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812C

COVER, RECLINING ADJUSTER, LH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72341A

REINFORCE, FRONT SEAT STAND FRAME

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011908C25

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908123

Крепеж

9017908149

Крепеж

9046818008

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71430C

CLIP

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71790

BELT ASSY, SIDE SEAT

71812C

COVER, RECLINING ADJUSTER, LH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72146A

BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72213J

PIN, FRONT SEAT TRACK HANDLE SET

72262

REINFORCEMENT, SEAT TRACK

72264

REINFORCEMENT, INNER SEAT TRACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

73810A

SUSPENSION ASSY, SEAT, LH

73867

GUARD, SEAT SUSPENSION, UPPER

73888

HANDLE, SEAT SUSPENSION CONTROL

73890

ABSORBER ASSY, SEAT SUSPENSION

8202

переход к группе запчастей

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017906204

Крепеж

9017908123

Крепеж

9017908149

Крепеж

9046818008

Крепеж

9165160614

Крепеж

S1792E0010

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71430C

CLIP

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71790

BELT ASSY, SIDE SEAT

71812C

COVER, RECLINING ADJUSTER, LH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72146A

BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72213J

PIN, FRONT SEAT TRACK HANDLE SET

72262

REINFORCEMENT, SEAT TRACK

72264

REINFORCEMENT, INNER SEAT TRACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

73810A

SUSPENSION ASSY, SEAT, LH

73867

GUARD, SEAT SUSPENSION, UPPER

73888

HANDLE, SEAT SUSPENSION CONTROL

73890

ABSORBER ASSY, SEAT SUSPENSION

8202

переход к группе запчастей

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017906204

Крепеж

9017908123

Крепеж

9017908149

Крепеж

9046818008

Крепеж

9165160614

Крепеж

S1792E0010

Крепеж

Код

Описание

71034E

HINGE SUB-ASSY, FRONT CENTER SEAT

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71270

BRACKET ASSY, SEAT, INNER RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011908C25

Крепеж

9011910205

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908233

Крепеж

9046818008

Крепеж

Код

Описание

5855

переход к группе запчастей

71034E

HINGE SUB-ASSY, FRONT CENTER SEAT

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71270

BRACKET ASSY, SEAT, INNER RH

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71350S

BACK ASSY, FRONT SEAT, CENTER

71365S

PAD, CENTER SEAT BACK

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71812G

COVER, RECLINING ADJUSTER, LH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

72693C

HOOK, FRONT SEAT CUSHION LOCK

9011908C25

Крепеж

9011910205

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908233

Крепеж

9046818008

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
