Ручной тормоз TOYOTA DYNA, 1977/08 - 1984/08, 2 литра, TRUCK (EXCLUDING DUMP TRUCK), RU30, МКПП, 5 скоростей

Каталог

Европа

Модель

DYNA

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

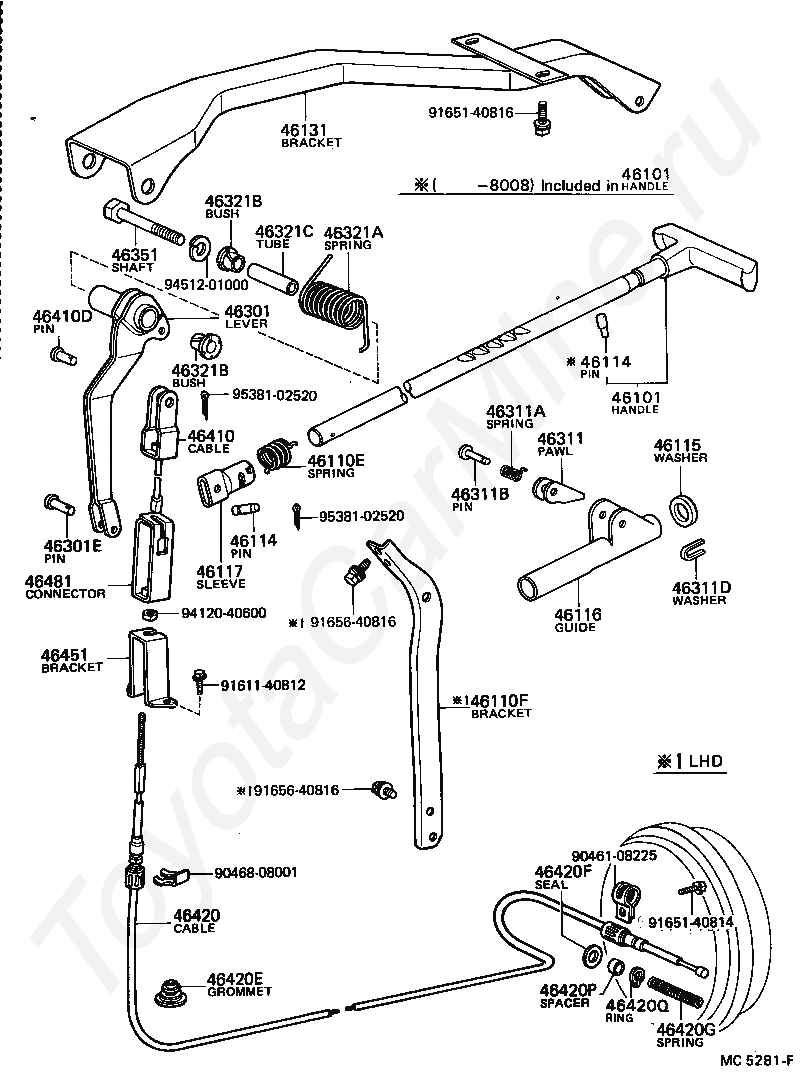

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46110E

SPRING, TORSION(FOR PARKING BRAKE PLUNGER)

46110F

BRACKET, PARKING BRAKE, LOWER

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46116

GUIDE, PARKING BRAKE PLUNGER

46117

SLEEVE, PARKING BRAKE PLUNGER

46131

BRACKET SUB-ASSY, PARKING BRAKE

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46311D

WASHER, TYPE C(FOR PARKING BRAKE PAWL)

46321A

SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

46321B

BUSH(FOR PARKING BRAKE INTERMEDIATE LEVER)

46321C

TUBE(FOR PARKING BRAKE INTERMEDIATE LEVER)

46351

SHAFT, INTERMEDIATE LEVER PIVOT

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410D

PIN(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46451

BRACKET, CABLE SUPPORT

46481

CONNECTOR, PARKING CABLE

9046108225

Крепеж

9046808001

Крепеж

9161140812

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165640816

Крепеж

9412040600

Крепеж

9451201000

Крепеж

9538102520

Крепеж

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46110E

SPRING, TORSION(FOR PARKING BRAKE PLUNGER)

46110F

BRACKET, PARKING BRAKE, LOWER

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46116

GUIDE, PARKING BRAKE PLUNGER

46117

SLEEVE, PARKING BRAKE PLUNGER

46131

BRACKET SUB-ASSY, PARKING BRAKE

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46311D

WASHER, TYPE C(FOR PARKING BRAKE PAWL)

46321A

SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

46321B

BUSH(FOR PARKING BRAKE INTERMEDIATE LEVER)

46321C

TUBE(FOR PARKING BRAKE INTERMEDIATE LEVER)

46351

SHAFT, INTERMEDIATE LEVER PIVOT

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410D

PIN(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46451

BRACKET, CABLE SUPPORT

46481

CONNECTOR, PARKING CABLE

9046108225

Крепеж

9046808001

Крепеж

9161140812

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165640816

Крепеж

9412040600

Крепеж

9451201000

Крепеж

9538102520

Крепеж

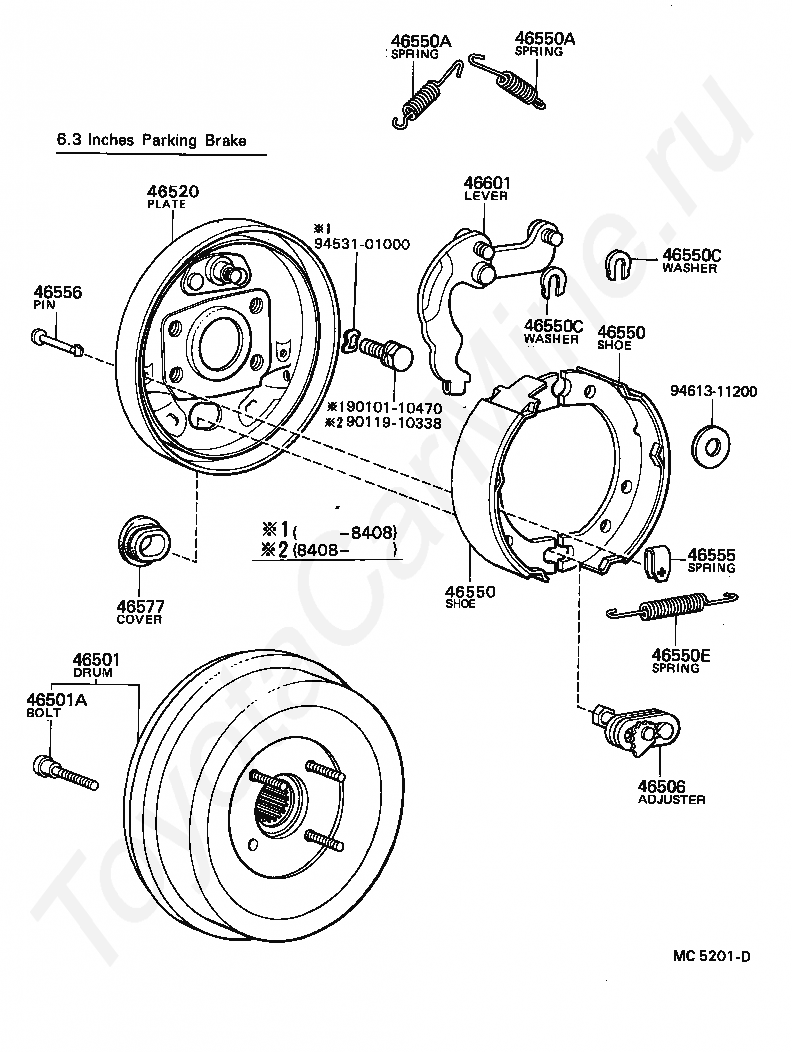

Код

Описание

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

9010110470

Крепеж

9011910338

Крепеж

9453101000

Крепеж

9461311200

Крепеж

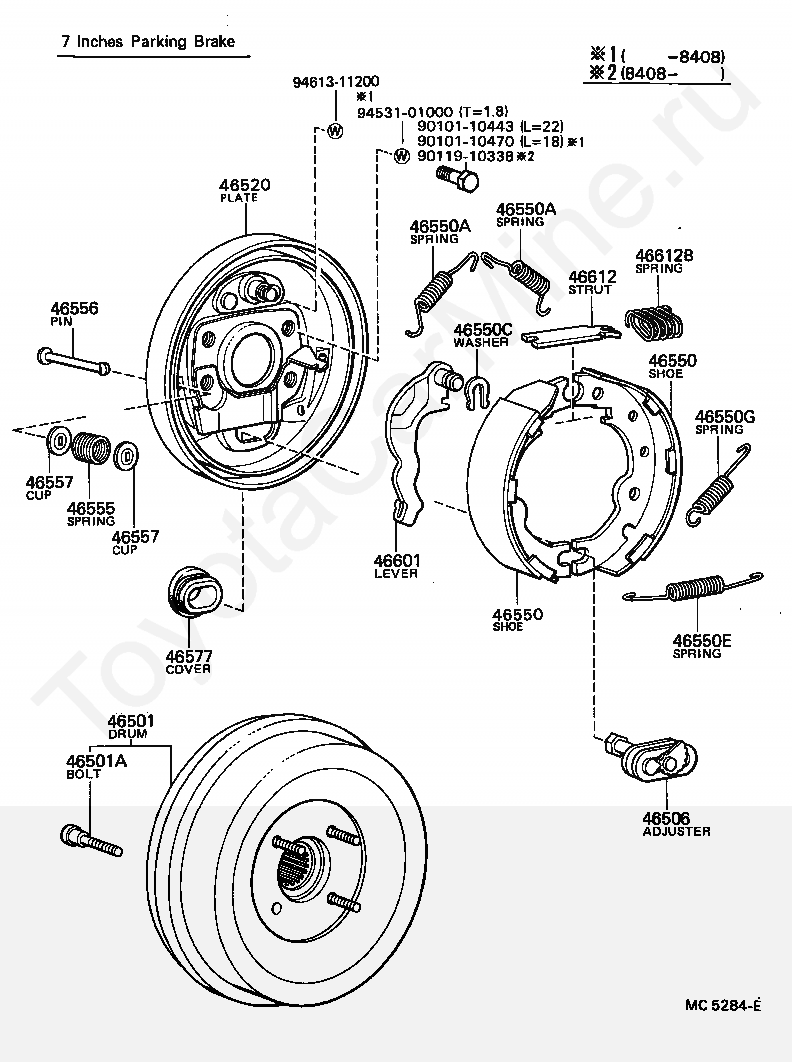

Код

Описание

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46550G

SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46557

CUP, BRAKE SHOE HOLD DOWN

46577

COVER, ADJUSTING CAM HOLE

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

46612

STRUT, PARKING BRAKE SHOE LEVER

46612B

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

9010110443

Крепеж

9010110470

Крепеж

9011910338

Крепеж

9453101000

Крепеж

9461311200

Крепеж

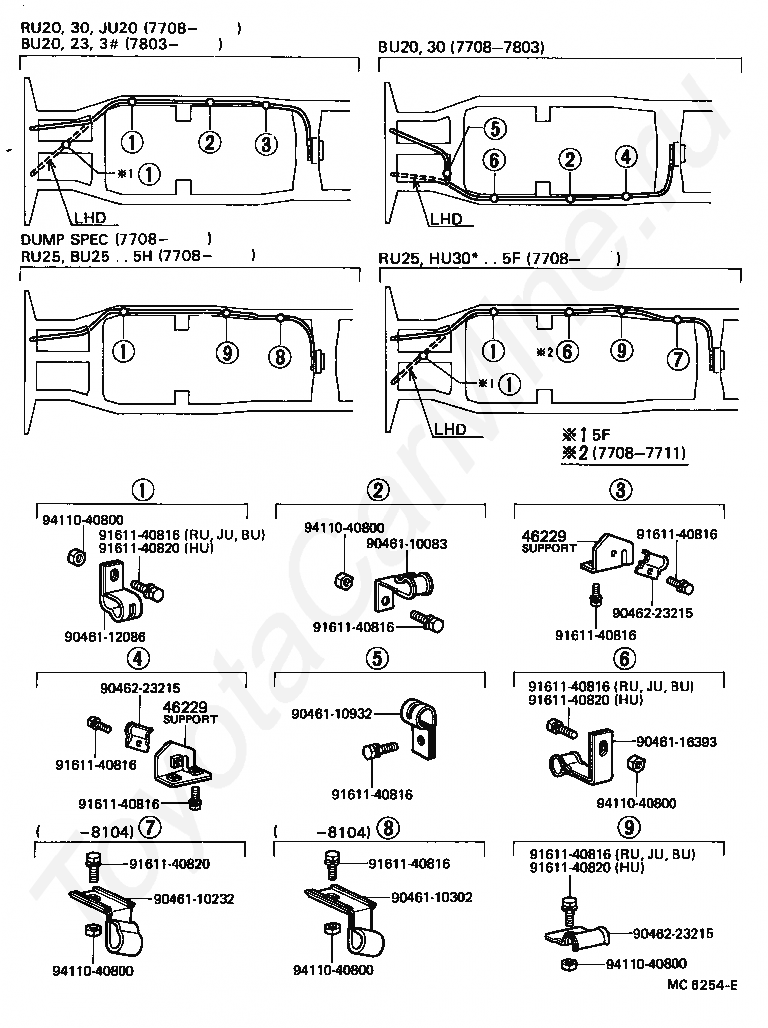

Код

Описание

46229

SUPPORT, PARKING BRAKE CABLE GUIDE

9046110083

Крепеж

9046110232

Крепеж

9046110302

Крепеж

9046110932

Крепеж

9046112086

Крепеж

9046116393

Крепеж

9046223215

Крепеж

9161140816

Крепеж

9161140820

Крепеж

9411040800

Крепеж

Ручной тормоз TOYOTA DYNA, 1977/08 - 1984/08, 2 литра, TRUCK (EXCLUDING DUMP TRUCK), RU30, МКПП, 5 скоростей
