Каталог
ЕвропаМодель
DYNAДвигатель
4 литра, дизельКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
HU50Трансмиссия
МКПП, 5 скоростейОпции
правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT ARL IV3

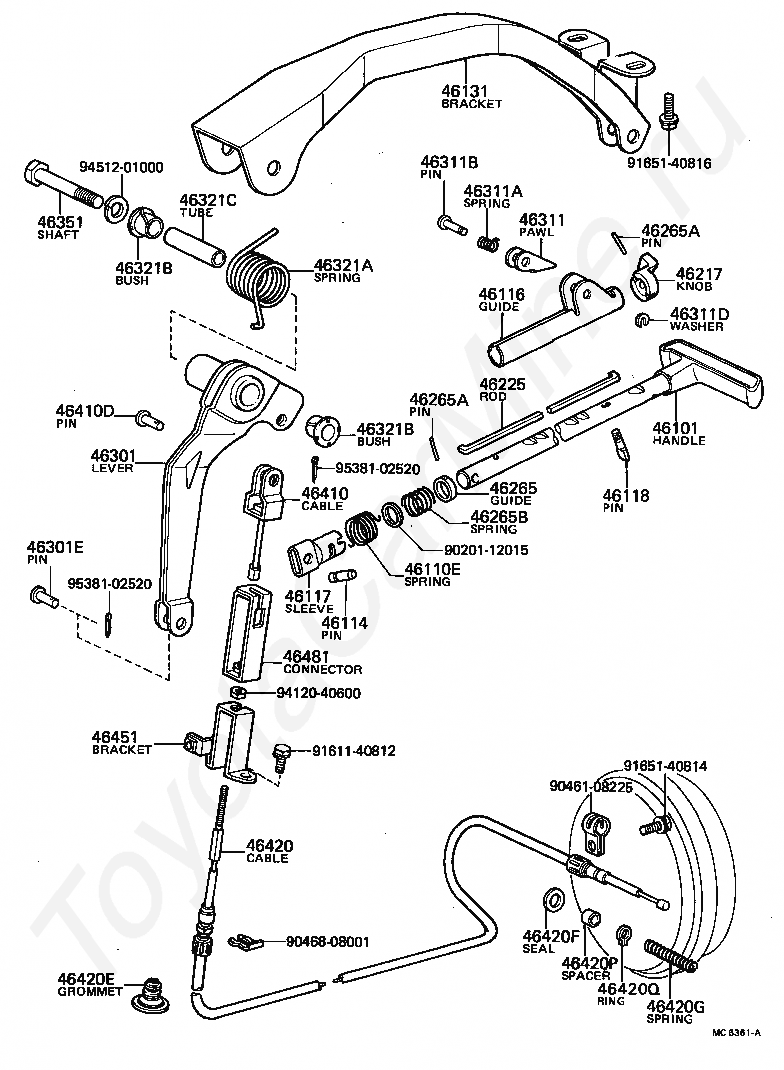

Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46110E
SPRING, TORSION(FOR PARKING BRAKE PLUNGER)
46114
PIN, PARKING BRAKE PLUNGER
46116
GUIDE, PARKING BRAKE PLUNGER
46117
SLEEVE, PARKING BRAKE PLUNGER
46118
PIN, PARKING BRAKE PLUNGER(FOR GUIDE)
46131
BRACKET SUB-ASSY, PARKING BRAKE
46217
KNOB, PARKING BRAKE RELEASE ROD
46225
ROD, PARKING BRAKE PAWL RELEASE
46265
GUIDE, PARKING BRAKE RELEASE ROD
46265A
PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD GUIDE)
46265B
SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD GUIDE)
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46311D
WASHER, TYPE C(FOR PARKING BRAKE PAWL)
46321A
SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46321B
BUSH(FOR PARKING BRAKE INTERMEDIATE LEVER)
46321C
TUBE(FOR PARKING BRAKE INTERMEDIATE LEVER)
46351
SHAFT, INTERMEDIATE LEVER PIVOT
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420E
GROMMET(FOR PARKING BRAKE CABLE CLAMP)
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46420Q
RING, E(FOR PARKING BRAKE CABLE)
46451
BRACKET, CABLE SUPPORT
46481
CONNECTOR, PARKING CABLE
9020112015
Крепеж
9046108225
Крепеж
9046808001
Крепеж
9161140812
Крепеж
9165140814
Крепеж
9165140816
Крепеж
9412040600
Крепеж
9451201000
Крепеж
9538102520
Крепеж
Код
Описание
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46506
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46520
PLATE SUB-ASSY, PARKING BRAKE
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46577
COVER, ADJUSTING CAM HOLE
46601
LEVER SUB-ASSY, PARKING BRAKE SHOE
9010110470
Крепеж
9011910338
Крепеж
9453101000
Крепеж
9461311200
Крепеж
Код
Описание
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46506
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46520
PLATE SUB-ASSY, PARKING BRAKE
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46557
CUP, BRAKE SHOE HOLD DOWN
46577
COVER, ADJUSTING CAM HOLE
46601
LEVER SUB-ASSY, PARKING BRAKE SHOE
46612
STRUT, PARKING BRAKE SHOE LEVER
46612B
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
9010110443
Крепеж
9010110470
Крепеж
9011910338
Крепеж
9453101000
Крепеж
9461311200
Крепеж

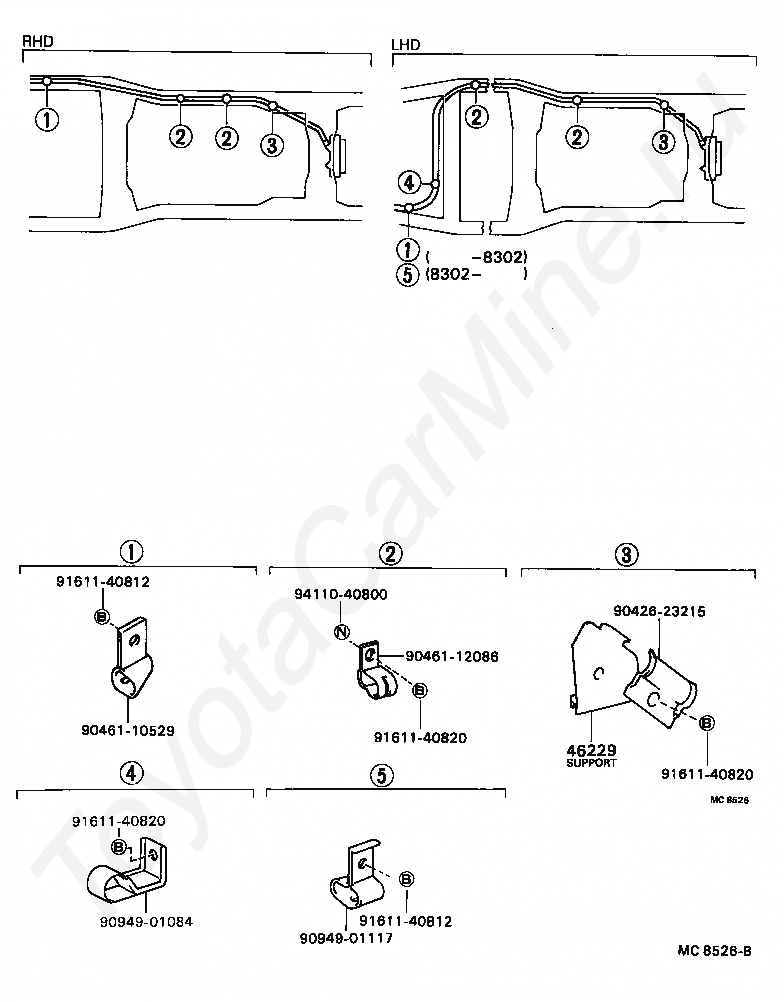

Код
Описание
46229
SUPPORT, PARKING BRAKE CABLE GUIDE
9042623215
Крепеж
9046110529
Крепеж
9046112086
Крепеж
9094901084
Крепеж
9094901117
Крепеж
9161140812
Крепеж
9161140820
Крепеж
9411040800
Крепеж
