Рулевая рейка и наконечники TOYOTA DELIBOY, 1989/07 - 1995/11, 1,5 литра, V(MODEL MARK), STANDARD TYPE, KXC10, механика, МКПП, 5 скоростей, на руле

Каталог

Япония

Модель

DELIBOY

Двигатель

1,5 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KXC10

Трансмиссия

механика МКПП, 5 скоростей, на руле

Опции

2-местный

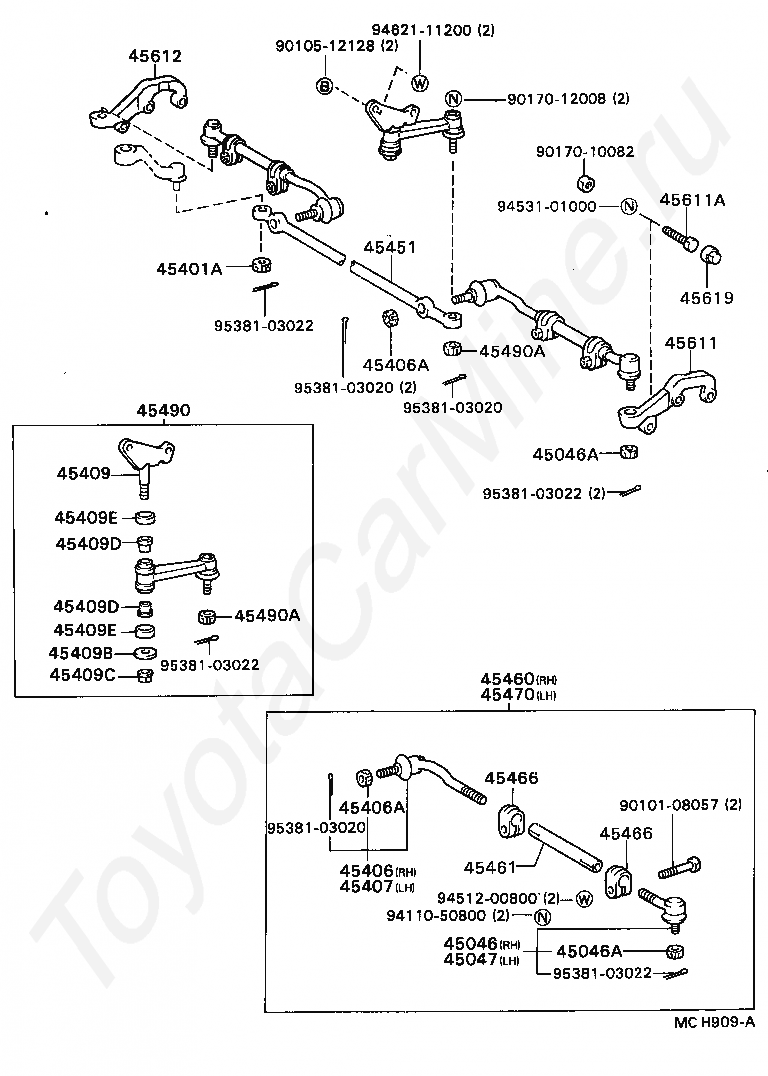

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45401A

NUT, CASTLE(FOR PITMAN ARM)

45406

ROD SUB-ASSY, TIE, RH

45406A

NUT, CASTLE(FOR TIE ROD)

45407

ROD SUB-ASSY, TIE, LH

45409

SUPPORT SUB-ASSY, IDLER ARM

45409B

WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

45409C

NUT(FOR IDLER ARM SUPPORT)

45409D

BUSH(FOR IDLER ARM)

45409E

SEAL, DUST(FOR IDLER ARM SUPPORT)

45451

ROD, STEERING RELAY

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45490

ARM ASSY, STEERING IDLER

45490A

NUT, CASTLE(FOR IDLER ARM)

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

9010108057

Крепеж

9010512128

Крепеж

9017010082

Крепеж

9017012008

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9453101000

Крепеж

9462111200

Крепеж

9538103020

Крепеж

9538103022

Крепеж

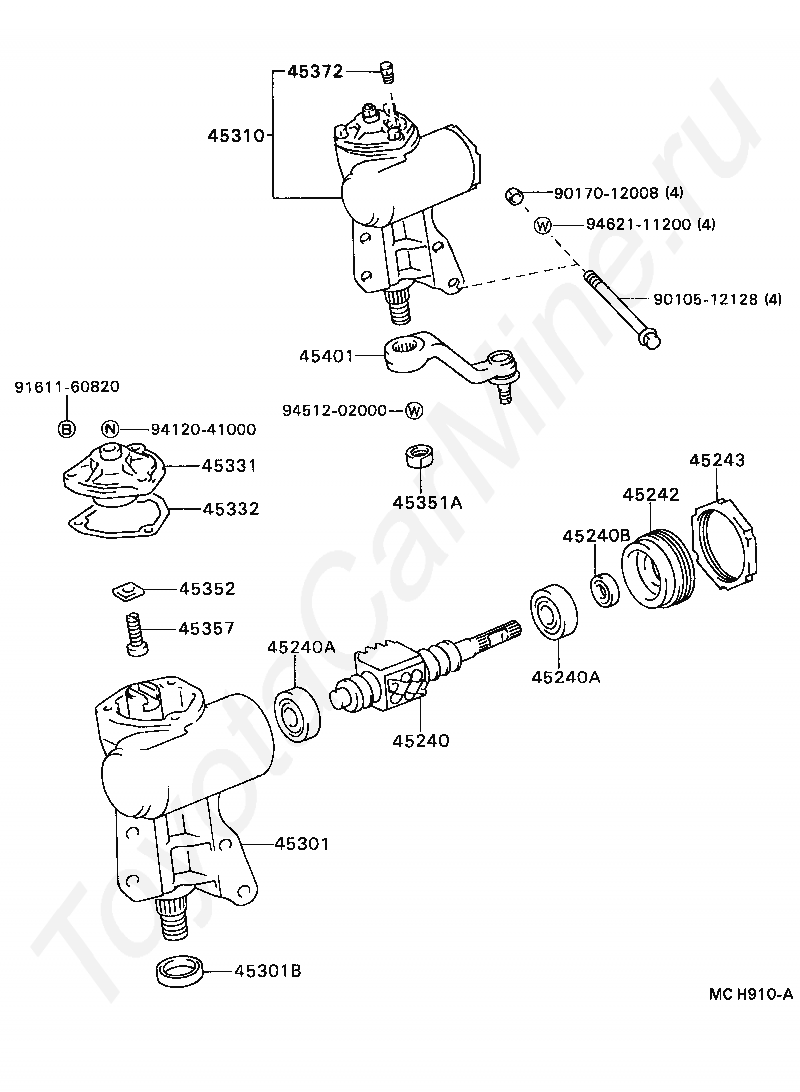

Код

Описание

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45310

HOUSING ASSY, STEERING GEAR

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

9010512128

Крепеж

9017012008

Крепеж

9161160820

Крепеж

9412041000

Крепеж

9451202000

Крепеж

9462111200

Крепеж

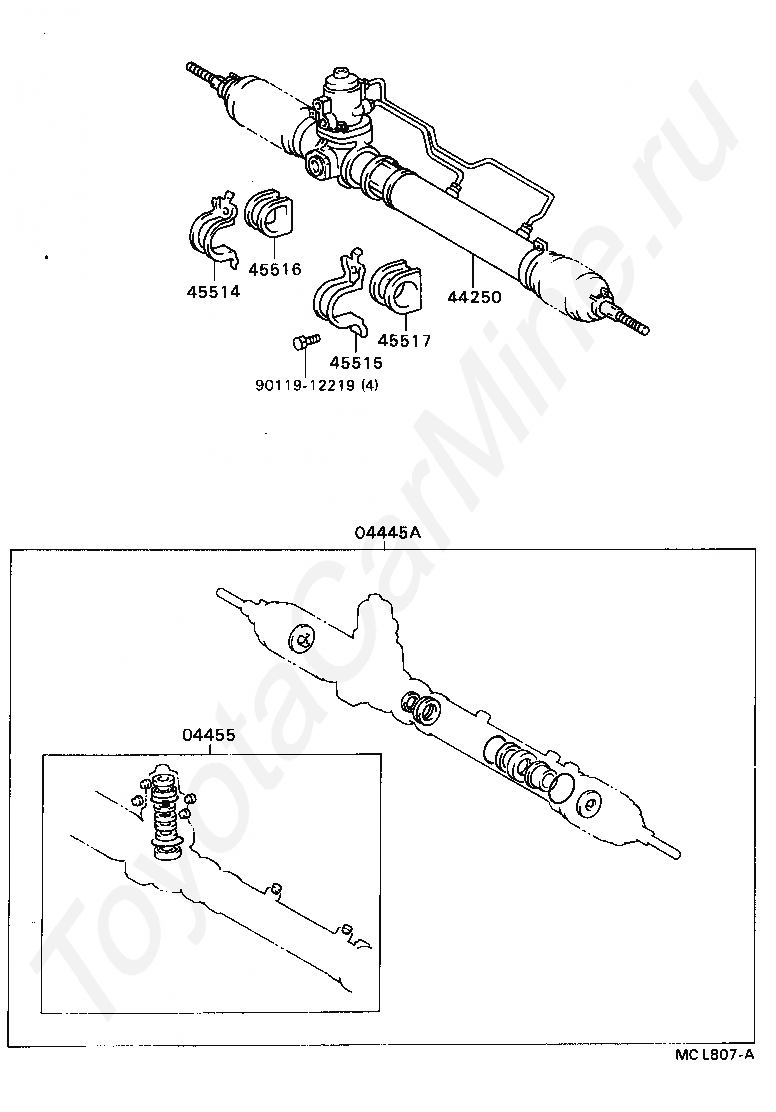

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

9011912219

Крепеж

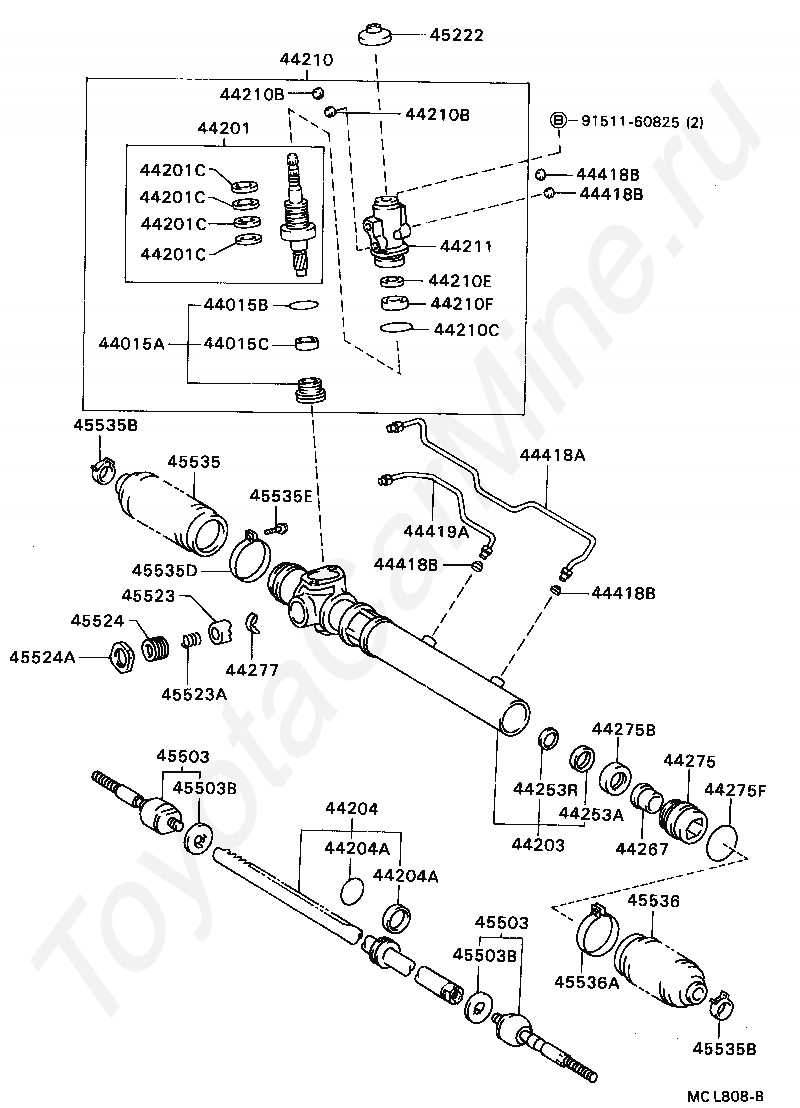

Код

Описание

44015A

NUT SUB-ASSY, BEARING GUIDE

44015B

RING, O(FOR BEARING GUIDE NUT)

44015C

SEAL, OIL(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44203

HOUSING SUB-ASSY, POWER STEERING RACK

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44210F

BEARING(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44253R

SPACER(FOR POWER STEERING RACK HOUSING)

44267

GUIDE, RACK END

44275

STOPPER, CYLINDER END

44275B

SEAL, OIL(FOR CYLINDER END STOPPER)

44275F

RING, O(FOR CYLINDER END STOPPER)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

45222

COVER, STEERING GEAR DUST

45503

END SUB-ASSY, STEERING RACK

45503B

WASHER, CLAW(FOR STEERING RACK END)

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45535E

SCREW(FOR STEERING RACK BOOT CLAMP)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

9151160825

Крепеж

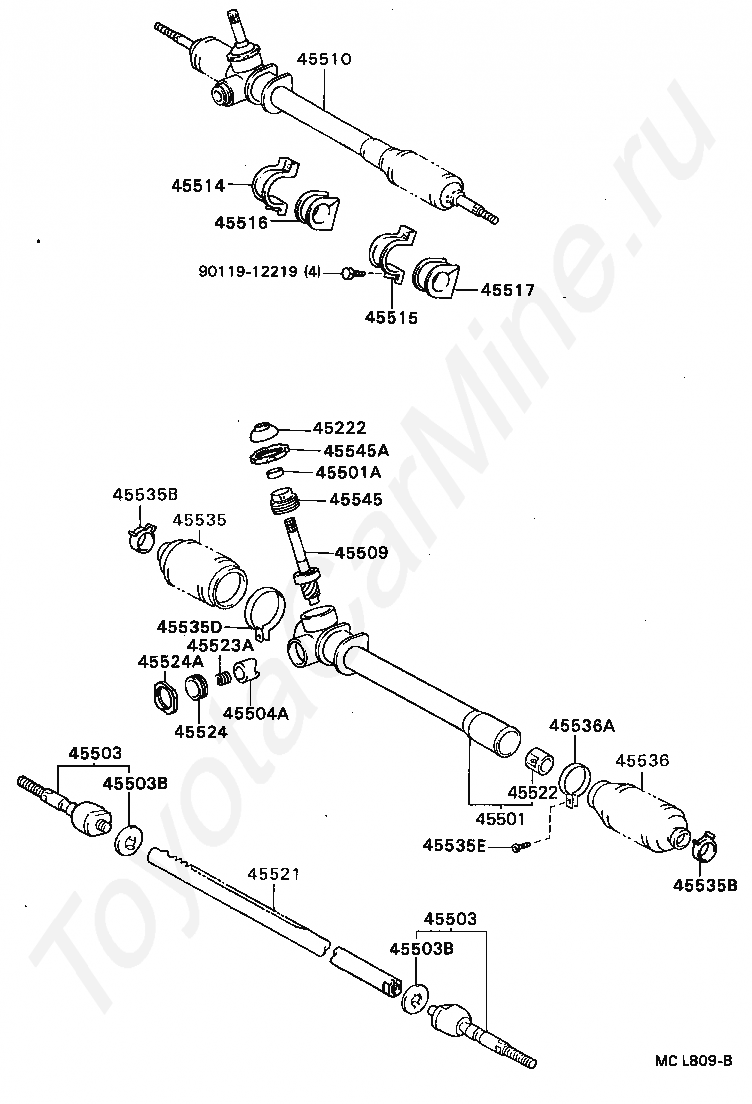

Код

Описание

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503B

WASHER, CLAW(FOR STEERING RACK END)

45504A

GUIDE SUB-ASSY, RACK

45509

PINION SUB-ASSY, STEERING

45510

GEAR ASSY, STEERING

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535B

CLIP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45535E

SCREW(FOR STEERING RACK BOOT CLAMP)

45536

BOOT, STEERING RACK, NO.2

45536A

CLAMP(FOR STEERING RACK BOOT NO.2)

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9011912219

Крепеж

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

9017010082

Крепеж

9017014012

Крепеж

9019014012

Крепеж

9025203005

Крепеж

9453101000

Крепеж

Рулевая рейка и наконечники TOYOTA DELIBOY, 1989/07 - 1995/11, 1,5 литра, V(MODEL MARK), STANDARD TYPE, KXC10, механика, МКПП, 5 скоростей, на руле
