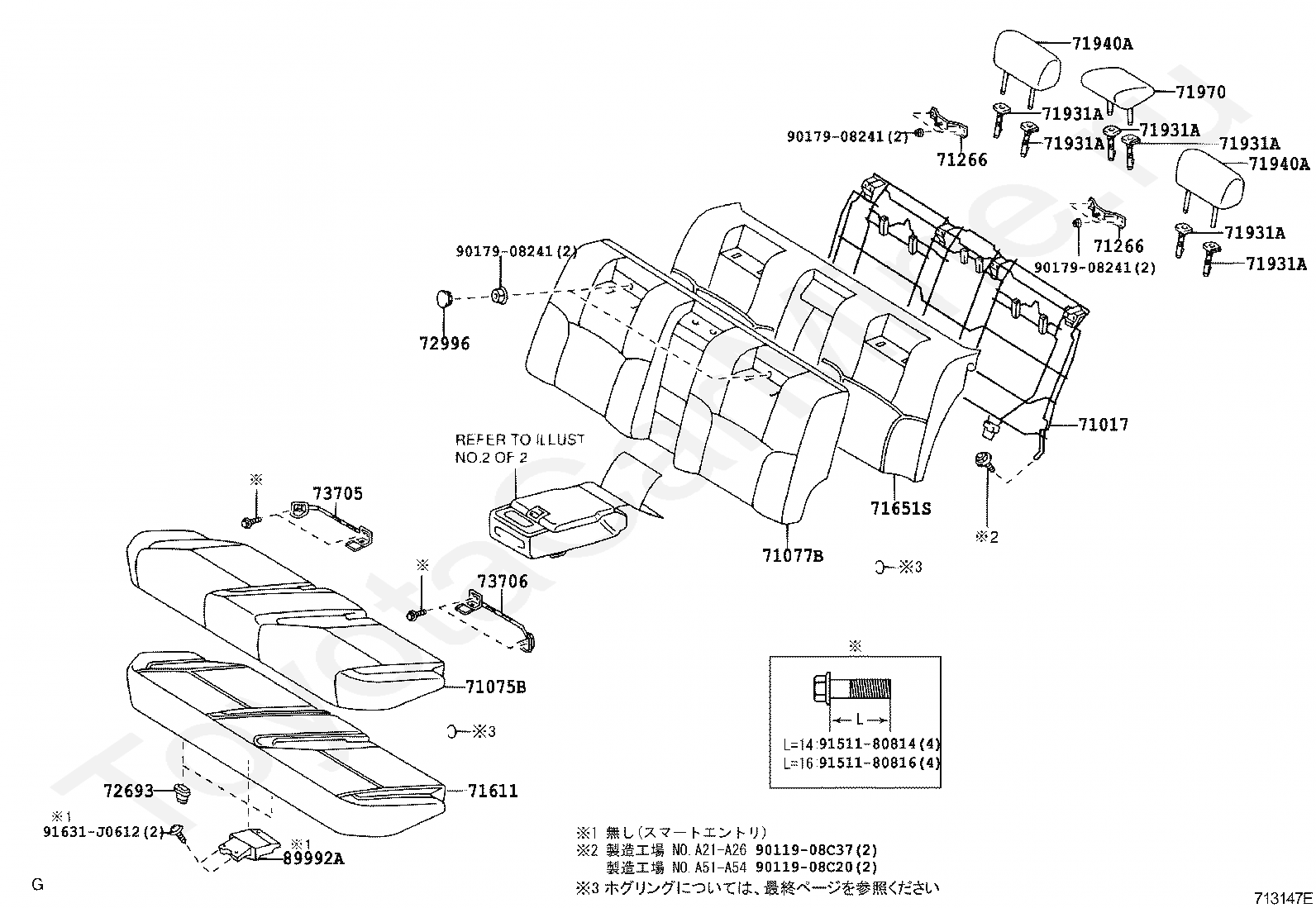

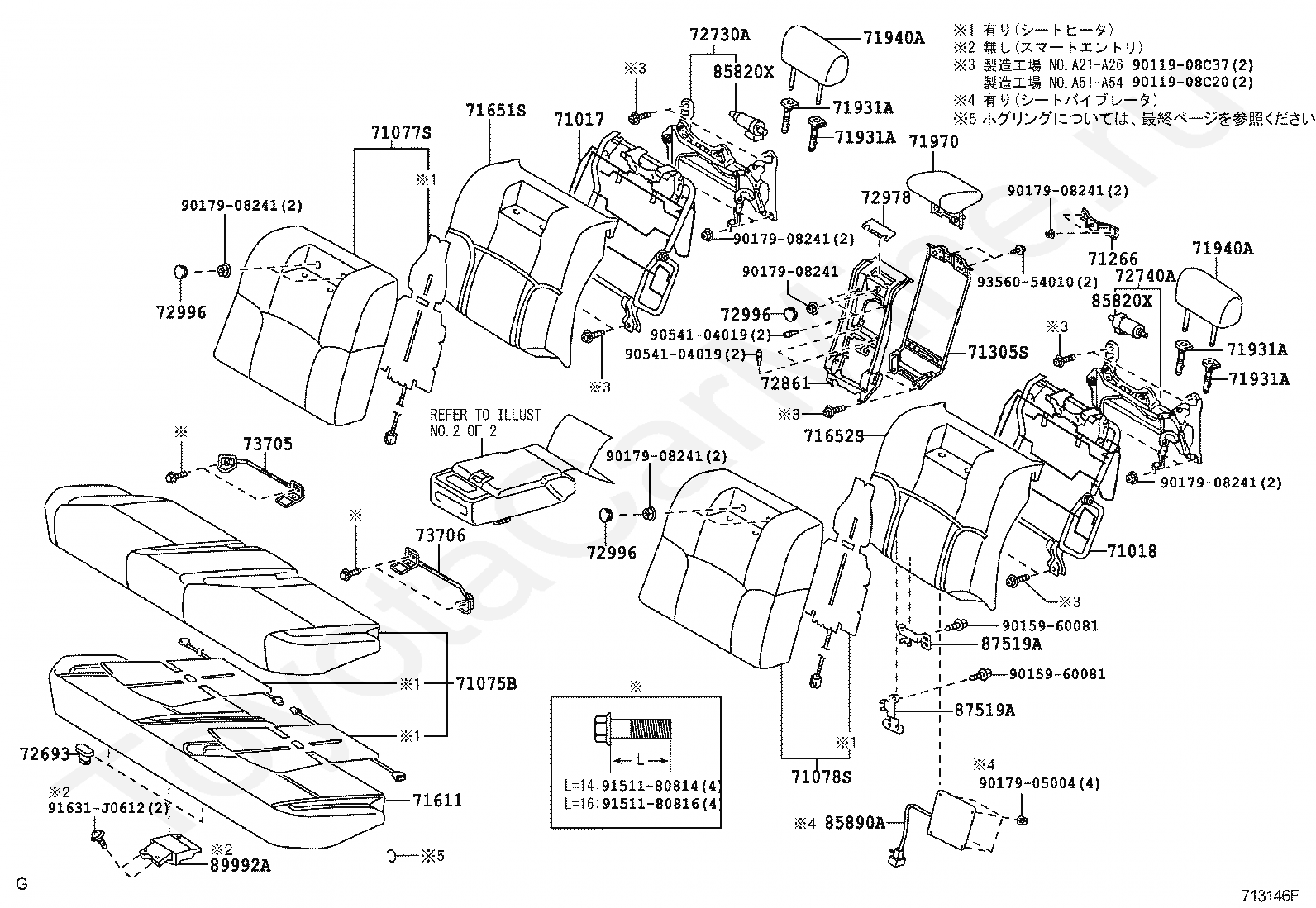

Задние кресла TOYOTA CROWN/MAJESTA, 2005/09 - 2008/02, 2,5 литра, 24 клапана DOHC EFI, седан, ROYAL EXTRA,ROYAL EXTRA FOUR, GRS180, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

CROWN/MAJESTA

Двигатель

2,5 литра, 24 клапана DOHC EFI

Кузов

седан

Класс

ROYAL EXTRA,ROYAL EXTRA FOUR

Фрейм

GRS180

Трансмиссия

автомат АКПП, 6 скоростей

Опции

двигатель с прямым впрыском топлива 336W

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71266

GUSSET, REAR SEAT BACK FRAME

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71970

HEADREST ASSY, REAR SEAT

72693

HOOK, REAR SEAT CUSHION LOCK

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72861

TRIM, CENTER ARMREST CORNER

72978

COVER, NO.2 CENTER SEAT BACK

72996

COVER, REAR SEAT BACK, RH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

85820X

MOTOR ASSY, POWER SEAT

85890A

VIBRATOR ASSY, SEAT

87519A

BRACKET, SEAT HEATER CONNECTOR CLAMP

89992A

CASE, LESS OSCILLATOR ELECTRICAL KEY

9011908C20

Крепеж

9011908C37

Крепеж

9015960081

Крепеж

9017905004

Крепеж

9017908241

Крепеж

9054104019

Крепеж

9151180814

Крепеж

9151180816

Крепеж

91631J0612

Крепеж

9356054010

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71266

GUSSET, REAR SEAT BACK FRAME

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71970

HEADREST ASSY, REAR SEAT

72693

HOOK, REAR SEAT CUSHION LOCK

72996

COVER, REAR SEAT BACK, RH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

89992A

CASE, LESS OSCILLATOR ELECTRICAL KEY

9011908C20

Крепеж

9011908C37

Крепеж

9017908241

Крепеж

9151180814

Крепеж

9151180816

Крепеж

91631J0612

Крепеж

Код

Описание

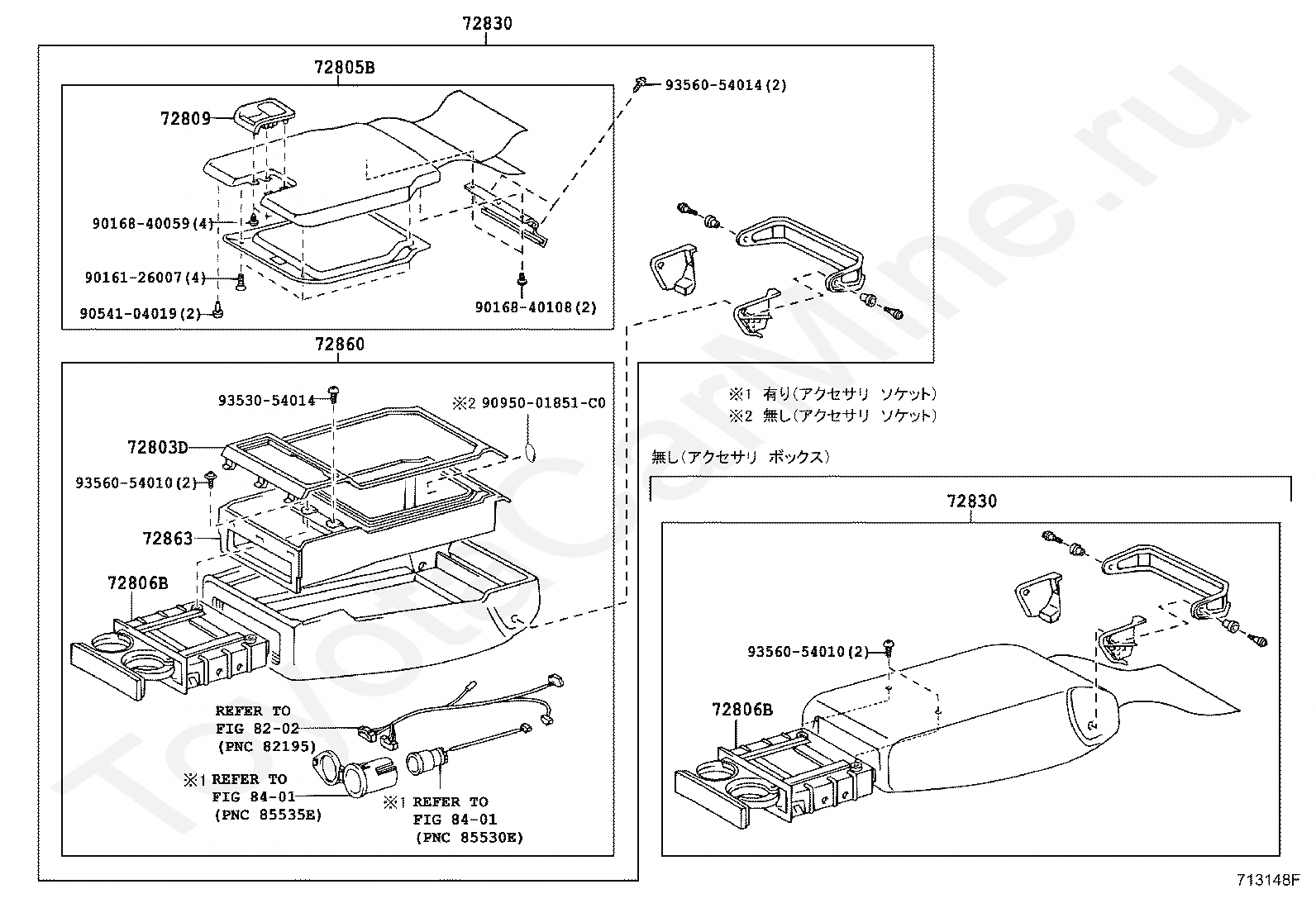

72803D

PANEL SUB-ASSY, REAR SEAT CENTER ARMREST

72805B

DOOR SUB-ASSY, REAR SEAT CENTER ARMREST

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72809

LOCK SUB-ASSY, CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72860

BOX ASSY, REAR SEAT CENTER ARMREST

72863

BOX, REAR SEAT CENTER ARMREST

8202

переход к группе запчастей

8401

переход к группе запчастей

9016126007

Крепеж

9016840059

Крепеж

9016840108

Крепеж

9054104019

Крепеж

9095001851C0

Крепеж

9353054014

Крепеж

9356054010

Крепеж

9356054014

Крепеж

Код

Описание

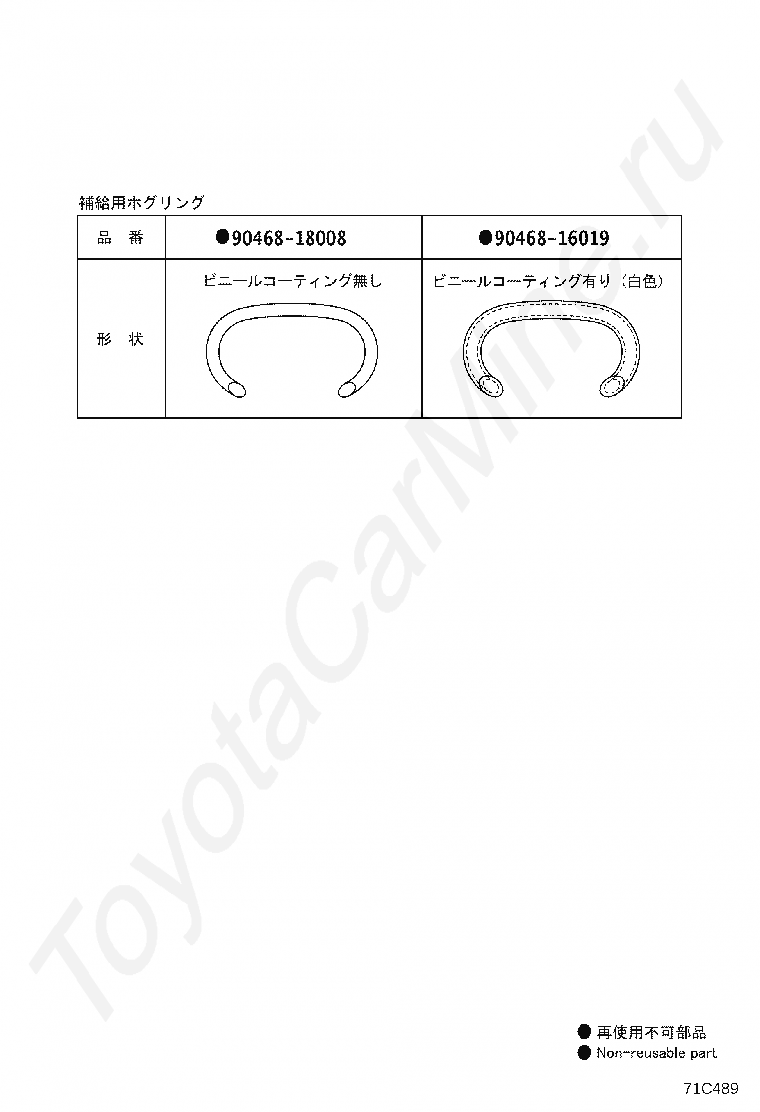

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA CROWN/MAJESTA, 2005/09 - 2008/02, 2,5 литра, 24 клапана DOHC EFI, седан, ROYAL EXTRA,ROYAL EXTRA FOUR, GRS180, автомат, АКПП, 6 скоростей
