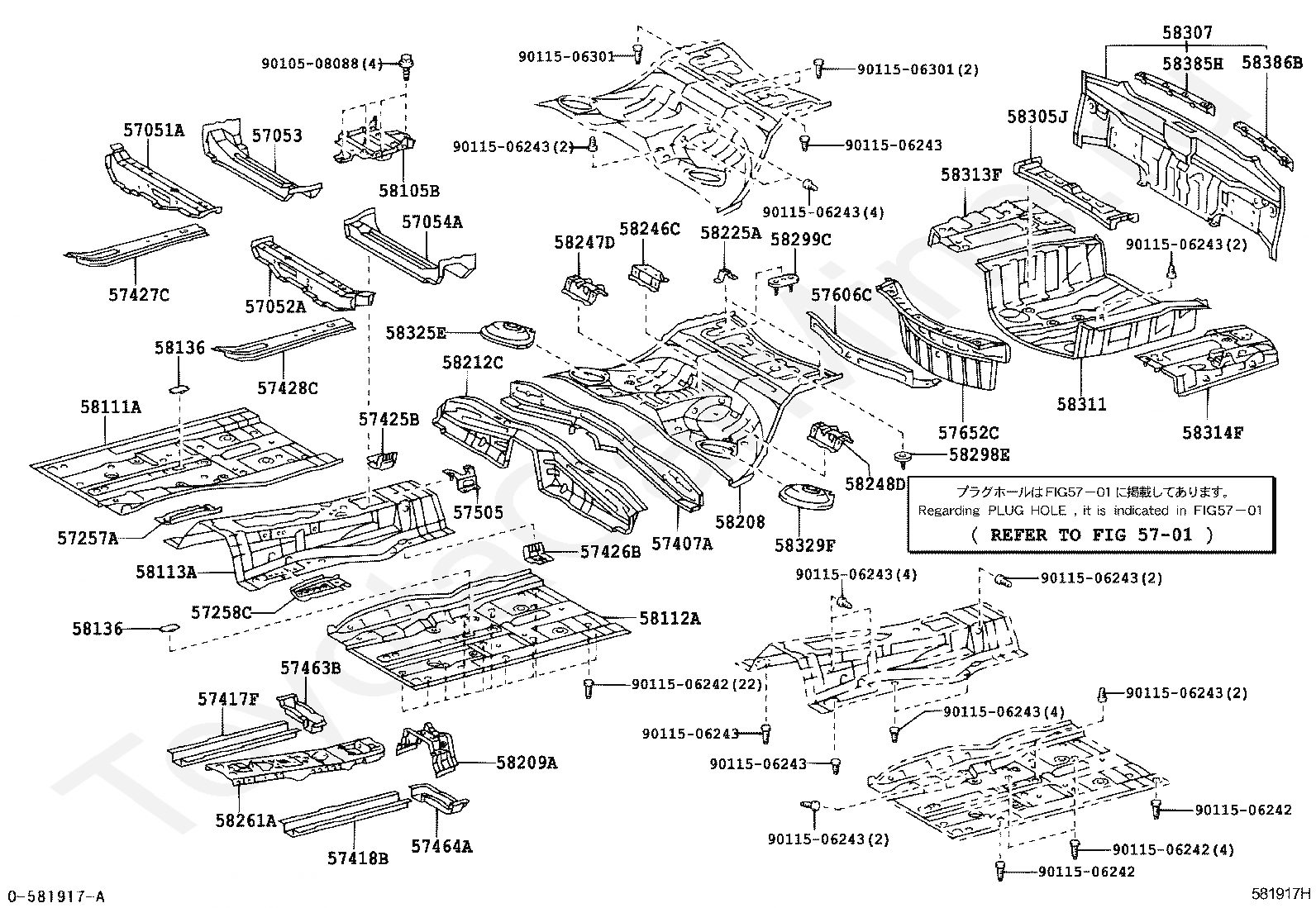

FLOOR PAN & LOWER BACK PANEL TOYOTA CROWN/MAJESTA, 2005/09 - 2008/02, 2,5 литра, 24 клапана DOHC EFI, седан, ROYAL EXTRA,ROYAL EXTRA FOUR, GRS180, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

CROWN/MAJESTA

Двигатель

2,5 литра, 24 клапана DOHC EFI

Кузов

седан

Класс

ROYAL EXTRA,ROYAL EXTRA FOUR

Фрейм

GRS180

Трансмиссия

автомат АКПП, 6 скоростей

Опции

двигатель с прямым впрыском топлива 336W

Код

Описание

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57257A

BRACKET, ENGINE REAR MOUNTING MEMBER, RH

57258C

BRACKET, ENGINE REAR MOUNTING MEMBER, LH

57407A

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57417F

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

57425B

REINFORCEMENT, FRONT FLOOR, NO.2 RH

57426B

REINFORCEMENT, FRONT FLOOR, NO.2 LH

57427C

REINFORCEMENT, FRONT FLOOR, UPPER

57428C

REINFORCEMENT, FRONT FLOOR, NO.3 LH

57463B

REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

57464A

REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

57505

BRACKET SUB-ASSY, PARKING BRAKE, NO.1

57606C

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

57652C

MEMBER, REAR FLOOR CROSS, NO.1

58105B

PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

58111A

PAN, FRONT FLOOR, RH

58112A

PANEL, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136

COVER, FRONT FLOOR HOLE

58208

PAN, CENTER FLOOR

58209A

REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

58212C

PAN, CENTER FLOOR, FRONT

58225A

BRACKET, CENTER MOUNTING

58246C

BRACKET, REAR SEAT HINGE, CENTER NO.2

58247D

BRACKET, REAR SEAT HINGE, OUTER RH

58248D

BRACKET, REAR SEAT HINGE, OUTER LH

58261A

COVER, TRANSMISSION

58298E

BRACKET, HOT AIR INTAKE, NO.1

58299C

BRACKET, HOT AIR INTAKE, NO.2

58305J

BRACKET, SPARE WHEEL CARRIER

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313F

EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

58314F

EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58329F

COVER, REAR FLOOR SERVICE HOLE, NO.2

58385H

BRACKET, REAR BUMPER COVER, NO.1

58386B

BRACKET, REAR BUMPER COVER, NO.2

9010508088

Крепеж

9011506242

Крепеж

9011506243

Крепеж

9011506301

Крепеж

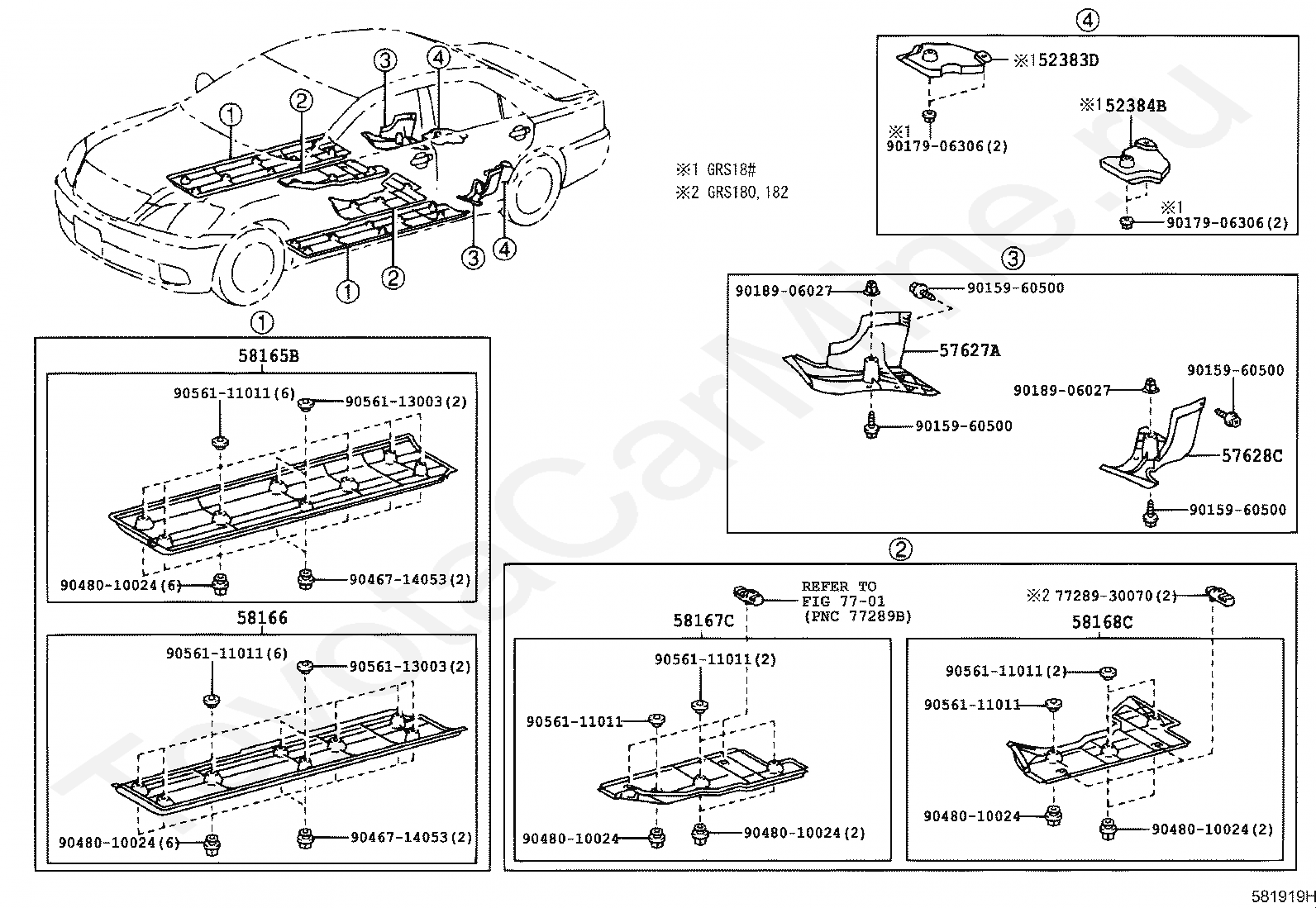

Код

Описание

52383D

PROTECTOR, DIFFERENTIAL SUPPORT, RH

52384B

PROTECTOR, DIFFERENTIAL SUPPORT, LH

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

58167C

COVER, FRONT FLOOR, CENTER RH

58168C

COVER, FRONT FLOOR, CENTER LH

7701

переход к группе запчастей

7728930070

Крепеж

9015960500

Крепеж

9017906306

Крепеж

9018906027

Крепеж

9046714053

Крепеж

9048010024

Крепеж

9056111011

Крепеж

9056113003

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA CROWN/MAJESTA, 2005/09 - 2008/02, 2,5 литра, 24 клапана DOHC EFI, седан, ROYAL EXTRA,ROYAL EXTRA FOUR, GRS180, автомат, АКПП, 6 скоростей
