Каталог
ЯпонияМодель
CROWN/HYBRIDДвигатель
2 литра, 16 клапанов, DOHC, EFI, турбоКузов
седанКласс
задний спойлерФрейм
ARS220Трансмиссия
автомат АКПП, 8 скоростейОпции
4 двери WITH TURBO (HARGER) 855W

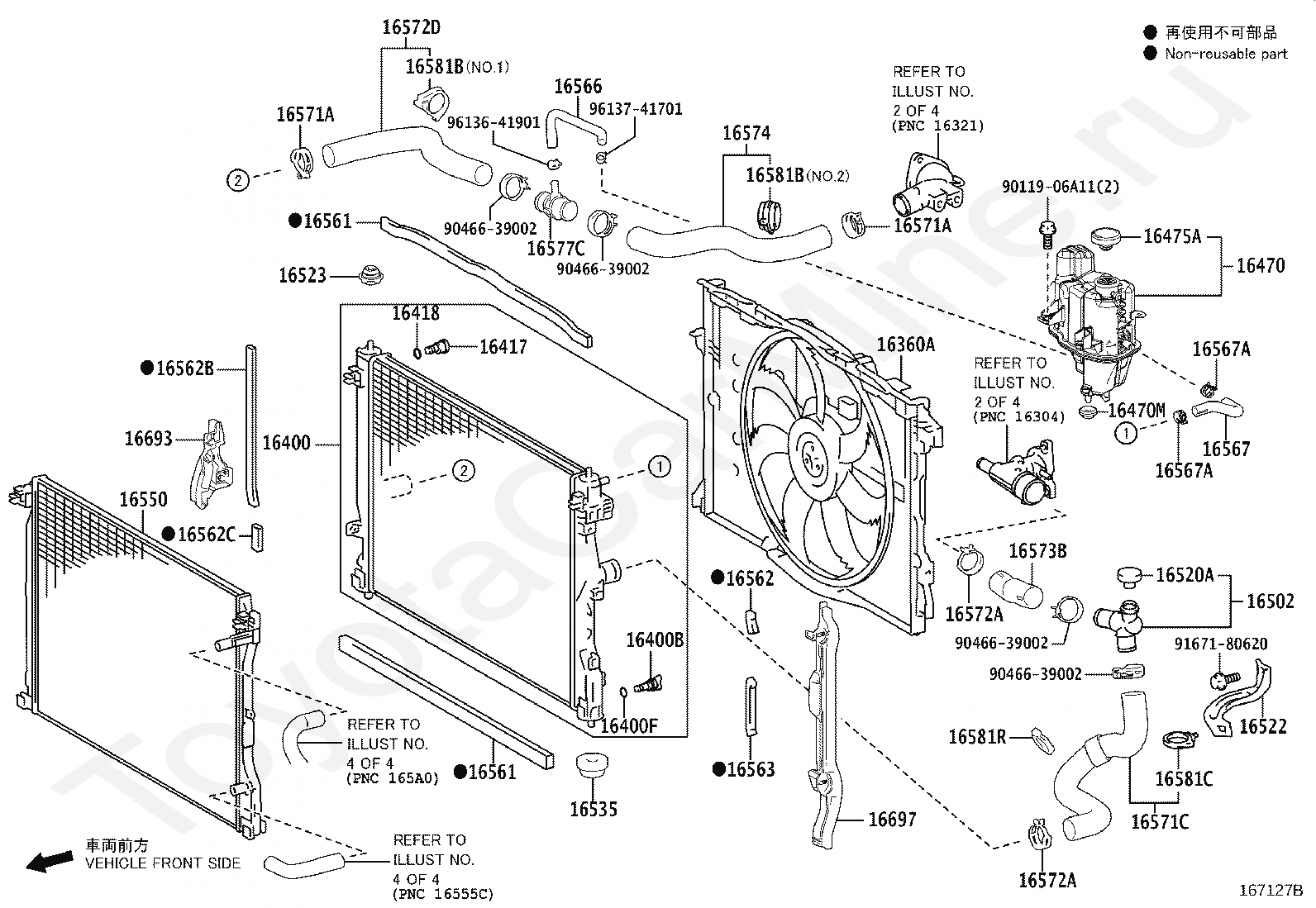

Код
Описание
16360A
FAN ASSY, W/MOTOR
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16417
COCK
16418
PACKING
16470
TANK ASSY, RADIATOR RESERVE
16470M
GROMMET
16475A
CAP, RESERVE TANK
16502
FILLER SUB-ASSY, WATER
16520A
CAP SUB-ASSY, WATER FILLER
16522
BRACKET, WATER FILLER
16523
CUSHION, SUB-RADIATOR SUPPORT
16535
SUPPORT, RADIATOR, LOWER
16550
RADIATOR ASSY, INTERCOOLER COOLING
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16562B
SEAL, RADIATOR TO SUPPORT, NO.4
16562C
SEAL, RADIATOR TO SUPPORT, NO.5
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16566
HOSE, RESERVE TANK OUTLET
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571C
HOSE, RADIATOR, NO.1
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572D
HOSE, RADIATOR, NO.2
16573B
HOSE, RADIATOR, NO.3
16574
HOSE, RADIATOR, NO.4
16577C
PIPE, RADIATOR
16581B
CLAMP, HOSE(FOR RADIATOR HOSE)
16581C
CLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16581R
CLAMP, HOSE(FOR RADIATOR HOSE NO.3)
16693
PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697
PLATE, RADIATOR SIDE AIR GUIDE, RR LH
9011906A11
Крепеж
9046639002
Крепеж
9167180620
Крепеж
9613641901
Крепеж
9613741701
Крепеж
Код
Описание

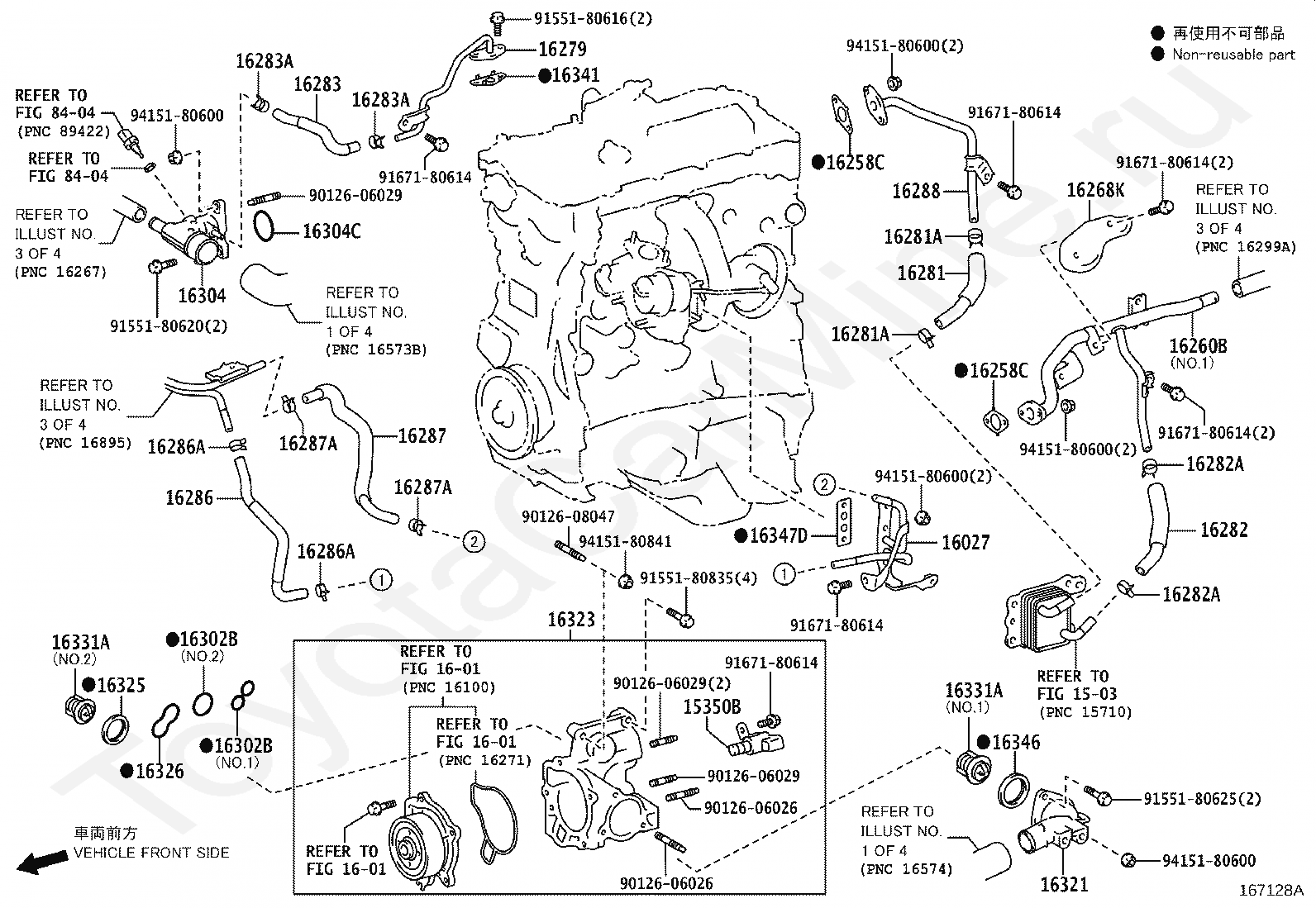

1503
переход к группе запчастей
15350B
VALVE ASSY, OIL PRESSURE SWITCHING
1601
переход к группе запчастей
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16258C
GASKET(FOR WATER BY-PASS PIPE)
16260B
PIPE ASSY, WATER BY-PASS
16268K
INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
16279
PIPE, WATER BY-PASS, NO.3
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16286
HOSE, TURBO WATER, NO.3
16286A
CLIP(FOR TURBO WATER HOSE NO.3)
16287
HOSE, TURBO WATER, NO.4
16287A
CLIP(FOR TURBO WATER HOSE NO.4)
16288
PIPE, WATER BY-PASS, NO.4
16302B
GASKET(FOR WATER INLET HOUSING)
16304
OUTLET SUB-ASSY, WATER
16304C
RING, O(FOR WATER OUTLET)
16321
INLET, WATER
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16347D
GASKET, WATER BY-PASS
8404
переход к группе запчастей
9012606026
Крепеж
9012606029
Крепеж
9012608047
Крепеж
9155180616
Крепеж
9155180620
Крепеж
9155180625
Крепеж
9155180835
Крепеж
9167180614
Крепеж
9415180600
Крепеж
9415180841
Крепеж

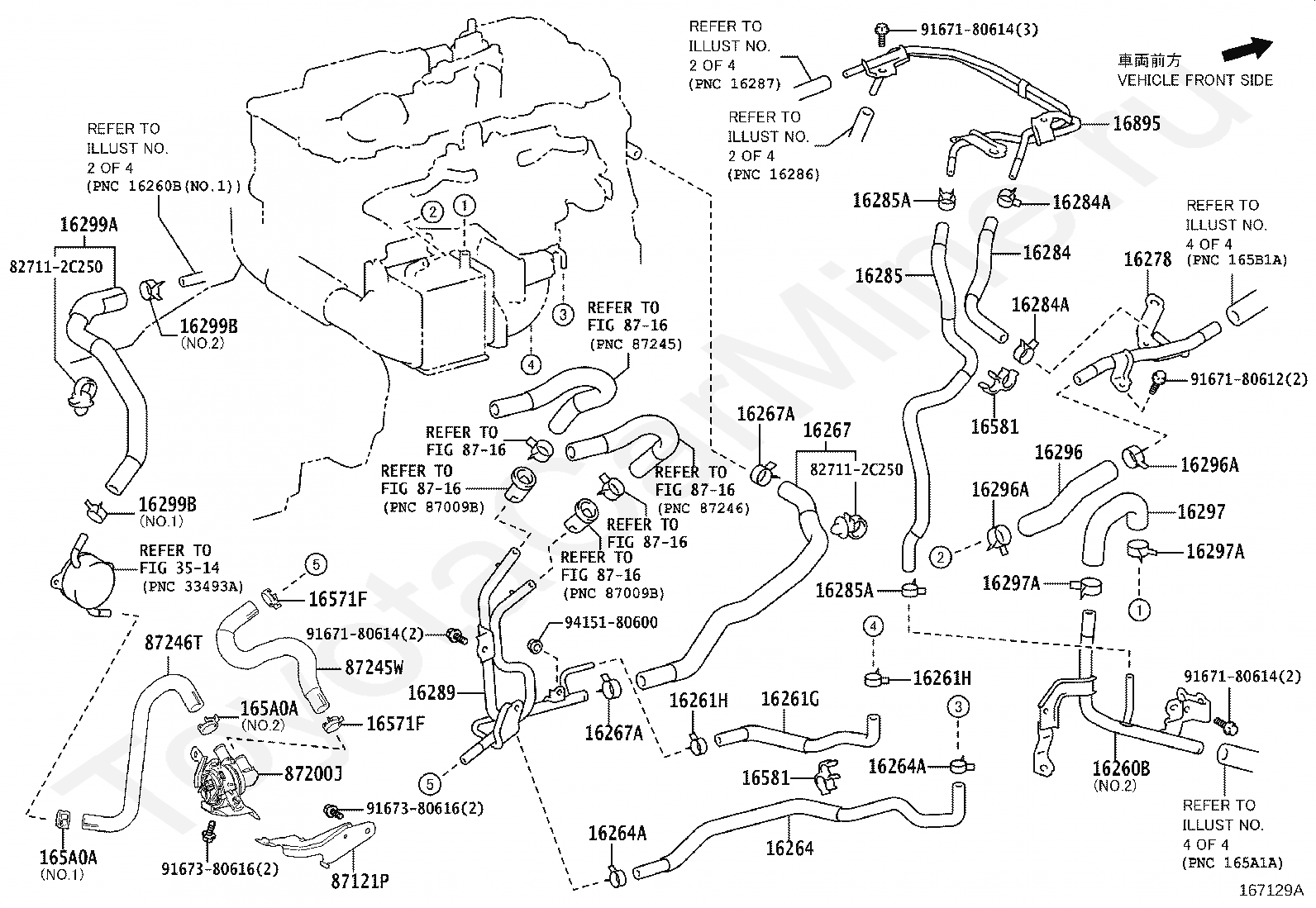

Код
Описание
16260B
PIPE ASSY, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16278
PIPE, WATER BY-PASS, NO.2
16284
HOSE, TURBO WATER, NO.1
16284A
CLIP(FOR TURBO WATER HOSE NO.1)
16285
HOSE, TURBO WATER, NO.2
16285A
CLIP(FOR TURBO WATER HOSE NO.2)
16289
PIPE, WATER BY-PASS, NO.5
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16299A
HOSE, WATER BY-PASS, NO.13
16299B
CLIP(FOR WATER BY-PASS HOSE NO.13)
16571F
CLAMP OR CLIP(FOR WATER HOSE)
16581
CLAMP, HOSE(FOR WATER HOSE)
165A0A
CLIP, HOSE
16895
PIPE, TURBO WATER, NO.1
3514
переход к группе запчастей
827112C250
Крепеж
87121P
BRACKET, WATER PUMP
8716
переход к группе запчастей
87200J
ACCESSORY ASSY, HEATER
87245W
HOSE, WATER
87246T
HOSE, WATER, NO.2
9167180612
Крепеж
9167180614
Крепеж
9167380616
Крепеж
9415180600
Крепеж

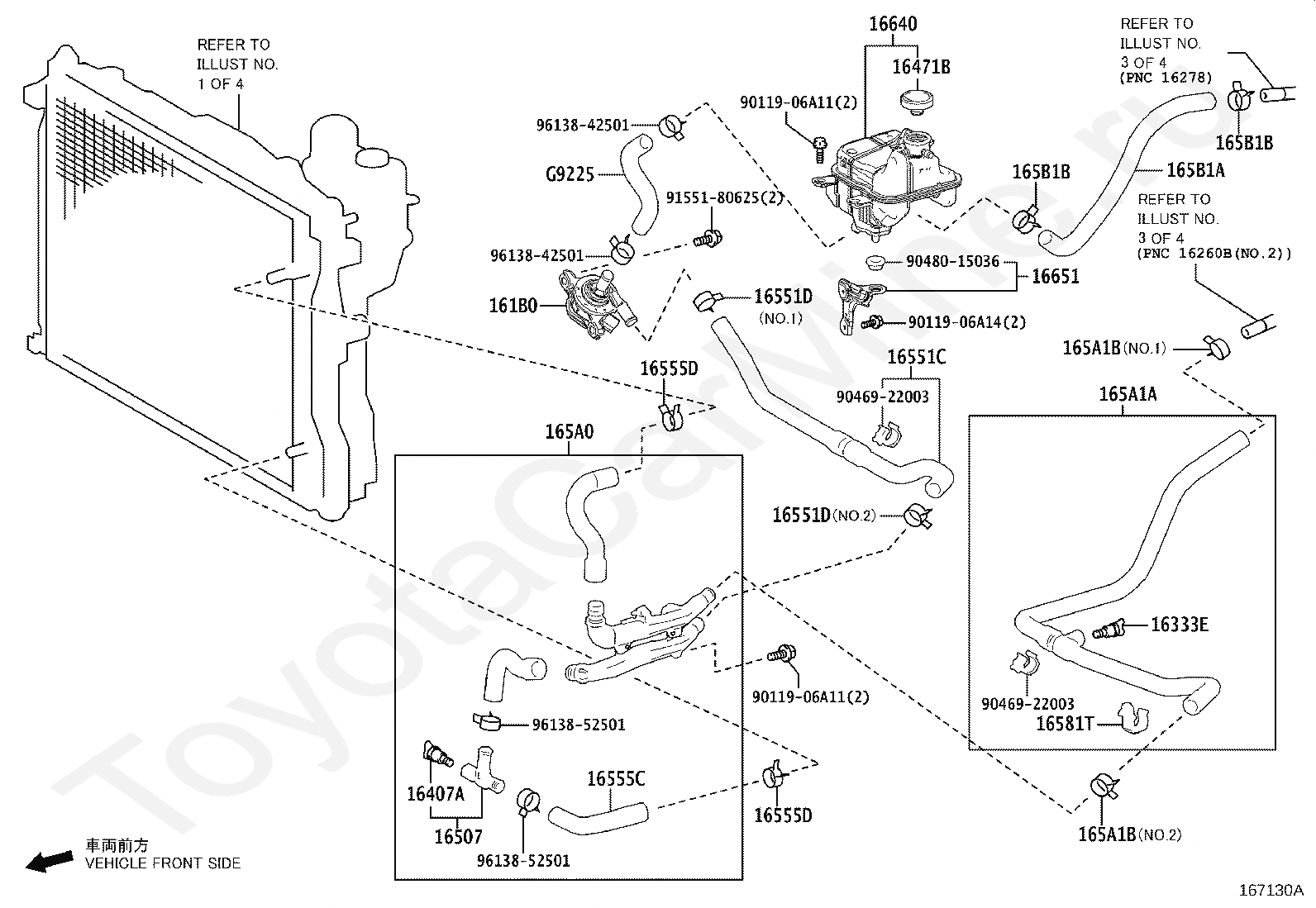

Код
Описание
161B0
PUMP ASSY, ELECTRIC WATER
16333E
PLUG, DRAIN COCK
16407A
COCK SUB-ASSY, RADIATOR DRAIN
16471B
CAP, RESERVE TANK
16507
PIPE SUB-ASSY, RADIATOR
16551C
HOSE, INTERCOOLER COOLING WATER, NO.1
16551D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16555C
HOSE, INTERCOOLER COOLING WATER, NO.5
16555D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16581T
CLAMP(FOR INTERCOOLER COOLING WATER HOSE)
165A0
HOSE ASSY, INTERCOOLER COOLING WATER, NO.1
165A1A
HOSE, INTERCOOLER COOLING WATER INLET
165A1B
CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE)
165B1A
HOSE, INTERCOOLER COOLING WATER OUTLET
165B1B
CLIP(FOR INTERCOOLER COOLING WATER OUTLET HOSE)
16640
TANK ASSY, INTERCOOLER RESERVE
16651
BRACKET, INTERCOOLER RESERVE TANK
9011906A11
Крепеж
9011906A14
Крепеж
9046922003
Крепеж
9048015036
Крепеж
9155180625
Крепеж
9613842501
Крепеж
9613852501
Крепеж
G9225
HOSE, INVERTER COOLING, NO.1
