Тормозная магистраль TOYOTA CROWN/CROWN MAJESTA, 1995/08 - 1999/09, 3 литра, 24 клапана, DOHC, EFI, HARD TOP SERIES, E(MODEL MARK), JZS155, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

CROWN/CROWN MAJESTA

Двигатель

3 литра, 24 клапана, DOHC, EFI

Кузов

HARD TOP SERIES

Класс

E(MODEL MARK)

Фрейм

JZS155

Трансмиссия

автомат АКПП, 4 ступени

Опции

TWIN CAM WIDE BODY

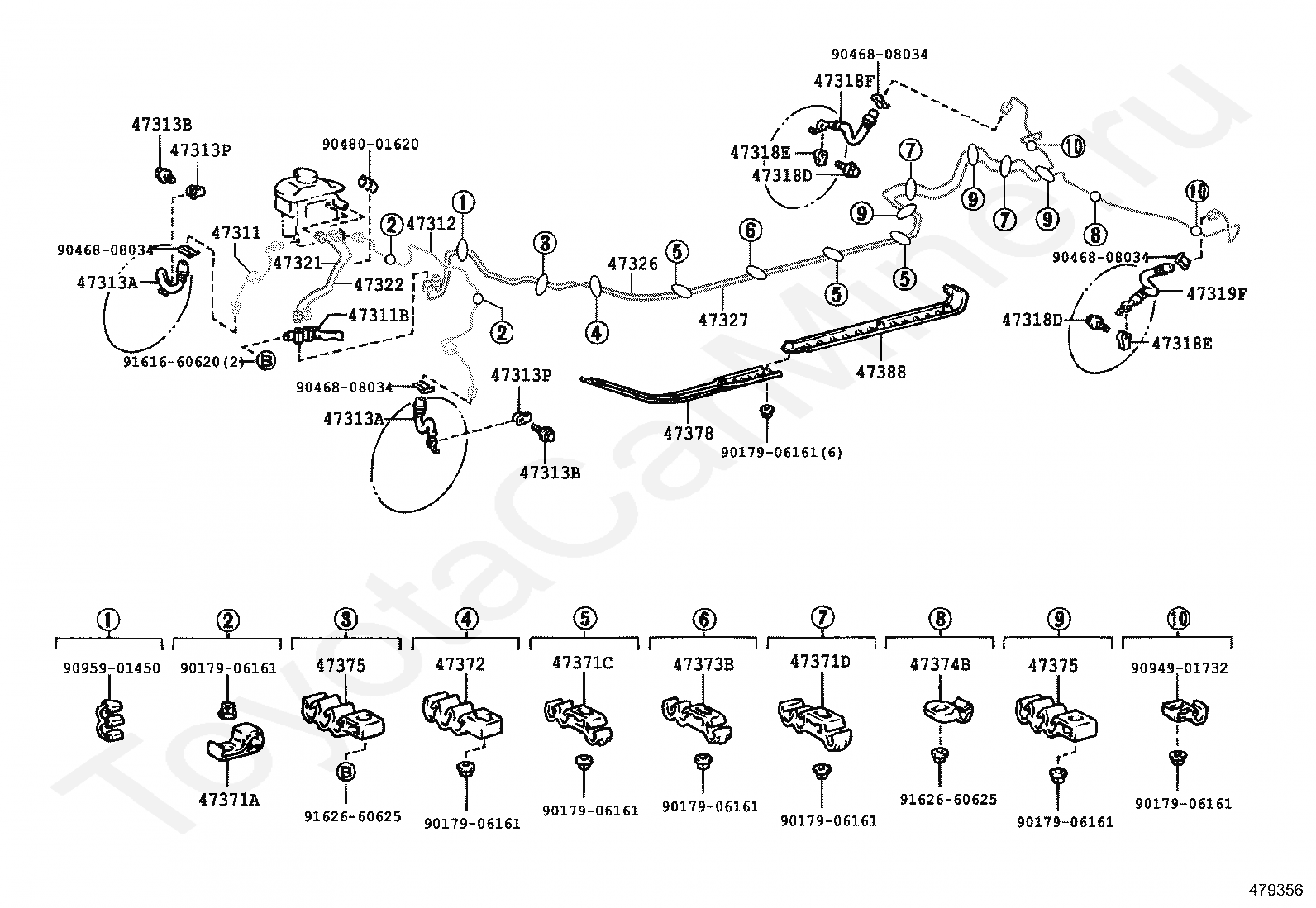

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47326

TUBE, REAR BRAKE, NO.6

47328

TUBE, REAR BRAKE, NO.8

47329

TUBE, REAR BRAKE, NO.9

4737130270

Крепеж

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47378

PROTECTOR, BRAKE TUBE

47388

PROTECTOR, BRAKE TUBE, LOWER

9017906161

Крепеж

9046808034

Крепеж

9094901732

Крепеж

9094901976

Крепеж

9161660620

Крепеж

9162660625

Крепеж

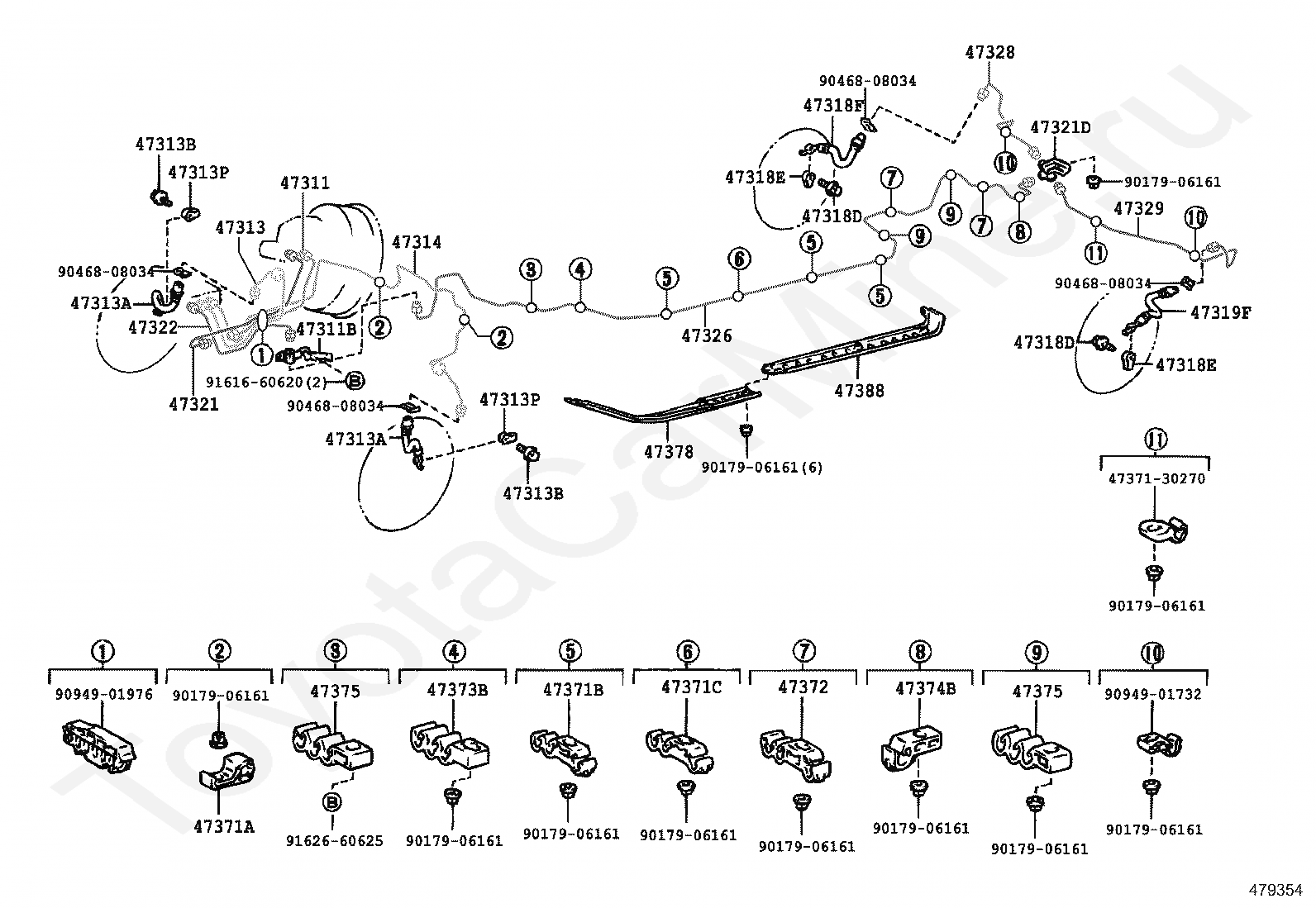

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47371A

CLAMP, BRAKE TUBE, NO.1

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47378

PROTECTOR, BRAKE TUBE

47388

PROTECTOR, BRAKE TUBE, LOWER

9017906161

Крепеж

9046808034

Крепеж

9048001620

Крепеж

9094901732

Крепеж

9095901450

Крепеж

9161660620

Крепеж

9162660625

Крепеж

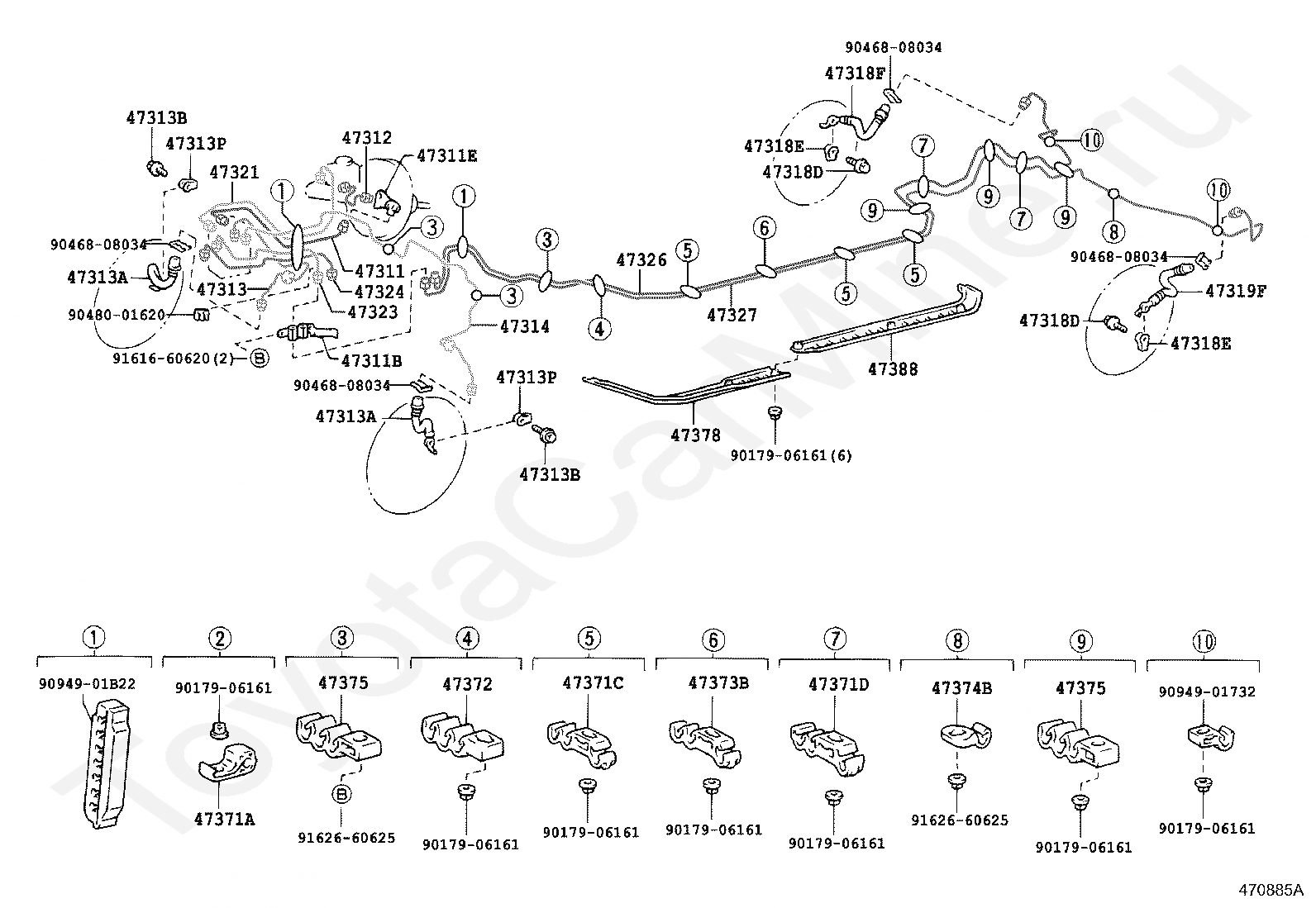

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311E

UNION, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47371A

CLAMP, BRAKE TUBE, NO.1

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47378

PROTECTOR, BRAKE TUBE

47388

PROTECTOR, BRAKE TUBE, LOWER

9017906161

Крепеж

9046808034

Крепеж

9048001620

Крепеж

9094901732

Крепеж

9094901B22

Крепеж

9161660620

Крепеж

9162660625

Крепеж

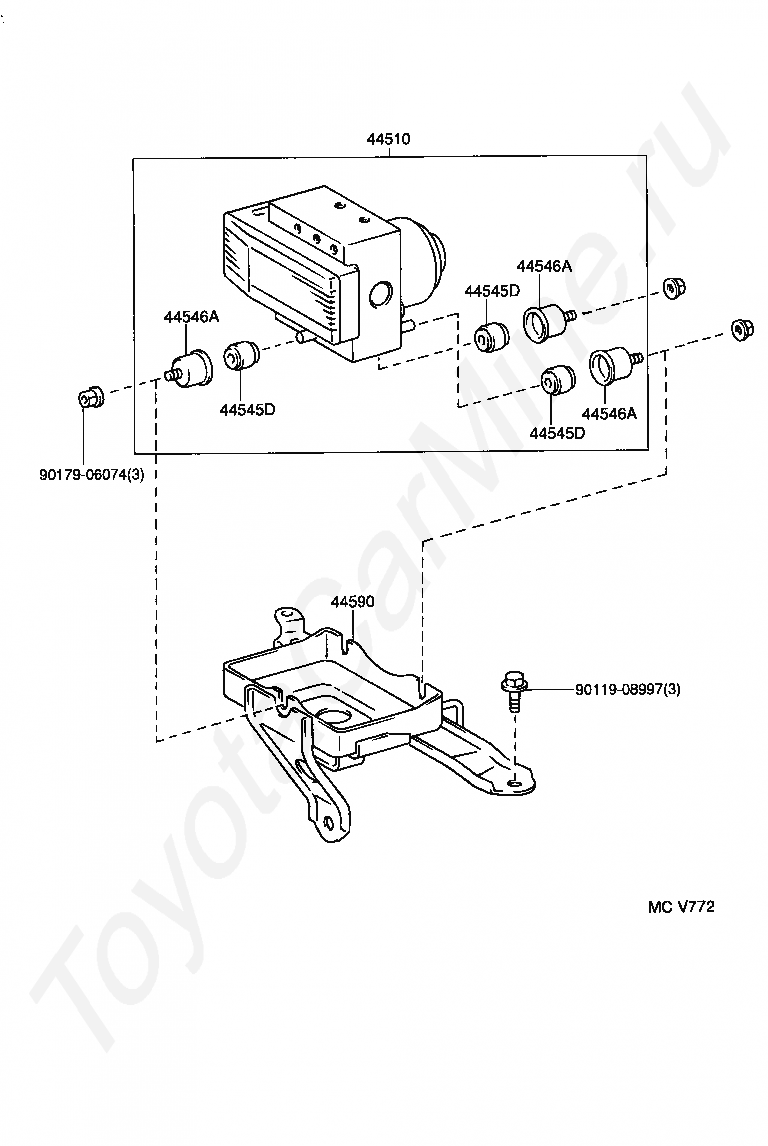

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9011908997

Крепеж

9017906074

Крепеж

9046400657

Крепеж

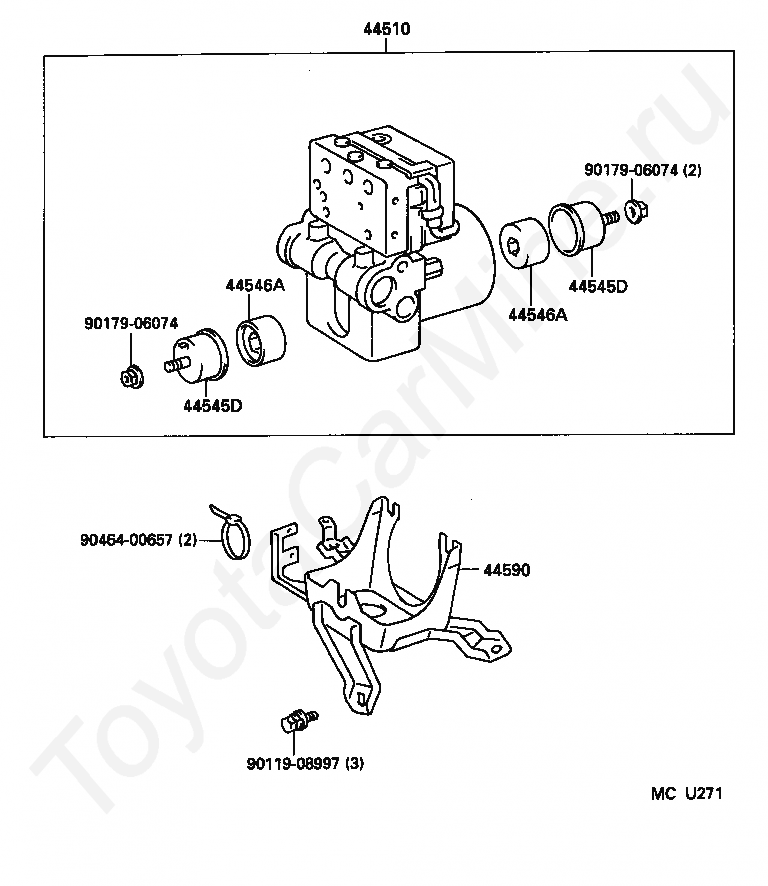

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9011908997

Крепеж

9017906074

Крепеж

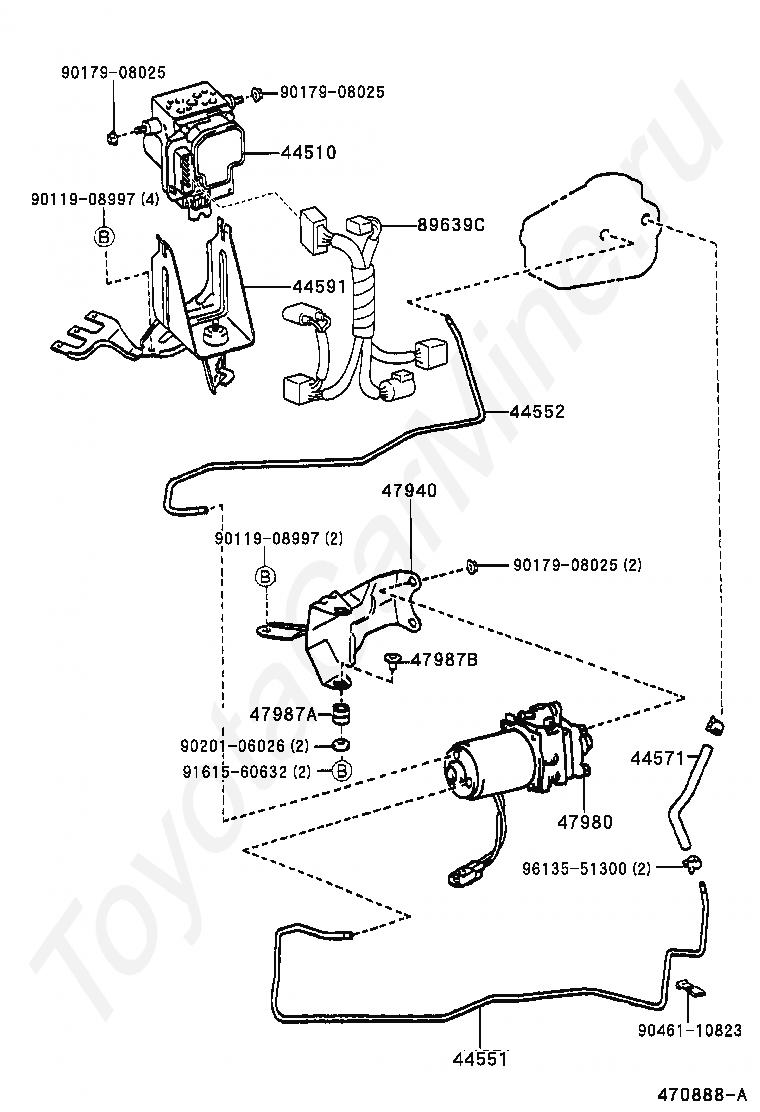

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44551

TUBE, BRAKE ACTUATOR, NO.1

44552

TUBE, BRAKE ACTUATOR, NO.2

44571

HOSE, BRAKE ACTUATOR

44591

BRACKET, BRAKE ACTUATOR, NO.1

47940

BRACKET ASSY, BRAKE TRACTION

47980

PUMP ASSY, BRAKE TRACTION

47987A

BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET)

47987B

SPACER(FOR BRAKE TRACTION PUMP BRACKET)

89639C

WIRE, BRAKE CONTROL

9011908997

Крепеж

9017908025

Крепеж

9020106026

Крепеж

9046110823

Крепеж

9161560632

Крепеж

9613551300

Крепеж

Тормозная магистраль TOYOTA CROWN/CROWN MAJESTA, 1995/08 - 1999/09, 3 литра, 24 клапана, DOHC, EFI, HARD TOP SERIES, E(MODEL MARK), JZS155, автомат, АКПП, 4 ступени
