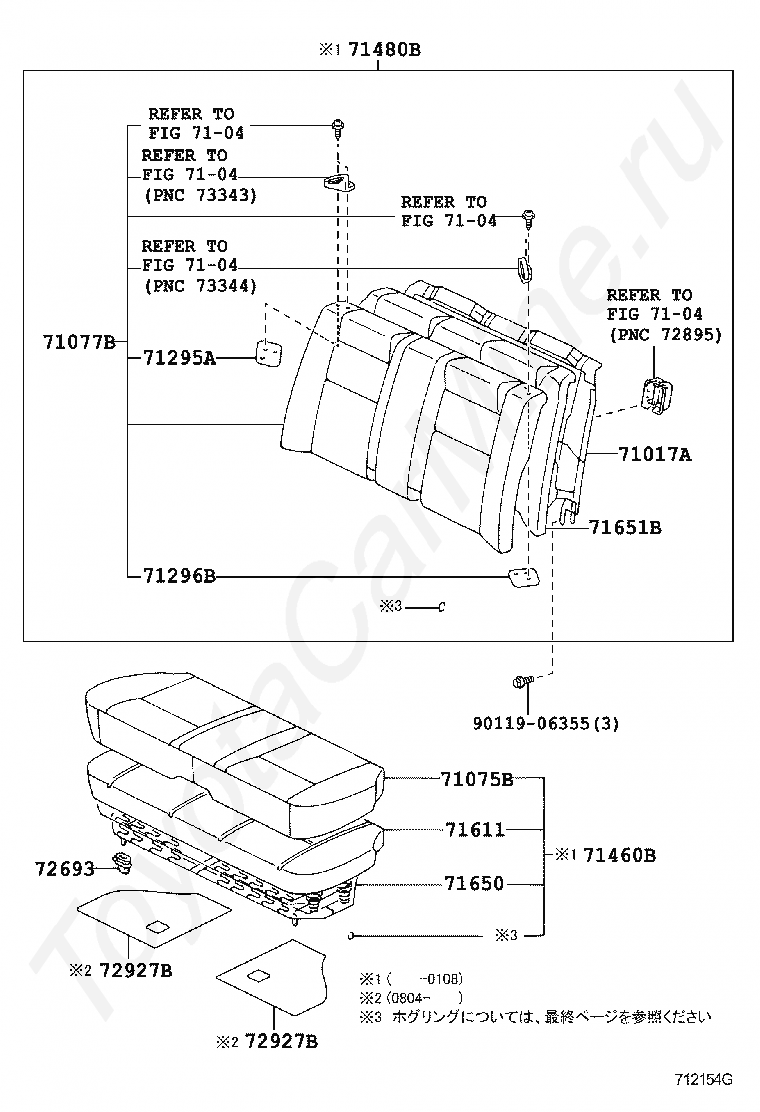

Задние кресла TOYOTA CROWN COMFORT/SED, 1995/12 - 2008/08, 2 литра, сжиженный газ, STANDARD TYPE, YXS10, автомат, АКПП, 4 ступени, на руле

Каталог

Япония

Модель

CROWN COMFORT/SED

Двигатель

2 литра, сжиженный газ

Класс

STANDARD TYPE

Фрейм

YXS10

Трансмиссия

автомат АКПП, 4 ступени, на руле

Опции

CROWN

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71295A

PLATE, REAR SEAT BACK, UPPER RH

71296B

PLATE, REAR SEAT BACK, UPPER LH

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

72693

HOOK, REAR SEAT CUSHION LOCK

72927B

COVER, REAR SEAT CUSHION UNDER

9011906355

Крепеж

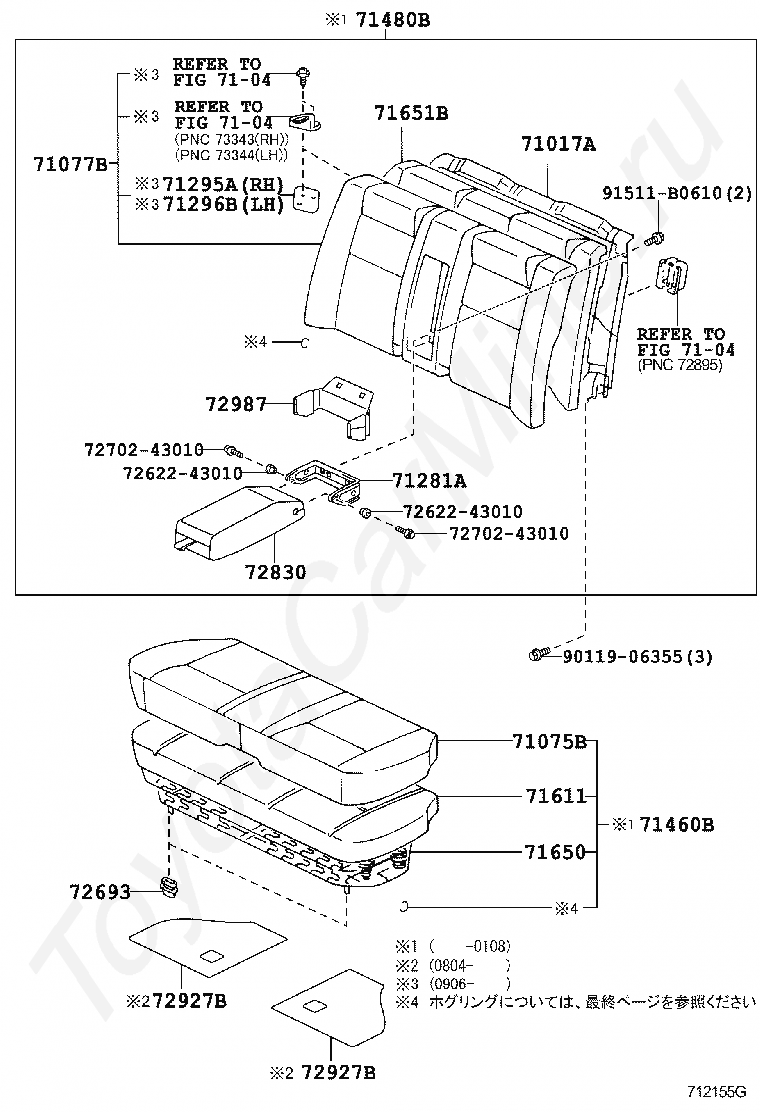

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71281A

HINGE, REAR SEAT CENTER ARMREST

71295A

PLATE, REAR SEAT BACK, UPPER RH

71296B

PLATE, REAR SEAT BACK, UPPER LH

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

7262243010

Крепеж

72693

HOOK, REAR SEAT CUSHION LOCK

7270243010

Крепеж

72830

ARMREST ASSY, REAR SEAT, CENTER

72927B

COVER, REAR SEAT CUSHION UNDER

72987

COVER, REAR SEAT CENTER ARMREST

9011906355

Крепеж

91511B0610

Крепеж

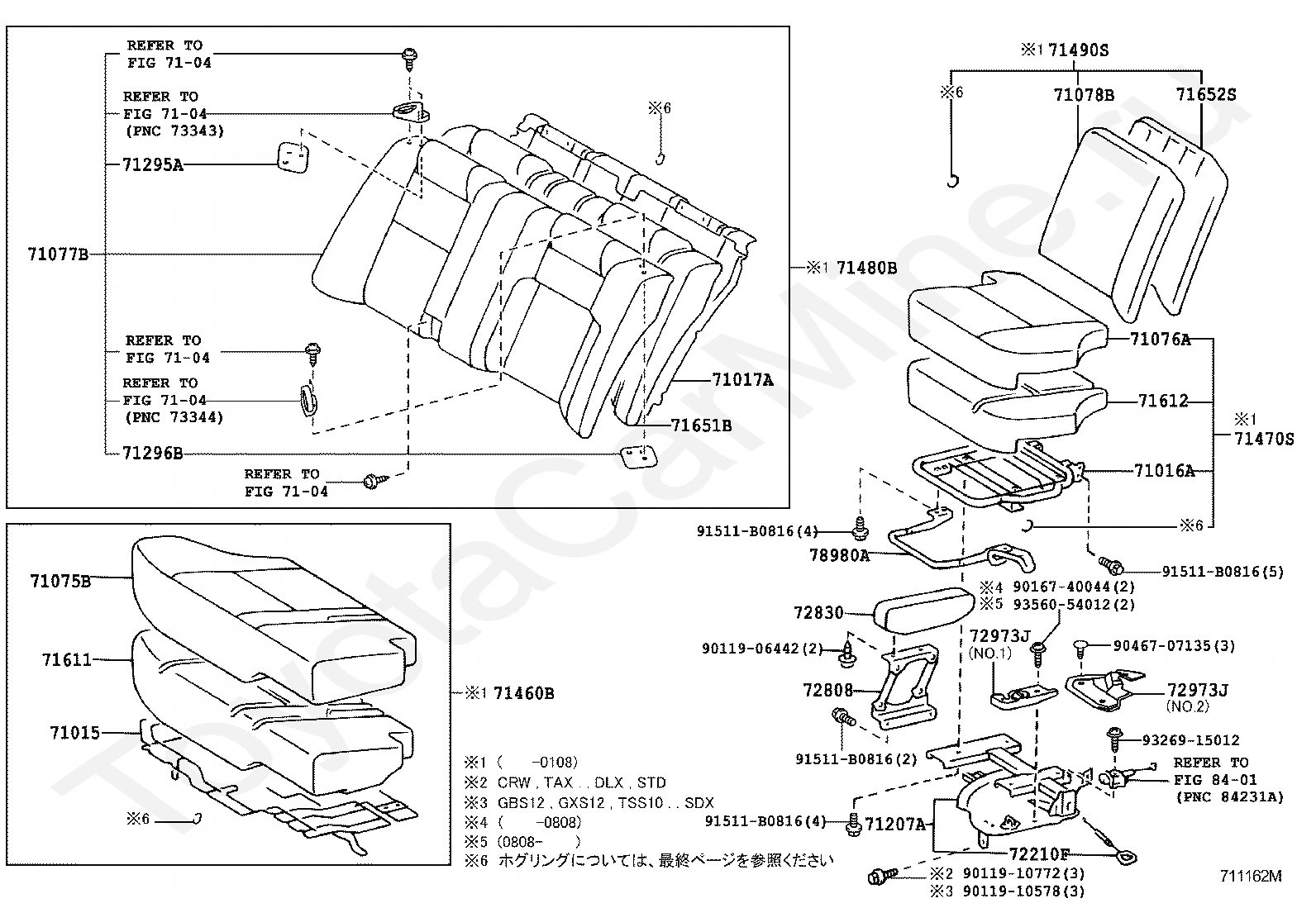

Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017A

FRAME SUB-ASSY, REAR SEAT BACK

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71076A

COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71078B

COVER, 3RD SEAT BACK(FOR BENCH TYPE)

71207A

BRACKET SUB-ASSY, REAR SEAT STOPPER, LH

71295A

PLATE, REAR SEAT BACK, UPPER RH

71296B

PLATE, REAR SEAT BACK, UPPER LH

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71611

PAD, REAR SEAT CUSHION

71612

PAD, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TYPE)

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

72210F

CABLE ASSY, SEAT TRACK CONTROL

72808

LINK SUB-ASSY, REAR SEAT CENTER ARMREST, LH

72830

ARMREST ASSY, REAR SEAT, CENTER

72973J

COVER, REAR SEAT TURN TABLE

78980A

FOOTREST ASSY, REAR SEAT

8401

переход к группе запчастей

9011906442

Крепеж

9011910578

Крепеж

9011910772

Крепеж

9016740044

Крепеж

9046707135

Крепеж

91511B0816

Крепеж

9326915012

Крепеж

9356054012

Крепеж

Код

Описание

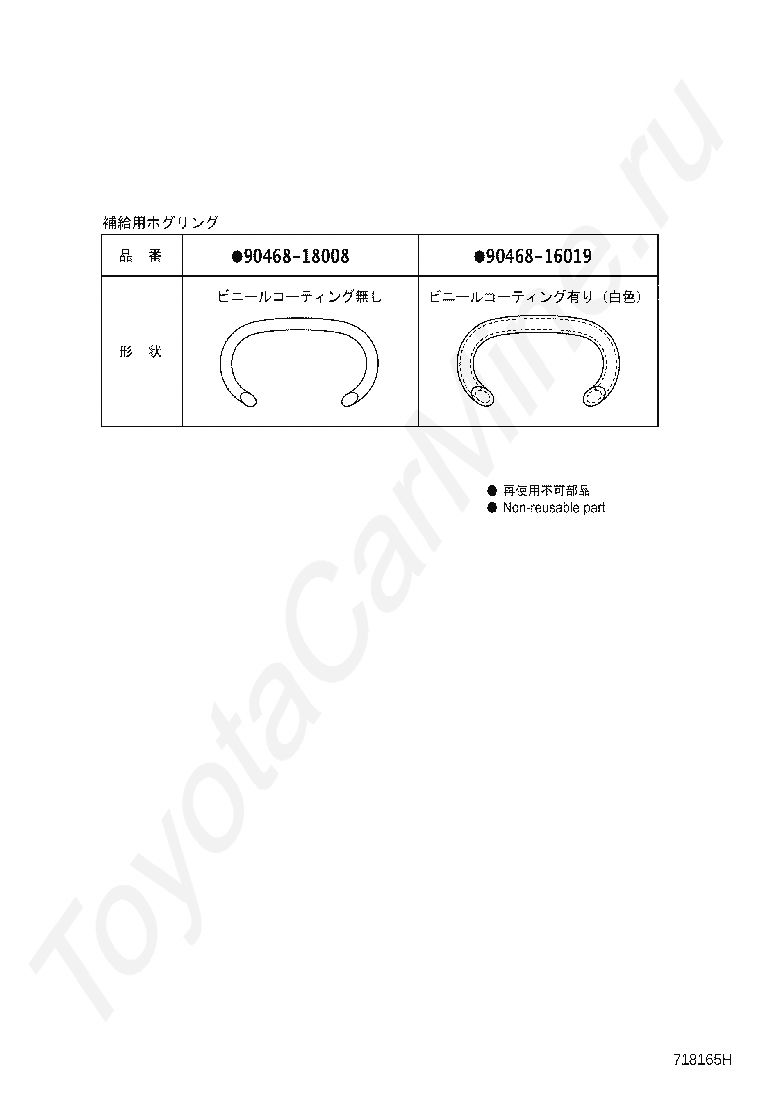

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA CROWN COMFORT/SED, 1995/12 - 2008/08, 2 литра, сжиженный газ, STANDARD TYPE, YXS10, автомат, АКПП, 4 ступени, на руле
