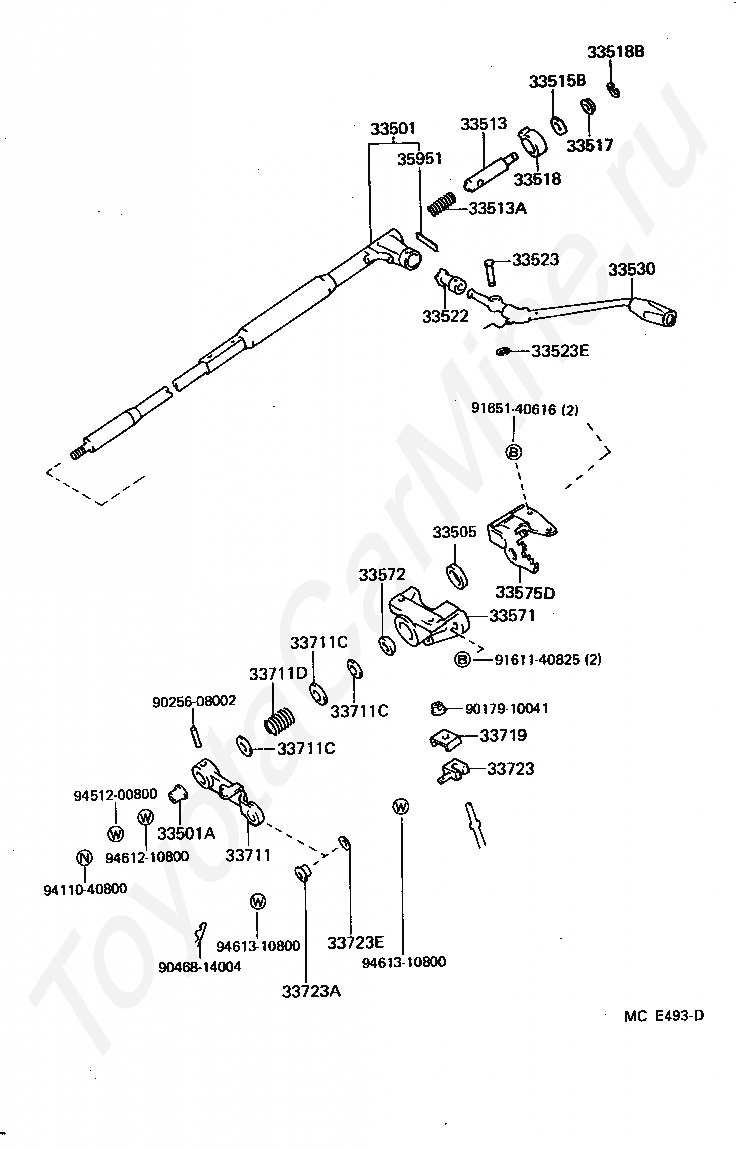

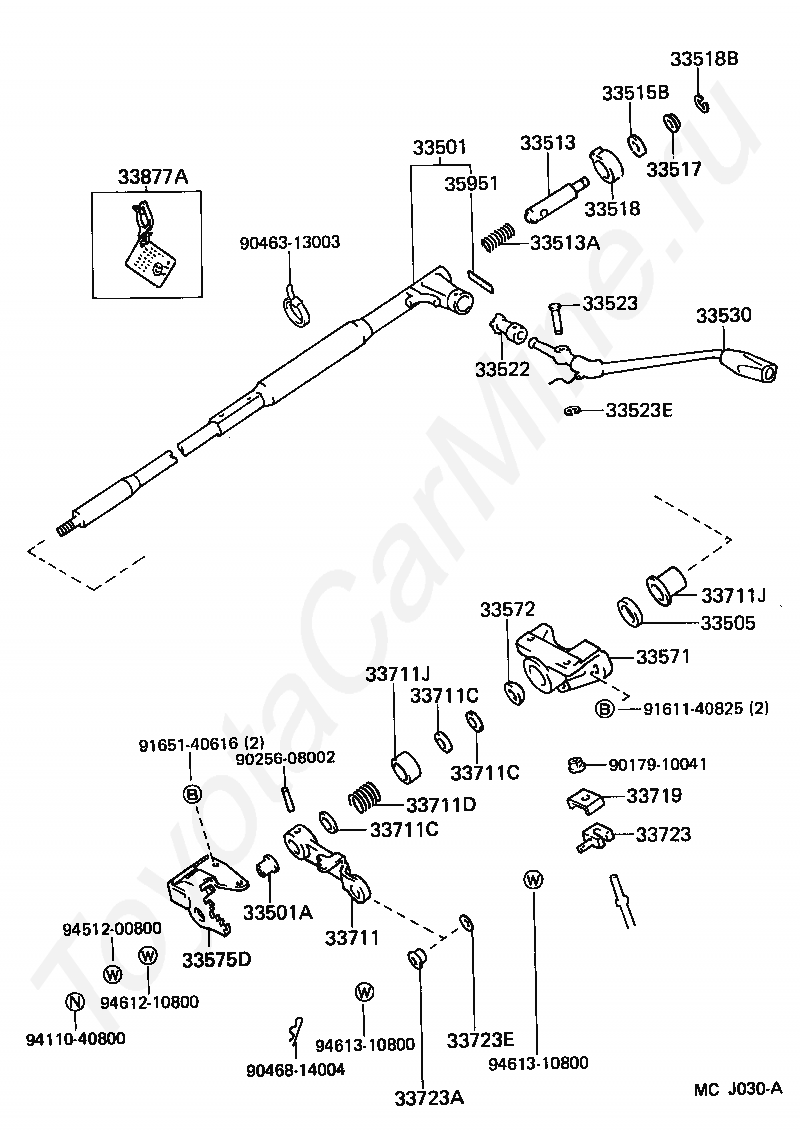

CONTROL SHAFT & CROSSSHAFT TOYOTA CROWN, 1987/09 - 1991/10, 2 литра, 24 клапана DOHC, EFI, нагнетатель, седан, ROYAL SALOON TYPE, GS131, автомат, АКПП, 4 ступени, на руле

Каталог

Япония

Модель

CROWN

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

Трансмиссия

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

Код

Описание

33501

SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

33501A

BUSH (FOR COLUMN SHIFT CONTROL SHAFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33513

SHAFT, CONTROL SHAFT BRACKET, UPPER

33513A

SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

33515B

SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

33517

RETAINER, CONTROL SHAFT UPPER SPRING

33518

BUSH, UPPER CONTROL SHAFT PIECE

33518B

RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

33522

SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523E

RING, E (FOR SHIFT LEVER PIN)

33530

LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

33571

BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

33572

BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

33575D

RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

33711

LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

33711C

WASHER, PLATE (FOR CONTROL SHAFT LEVER)

33711D

SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER)

33719

PLATE, SHIFT CONTROL ROD

33723

SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

33723A

BUSH (FOR COLUMN SHIFT CONTROL SHAFT)

33723E

WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

35951

INDICATOR, CONTROL POSITION

9017910041

Крепеж

9025608002

Крепеж

9046814004

Крепеж

9161140825

Крепеж

9165140616

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9461210800

Крепеж

9461310800

Крепеж

Код

Описание

33501

SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

33501A

BUSH (FOR COLUMN SHIFT CONTROL SHAFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33513

SHAFT, CONTROL SHAFT BRACKET, UPPER

33513A

SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

33515B

SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

33517

RETAINER, CONTROL SHAFT UPPER SPRING

33518

BUSH, UPPER CONTROL SHAFT PIECE

33518B

RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

33522

SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523E

RING, E (FOR SHIFT LEVER PIN)

33530

LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

33571

BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

33572

BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

33575D

RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

33711

LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

33711C

WASHER, PLATE (FOR CONTROL SHAFT LEVER)

33711D

SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER)

33711J

SPACER (FOR CONTROL SHAFT LEVER)

33719

PLATE, SHIFT CONTROL ROD

33723

SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

33723A

BUSH (FOR COLUMN SHIFT CONTROL SHAFT)

33723E

WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

33877A

LABEL, SHIFT LOCK INFORMATION

35951

INDICATOR, CONTROL POSITION

9017910041

Крепеж

9025608002

Крепеж

9046313003

Крепеж

9046814004

Крепеж

9161140825

Крепеж

9165140616

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9461210800

Крепеж

9461310800

Крепеж

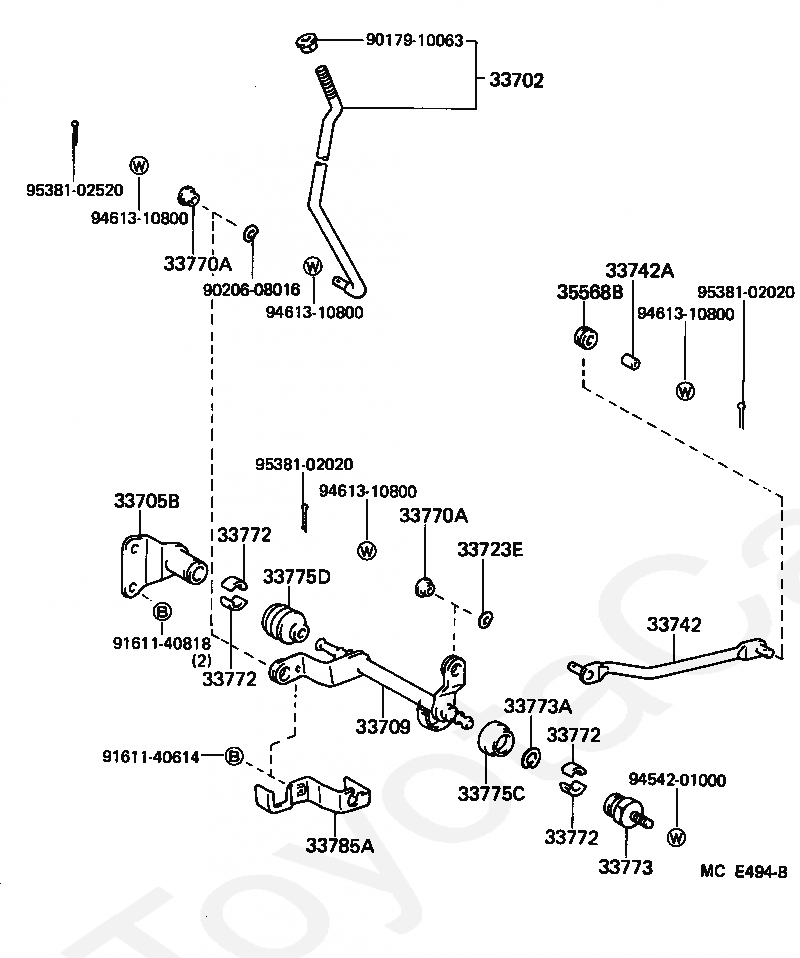

Код

Описание

33702

ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

33705B

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)

33709

SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

33723E

WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

33742

ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

33742A

BUSH(FOR SHIFTING ROD NO.2)

33770A

BUSH (FOR CROSS SHAFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33773

SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

33773A

RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33775C

COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)

33775D

COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)

33785A

INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIFT)

35568B

GROMMET (FOR SHIFTING ROD, 2ND)

9017910063

Крепеж

9020608016

Крепеж

9161140614

Крепеж

9161140818

Крепеж

9454201000

Крепеж

9461310800

Крепеж

9538102020

Крепеж

9538102520

Крепеж

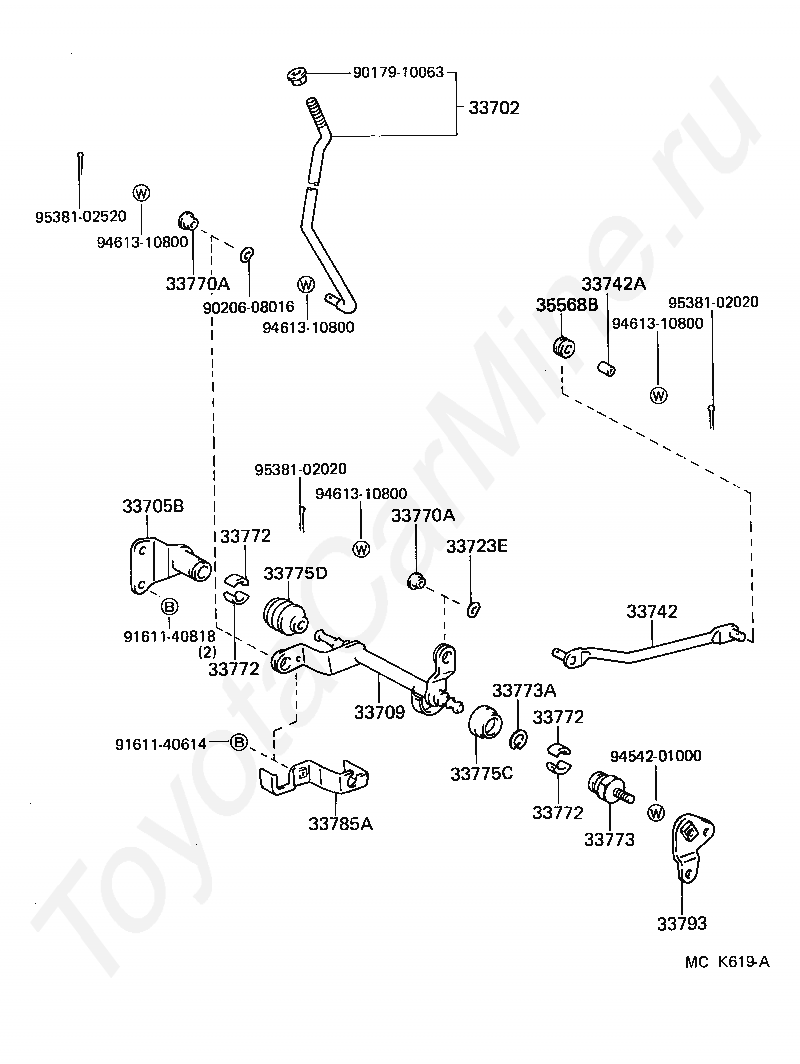

Код

Описание

33702

ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

33705B

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)

33709

SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

33723E

WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)

33742

ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

33742A

BUSH(FOR SHIFTING ROD NO.2)

33770A

BUSH (FOR CROSS SHAFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33773

SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

33773A

RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33775C

COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)

33775D

COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)

33785A

INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIFT)

33793

BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT)

35568B

GROMMET (FOR SHIFTING ROD, 2ND)

9017910063

Крепеж

9020608016

Крепеж

9161140614

Крепеж

9161140818

Крепеж

9454201000

Крепеж

9461310800

Крепеж

9538102020

Крепеж

9538102520

Крепеж

CONTROL SHAFT & CROSSSHAFT TOYOTA CROWN, 1987/09 - 1991/10, 2 литра, 24 клапана DOHC, EFI, нагнетатель, седан, ROYAL SALOON TYPE, GS131, автомат, АКПП, 4 ступени, на руле
