Топливный бак и горловина TOYOTA CROWN, 2008/02 - 2010/02, 3,5 литра, 24 клапана, DOHC, EFI, ATHLETE,ATHLETE FOUR TYPE, GRS204

Каталог

Япония

Модель

CROWN

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Класс

ATHLETE,ATHLETE FOUR TYPE

Фрейм

GRS204

Опции

412W

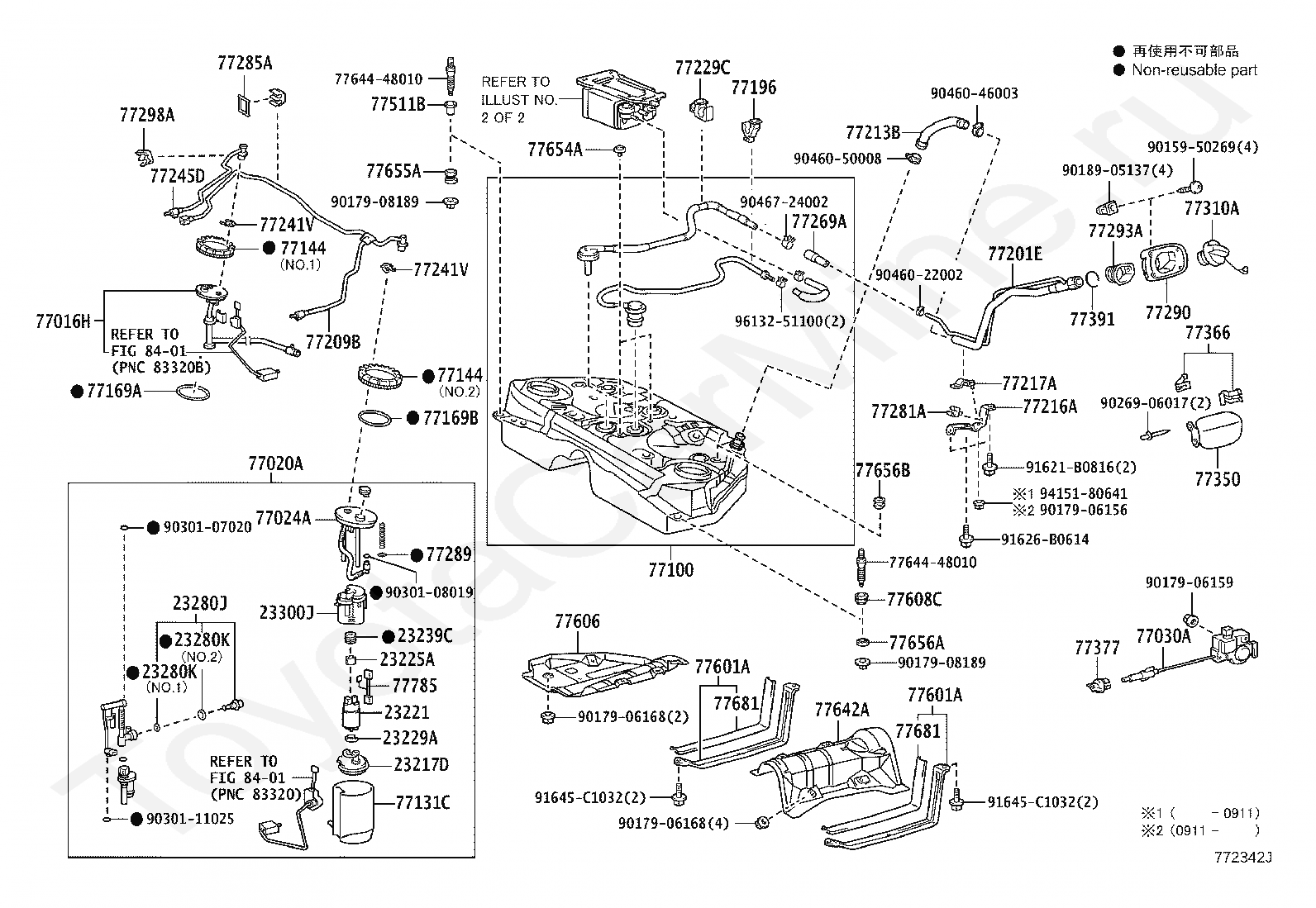

Код

Описание

23217D

FILTER, FUEL PUMP

23221

PUMP, FUEL

23225A

SPACER, FUEL PUMP

23229A

CLIP(FOR FUEL PUMP FILTER)

23239C

SEAL, FUEL PUMP FILTER

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

23300J

FILTER ASSY, FUEL

77016H

TUBE SUB-ASSY, FUEL RETURN VENT

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77030A

LOCK ASSY, FUEL LID W/MOTOR

77100

TANK ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77196

CLAMP, EVAPORATION VENT TUBE, NO.1

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77229C

CLAMP, BREATHER TUBE

77241V

CLIP, TUBE JOINT

77245D

TUBE, FUEL TANK RETURN VENT

77269A

HOSE, FUEL TANK BREATHER

77281A

CLAMP, FUEL FILLER PIPE

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77289

HOLDER, FUEL TANK PIPE SETTING

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77298A

CLAMP, FUEL TUBE, NO.4

77310A

CAP ASSY, FUEL TANK

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77511B

BRACKET, FUEL TANK

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77608C

CUSHION SET, FUEL TANK

77642A

PROTECTOR, FUEL TANK, NO.2

7764448010

Крепеж

77654A

CUSHION, FUEL TANK, NO.4

77655A

CUSHION, FUEL TANK, NO.5

77656A

CUSHION, FUEL TANK, NO.4

77656B

CUSHION, FUEL TANK, NO.6

77681

SEAT, FUEL TANK BAND, RH

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9015950269

Крепеж

9017906156

Крепеж

9017906159

Крепеж

9017906168

Крепеж

9017908189

Крепеж

9018905137

Крепеж

9026906017

Крепеж

9030107020

Крепеж

9030108019

Крепеж

9030111025

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046050008

Крепеж

9046724002

Крепеж

91621B0816

Крепеж

91626B0614

Крепеж

91645C1032

Крепеж

9415180641

Крепеж

9613251100

Крепеж

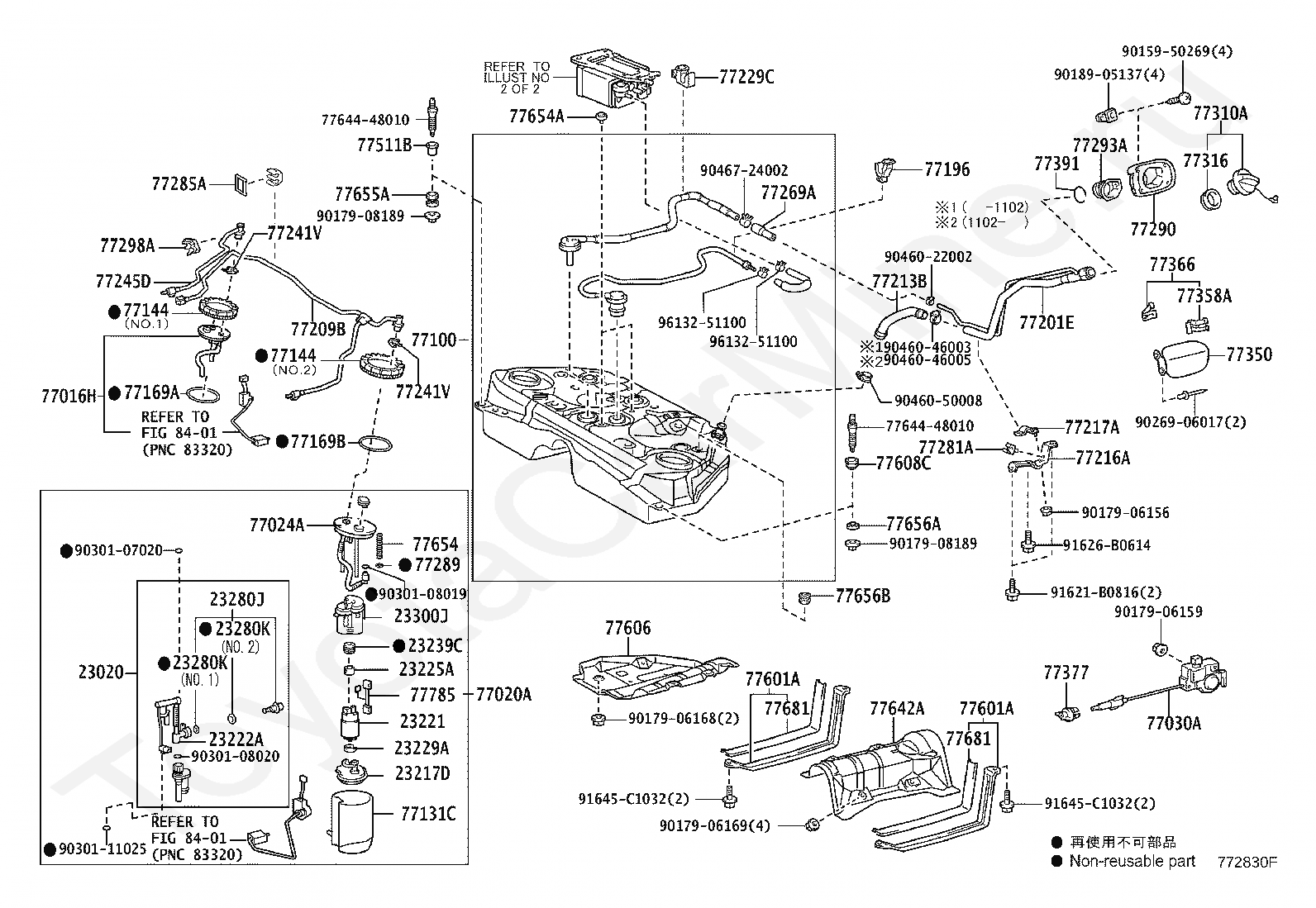

Код

Описание

23020

REGULATOR ASSY, FUEL PRESSURE W/JET PUMP

23217D

FILTER, FUEL PUMP

23221

PUMP, FUEL

23222A

TUBE, FUEL RETURN JET

23225A

SPACER, FUEL PUMP

23229A

CLIP(FOR FUEL PUMP FILTER)

23239C

SEAL, FUEL PUMP FILTER

23280J

REGULATOR ASSY, FUEL PRESSURE

23280K

RING, O(FOR FUEL PRESSURE REGULATOR)

23300J

FILTER ASSY, FUEL

77016H

TUBE SUB-ASSY, FUEL RETURN VENT

77020A

TUBE ASSY, FUEL SUCTION W/PUMP & GAGE

77024A

PLATE SUB-ASSY, FUEL SUCTION

77030A

LOCK ASSY, FUEL LID W/MOTOR

77100

TANK ASSY, FUEL

77131C

SUB-TANK, FUEL, NO.1

77144

RETAINER, FUEL PUMP GAUGE

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77196

CLAMP, EVAPORATION VENT TUBE, NO.1

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77209B

TUBE SUB-ASSY, FUEL PUMP

77213B

HOSE, FUEL TANK TO FILLER PIPE

77216A

SUPPORT, FUEL TANK FILLER PIPE, NO.1

77217A

SUPPORT, FUEL TANK FILLER PIPE, NO.2

77229C

CLAMP, BREATHER TUBE

77241V

CLIP, TUBE JOINT

77245D

TUBE, FUEL TANK RETURN VENT

77269A

HOSE, FUEL TANK BREATHER

77281A

CLAMP, FUEL FILLER PIPE

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77289

HOLDER, FUEL TANK PIPE SETTING

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77293A

SHIELD, FUEL TANK FILLER PIPE, NO.3

77298A

CLAMP, FUEL TUBE, NO.4

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77358A

STOPPER, FUEL FILLER OPENING LID

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77511B

BRACKET, FUEL TANK

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77608C

CUSHION SET, FUEL TANK

77642A

PROTECTOR, FUEL TANK, NO.2

7764448010

Крепеж

77654

CUSHION, FUEL TANK, NO.2

77654A

CUSHION, FUEL TANK, NO.4

77655A

CUSHION, FUEL TANK, NO.5

77656A

CUSHION, FUEL TANK, NO.4

77656B

CUSHION, FUEL TANK, NO.6

77681

SEAT, FUEL TANK BAND, RH

77785

HARNESS, FUEL PUMP

8401

переход к группе запчастей

9015950269

Крепеж

9017906156

Крепеж

9017906159

Крепеж

9017906168

Крепеж

9017906169

Крепеж

9017908189

Крепеж

9018905137

Крепеж

9026906017

Крепеж

9030107020

Крепеж

9030108019

Крепеж

9030108020

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046046005

Крепеж

9046050008

Крепеж

9046724002

Крепеж

91621B0816

Крепеж

91626B0614

Крепеж

91645C1032

Крепеж

9613251100

Крепеж

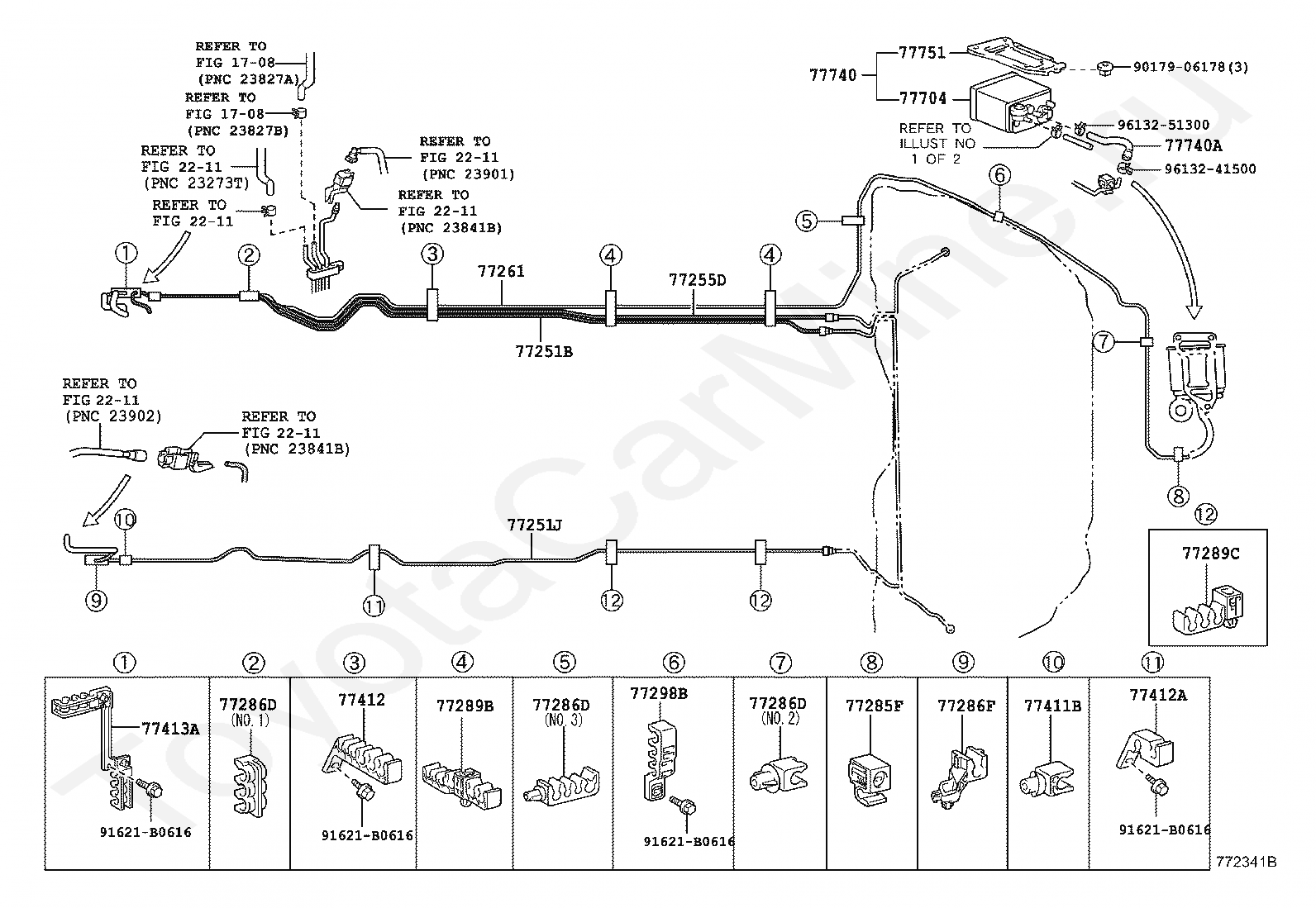

Код

Описание

1708

переход к группе запчастей

2211

переход к группе запчастей

77251B

TUBE, FUEL MAIN

77251J

TUBE, FUEL MAIN, NO.1

77255D

TUBE, FUEL RETURN

77261

TUBE SUB-ASSY, FUEL EMISSION

77285F

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286F

CLAMP, FUEL TUBE, NO.2

77289B

CLAMP, FUEL TUBE, NO.3

77289C

CLAMP, FUEL TUBE, NO.4

77298B

CLAMP, FUEL TUBE, NO.4

77411B

SUPPORT, FUEL TUBE GROMMET, NO.1

77412

SUPPORT, FUEL TUBE GROMMET, NO.2

77412A

SUPPORT, FUEL TUBE GROMMET, NO.2

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77704

CANISTER SUB-ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77751

BRACKET, CHARCOAL CANISTER BASE

9017906178

Крепеж

91621B0616

Крепеж

9613241500

Крепеж

9613251300

Крепеж

Топливный бак и горловина TOYOTA CROWN, 2008/02 - 2010/02, 3,5 литра, 24 клапана, DOHC, EFI, ATHLETE,ATHLETE FOUR TYPE, GRS204
